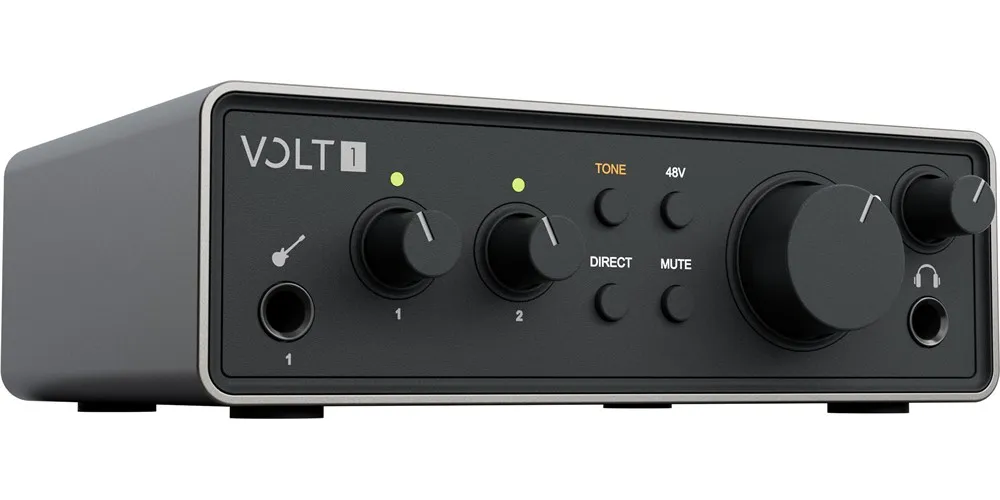

Universal Audio Volt 1 Gen 2

Universal Audio Volt 1 Gen 2 – USB Audio Interface

Universal Audio Volt 1 Gen 2 is a compact and portable 2-in/2-out USB audio interface for artists, content creators, and podcasters. With 32-bit/192 kHz audio conversion, a Tone Shaping Preamp with three selectable modes, and a dedicated Hi-Z instrumentinput, it provides detailed recording with analog character.

Key Features

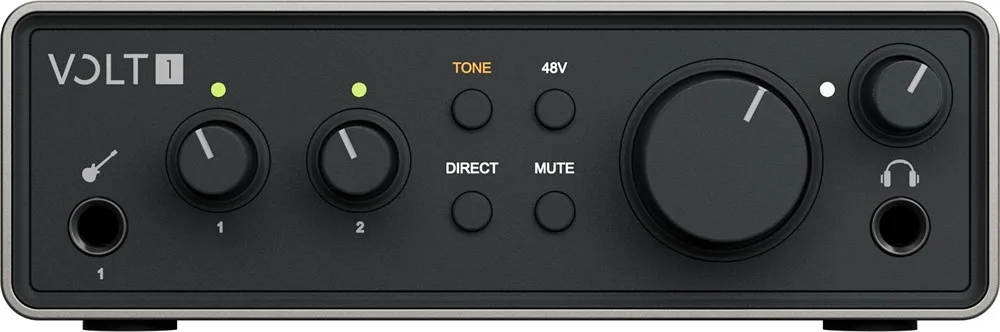

Tone Shaping Preamp with Warmth, Focus, and Shine modes
32-bit/192 kHz A/D and D/A audio conversion
2 in / 2 out with simultaneous recording and playback
1 x Mic/Line/Instrument input via XLR/TRS combo connector
60 dB gain and switchable +48V phantom power
1 x 1/4" TS Hi-Z instrument input
1 x 1/4" TRS line input via combo jack
Built-in Loopback for livestreaming, podcasts, and video calls
High-output headphone amplifier

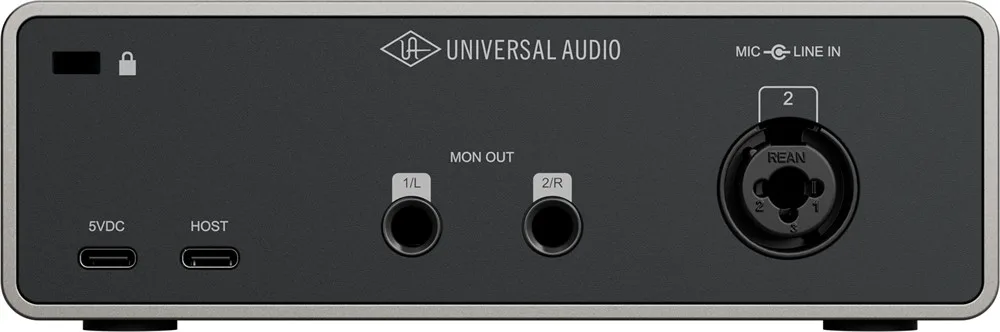

2 x balanced 1/4" TRS monitor outputs
USB 2.0 with USB-C connection
USB bus-powered with dedicated 5 V DC power input
Class-compliant operation for Mac, Windows, iPad, and iPhone
Supports all major DAWs
Compact desktop form factor

Sound and Recording

The Tone Shaping Preamp features three selectable modes: Warmth, Focus, and Shine, allowing analog character to be added during recording. The updated 32-bit/192 kHz audio converters preserve recording detail, while the headphone amplifier and monitor outputs provide clear, latency-free monitoring.

Loopback for Streaming

The built-in Loopback feature allows microphone audio to be combined with computer audio sources such as background audio, gaming sound, or video playback.

UAD Software and LUNA

Volt 1 Gen 2 includes Universal Audio's LUNA Digital Audio Workstation along with a selection of UAD plug-ins and instruments.

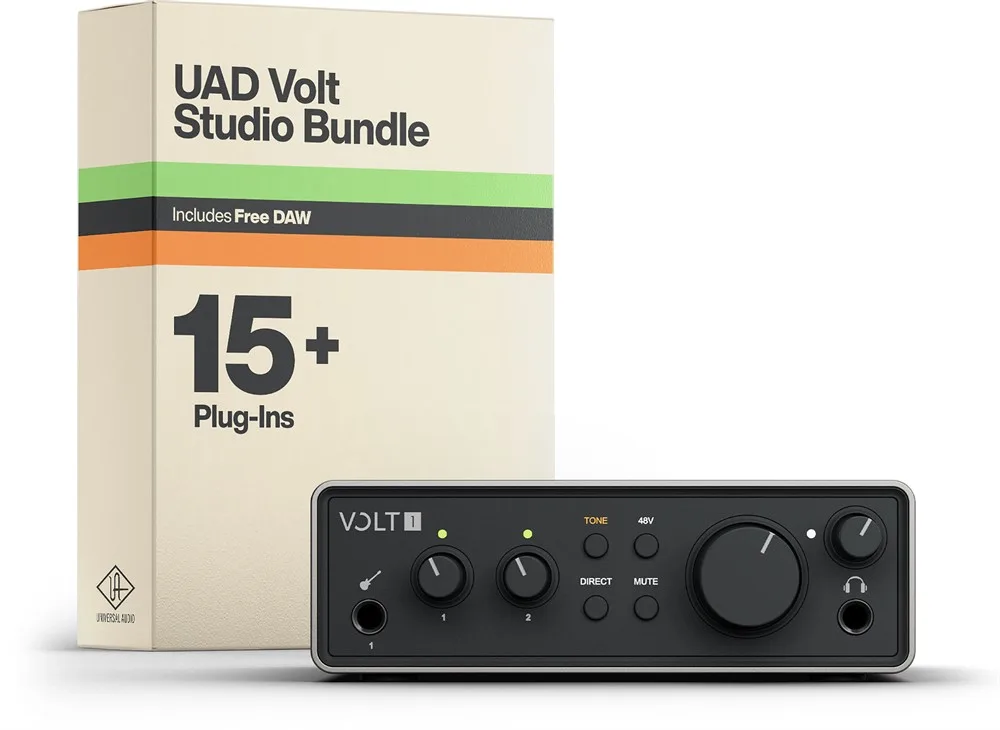

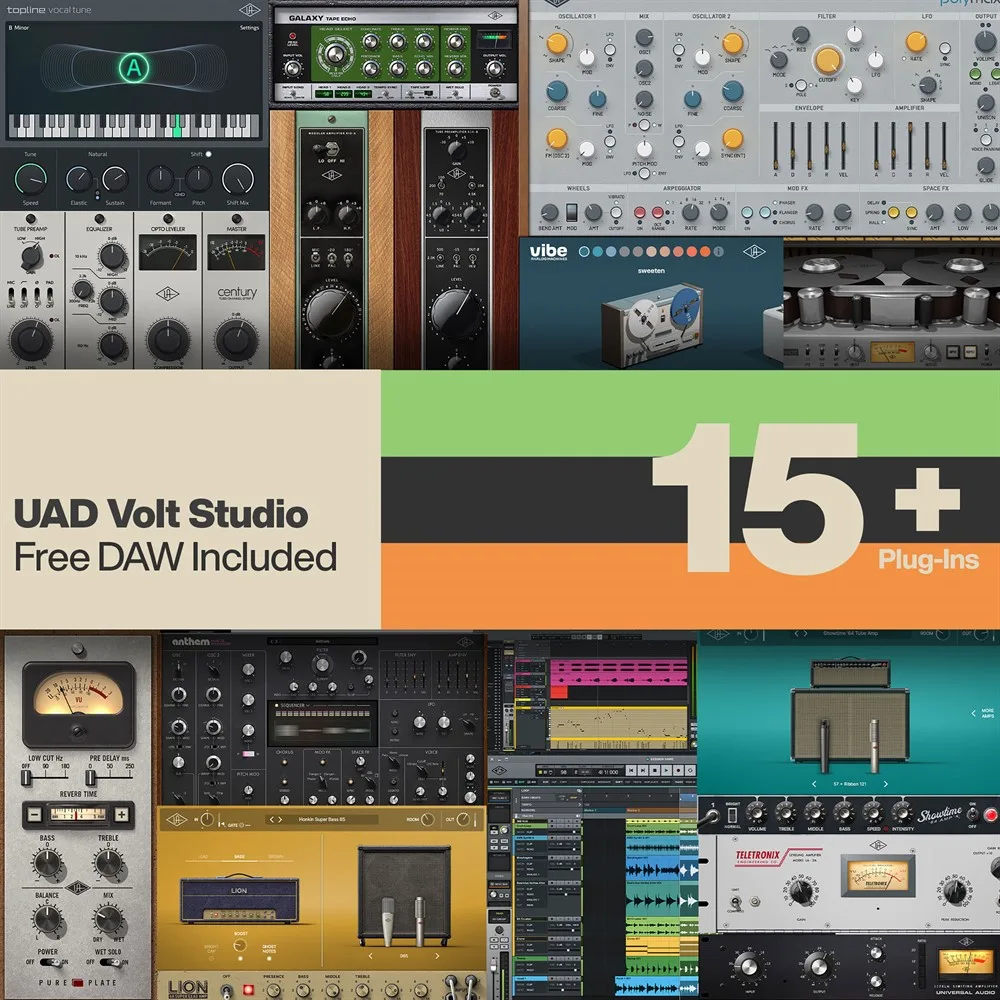

UAD Volt Studio Bundle

LUNA Digital Audio Workstation
Topline Vocal Tune
UA 610 Tube Preamp & EQ Collection
Century Tube Channel Strip
Teletronix LA-2A Tube Compressor
UA 1176 Classic FET Compressor
Pure Plate Reverb
Galaxy Tape Echo
Oxide Tape Recorder
Vibe Analog Machines
PolyMAX Synth
Anthem Analog Synth
UAD Lion ’68 Super Lead Amp
UAD Showtime ’64 Tube Amp

Additional Software

Melodyne Essential by Celemony
Ampeg SVT-VR Classic Bass Bundle by Plugin Alliance
Ampeg SVT-VR Classic, bx_Tuner, and bx_Masterdesk_Classic
Virtual Drummer DEEP by UJAM
Virtual Bassist DANDY by UJAM
Splice INSTRUMENT
Prisma - Producer Lab by UVI
FL Studio Producer Edition, 3 months free

Specifications

Connectivity: USB-C, USB 2.0
Power: USB bus-powered with dedicated 5 V DC power input
Simultaneous I/O: 2 in / 2 out
A/D Conversion: 32-bit/192 kHz
Preamp: 1 x Mic/Line/Instrument, XLR/TRS combo connector, Tone Shaping, 60 dB gain, switchable +48V phantom power
Instrument Input: 1 x 1/4" TS Hi-Z
Line Input: 1 x 1/4" TRS via combo jack
Analog Outputs: 2 x 1/4" TRS balanced monitor outputs, DC coupled, 122 dB dynamic range
Headphone Output: 1 x 1/4" TRS stereo
Digital I/O: No
Form Factor: Compact desktop
Compatibility: macOS 12+, Windows 10 (64-bit)+, iOS/iPadOS 16+
DAW Compatibility: Supports all major DAWs
