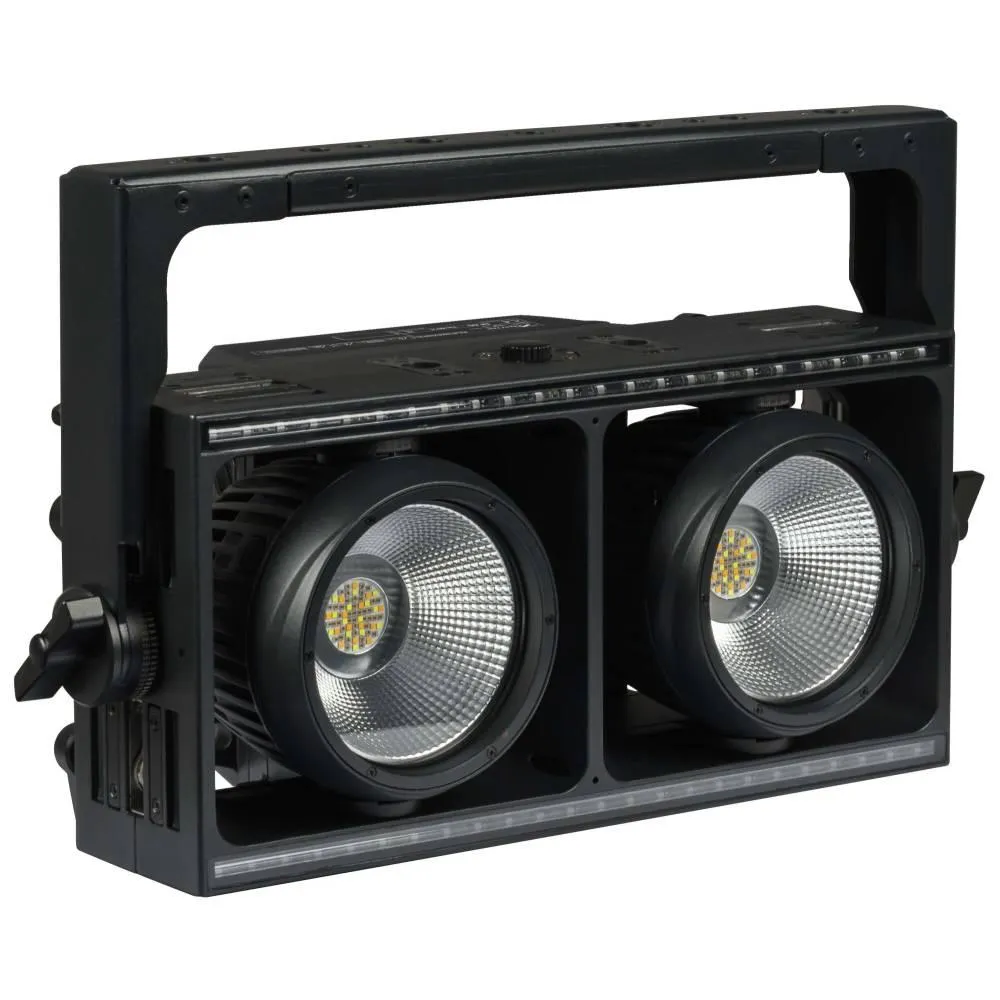

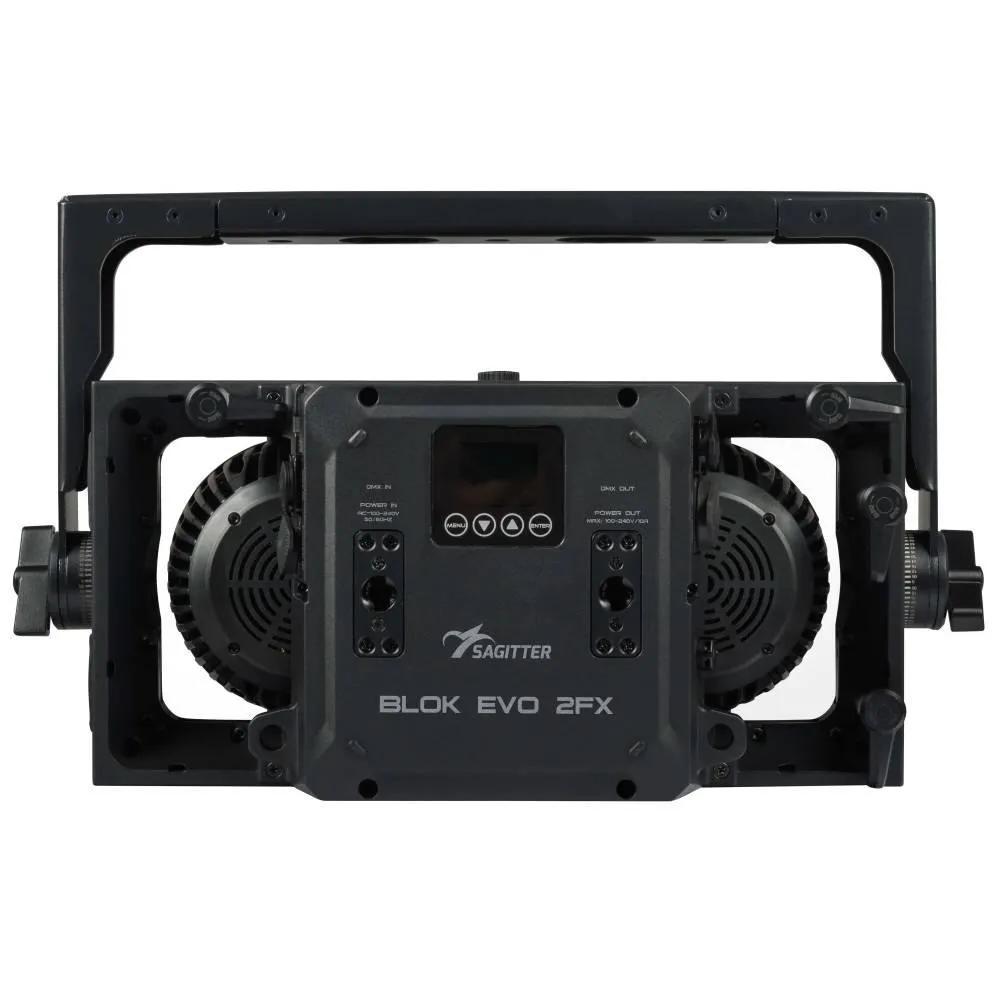

Sagitter Blok EVO 2FX

Light source 2 × 400 W RGBAL COB LED
2 × Tunable White linear LED strips with 8 individual sections
CRI/Ra≥84
Optic system Beam angle: 50° without lenses, 37° with Fresnel lens and 45° with frost lens
Luminous flux of FULL ON: 1126 lx @ 5m without lenses
Luminous flux of FULL ON: 1630 lx @ 5m with 37° Fresnel lens
Luminous flux of FULL ON: 930lux @ 5m with 45° frost lens
Color system RGBAL LEDs (cells)
Warm White 2400K and Cold White 4900K LEDs (strips)
Effects 16-bit dimmer
Dimmer curves: 4 selectable dimming curves available
Halogen dimming speed emulation
Red Shift function (tungsten dim-to-warm emulation)
High speed electronic strobe, pulse, single sectors FX with adjustable speed, duration and rate
26 dynamic patterns with adjustable speed, direction and fades
Virtual color wheel with 109 numeric gel filters presets
CTC from 1750K to 20000K (cells)
CTC from Warm White to Cold White (strips)
Selectable PWM: adjustable from 1000 Hz to 25 KHz
Emergency mode: editable dimmer level, color or color temperature when DMX signal is lost
Control and programming 25 DMX channel modes
Protocol USITT DMX 512, RDM
Strips and cells mapping swap via DMX
Master/Slave mode
Structure and cabinet Die cast aluminium housing
LCD graphic display
Quick-release anchor points, on-board mechanics for stacking multiple devices
Pan directional adjustment for each cell: +/- 20° with manual control
Mounting points: 2 pairs of 1/4-turn locks omega bracket
IP rating: IP65
DMX 5-poles XLR IN/OUT IP65 connectors
Low-noise controlled cooling system
Power supply Input Voltage: AC~100-240V, 50/60 Hz
Switching power supply unit
Max power: 700W @ 230VAC
Seetronic X Series IP65 Power Connectors IN/OUT
Power supply cable 1,0 mt included
Weight and dimensions Net weight: 9,0 kg
Dimensions: 400x200x200 mm (without bracket)
