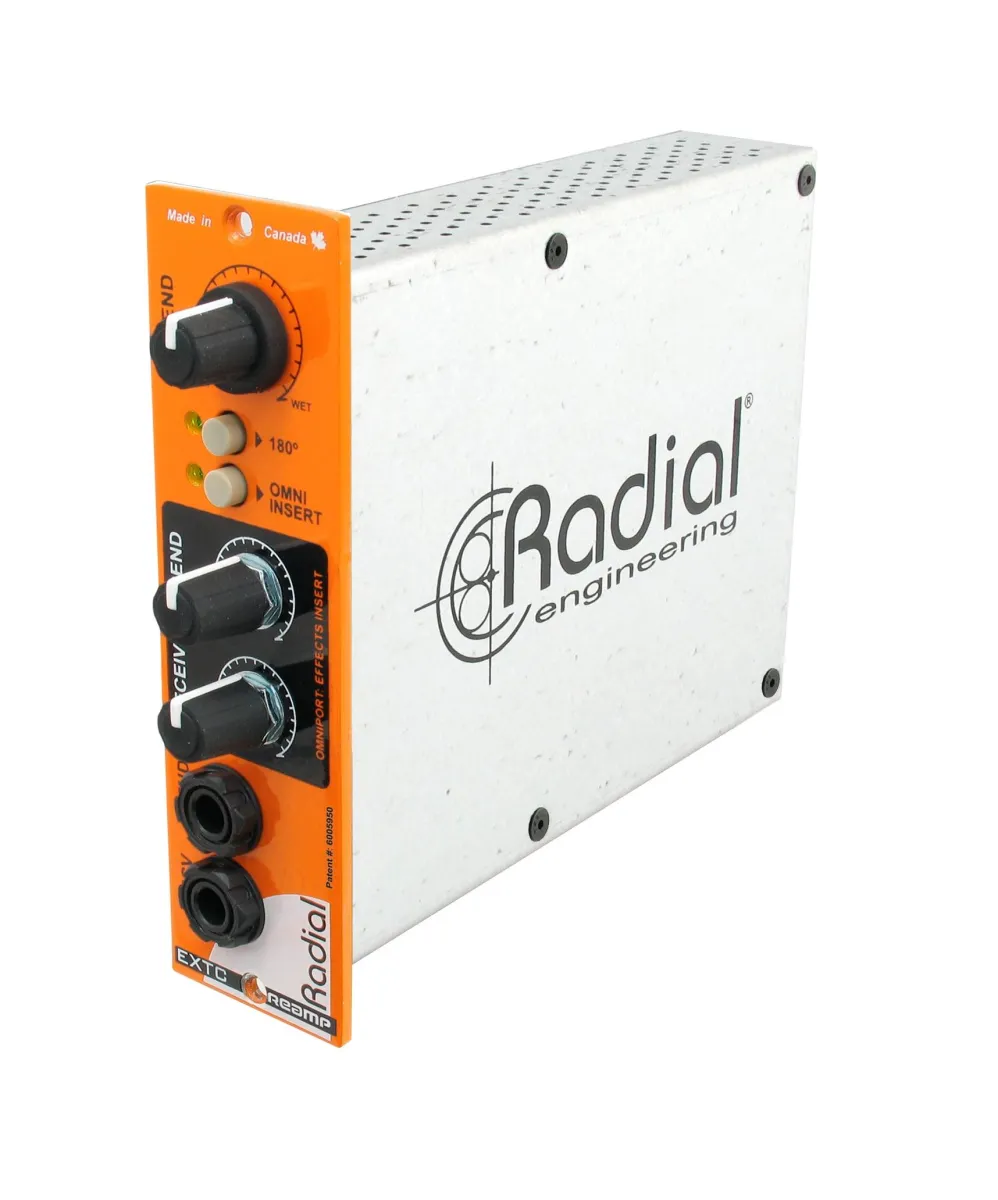

Radial EXTC 500 Guitar Effects Interface

Guitar Effects Interface & Reamp® Module
The Radial EXTC is a unique 500 series module that allows you to connect guitar pedals to the inputs and outputs of pro audio equipment, providing the ability to incorporate effects pedals into your mix in new and creative ways.

Balanced interface for guitar effects pedals
Separate send & receive level controls optimize signal path
Transformer isolation to eliminate hum and buzz from ground loops
Creative tool incorporates effects pedals into your mix

Specifications
Audio circuit type: Solid state with transformer coupled effects loop
Frequency response: Dry: 10Hz ~ 21kHz 0dBu, -3dBu | Wet: 10Hz ~ 21kHz 0dBu, -3dBu
Dynamic range: Dry: 94dB | Wet: >99dB
Gain: Dry: +5dB | Wet: +27dB
Total harmonic distortion: Dry: <0.0006% 0dBu output | Wet: <0.0012% 0dB output
Intermodulation Distortion: Dry: -117dBu | Wet: -110dBu
Signal to Noise: Dry: 94dB | Wet: >99dB
Maximum Input: Dry: +26dBu | Wet: +20dBu
Current Draw: 60mA, +/-16VDC

Features
180° polarity reverse, OmniPort
Input Connectors: 1/4", XLR
Output Connectors: 1/4", XLR
