dB Technologies ES503

dB Technologies ES503 – Portable 1000W 3-way PA system with flexible mono/stereo configuration

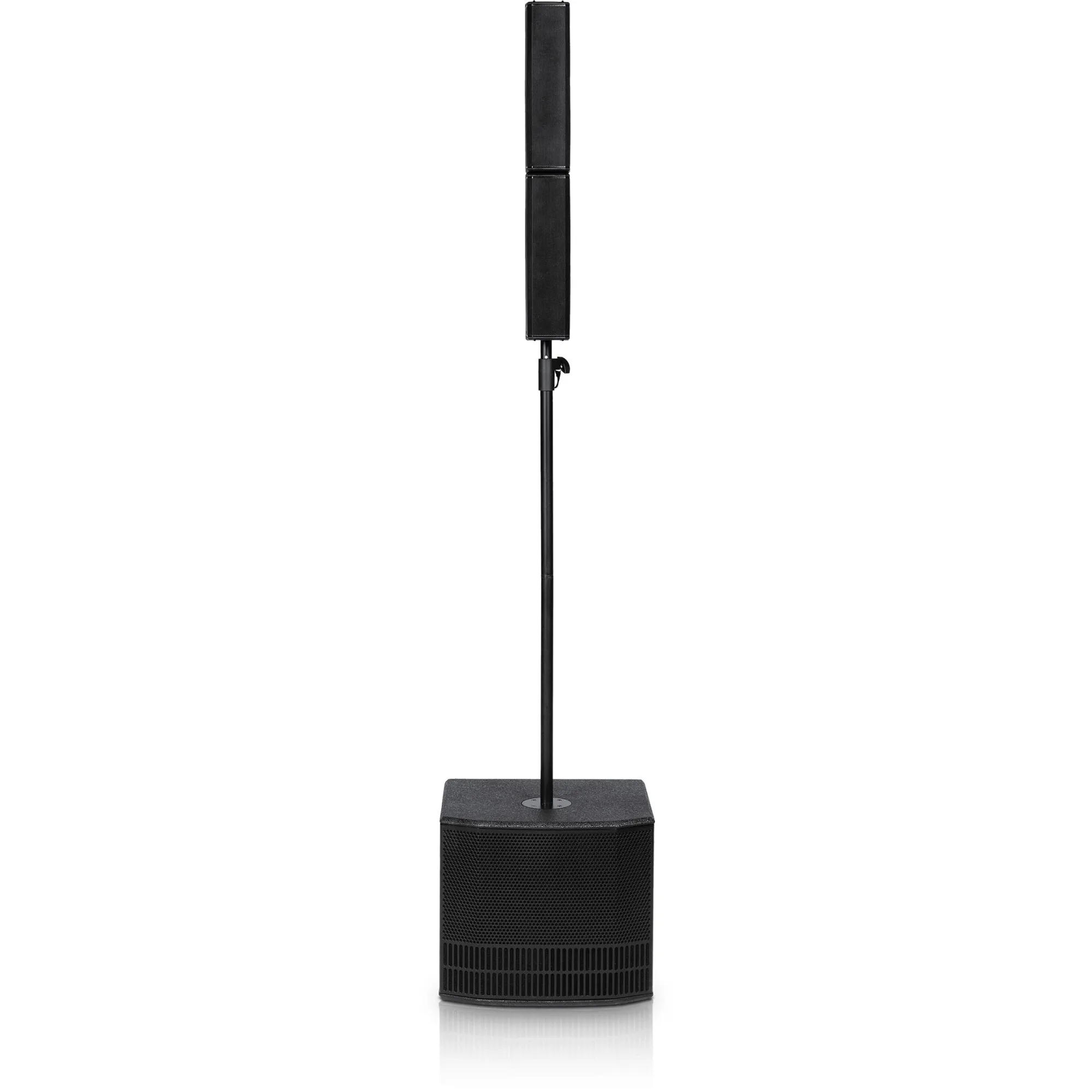

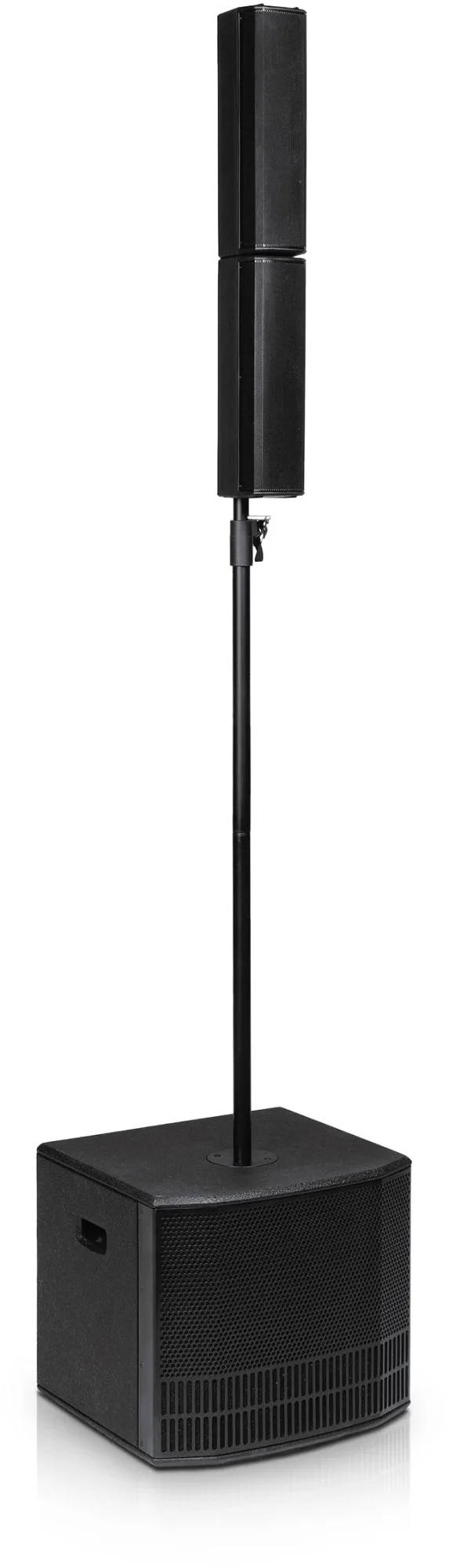

The dB Technologies ES503 is a powerful, portable, and versatile sound system designed for musicians, DJs, speakers, and event venues where high sound quality and flexibility are essential. The system consists of two lightweight and portable satellites (4 × 3” full-range) and a 12” active subwoofer that together deliver up to 121 dB SPL. Its compact size and modern design make the ES503 one of the most versatile portable solutions in its class.

The subwoofer is equipped with a 1000 W Peak DIGIPRO G3® Class-D amplifier and features a built-in 3-channel mixer with a Bluetooth® receiver. The top units’ Logarithmic Curved Column Array technology ensures both wide horizontal dispersion and asymmetrical vertical coverage, providing clear voice reproduction and even sound distribution—whether the audience is seated or standing.

The ES503 can be used in three different configurations (Mono, Stereo, and Double Column Mode), making the system adaptable for everything from small meetings to larger live performances. In Double Column mode, two ES503 systems can be linked together, with one acting as the master via the balanced output and controlling the entire setup via its OLED display.

Features
1000 W Peak DIGIPRO® G3 Class-D amplifier
Stand socket diameter: 25 mm

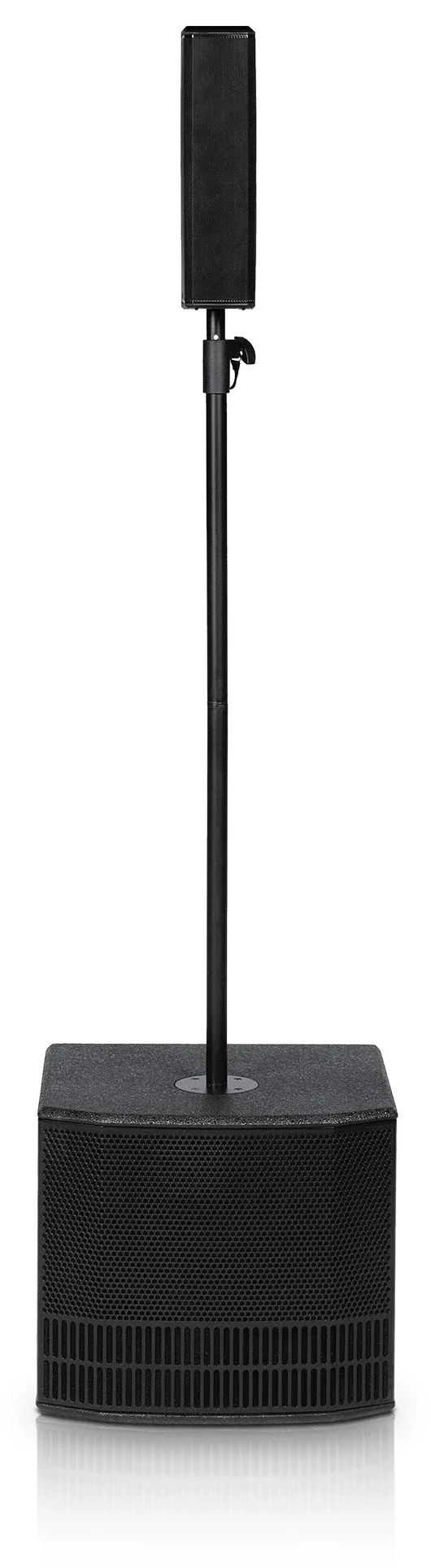

1 two-piece stand tube between subwoofer and top included (25 mm diameter)

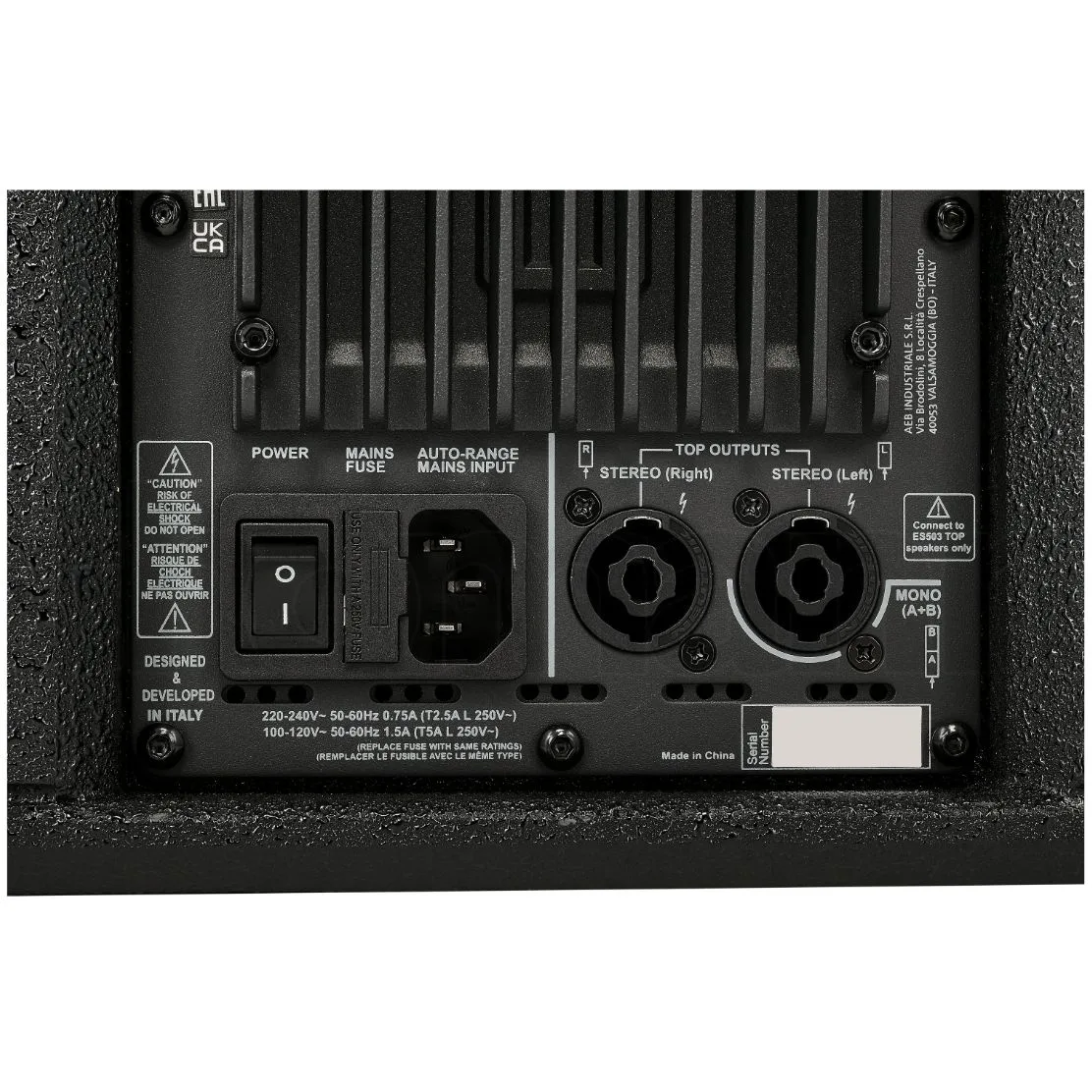

1 Speakon cable between subwoofer and top included (2.5 m)
Wide coverage with Logarithmic Curved Column Array technology
Built-in 3-channel mixer with Bluetooth® audio receiver
Three system modes: Mono Mode, Stereo Mode, and Double Column Mode
Excellent speech intelligibility and even dispersion for both seated and standing audiences

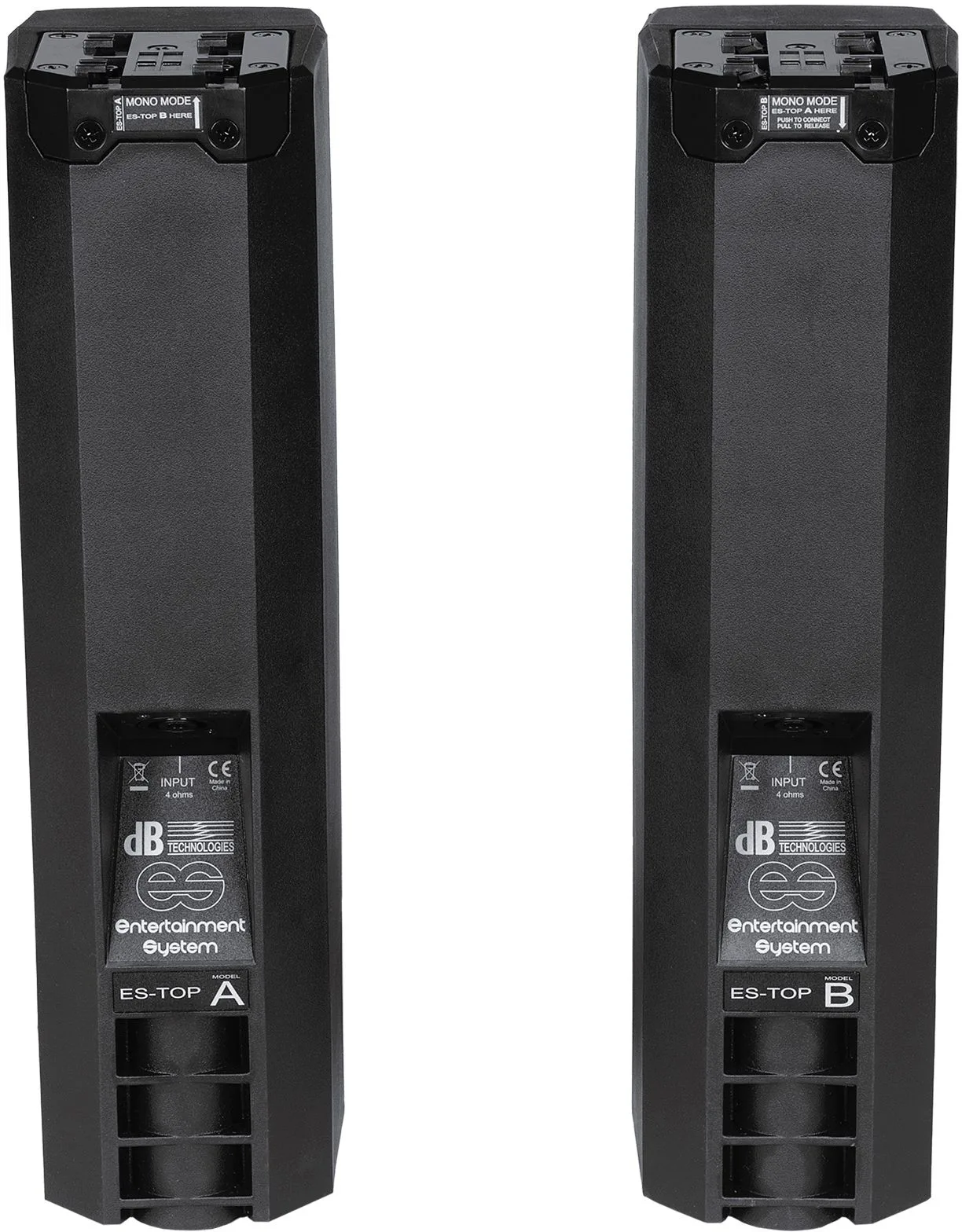

Robust birch plywood subwoofer and lightweight polypropylene tops
OLED display and intuitive DSP control
Max SPL 121 dB

Specifications
System type: 3-way stereo PA system (2 tops + 1 sub)
Frequency response (-10 dB): 37–15,000 Hz
Max SPL: 121 dB

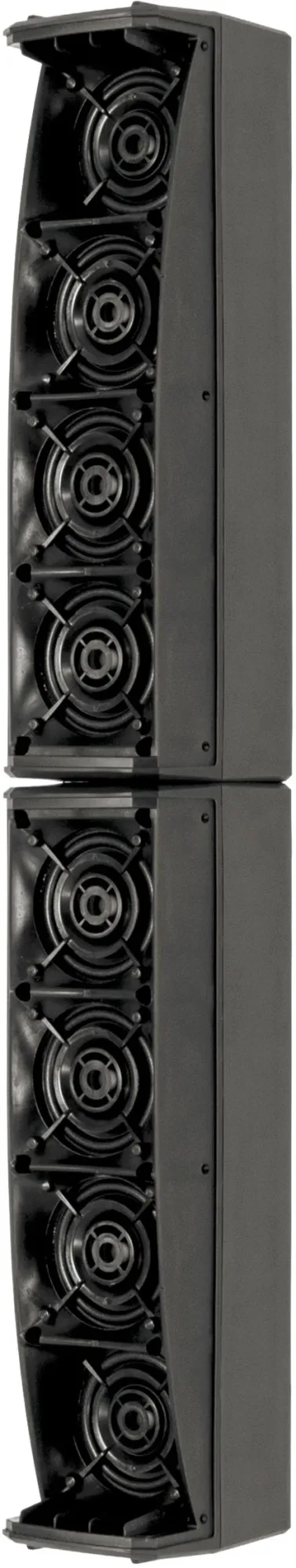

HF/MF: 8 × 3”
LF: 12” subwoofer
Coverage: 95 × 65°
Amplifier: DIGIPRO® G3 Class-D, 1000 W Peak
DSP: 24-bit / 48 kHz, system presets
Crossover: 206 Hz (LF–HF)

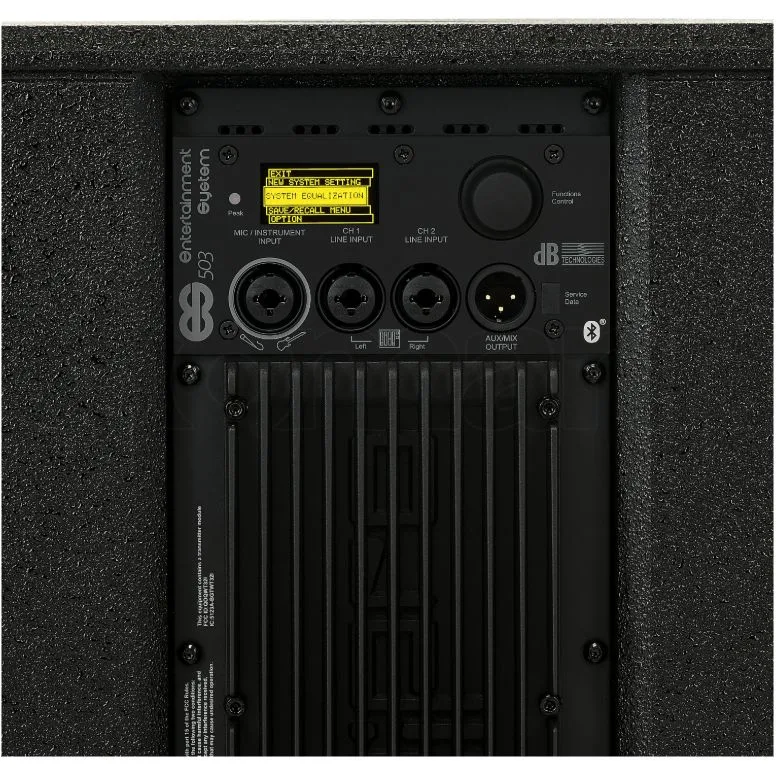

Inputs: 1 × Mic/Instrument (XLR/Jack), 2 × Line (XLR/Jack), Bluetooth®
Mix Output: 1 × XLR (balanced)

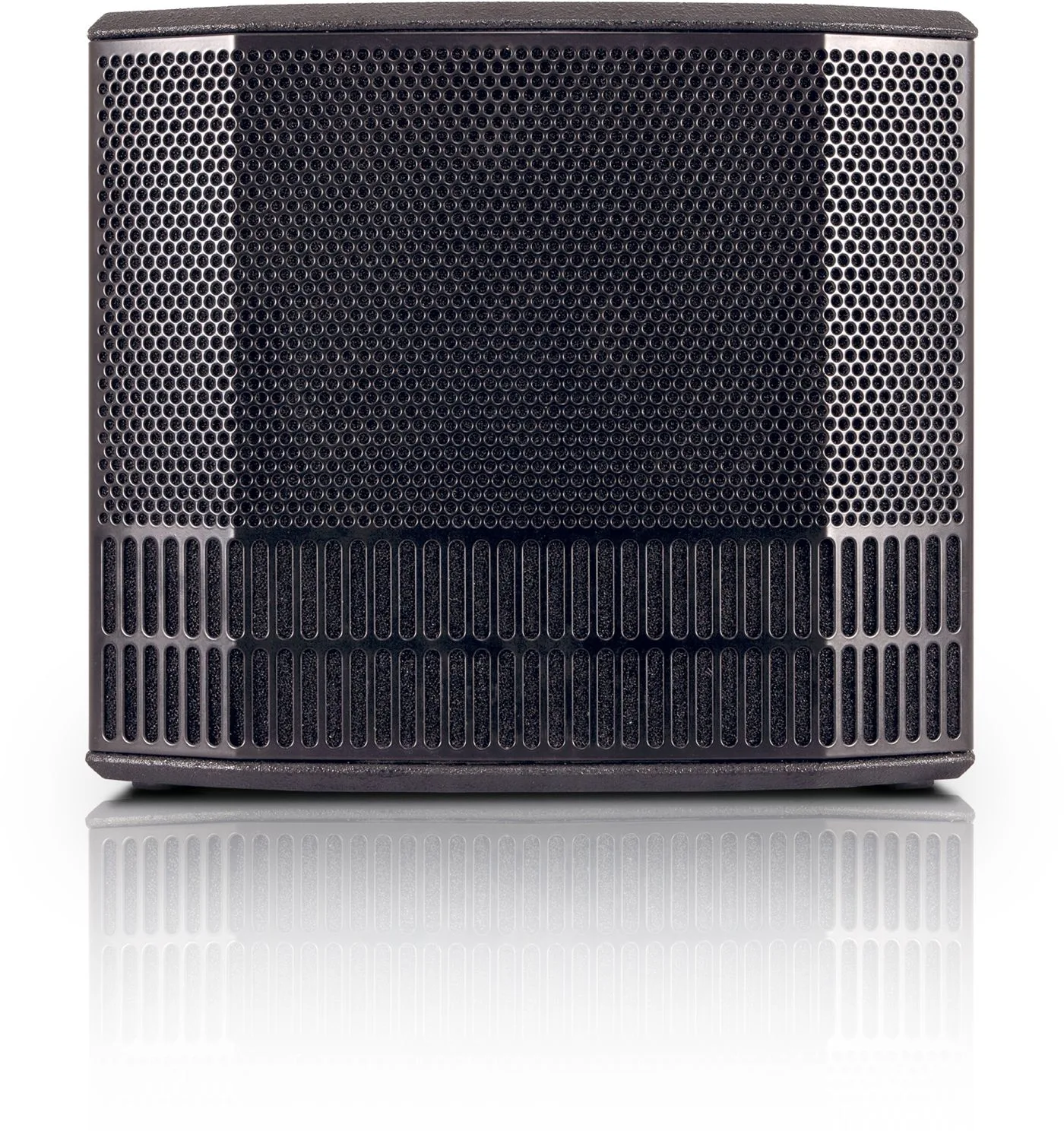

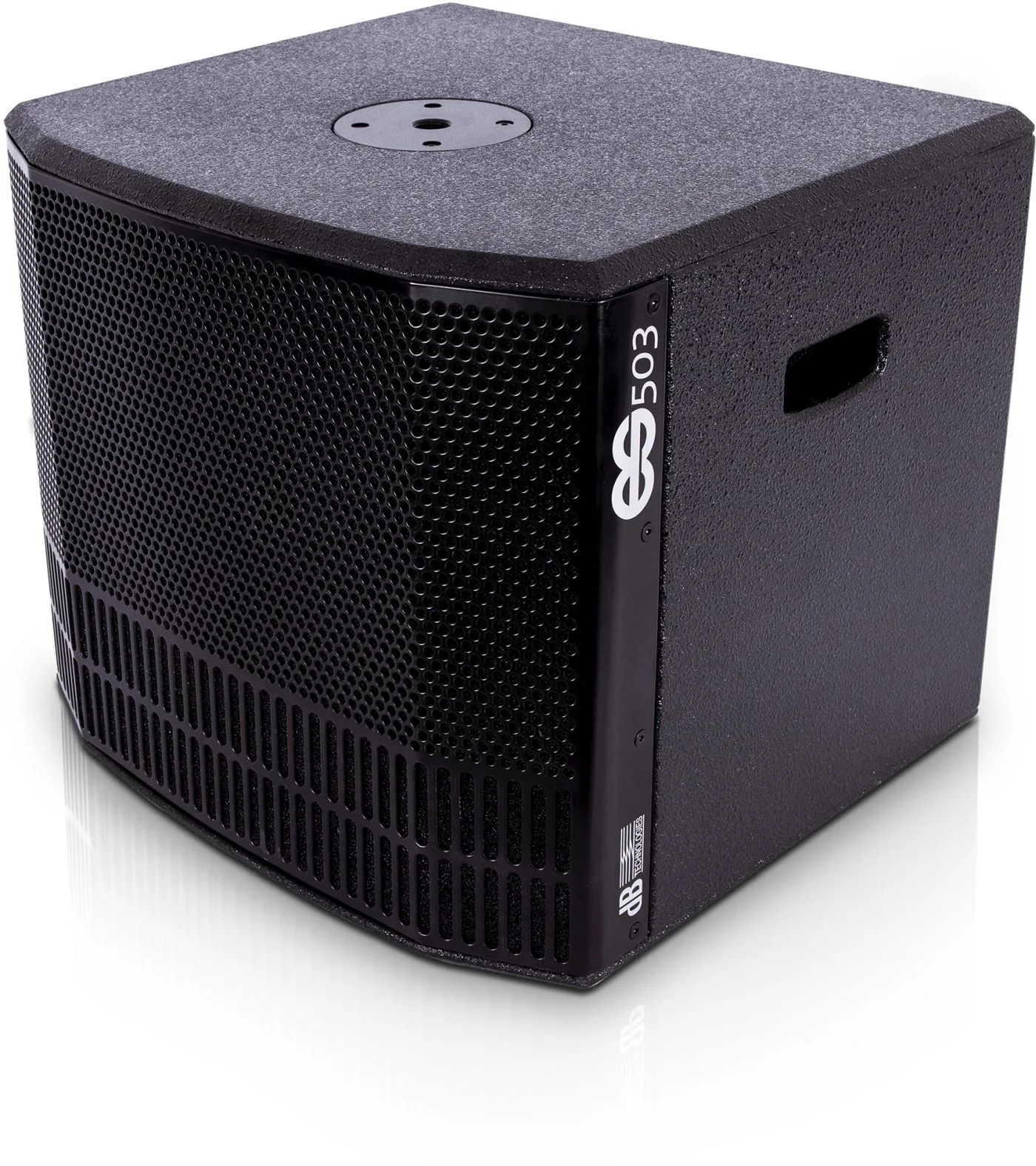

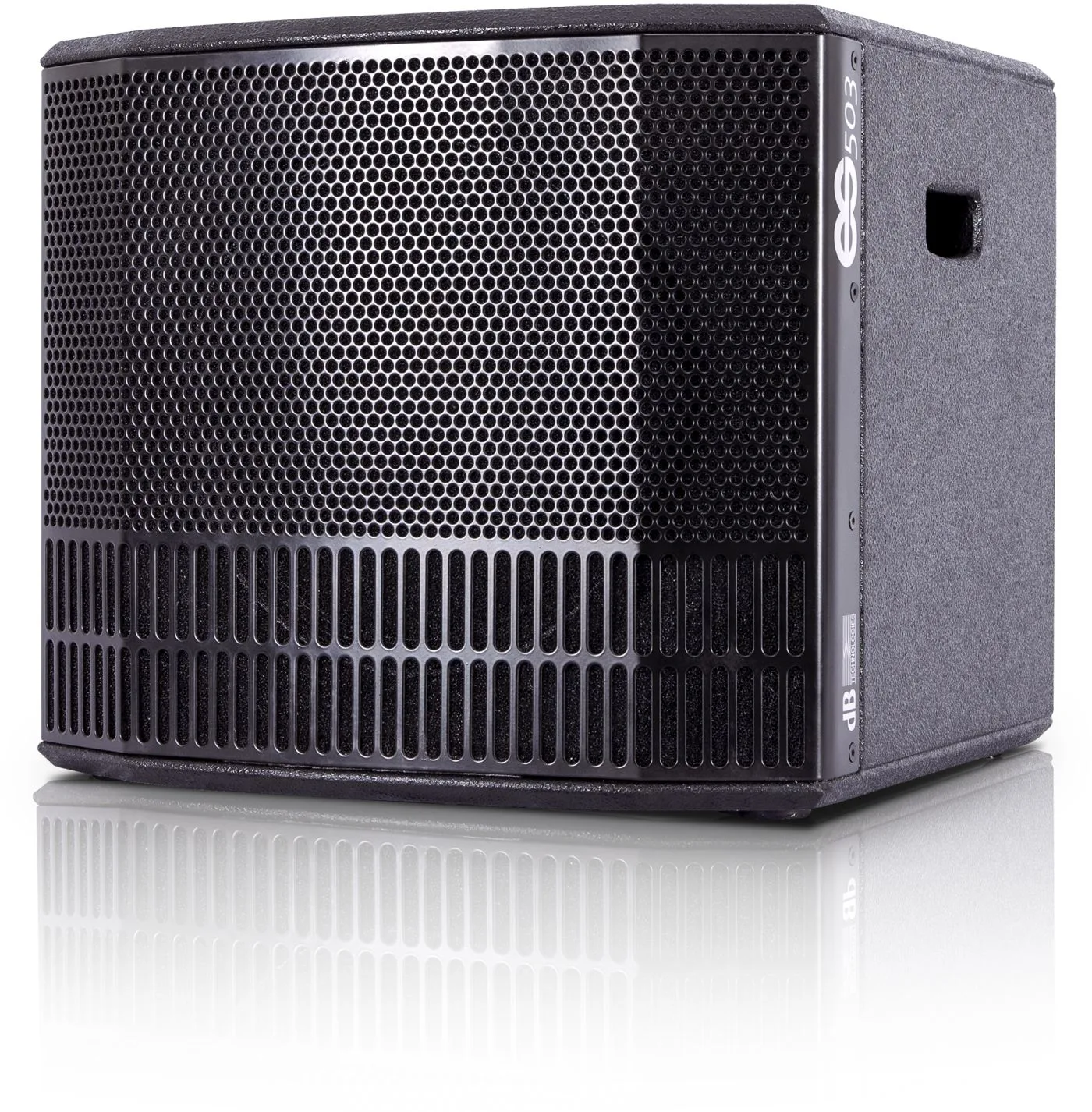

Subwoofer cabinet: 15 mm birch plywood

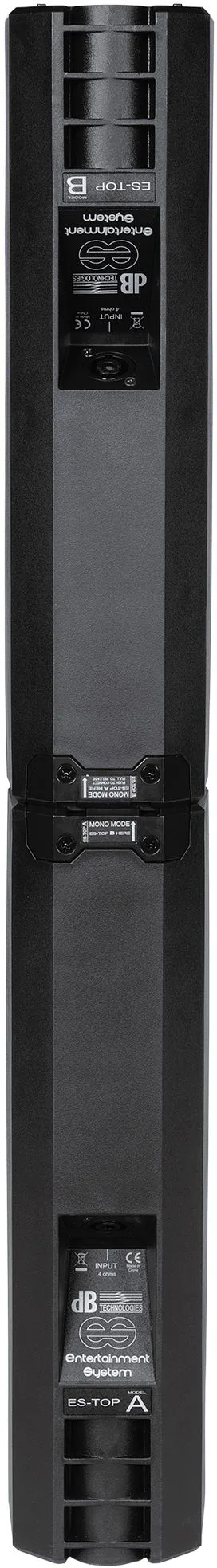

Top Cabinet: Polypropylene
Handles: 2 on subwoofer
Top Dimensions: 95 × 360 × 137 mm
Subwoofer Dimensions: 465 × 400 × 430 mm
Top Weight: 1.9 kg
Subwoofer Weight: 16.4 kg

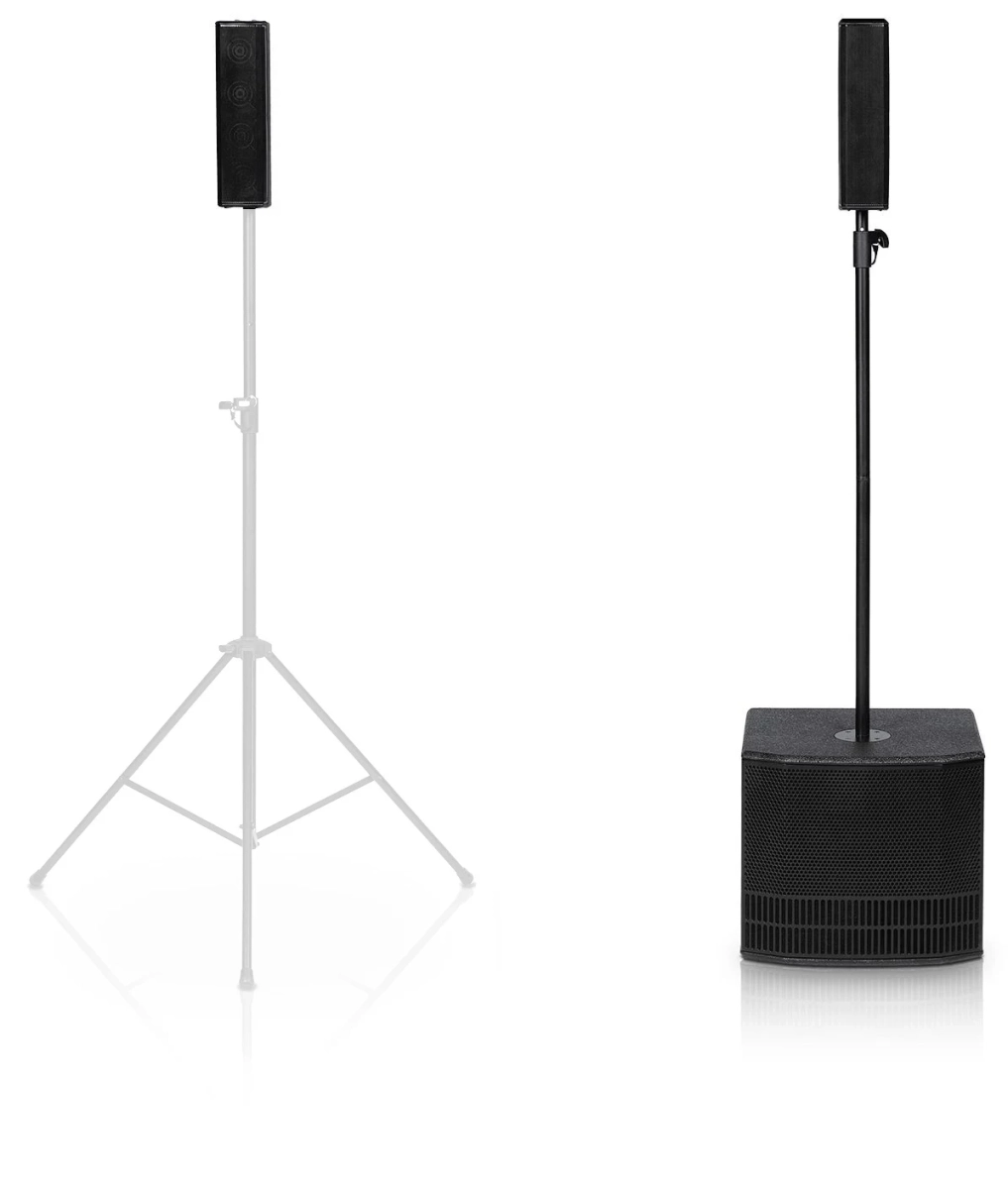

Note: Floor stands shown in images are not included
