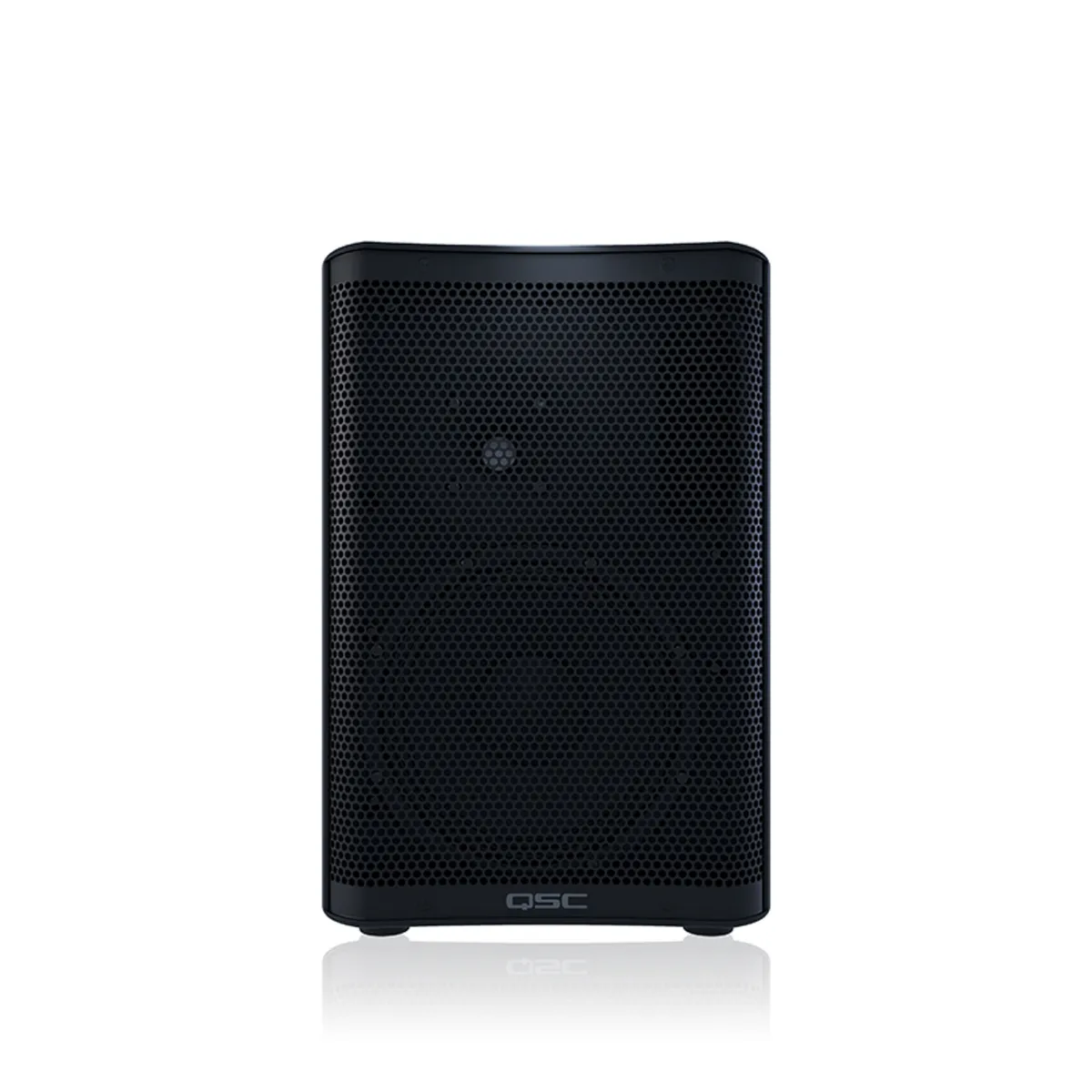

QSC CP8

High performance, superior quality and lasting reliability.
These are the hallmarks of the QSC brand and the reason why millions of professionals the world-over have come to trust QSC to help them confidently deliver superior experiences and memorable performances. The CP Series follows in that same tradition while also offering an ultra-compact form factor and class-leading value.

Features
Compact and powerful performance
1000 Watt peak power Class-D amplifier module
Easily selected contours for commonly-used applications
Advanced DSP with Intrinsic Correction™ for superior sound quality and speaker protection
Directivity Matched Transition™ (DMT) for consistent frequency response across the entire coverage area
Light weight and highly portable
Professional appearance looks great in any application
Use for main PA, stage monitor, or instrument amplifier
35 mm pole socket
Optional yoke, tote, and outdoor cover accessories
Complete EASE and CAD information available online
3-Year Warranty*

Model CP8
Configuration Two-way active loudspeaker
LF Transducer: 8 in (203 mm), cone
HF Transducer: 1.4 in (35.6 mm) compression driver
Frequency Response (-6 dB) 56 - 20 kHz
Frequency Range (-10 dB) 53 - 20 kHz
Nominal Coverage Angle: 90° Axisymetric
Maximum Rated SPL1: 124 dB
Amplifier: Class D
Peak: 800 W (LF), 200 W (HF)

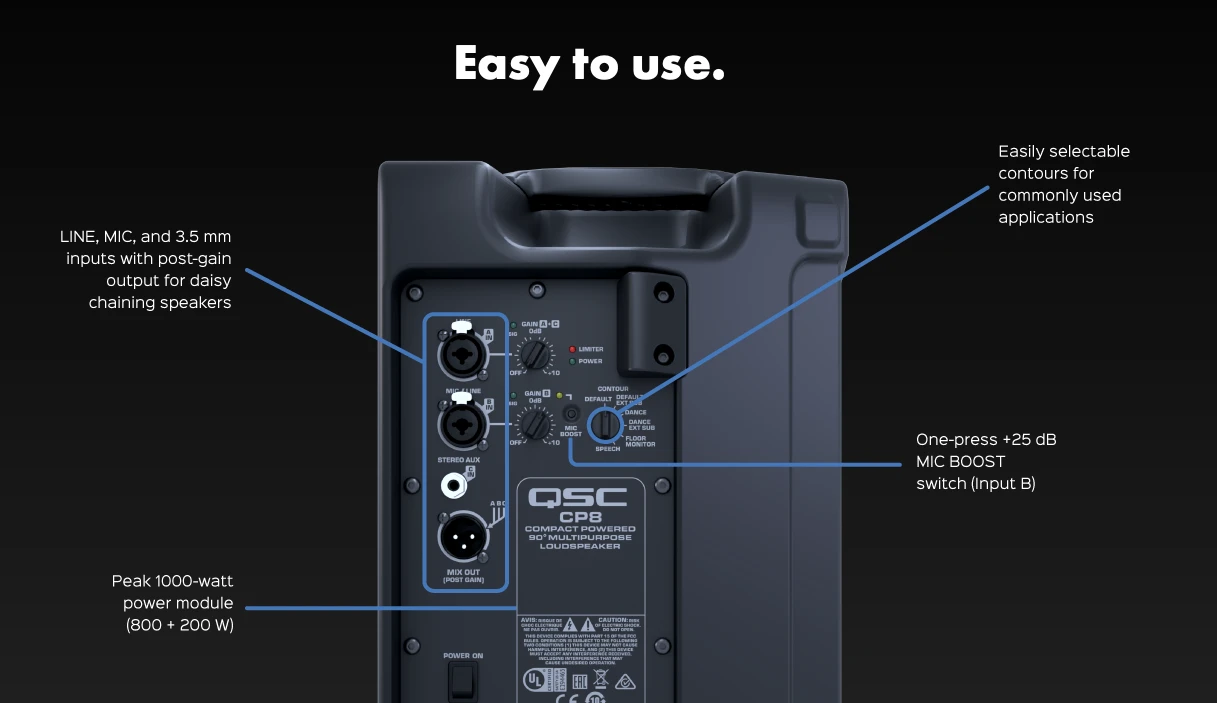

Controls: Power
2 x Gain
Mic Boost Push Switch
6-way Contour Selection Switch
Indicators: Power LED
2 x Input Signal LED
Input B MIC selected LED
Limiter active LED

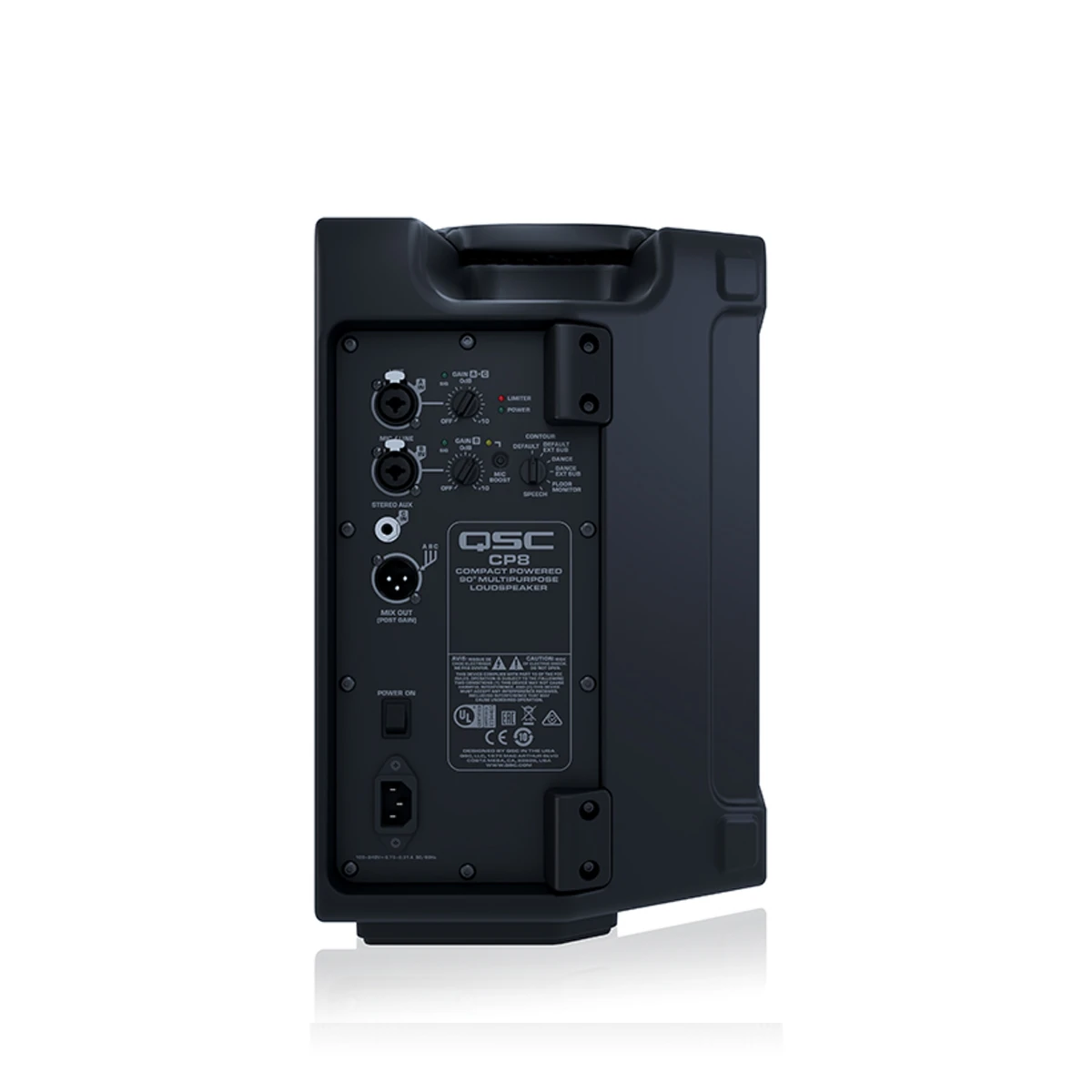

Connectors: 2 x locking XLR/F ¼” combo (Line Input and Mic/Line input)
1 x 3.5 mm TRS (Stereo Input)
1 x XLR/M (Mix Output)
1 x IEC power connector
AC Power Input: Universal power supply 100 – 240 VAC, 50 – 60 Hz
AC Power Consumption 1/8th Power: 100 VAC, 0.75A / 120VAC, 1.0A / 240VAC 0.31A
Enclosure Material: Polypropylene
Attachment Points: M10 threaded insert
Color: Black (RAL 9011)
Grille: 18 Gauge powder-coated steel
Dimensions (HxWxD): 16.2 x 10.7 x 10.1 in
411 x 273 x 256 mm
Net Weight: 21.0 lbs (9.5 kg)
Shipping Weight: 25.5 lbs (11.4 kg)
Regulatory: EMC, UL, CB
Optional Accessories: CP8 Tote, CP8 Outdoor Cover, CP8 Yoke
