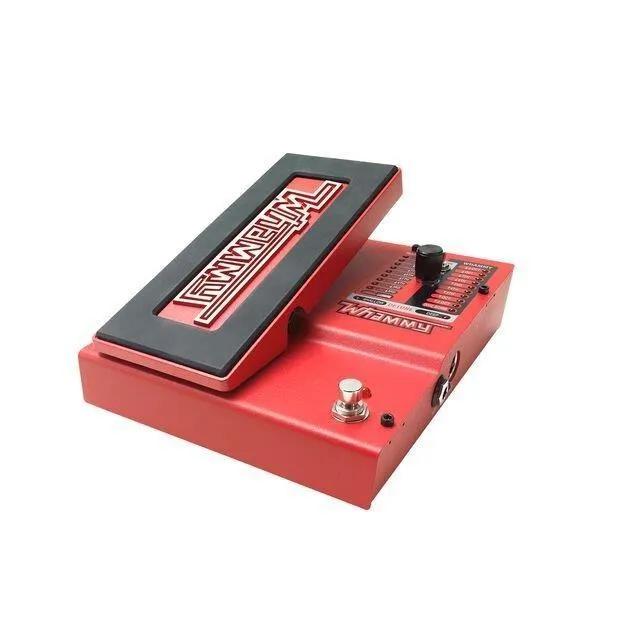

DigiTech Whammy V

The legendary Whammy pedal is the premier pitch-shifting pedal for any guitarist’s board, and it only gets better with time. In addition to the classic Whammy sound, we’ve added chordal Whammy pitch-shifting and true bypass.

Whammy artists have won over 60 Grammys® using its unique pitch-shifting sound to enhance their music. Its songs echo the hallways of the Rock & Roll Hall of Fame® and generate acclaim on over 700 million albums around the world. There is no doubt why Whammy is one of the most common sights on guitarists’ pedalboards.

The Whammy can bring new depth to your artistry. Turn your solo into raging, rebellious screams of tone or tame your crowd with highly expressive, ambient chordal bends. Energize your audience with a scratchy note frenzy, bring them in and out of the sound tunnel with musical bursts, or carry them through an existential exploration of full-fretboard pitch translation. The Whammy puts expression into the expression pedal.

Don't be the last guitarist without a Whammy! The iPB-10 unleashes the ability to create and control guitar effects like never before.



General Specifications
Sample Rate44.1 kHz
Frequency Response20 Hz to 20 kHz
Signal to Noise Ratio> -105 dB (A weighted); ref = max level, 22 kHz bandwidth
THD0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
A/D Conversion24 bit
D/A Conversion24 bit
Power Consumption2.4 Watts (< 265 mA @ 9 VDC)
Power Adapter9 VDC External Adapter
Dimensions
Height2.5"
Width6.5"
Depth7.75"
Audio Output
Output Type1/4” Unbalanced TS
Max Output Level+10 dBu
Output Impedance1 kΩ
Audio Input
Instrument Input Type1/4” Unbalanced TS
Max Input Level+5 dBu
Input Impedance1 MΩ
MIDI Input5-Pin Din
