Yamaha DXR10 Black MK3

The DXR10 mk3 is a 2-way, bi-amped, powered loudspeaker and is the most compact model in the series, delivering exceptional clarity, precision, and a powerful 132 dB SPL output. Thanks to its compact, lightweight enclosure, it can function as a versatile utility speaker suitable for a wide variety of environments. Advanced DSP capabilities and a dedicated remote app add significantly more flexibility, with powerful features that enhance the overall user experience.

10" LF + 1.75" HF proprietary high-durability speaker units
The large-diameter horn secures directivity control across a wide frequency range
Optimized port positioning reduces standing wave effects
Lightweight, high-performance, form-injection molded enclosure with a symmetrical, functional design
Newly developed 2000W Class-D amplifier
FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
Drive Motion Calibration™, corrects the motion of the LF unit, producing a more linear low-frequency sound with high reliability
DSP modes tailored for specific arrangements or applications. In particular, FOH/MAIN and MONITOR modes have an automatic setting function "AUTO V/H POSITION"

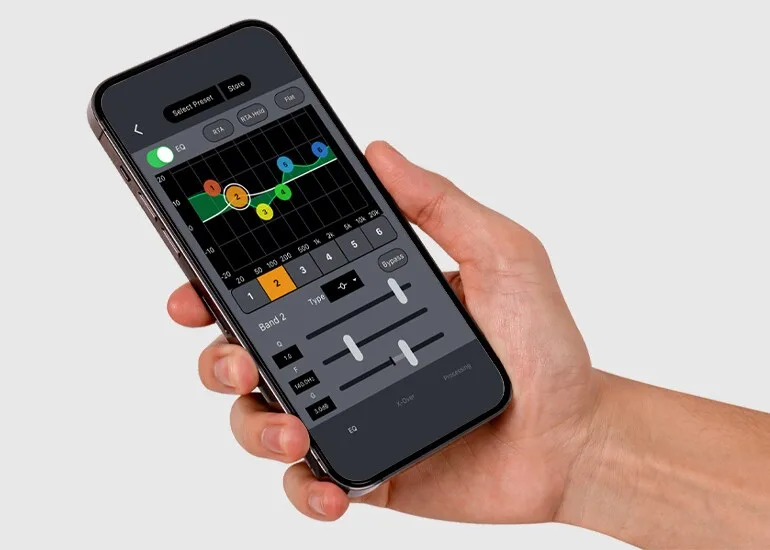

Can be controlled remotely via an iOS or Android device using the dedicated D-Remote app
Compatible with audio streaming via Bluetooth®
Intelligent feedback suppressor automatically eliminates unpleasant feedback
Optional UB-DXRDHR10A U-bracket allows both for vertical or horizontal use
Optional SPCVR-DXR103 speaker cover protects speakers from rigors of equipment transport, lengthy storage, or outdoor performances
Rigging points for use with eye bolts
Dual-angle pole sockets offer both 0° or a -7° down tilt

53 Hz - 20 kHz
H90 x V60
1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
132 dB SPL
LF: Diameter: 10" cone, Voice Coil: 2.5"
HF: Diaphragm: 1.75", Type: 1" throat compression driver
Class-D
2000 W Peak
1000 W RMS
32 bit/96 kHz Sampling
Bluetooth 5.0
D-Remote (iOS/Android app)
310 x 502 x 310 mm
14,5 kg
