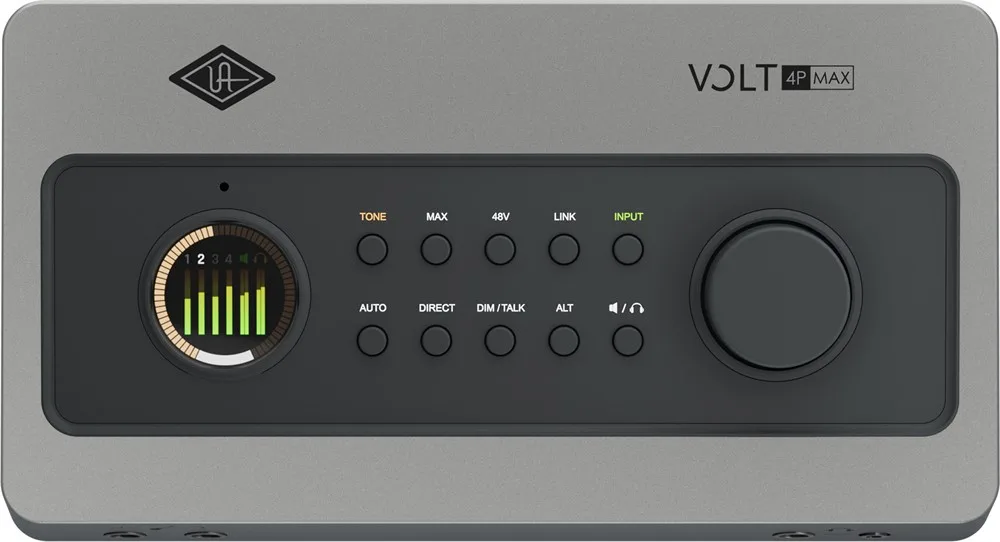

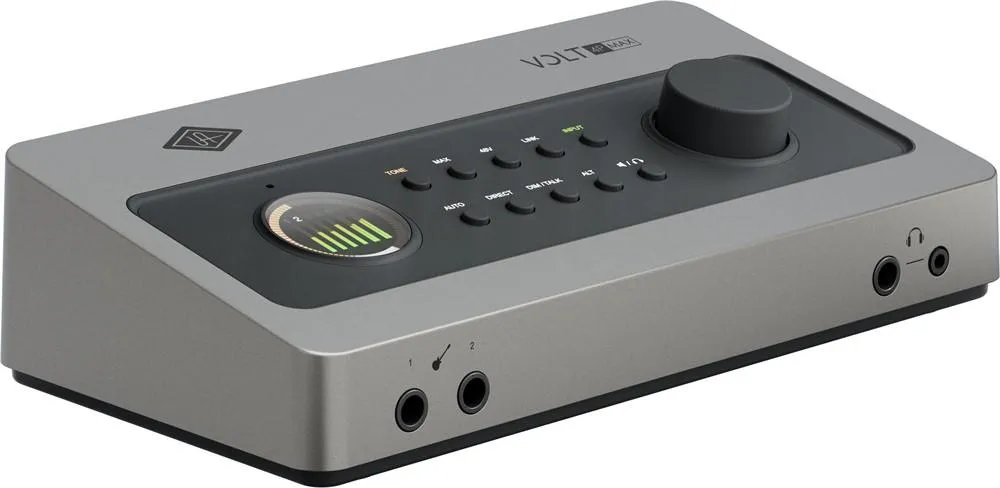

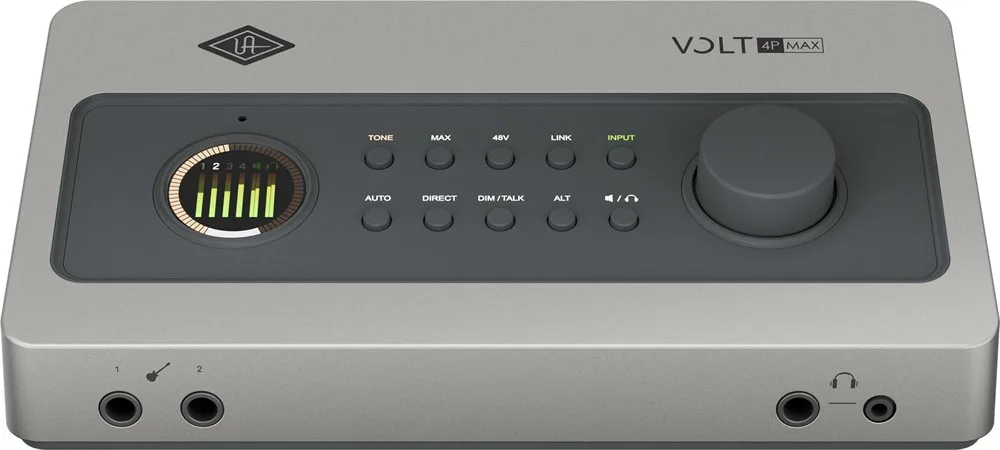

Universal Audio Volt 4P Max

Universal Audio Volt 4P Max – USB Audio Interface

Universal Audio Volt 4P Max is a powerful 12-in/6-out USB audio interface for bands, ensembles, drummers, and producers. With four Tone Shaping Preamps, MaxCompression, 32-bit/192 kHz audio conversion, Smart Display, Auto-Gain, Clip Protection, A/B speaker switching, dual headphone outputs, a Talkback microphone, and ADAT expansion, Volt 4P Max provides extensive recording capabilities in a compact desktop format.

Key Features

12 in / 6 out
4 x Tone Shaping Preamps with Warmth, Focus, and Shine modes
Harmonic Saturation and Max Compression across all four microphone channels
Six Max compression presets for vocals, acoustic instruments, electric guitar, and drums
32-bit/192 kHz A/D and D/A audio conversion
Full-color Smart Display for metering, gain reduction, and system settings
Auto-Gain for automatic gain adjustment across multiple inputs
Clip Protection to protect against unexpected digital clipping
ADAT optical input for up to 8 additional channels
S/PDIF optical input for 2 channels
A/B speaker switching for two pairs of studio monitors
Built-in Talkback microphone
4 x Mic/Line/Instrument inputs via XLR/TRS combo connectors
60 dB digitally controlled gain and +48V phantom power per channel
2 x 1/4" TS Hi-Z instrument inputs via combo jacks
4 x 1/4" TRS line inputs via combo jacks
4 x balanced 1/4" TRS outputs
2 x stereo headphone outputs
Built-in Loopback for streaming, podcasting, and content creation
MIDI I/O
Built-in USB hub for peripherals
USB 2.0 Host port with USB-C
USB bus-powered
Rear-panel On/Off switch
Compact desktop form factor
Class-compliant operation for Mac, Windows, iPad, and iPhone
Supports all major DAWs

Tone Shaping and Max Compression

The four Tone Shaping Preamps feature three selectable modes: Warmth, Focus, andShine. Combined with six Max compression presets, they provide 18 different sonic combinations for recording. Max Compression is inspired by classic 1176 and LA-2A compressors and is designed for vocals, acoustic instruments, electric guitar, drums, and more.

Smart Display, Auto-Gain and Clip Protection

The full-color Smart Display provides clear visual feedback for gain reduction, input levels, and system settings. Auto-Gain automatically sets optimal gain levels across multiple inputs, while Clip Protection helps protect recordings against unexpected digital clipping.

Control Room and Monitoring

Volt 4P Max features A/B speaker switching for quickly switching between two pairs ofstudio monitors. Two headphone outputs provide monitoring options for both engineer and performer, while the built-in Talkback microphone enables communication between the control room and talent.

Digital Expansion and Connectivity

The optical ADAT input allows an external 8-channel microphone preamp to beconnected for expanded recording of drum kits and larger ensembles. ADAT supports 8 channels at 48 kHz, 4 channels at 96 kHz, and 2 channels at 192 kHz. The optical input also supports 2-channel S/PDIF. MIDI I/O and the built-in USB hub allow external synthesizers, controllers, and peripherals to be connected.

UAD Software and LUNA

Volt 4P Max includes a complete software package with 15+ UAD plug-ins and virtual instruments together with Universal Audio's LUNA Digital Audio Workstation.

UAD Volt Studio Bundle

LUNA Digital Audio Workstation
Topline Vocal Tune
UA 610 Tube Preamp & EQ Collection
Century Tube Channel Strip
Teletronix LA-2A Tube Compressor
UA 1176 Classic FET Compressor
Pure Plate Reverb
Galaxy Tape Echo
Oxide Tape Recorder
Vibe Analog Machines
PolyMAX Synth
Anthem Analog Synth
UAD Lion ’68 Super Lead Amp
UAD Showtime ’64 Tube Amp

Additional Software

Melodyne Essential by Celemony
Ampeg SVT-VR Classic Bass Bundle by Plugin Alliance
Ampeg SVT-VR Classic, bx_Tuner, and bx_Masterdesk_Classic
Virtual Drummer DEEP by UJAM
Virtual Bassist DANDY by UJAM
Splice INSTRUMENT
Prisma - Producer Lab by UVI
FL Studio Producer Edition, 3 months free

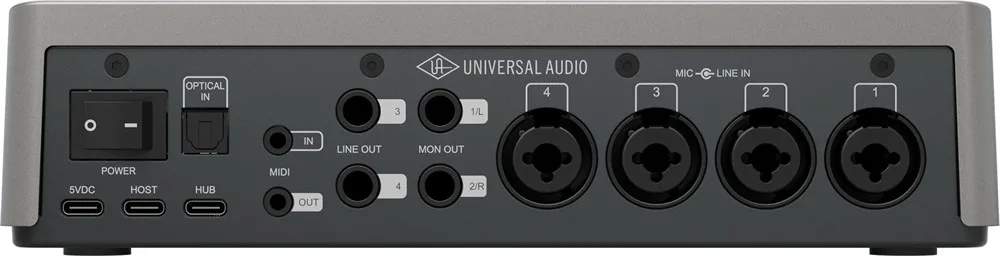

Specifications

Connectivity: UA-VOLT4P-MAX
Simultaneous I/O: 12 in / 6 out
A/D Conversion: 32-bit/192 kHz
Preamps: 4 x Mic/Line/Instrument, XLR/TRS combo connector, Tone Shaping, HarmonicSaturation, Max Compression, 60 dB digitally controlled gain and switchable +48V phantom power per channel
Instrument Inputs: 2 x 1/4" TS Hi-Z via combo jacks, 116 dB dynamic range
Line Inputs: 4 x 1/4" TRS via combo jacks, 119 dB dynamic range
Digital Inputs: ADAT optical, 8 channels @ 48 kHz, 4 channels @ 96 kHz, 2 channels @ 192 kHz, or S/PDIF optical, 2 channels
Talkback: Built-in microphone
Analog Outputs: 4 x 1/4" TRS balanced outputs, 2 x Main/Alt Stereo monitor outputs, Line 3-4 outputs, DC coupled, 126 dB dynamic range
Headphone Outputs: 2 x stereo outputs, 1/4" and 1/8" TRS, DC coupled, 45 mW @ 32 Ω, shared cue mix
MIDI I/O: 1/8" TRS Mini-Jack In/Out, MIDI Type A
USB and Hub Expansion: USB 2.0 Host Port, Type-C, 1 x USB hub port for peripherals, 5 V DC @ 0.5 A max, 1 x USB external power input port, 5 V DC @ 2 A min, 3 A powersupply included
Power: USB bus-powered, 6.0 W typical, 9.1 W maximum, with rear-panel On/Off switch
Digital I/O: ADAT or S/PDIF In
Form Factor: Compact desktop
Compatibility: macOS 12+, Windows 10 (64-bit)+, iOS/iPadOS 16+
DAW Compatibility: Supports all major DAWs
