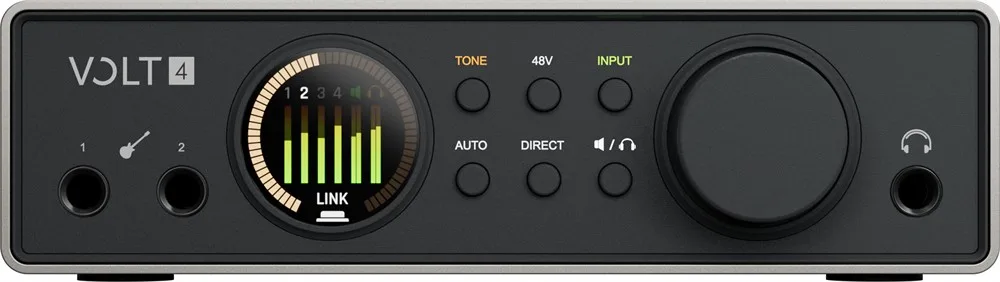

Universal Audio Volt 4 Gen 2

Universal Audio Volt 4 Gen 2 – USB Audio Interface

Universal Audio Volt 4 Gen 2 is a compact 12-in/6-out USB audio interface for musicians, producers, and content creators who need additional channel capacity anddigital expansion. With 32-bit/192 kHz audio conversion, dual Tone Shaping Preamps, a full-color Smart Display, ADAT, MIDI, USB hub, Auto-Gain, and Clip Protection, Volt 4 Gen 2 provides flexible recording and intuitive control.

Key Features

12 in / 6 out
Dual Tone Shaping Preamps with Warmth, Focus, and Shine modes
32-bit/192 kHz A/D and D/A audio conversion
Full-color Smart Display for visual control and metering
Auto-Gain for automatic input level adjustment
Clip Protection to protect against unexpected digital clipping
ADAT optical input for up to 8 additional channels
S/PDIF optical input for 2 channels
2 x Mic/Line/Instrument inputs via XLR/TRS combo connectors
60 dB digitally controlled gain and +48V phantom power per channel
2 x 1/4" TS Hi-Z instrument inputs via combo jacks
4 x 1/4" TRS line inputs, 2 via combo jacks and 2 on the rear panel
4 x balanced 1/4" TRS outputs
1 x 1/4" TRS stereo headphone output with dedicated cue mix support
MIDI I/O via 1/8" TRS Mini-Jack
Built-in USB hub for peripherals
Built-in Loopback functionality for livestreaming, podcasting, and content creation
USB 2.0 Host port with USB-C
USB bus-powered
Rear-panel On/Off switch
Compact desktop form factor
Class-compliant operation for Mac, Windows, iPad, and iPhone
Supports all major DAWs

Tone Shaping and Audio Quality

The dual Tone Shaping Preamps feature three selectable character modes: Warmth, Focus, and Shine. They are designed to add analog character to microphone and line signals. The 32-bit/192 kHz audio conversion provides detailed recording and playback.

Smart Display, Auto-Gain and Clip Protection

The full-color Smart Display provides clear visual feedback for input and output levels. Auto-Gain calculates optimal gain settings within seconds, while Clip Protection helps prevent sudden level increases from causing digital clipping.

Flexible Routing and Digital Expansion

The ADAT input allows connection of an external 8-channel preamp for expandedrecording. ADAT supports 8 channels at 48 kHz, 4 channels at 96 kHz, and 2 channels at 192 kHz. The optical input can also be used for 2-channel S/PDIF. MIDI connections and the built-in USB hub allow external synthesizers, controllers, and peripherals to be connected.

Loopback for Streaming

The built-in Loopback functionality allows live microphone signals to be combined with computer audio for livestreaming, podcasts, and content creation.

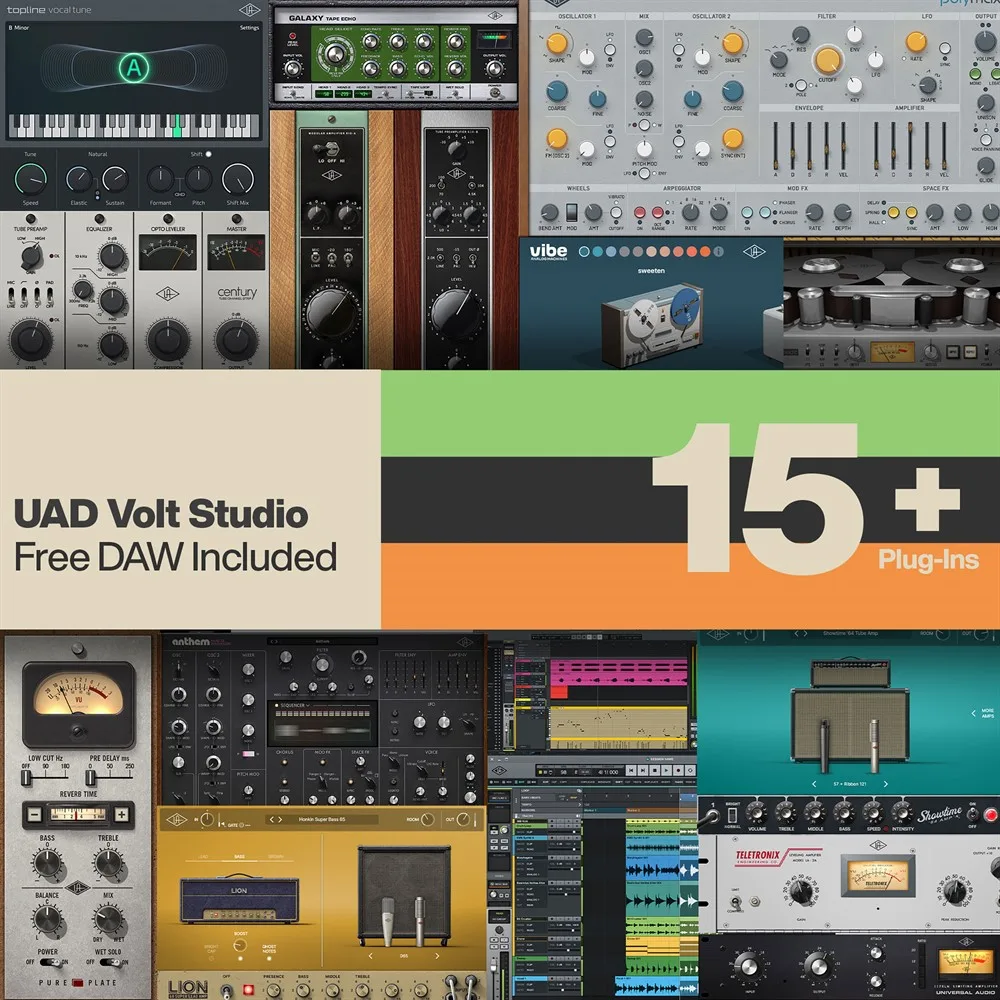

UAD Software and LUNA

Volt 4 Gen 2 includes a complete software package with 15+ UAD plug-ins and instruments together with Universal Audio's LUNA Digital Audio Workstation.

UAD Volt Studio Bundle

LUNA Digital Audio Workstation
Topline Vocal Tune
UA 610 Tube Preamp & EQ Collection
Century Tube Channel Strip
Teletronix LA-2A Tube Compressor
UA 1176 Classic FET Compressor
Pure Plate Reverb
Galaxy Tape Echo
Oxide Tape Recorder
Vibe Analog Machines
PolyMAX Synth
Anthem Analog Synth
UAD Lion ’68 Super Lead Amp
UAD Showtime ’64 Tube Amp

Additional Software

Melodyne Essential by Celemony
Ampeg SVT-VR Classic Bass Bundle by Plugin Alliance
Ampeg SVT-VR Classic, bx_Tuner, and bx_Masterdesk_Classic
Virtual Drummer DEEP by UJAM
Virtual Bassist DANDY by UJAM
Splice INSTRUMENT
Prisma - Producer Lab by UVI
FL Studio Producer Edition, 3 months free

Specifications

Connectivity: USB-C, USB 2.0
Simultaneous I/O: 12 in / 6 out
A/D Conversion: 32-bit/192 kHz
Preamps: 2 x Mic/Line/Instrument, XLR/TRS combo connector, Tone Shaping, 60 dBdigitally controlled gain and switchable +48V phantom power per channel
Instrument Inputs: 2 x 1/4" TS Hi-Z via combo jacks, 116 dB dynamic range
Line Inputs: 4 x 1/4" TRS, 2 via combo jacks and 2 rear panel, 119 dB dynamic range
Digital Inputs: ADAT optical, 8 channels @ 48 kHz, 4 channels @ 96 kHz, 2 channels @ 192 kHz, or S/PDIF optical, 2 channels
Analog Outputs: 4 x 1/4" TRS balanced outputs, DC coupled, 126 dB dynamic range
Headphone Output: 1 x 1/4" TRS stereo, DC coupled, 45 mW @ 32 Ω, dedicated cue mixsupport
MIDI I/O: 1/8" TRS Mini-Jack In/Out, MIDI Type A
USB and Hub Expansion: USB 2.0 Host Port, Type-C, 1 x USB hub port for peripherals, 5 V DC @ 0.5 A max, 1 x USB external power input port, 5 V DC @ 1 A min
Power: USB bus-powered, 4.2 W typical, 5.8 W maximum, with rear-panel On/Off switch
Digital I/O: ADAT or S/PDIF In
Form Factor: Compact desktop
Compatibility: macOS 12+, Windows 10 (64-bit)+, iOS/iPadOS 16+
DAW Compatibility: Supports all major DAWs
