UGREEN U715 Revodok Max Thunderbolt 5 – 13-in-1 Docking Station

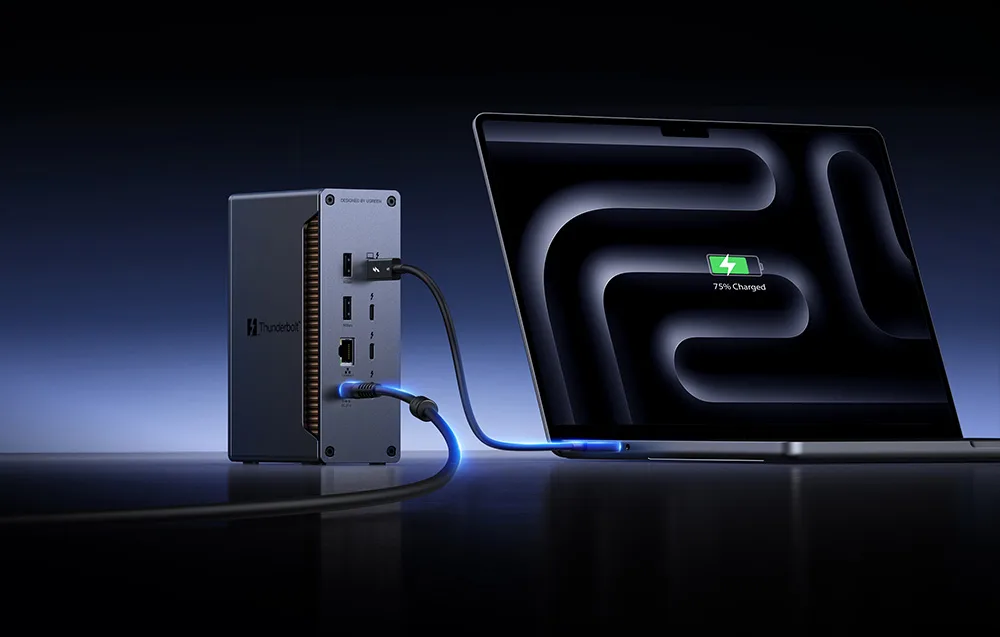

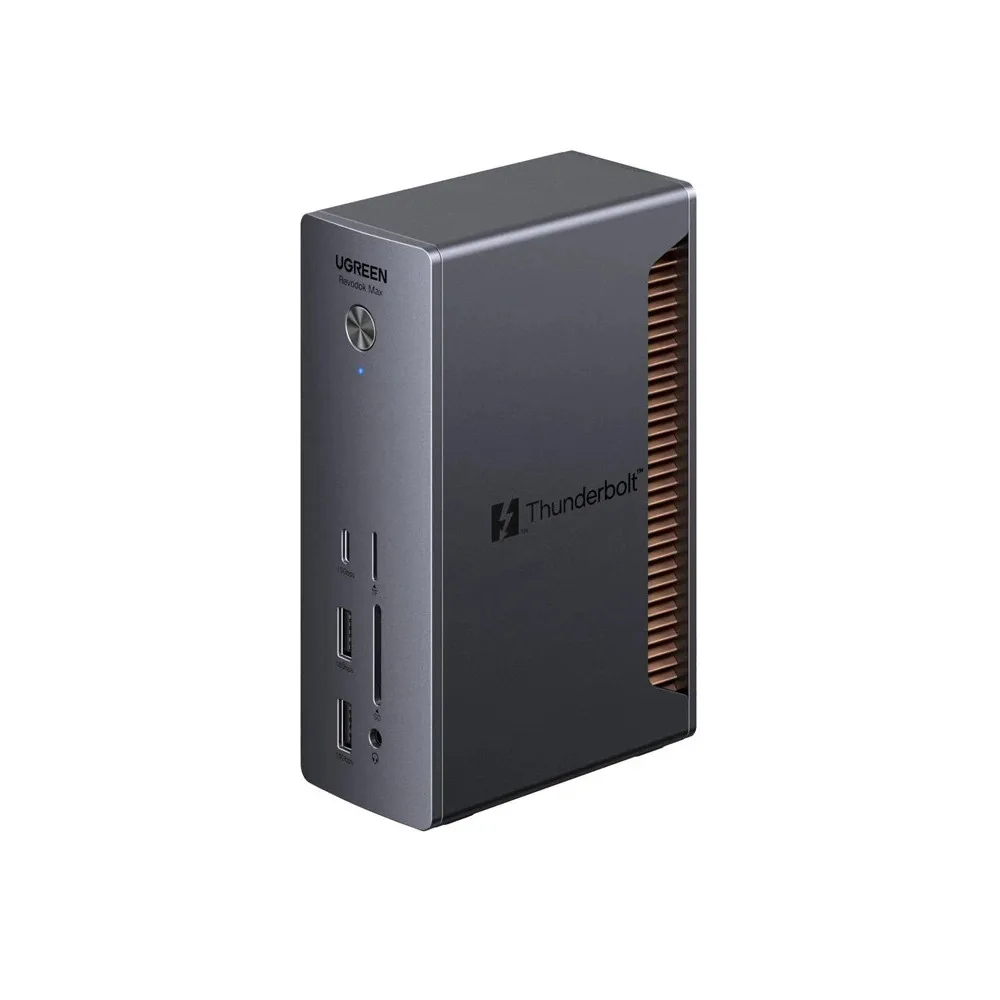

The UGREEN U715 Revodok Max is an advanced 13-in-1 Thunderbolt 5 docking station that expands connectivity for compatible Mac and Windows computers. With bandwidth of up to 80 Gbps, support for displays up to 8K at 60 Hz and laptop charging up to 140 W, it is designed for professional workflows, creative production and demanding multitasking.

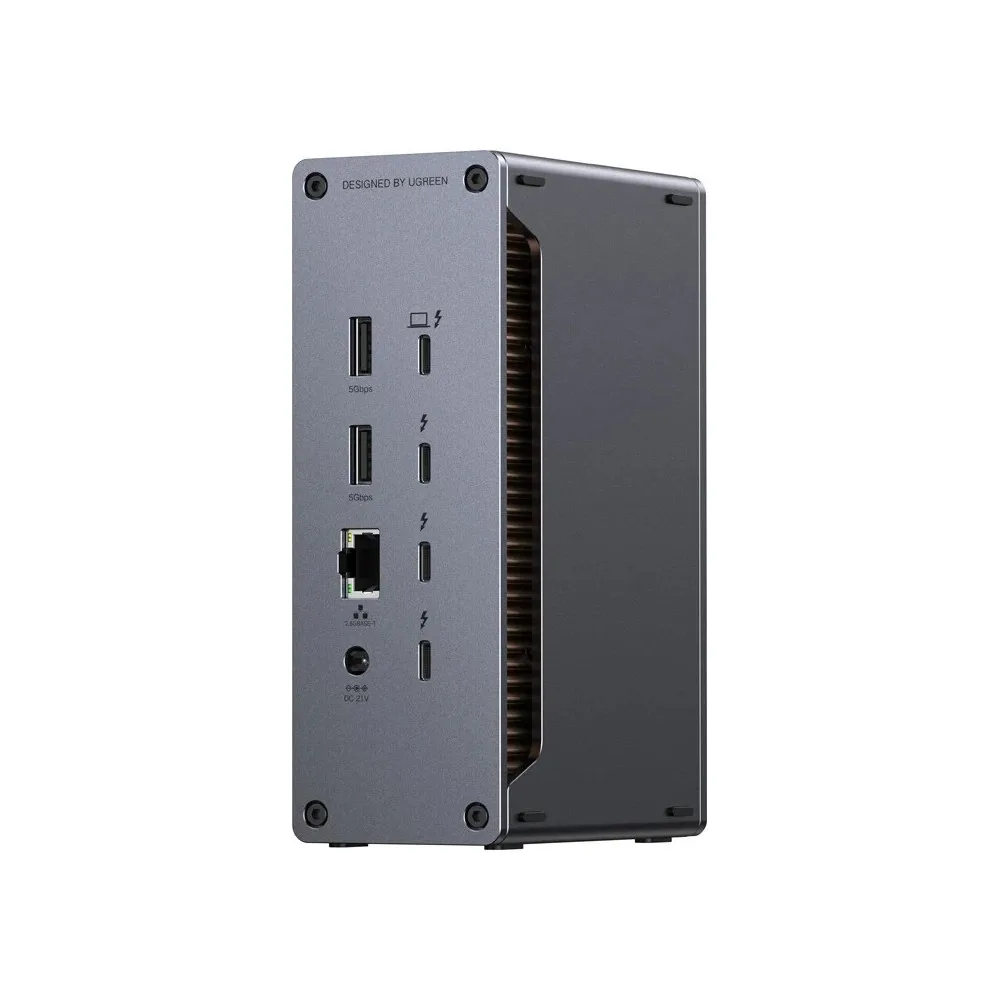

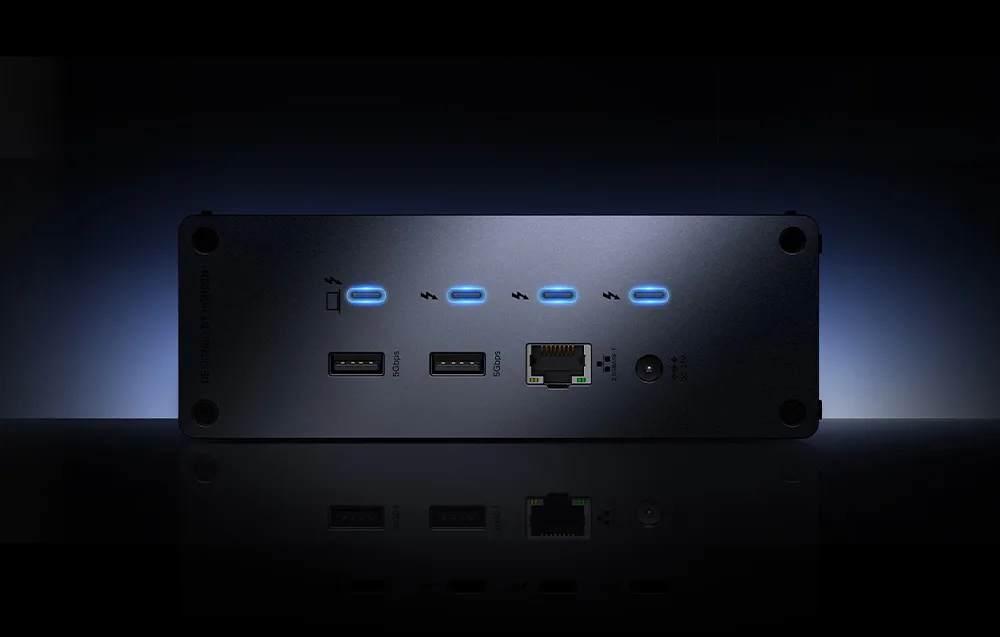

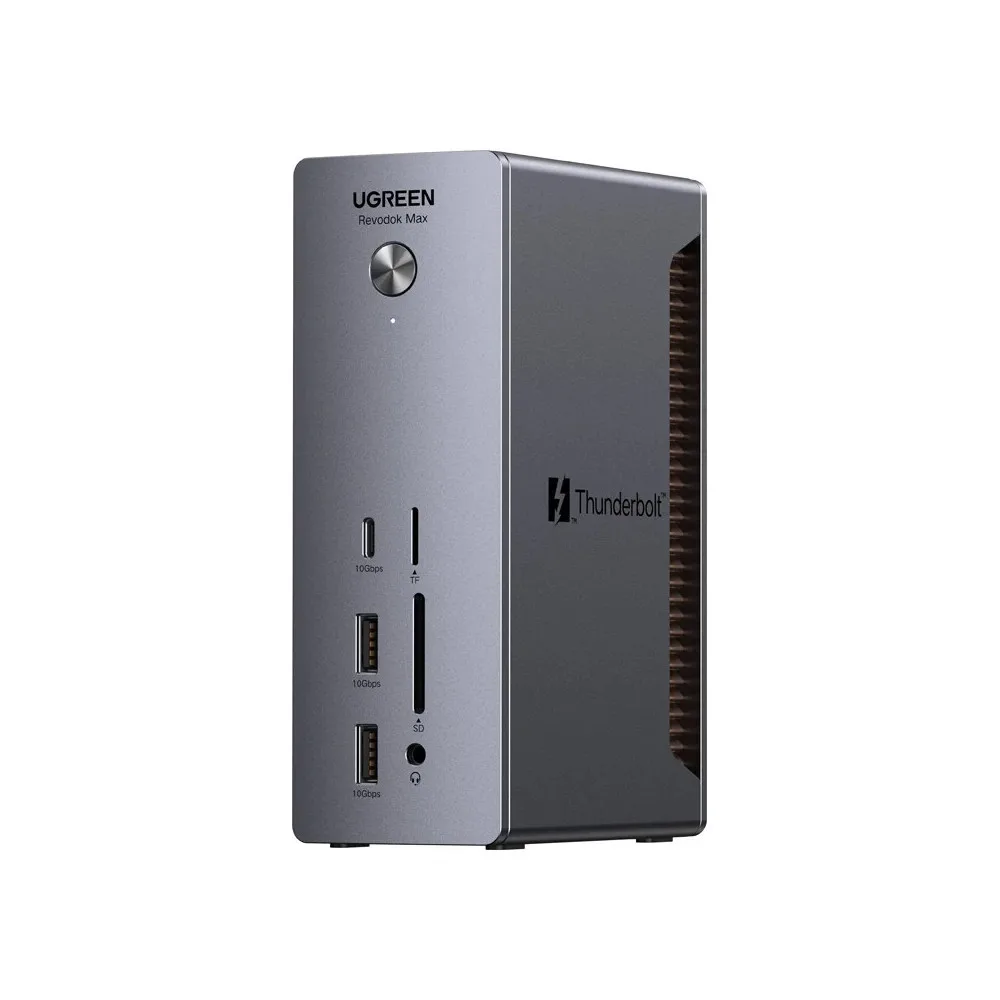

The docking station offers an extensive range of connections, including Thunderbolt 5, USB-C, USB-A, 2.5 Gigabit Ethernet, SD and microSD card readers, and a 3.5 mm audio jack. The card readers support transfer speeds of up to 312 MB/s, while the network port provides fast connectivity to compatible 2.5G networks.

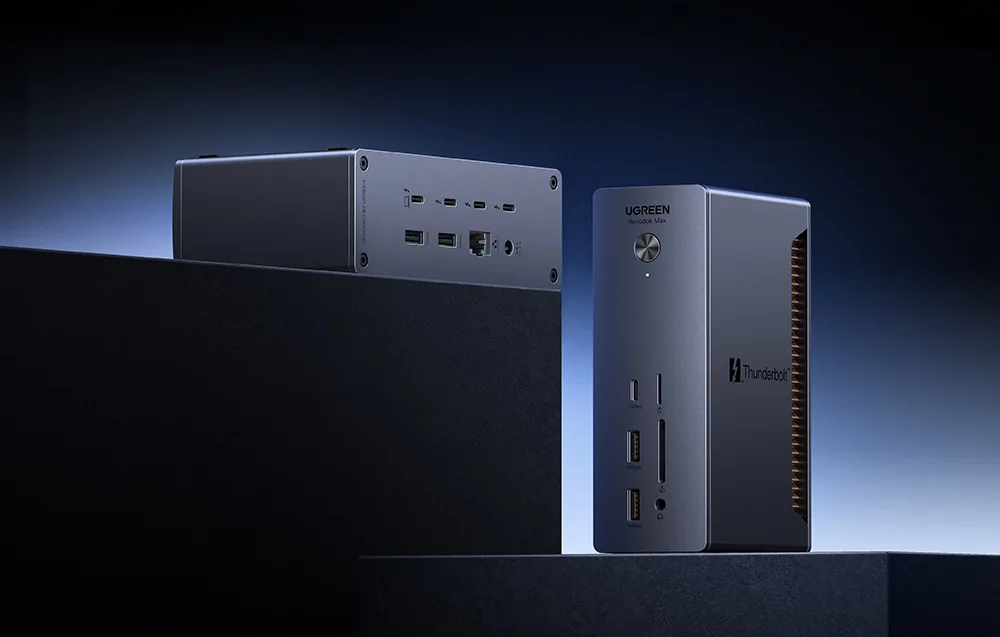

The durable aluminium alloy construction is combined with an efficient cooling system to support stable operation under intensive workloads. A power button, LED status indicator and non-slip silicone feet provide convenient desktop operation.

Features and Specifications

Model: Revodok Max Thunderbolt 5 Docking Station
Brand: UGREEN
Type: 13-in-1 docking station
Interface: Thunderbolt 5
Bandwidth: Up to 80 Gbps
Thunderbolt 5 Upstream: Up to 80 Gbps, Power Delivery up to 140 W
Thunderbolt 5 Downstream A: Up to 80 Gbps, up to 8K at 60 Hz, Power Delivery up to 30 W
Thunderbolt 5 Downstream B/C: Up to 80 Gbps, up to 8K at 60 Hz, Power Delivery up to 10 W according to the specification table
USB-C 3.2: 1 port, data transfer up to 10 Gbps, charging up to 20 W
USB-A 3.2: 2 ports, data transfer up to 10 Gbps
USB-A 3.0: 2 ports, data transfer up to 5 Gbps
Network connection: RJ45 2.5 Gigabit Ethernet
Card readers: SD and microSD/TF 4.0
Card reader speed: Up to 312 MB/s
Audio connection: 3.5 mm
Maximum display resolution: 8K at 60 Hz, 6K at 60 Hz or 4K at 240 Hz, depending on the computer and configuration
Multi-monitor support, depending on the computer's hardware and operating system
Compatibility: Windows 11 and macOS 14.5 or later on selected Mac models
Supports Intel-based Macs and selected models with M1, M2, M3 and M4 chips
Chipset: Intel-certified chipset
Cooling: Aluminium housing, thermal conductive silicone, ventilation openings and multilayer PCB
Construction: Aluminium alloy
Power supply: 180 W DC, 21 V/8.57 A
Power button and LED status indicator
Non-slip silicone feet
Dimensions: 149.5 x 95.9 x 60 mm

Package Contents

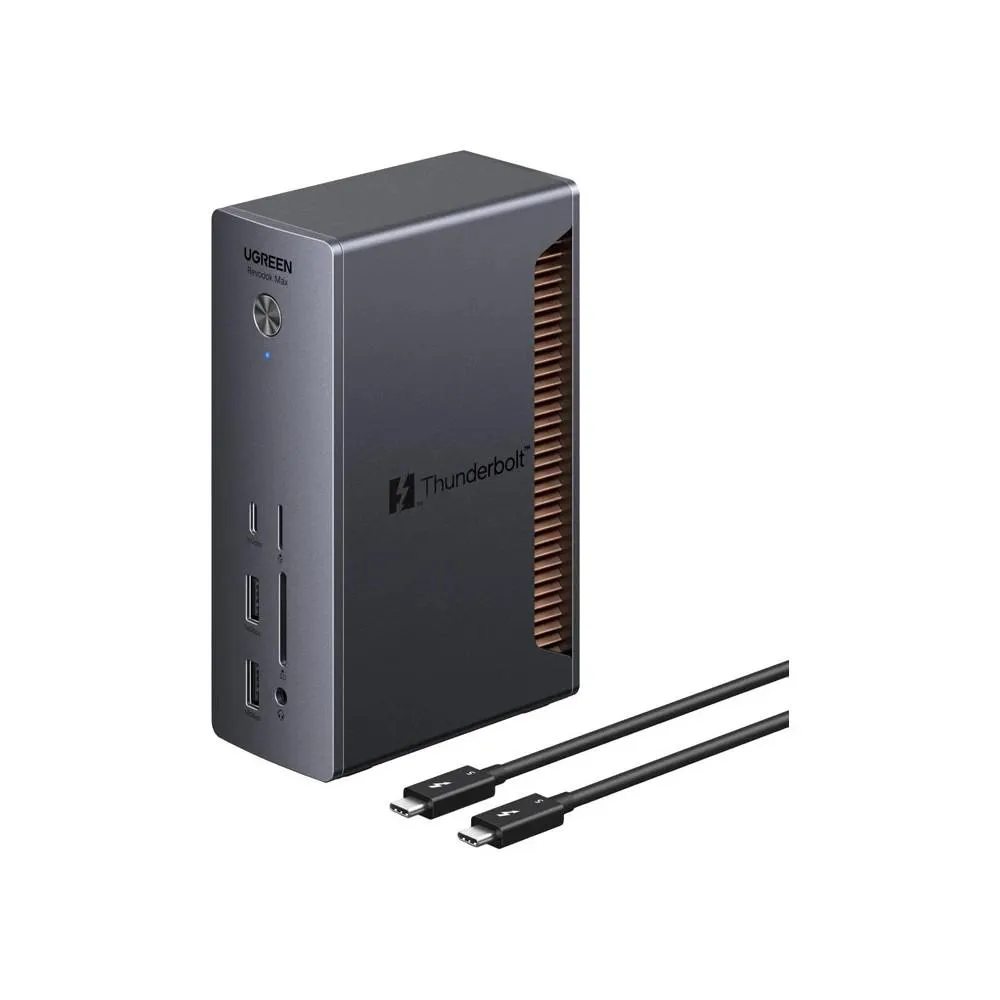

UGREEN Revodok Max Thunderbolt 5 docking station
180 W power adapter
Thunderbolt 5 cable
User manual
