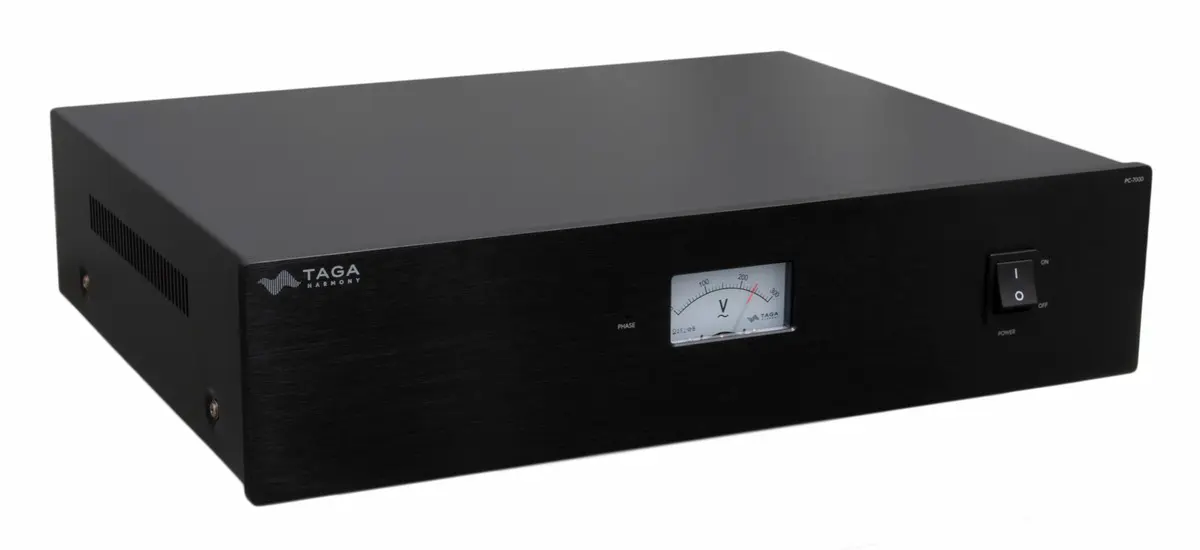

Taga Harmony PC-7000 Black

The PC power conditioner combines two functions in one device: advanced and personalized power noise filtering together with surge and overload protection.

The electrical network in homes and workplaces is exposed to various types of interference, such as electromagnetic interference (EMI) generated by appliances connected to the same power network including refrigerators, air conditioners, and computers. These disturbances originate not only within your own environment but also from other devices in the building or outside it and may vary depending on network load.

These interferences, commonly referred to as noise, can enter the AC power supply and negatively affect audio and video systems. Contaminated electricity may also impact internal circuits and power supplies of connected equipment.

The TAGA Harmony power line conditioner effectively reduces these disturbances and isolates your system from contaminated power. Acting as a buffer between the wall outlet and connected equipment, it improves performance while helping extend the lifespan of connected components.

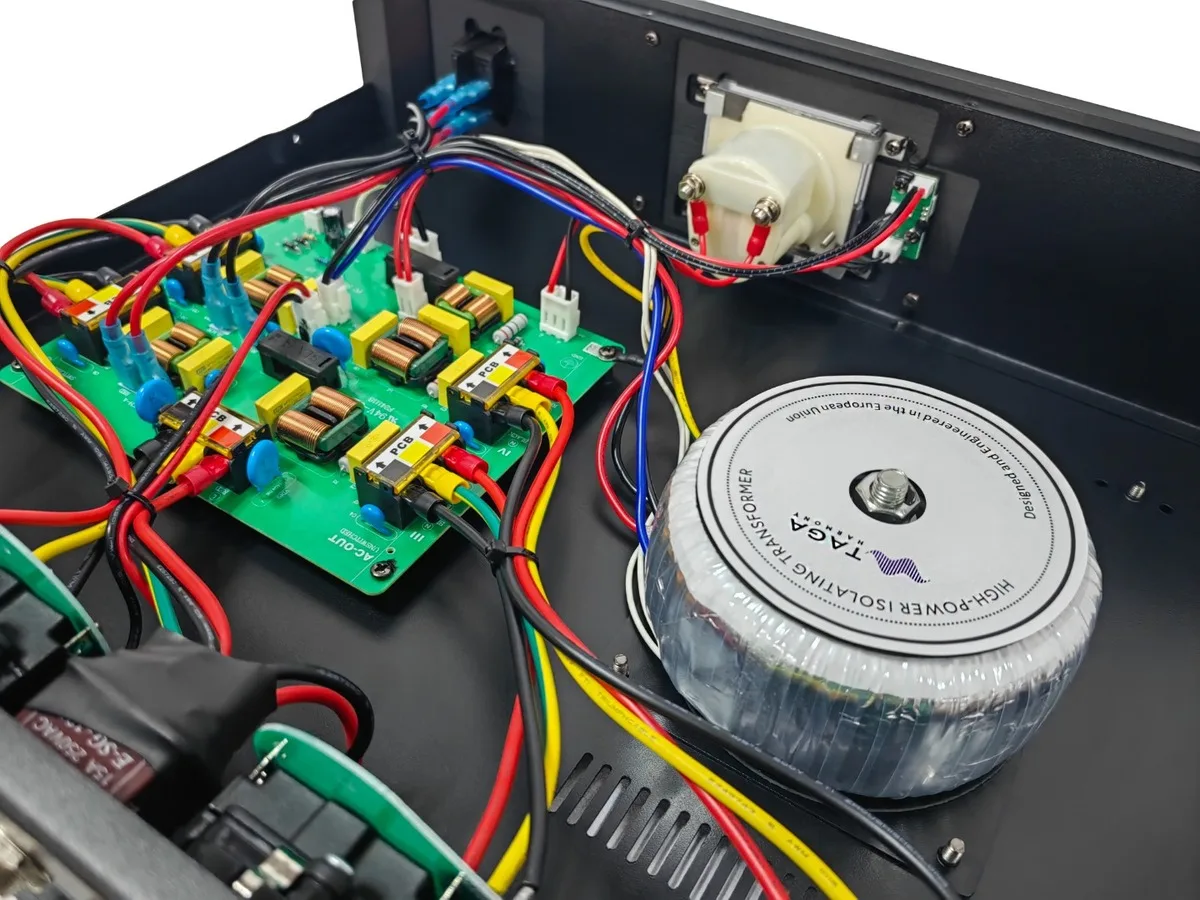

Independent groups of switched and unswitched Schuko sockets (230–240V) utilize dedicated filters designed for specific audio and video devices. Separate oxygen-free copper inductors and high-quality Class-X capacitors provide enhanced filtering performance.

A high-power 200W toroidal transformer isolates connected devices from line noise. Aluminum shielding protects the transformer from electromagnetic interference and improves efficiency. Internal 18AWG oxygen-free copper wiring ensures optimal conductivity.

Specifications
Design: Power Line Conditioner

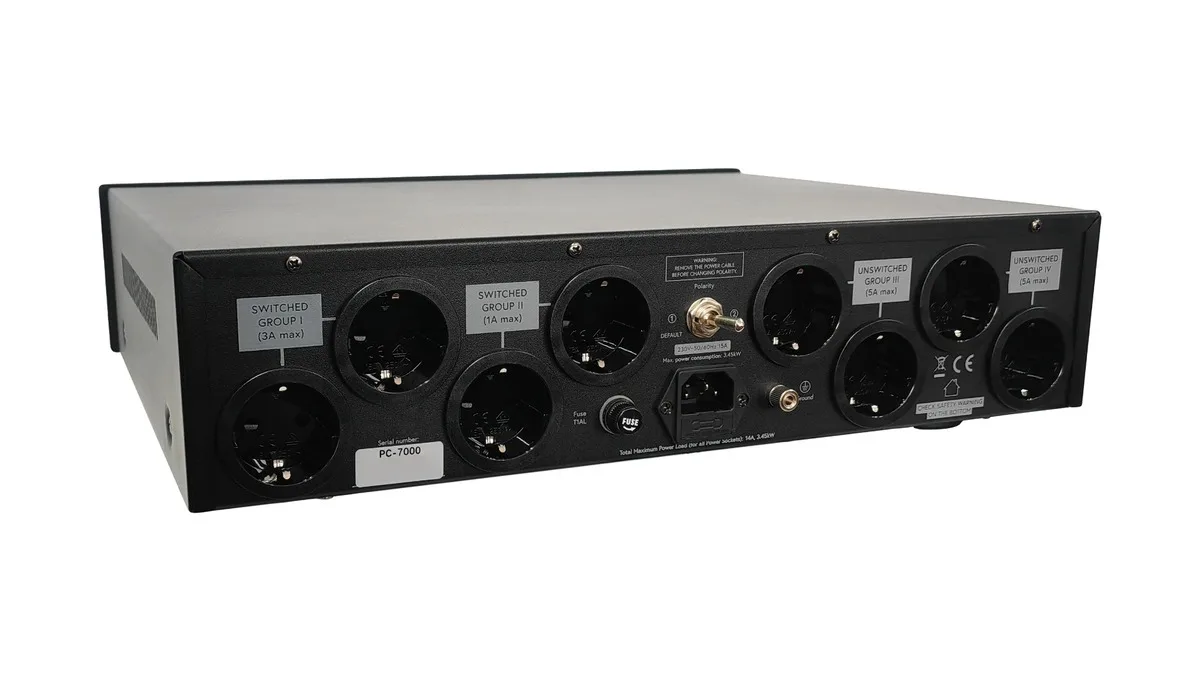

Sockets: Schuko type
4 switched
4 unswitched
4 groups (2 sockets each)
Switched:
Group I (3A max) Digital accessories
Group II (1A max) Sound sources
Unswitched:
Group III (5A max) Preamplifiers & accessories
Group IV (5A max) Amplifiers
Total maximum load: 14A, 3450W
Noise filter: -10dB ~ 55dB (2 – 100MHz)
Max surge current: 4500A (8/20µs single pulse)
Max spike voltage: 3000V (10mA)
Max clamping voltage: 775V (8/20µs)
Max energy: 140J (10/1000µs)
Protection: Surge and overload protection
Phase detector with polarity switch
Voltage indicator with backlight
Power cord: Schuko–IEC C13
AC power: 230V 50/60Hz
Power consumption: +0.2W with backlight
Dimensions (H x W x D): 11 x 43 x 33 cm
Weight: 8.4 kg
