Taga Harmony PC-5000 Black

The electrical installation in homes and workplaces is exposed to various types of interference, such as electromagnetic interference (EMI) generated by appliances connected to the same power network, including refrigerators, air conditioners, and computers. These disturbances are produced not only within your own home or office but also by other devices in the building or even outside it, and may vary depending on the time of day and network load.

All these interferences, referred to as noise, can enter the AC power supply and negatively affect your system. This “dirty” electricity can degrade the performance of your audio-video equipment.

The TAGA Harmony power line conditioner is an effective solution for limiting power line noise and isolating your equipment from contaminated electricity. Acting as a buffer between the wall outlet and your system, it not only improves performance but also helps extend the longevity of connected components.

Independent groups of switched and unswitched 230–240V Schuko sockets utilize dedicated filters specifically designed for particular types of audio and video equipment. Separate oxygen-free copper inductors are used for each group, along with high-quality Class-X capacitors for enhanced filtering.

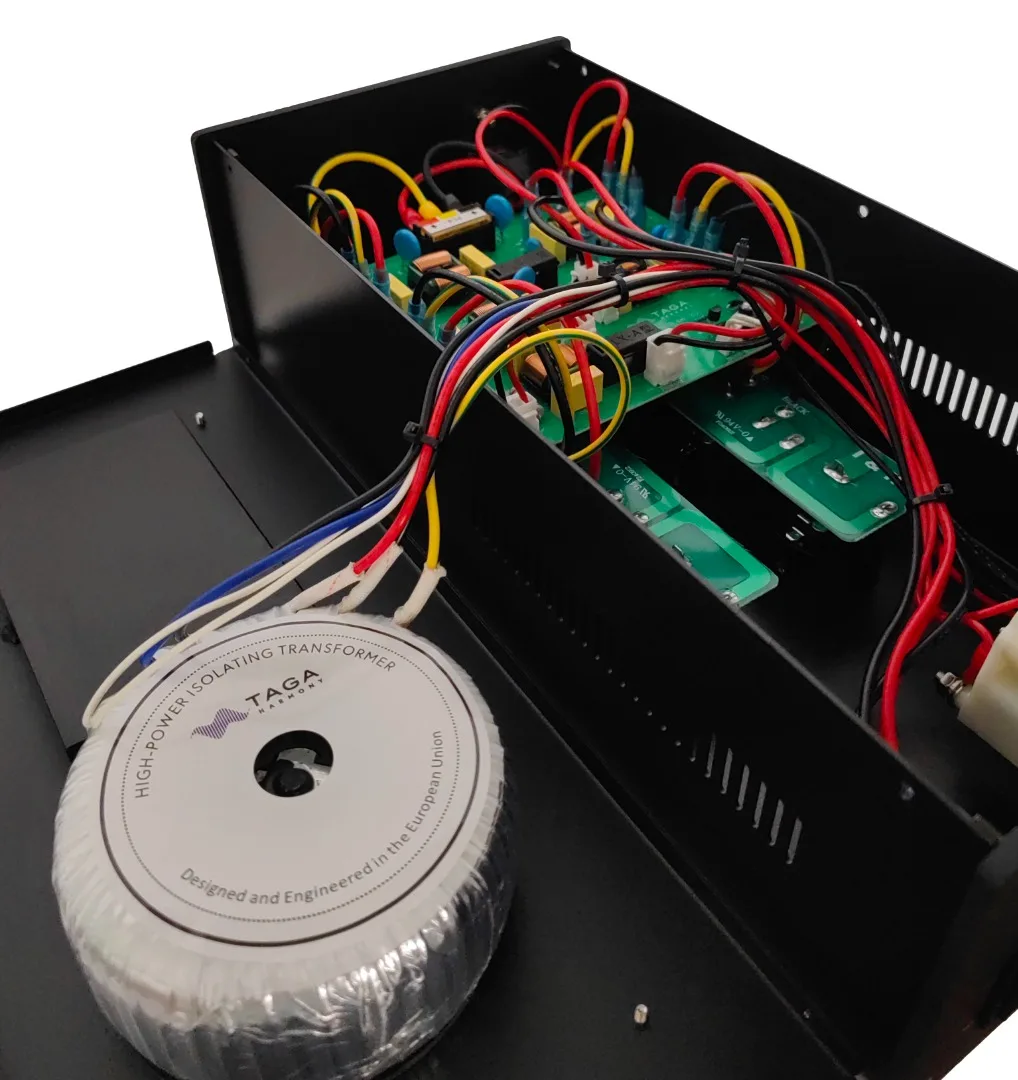

A high-power 200W toroidal transformer isolates connected source devices from line noise. The transformer is protected by an aluminum shielding cover that effectively reduces electromagnetic interference and improves performance. Internal 18AWG oxygen-free copper wiring ensures optimal conductivity.

Specifications
Design: Power Line Conditioner
Sockets: Schuko type
4 switched
4 unswitched
4 groups (2 sockets per group)
Switched:
Group I (3A max) Digital accessories
Group II (1A max) Sound sources
Unswitched:
Group III (5A max) Preamplifiers & accessories
Group IV (5A max) Amplifiers
Total maximum load: 14A, 3450W
Noise filter: -10dB ~ 55dB (2 – 100MHz)
Max surge current: 4500A (8/20µs, single pulse)
Max spike voltage: 3000V (10mA)
Max clamping voltage: 775V (8/20µs)
Max energy: 140J (10/1000µs)
Protection: Surge and overload protection

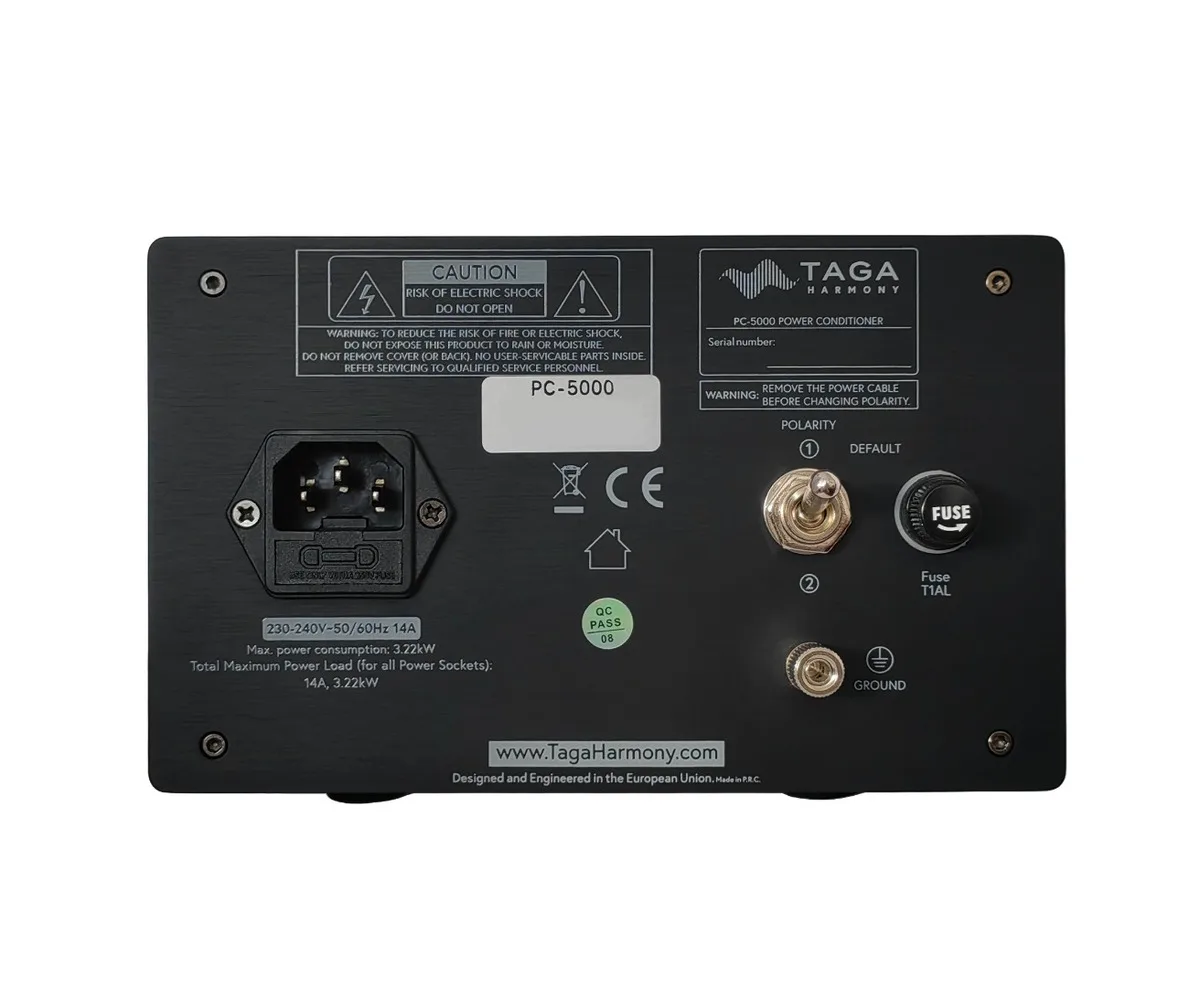

Phase detector with polarity switch

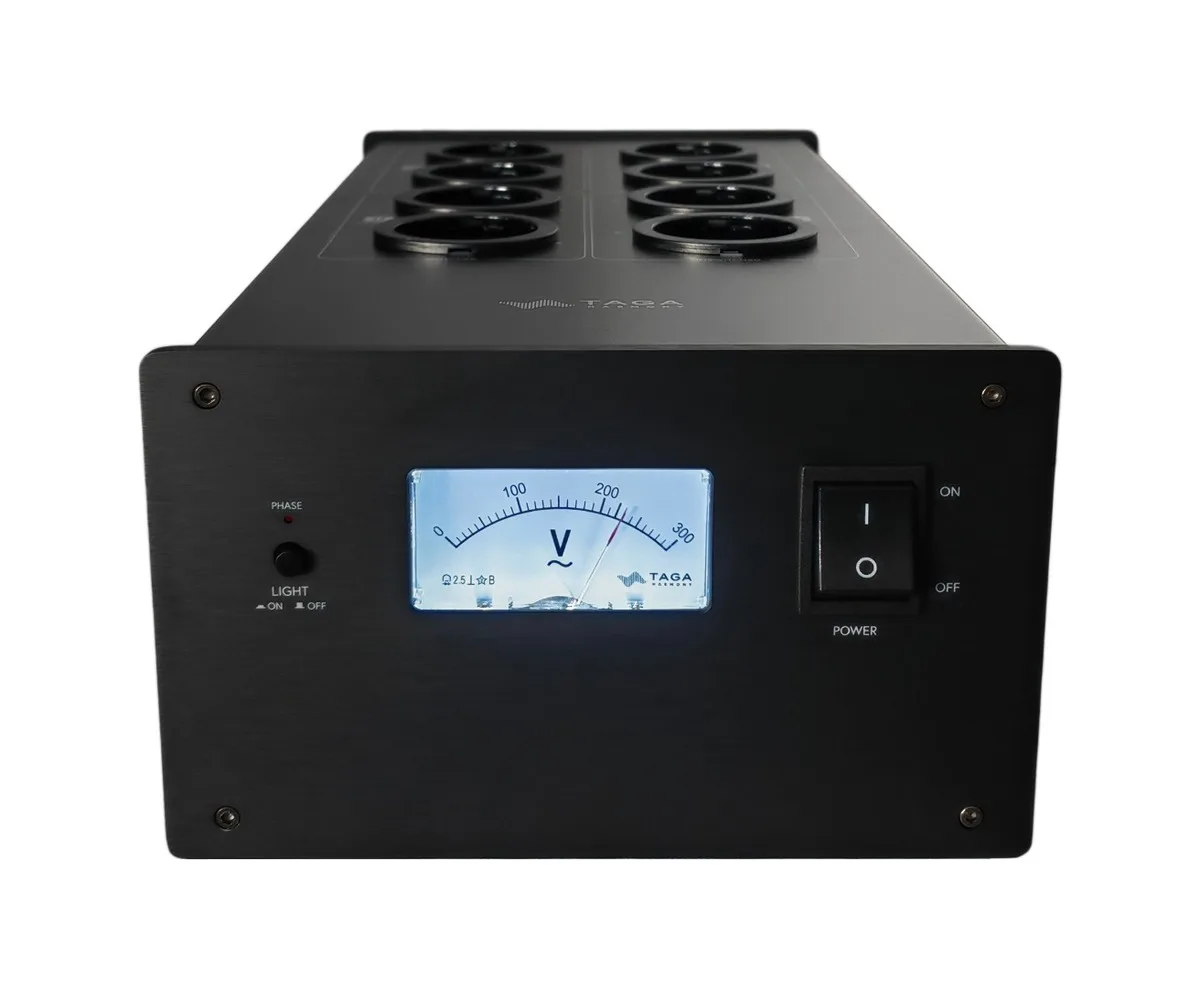

Voltage indicator with backlight
Power cord: Schuko–IEC C13
AC power: 230V 50/60Hz
Power consumption: +0.2W (with backlight on)
Dimensions (H x W x D): 12 x 18 x 38 cm
Weight: 6.5 kg
