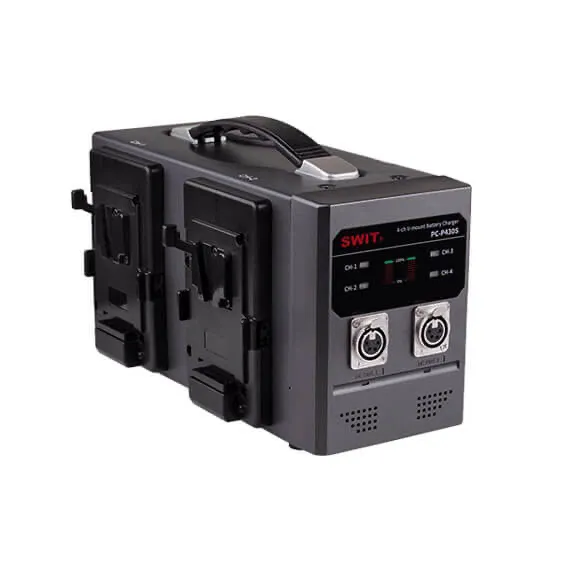

Swit PC-P430S 4ch Fast Charger V-lock

PC-P430S 4-ch V-mount Fast Charger

• V-mount battery charger
• 4-ch simultaneous charging
• 3A per channel quick charging
• 2x 4-pin XLR DC output
• LED charging indicators for each channel

PC-P430S can charge 4pcs V-mount camera batteries simultaneously. The charging output is DC16.8V, 3A each channel. The PC-P430S has LED charging indicators on the front panel,
indicates the real time capacity of each channel by different colours:
Display Red: Battery is charging, capacity below 80%;
Display Yellow: Battery is charging, capacity above 80%;
Display Green: Charging finished.

PC-P430S has 2x 4-pin XLR female connector on the front panel. Connected with SWIT S-7102 XLR female to male cable (optional purchase), the PC-P430S can be used as AC-DC adaptor of 2-ch DC 15V, 6A, 90W simultaneous output.

Please note the AC-DC adapting output will not work when battery is charging.

Specifications:
Power Max276W
Input AC100V-240V 50/60Hz
Output DC 16.8V,3A×4
Applicable battery V-mount battery
Dimension 285×144×173mm
Weight 3.27kg
