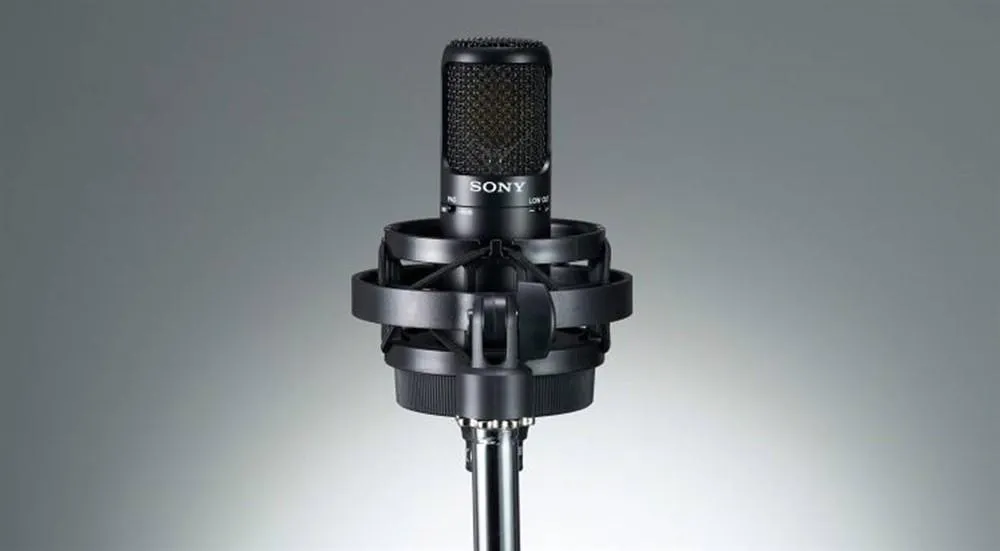

Sony C-80 Microphone

Overview
Uni-directional condenser microphone suitable for vocal/voice recording. Inheriting the microphone capsule used in the C-100 and using the same material as the C-800G for the diaphragm, this microphone inherits the essence of the predecessors. The dual diaphragm configuration suppresses sound characteristics changes with distance (proximity effect), enabling stable recording/distribution. "Noise Elimination Construction" succeeded from C-800G/C-100 prevents acoustic vibration resulting in low noise and clear sound.

Features
Excellent Sound Quality
Powerful and rich mid-low frequency range provides vocals and voice recordings with a core sound and presence.
Dual Diaphragm Configuration
Dual diaphragm configuration realizes stable recording/distribution by suppressing sound characteristics changes with distance (proximity effect).
Noise Elimination Construction
Two-part metallic body structure succeeded from C-800G/C-100 microphone prevents acoustic vibration resulting in low noise and clear sound.
Low-Cut Filter
Low-Cut filter switch helps eliminate low-frequency nose and proximity effect.
Pad Switch
An -10dB pad switch on the microphone provides added headroom and minim

Specifications
Audio Section
Capsule TypeCondenser Microphone
Frequency Response20Hz～20kHz
DirectivityUni directional
Sensitivity *[1]-30 dB
(deviation ±3 dB)
(0 dB=1 V/Pa, 1 kHz)
Output Impedance *[2]90Ω±15%, Balanced
Dynamic RangeMore than 125.5 dB
Signal-to-Noise Ratio *[3]81.5dB
Inherent Noise *[4]Less than 12.5 dB SPL
(0 dB=2 × 10-5 Pa)
(IEC* 61672-1 A-Weighted, 1 kHz, 1 Pa)
Maximum Input Sound Pressure Level *[5]More than 138 dB SPL
(output level for 1% waveform distortion at 1 kHz, converted into equivalent input sound pressure level: 0 dB=2 × 10-5 Pa)
General Section
ConnectorXLR-3-12C (male)
Mic CableXLR 3-pin Cable Required (Not Supplied)
Power RequirementsDC 44 to 52 V
Dimensions *[6]Approx. 40 mm (1.57 in.) dia. × 158 mm (6.22 in.)
MassApprox. 215 g (7.6 oz)

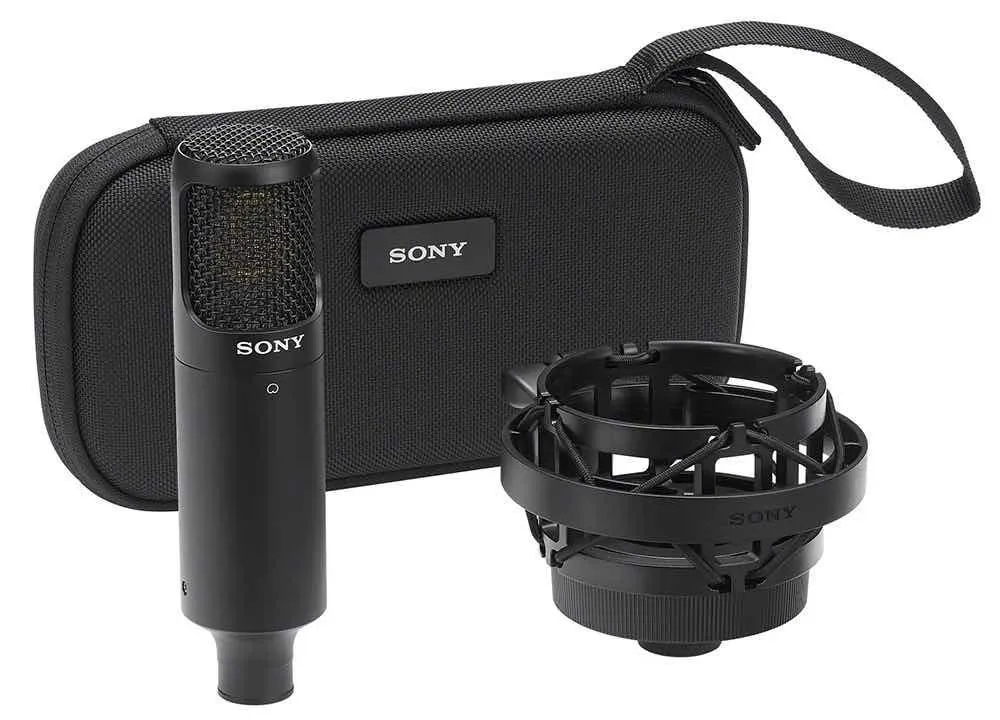

Supplied AccessoriesCradle suspention (1)
Operating instructions (1)
Carrying case (1)
Notes
*[1]0 dB = 1 V/Pa, at 1 kHz
*[2]Output impedance at 1 kHz
*[3]A-weighted, 1 kHz, 1 Pa.
*[4]0dB SPL = 20μPa.
*[5]0 dB SPL = 20μPa.
