Solid State Logic UMD192

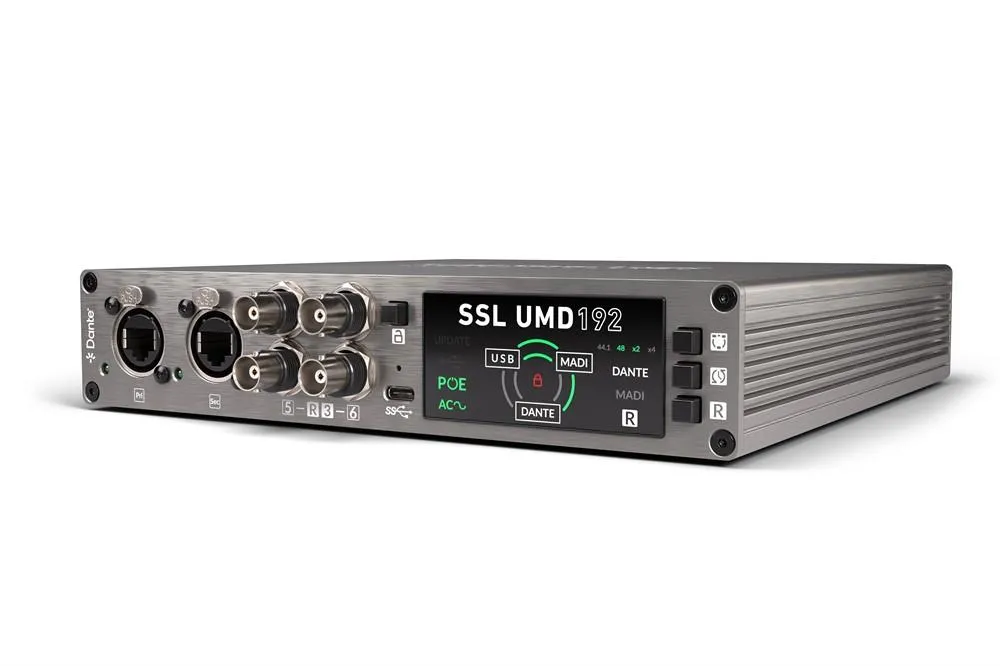

SSL UMD192 – Powerful digital audio interface for live, broadcast, and studio

Equipped with 192 channels at 48/44.1 kHz and 96/88.2 kHz, as well as 128 channels at 192 kHz, the UMD192 is a compact and portable USB and network-based audio solution. It combines MADI, Dante, and USB for flexible format and signal routing, ideal for professional live, broadcast, and studio applications.

Key features:

High capacity: 192 channels at 48/44.1 kHz and 96/88.2 kHz, and 128 channels at 192 kHz.
Format integration: Separate, bidirectional transfer between MADI, Dante, and USB, with the option of split feed for the third format.
Network support: Full Dante AoIP compatibility with AES67 and ST 2110 (DDM), with ultra-low latency down to 0.25 ms.

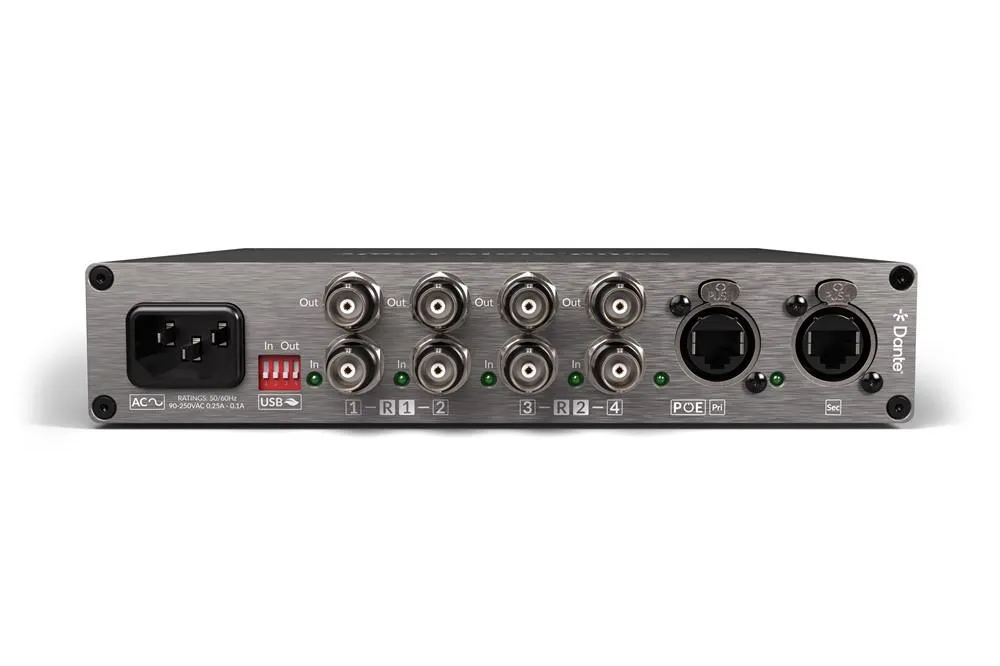

MADI: 6 BNC pairs for redundant configuration with three dual-redundant MADI connections for critical applications.
Flexible clock: Synchronization via MADI or Dante, with support for sampling frequencies from 44.1 to 192 kHz.

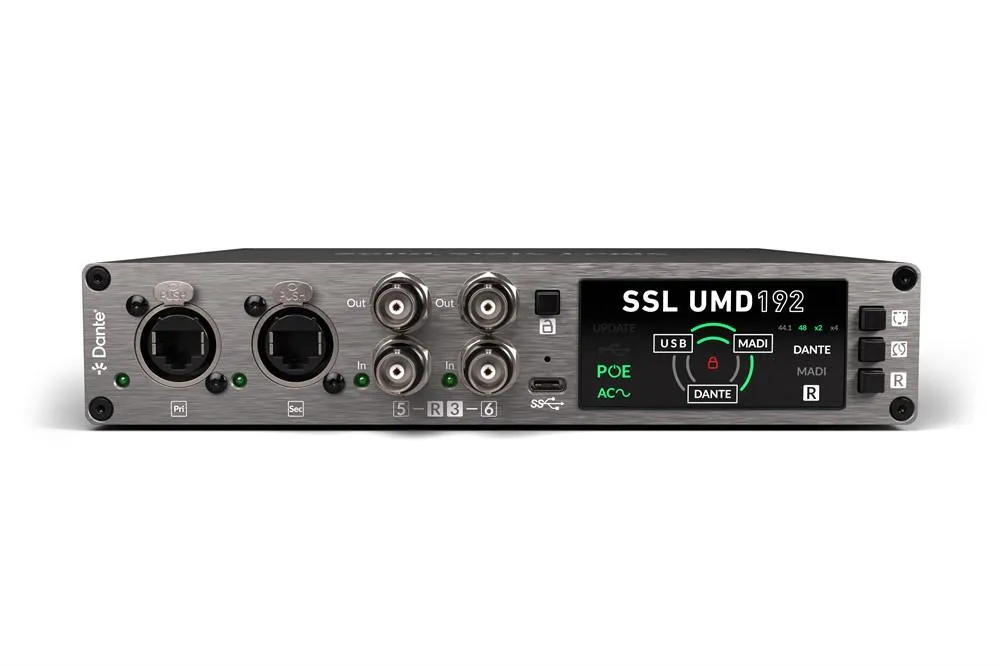

User-friendly front panel: Clear indicators for signal, sampling rate, power status, and network connection, as well as a lockable control panel.
Flexible power options: Power supply via wall outlet, PoE, or USB, with redundancy options.
Compatibility: Mac OS (no driver required) and Windows (SSL ASIO driver).
½ rack unit (½RU), lightweight and portable for desktop, rack or console.

Summary:
The SSL UMD192 is a powerful, flexible, and portable solution for professional audio applications. With advanced format and network integration, redundancy options, and intuitive control, it is ideal for creating reliable audio environments in live, broadcast, and studio applications.
