Rockboard MOD 3 V2

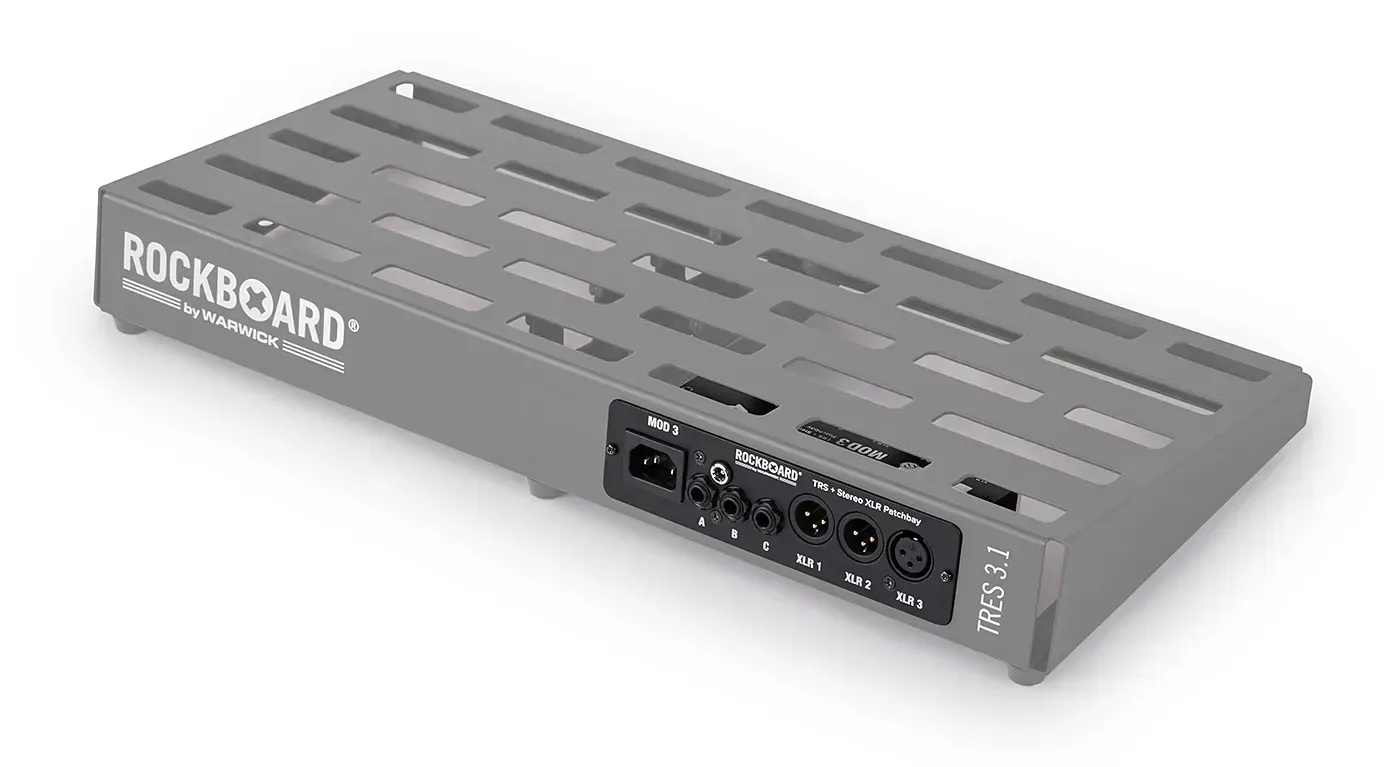

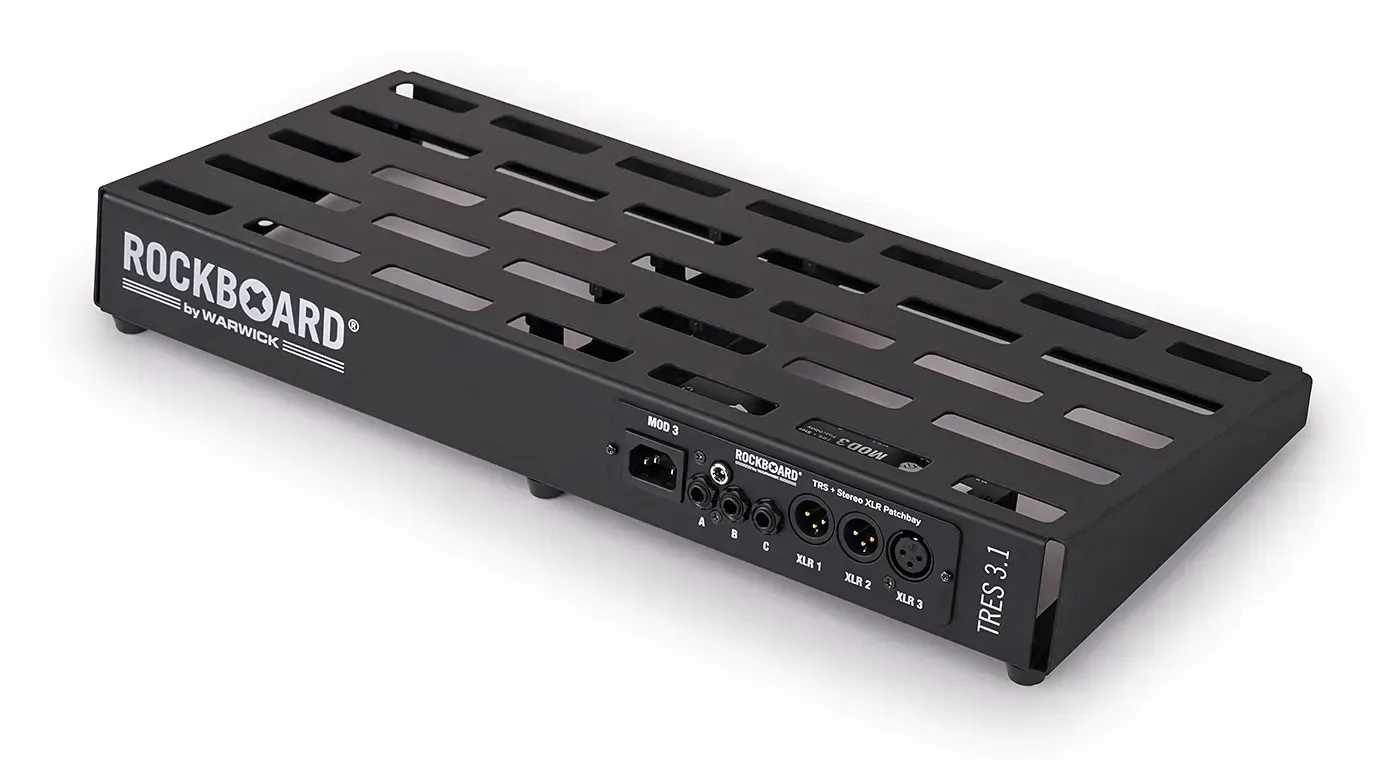

RockBoard MOD 3 V2 is an all-in-one patchbay designed for vocalists and acoustic players who want a clean and organized pedalboard setup. It fits the MOD slot on RockBoard pedalboards and is also compatible with a wide range of other pedalboards.

The MOD 3 V2 provides a central connection point for your effects setup, helping to keep cable routing neat and efficient. It allows pedals to remain permanently connected underneath the board while external connections stay accessible through one practical module.

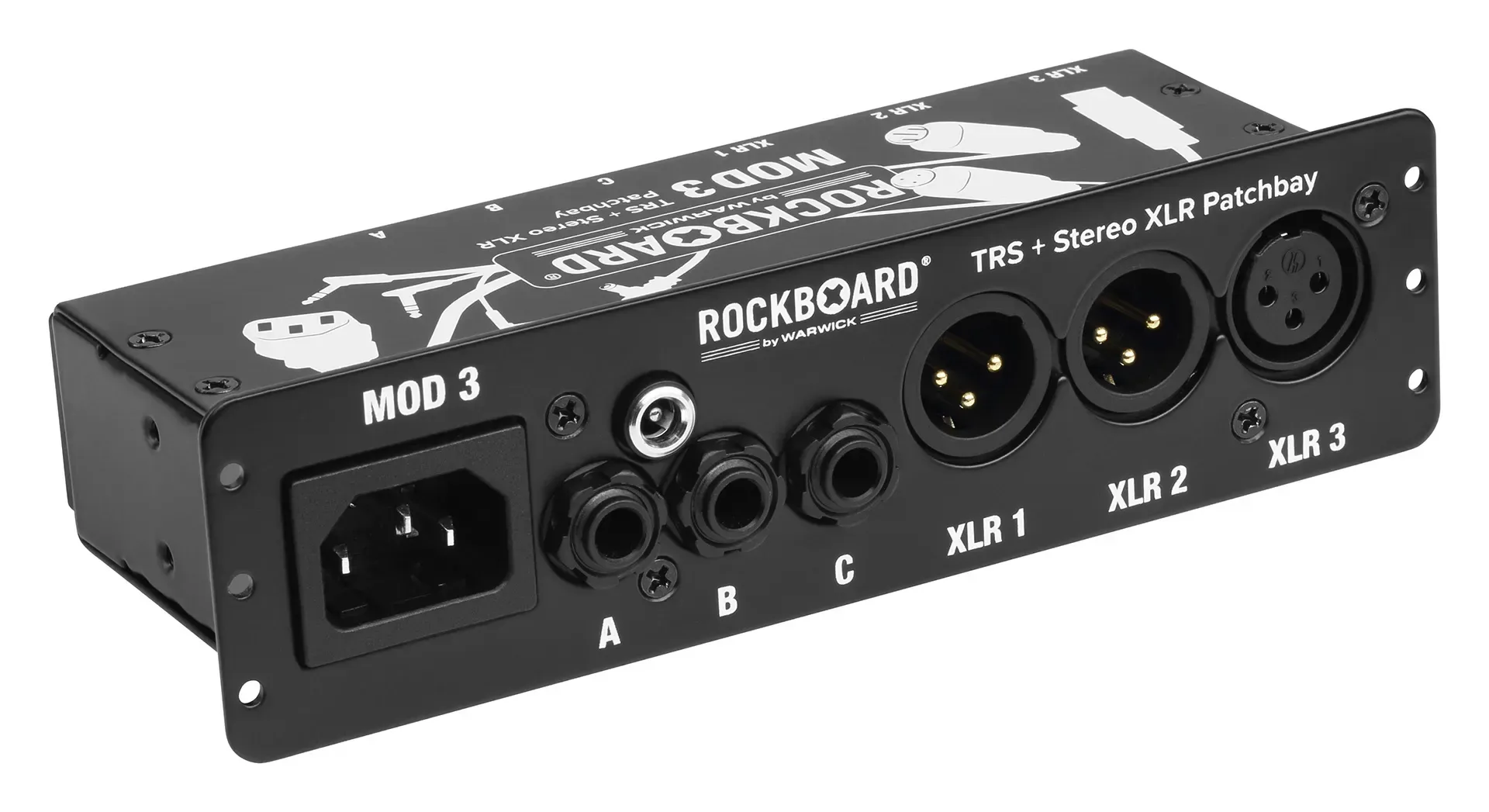

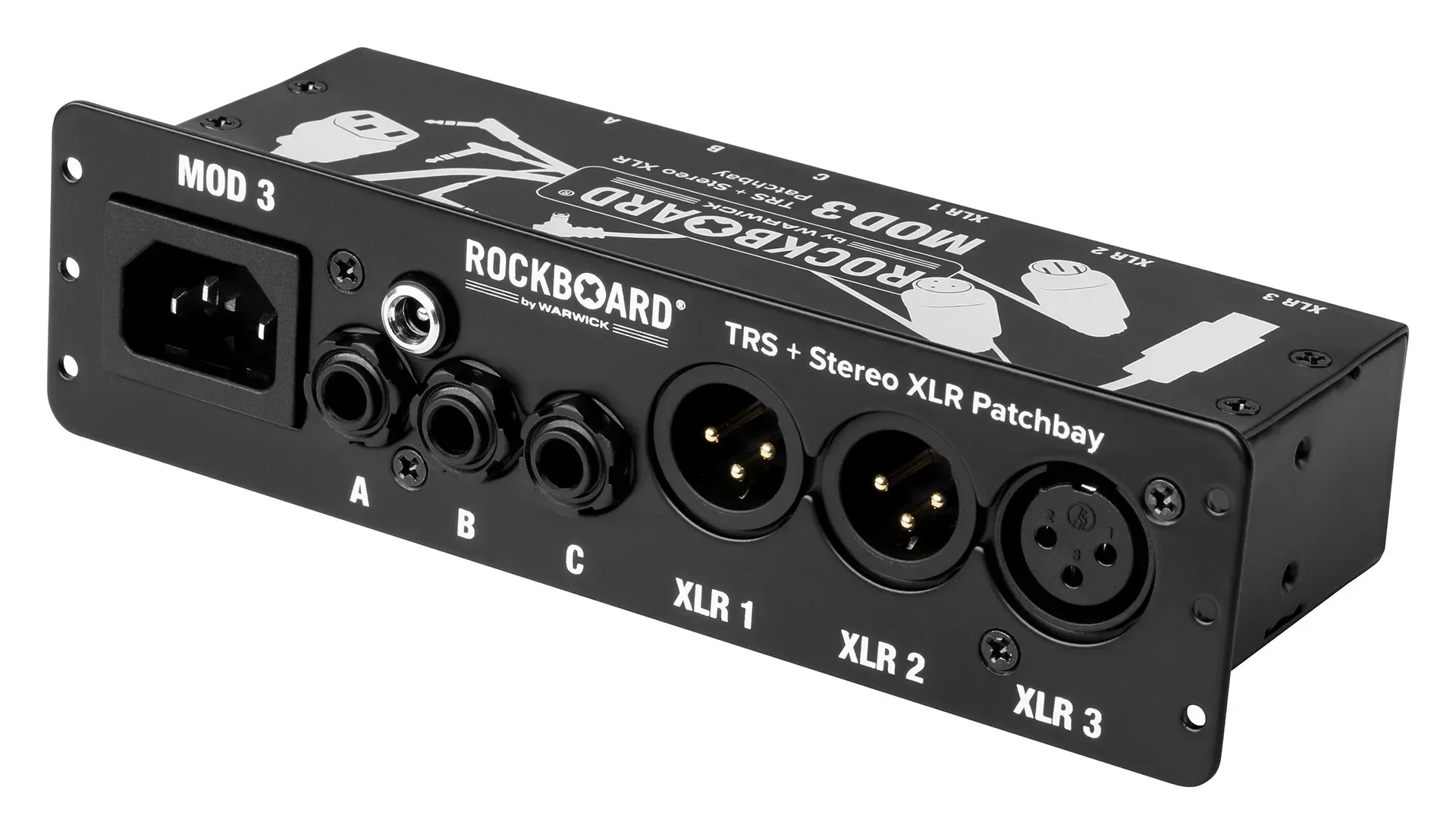

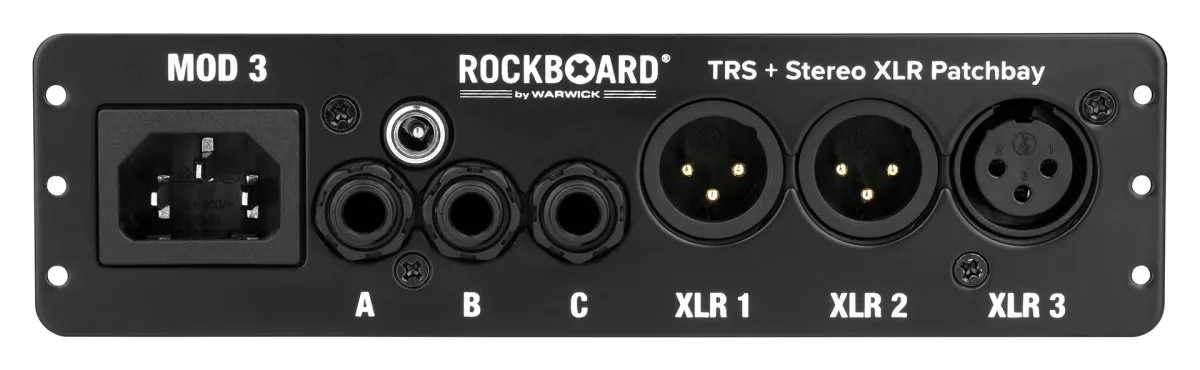

With three TRS pass-through connections, two XLR pass-through connections, one reverse XLR pass-through and both DC and IEC power pass-throughs, the unit offers flexible routing for different stage and rehearsal needs. All connections are mirrored on the rear for straightforward installation.

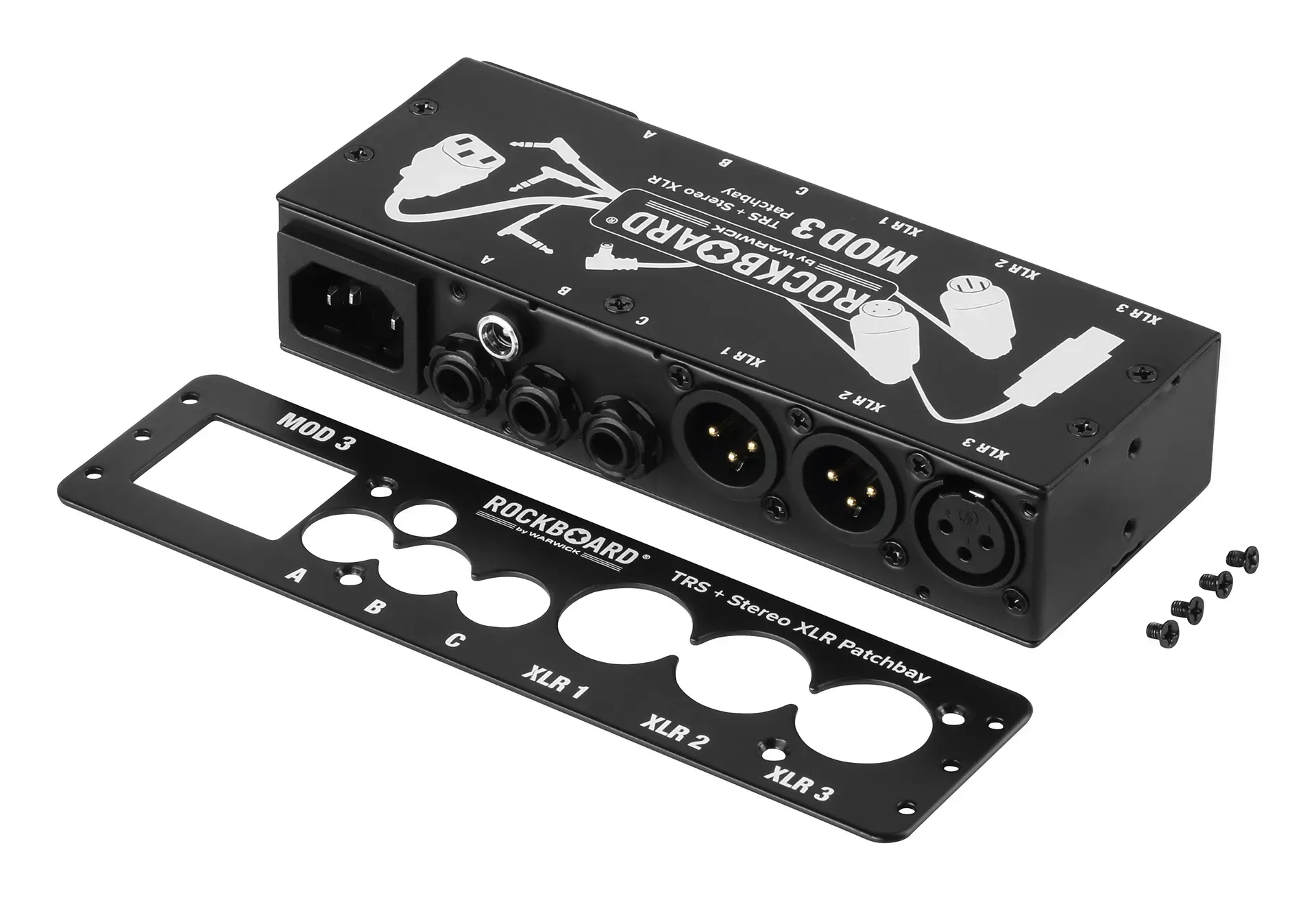

The detachable front plate supports mounting on top of or underneath the pedalboard, making the MOD 3 V2 a versatile solution for live and studio use.

Features
All-In-One Patchbay For Pedalboards
Designed For Vocalists And Acoustic Players
Central Access Point To Your Effects Setup
Detachable Front Plate For Flexible Mounting
Multiple Audio And Power Pass-Through Connections

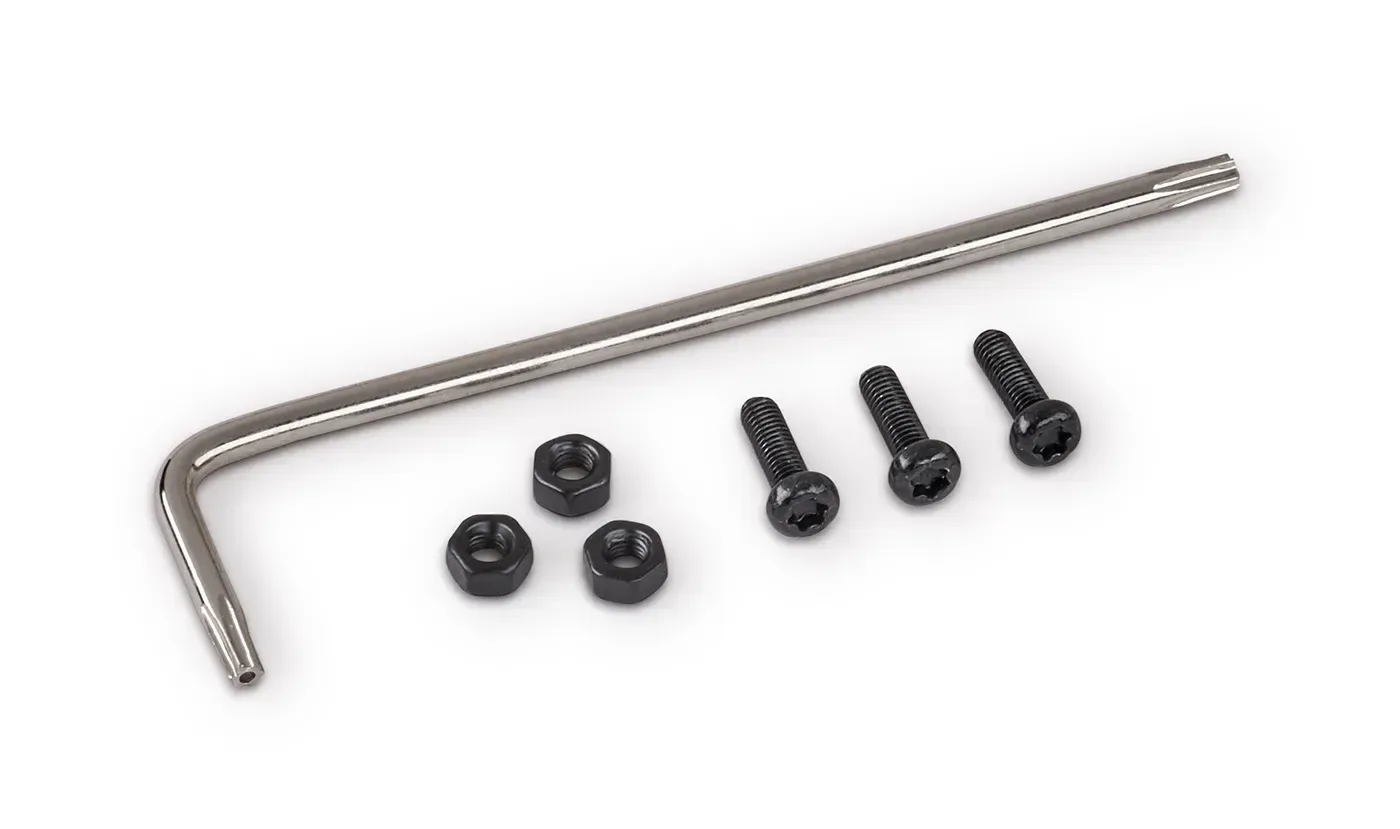

In The Box
RockBoard MOD 3 V2
Mounting screws
Counter nuts
TX wrench

Specifications
TRS Connections: 3 x 6.3 mm Pass-Through
XLR Connections: 2 x XLR Pass-Through (Male Front / Female Rear)
XLR Connection: 1 x XLR Pass-Through (Female Front / Male Rear)
DC Power Connection: 1 x 2.1 x 5.5 mm Barrel Pass-Through
Maximum DC Rating: 3 A At 30 V
AC Power Connection: 1 x IEC Pass-Through (Male Front / Female Rear)

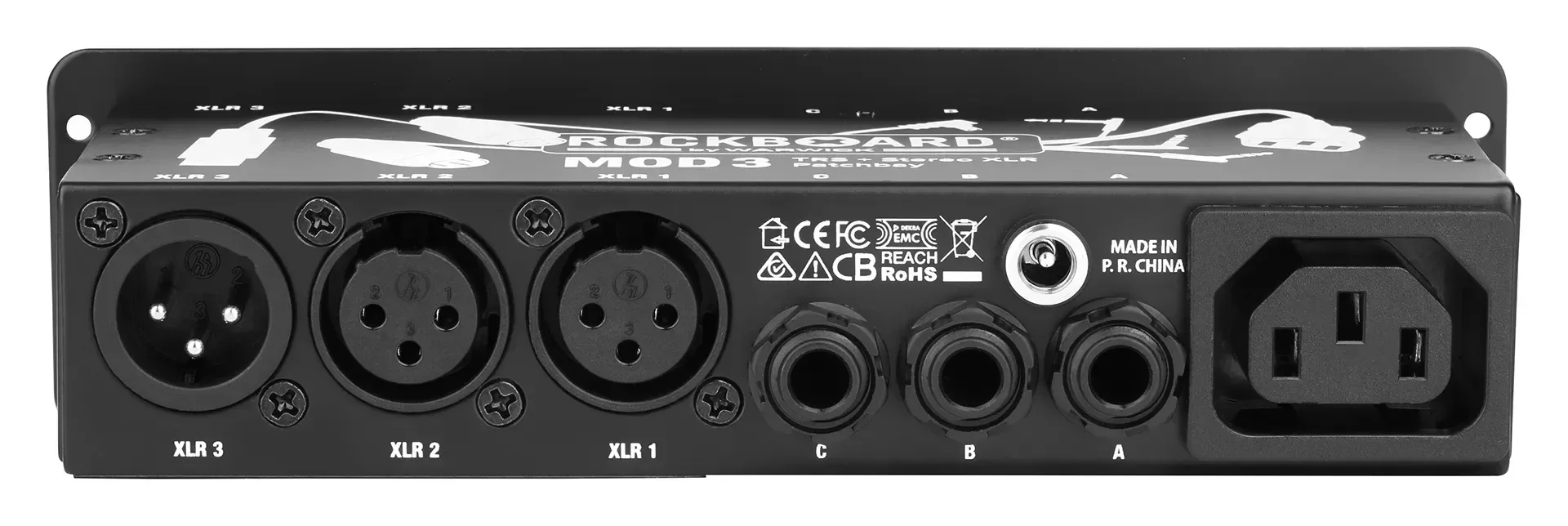

Rear Connections: Mirrored To Front Panel
Mounting: Top Or Bottom Mount Via Detachable Front Plate

Dimensions & Weight
Module Dimensions: 160 × 60 × 33 mm
Front Plate Dimensions: 175 × 48 mm
Weight: 450 g
