Rockboard MOD 1 V2

RockBoard MOD 1 V2 is an all-in-one patchbay designed to simplify cable management and provide a central connection point for pedalboards. It fits the MOD slot found on most RockBoard pedalboards and is also compatible with many other pedalboard setups.

The MOD 1 V2 allows musicians to permanently connect pedals underneath the board while routing all essential connections through a single, organized interface. This creates a cleaner setup and makes connecting instruments, amplifiers and power sources faster and more convenient.

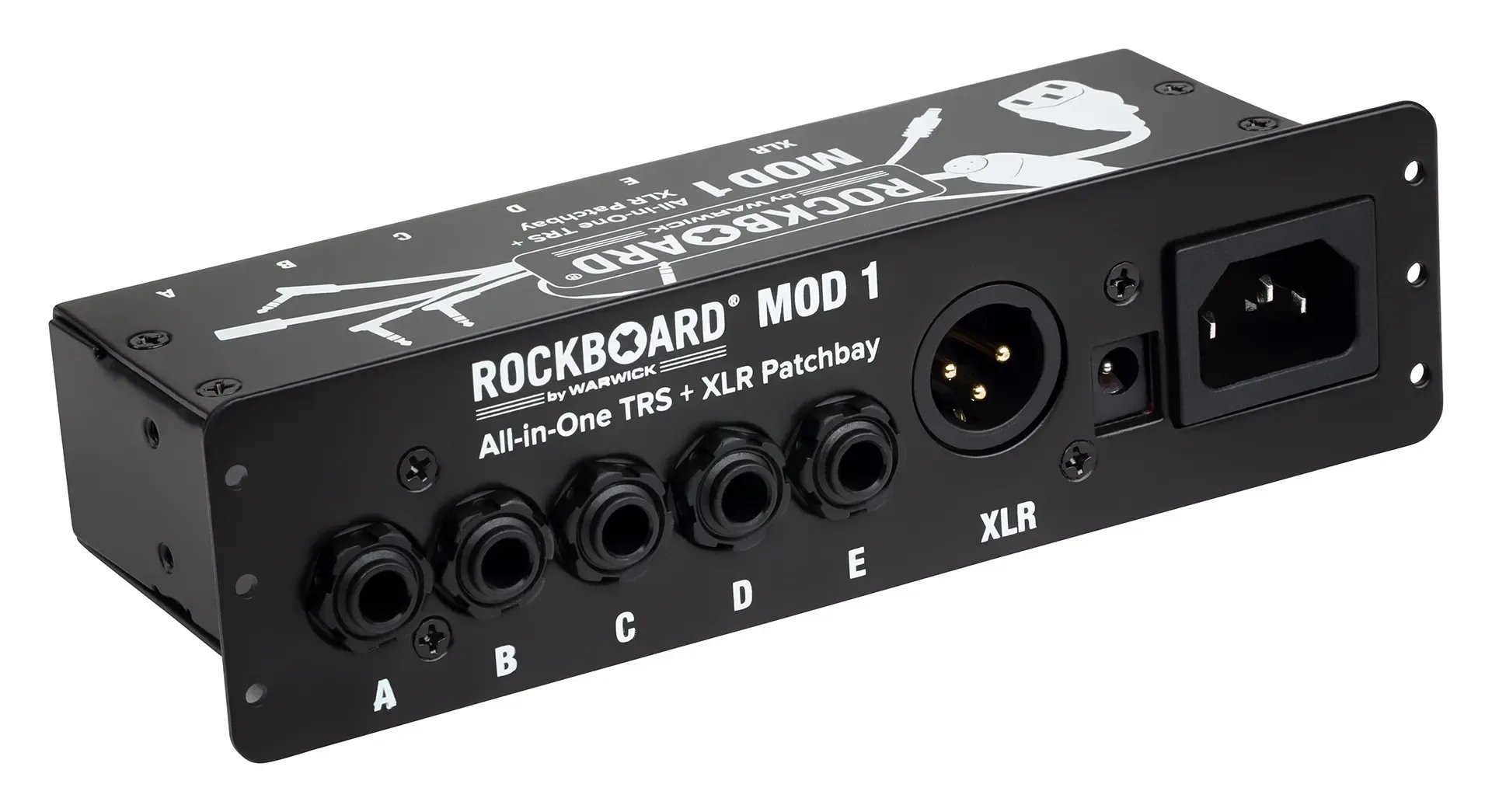

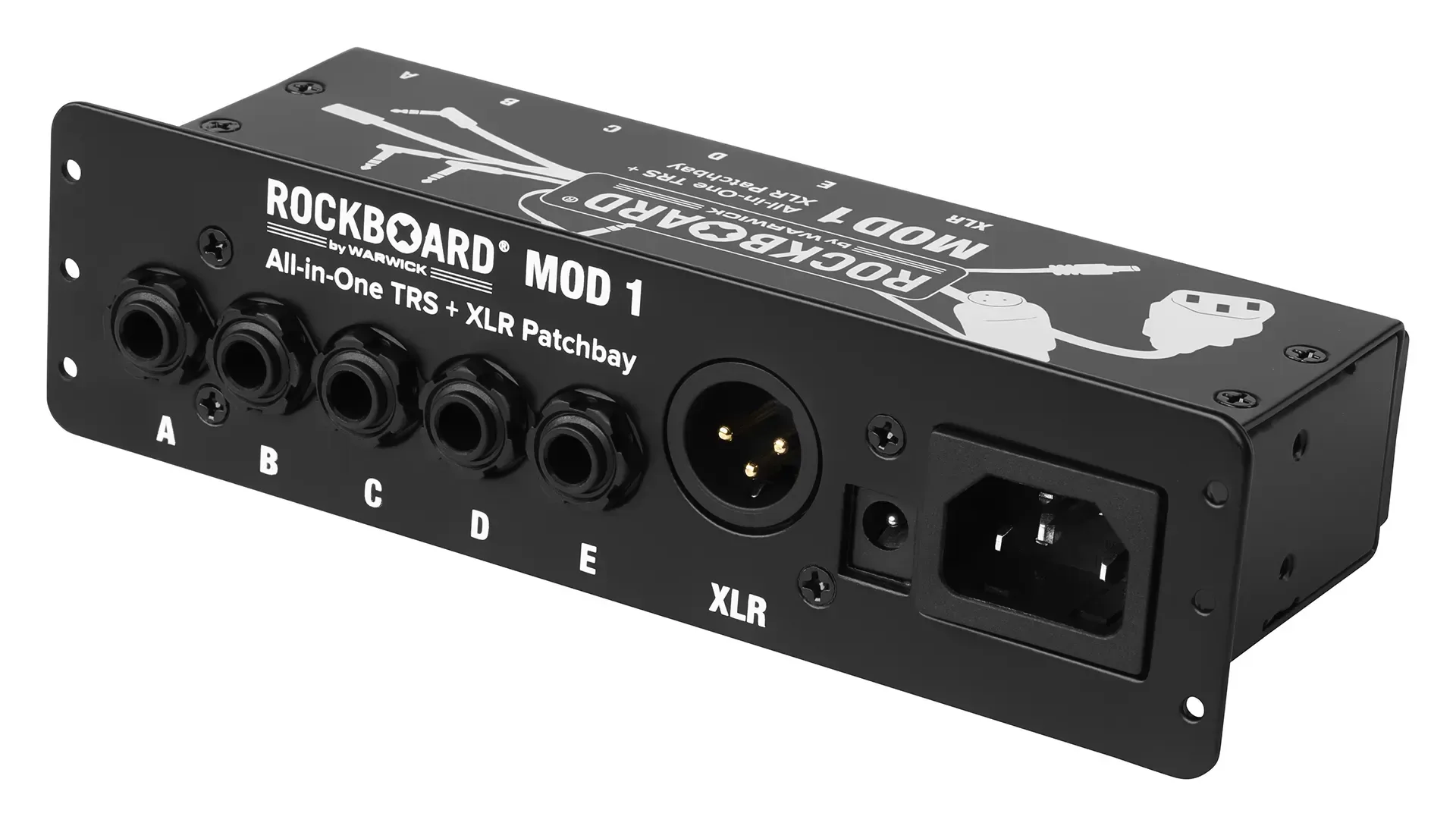

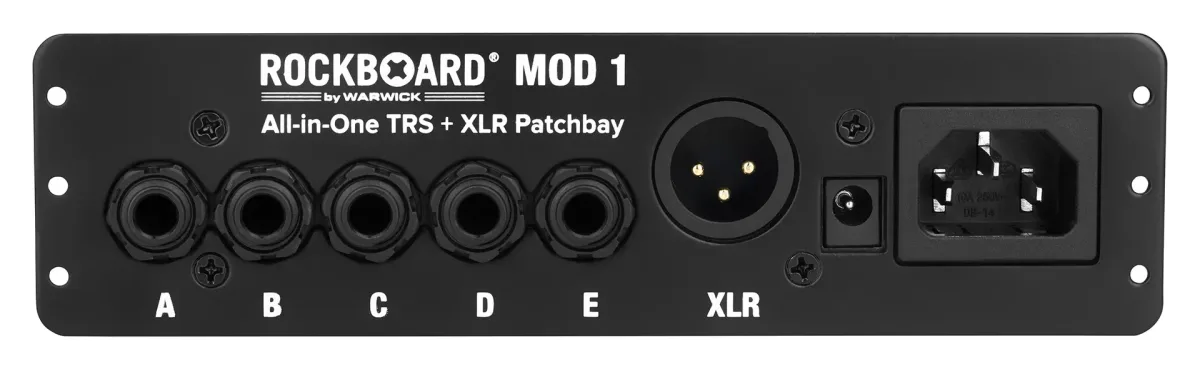

Featuring multiple TRS pass-through connections, an XLR pass-through, DC barrel power pass-through and an IEC power pass-through, the unit offers flexible connectivity for a wide variety of pedalboard configurations. All connections are mirrored on the rear panel for straightforward installation.

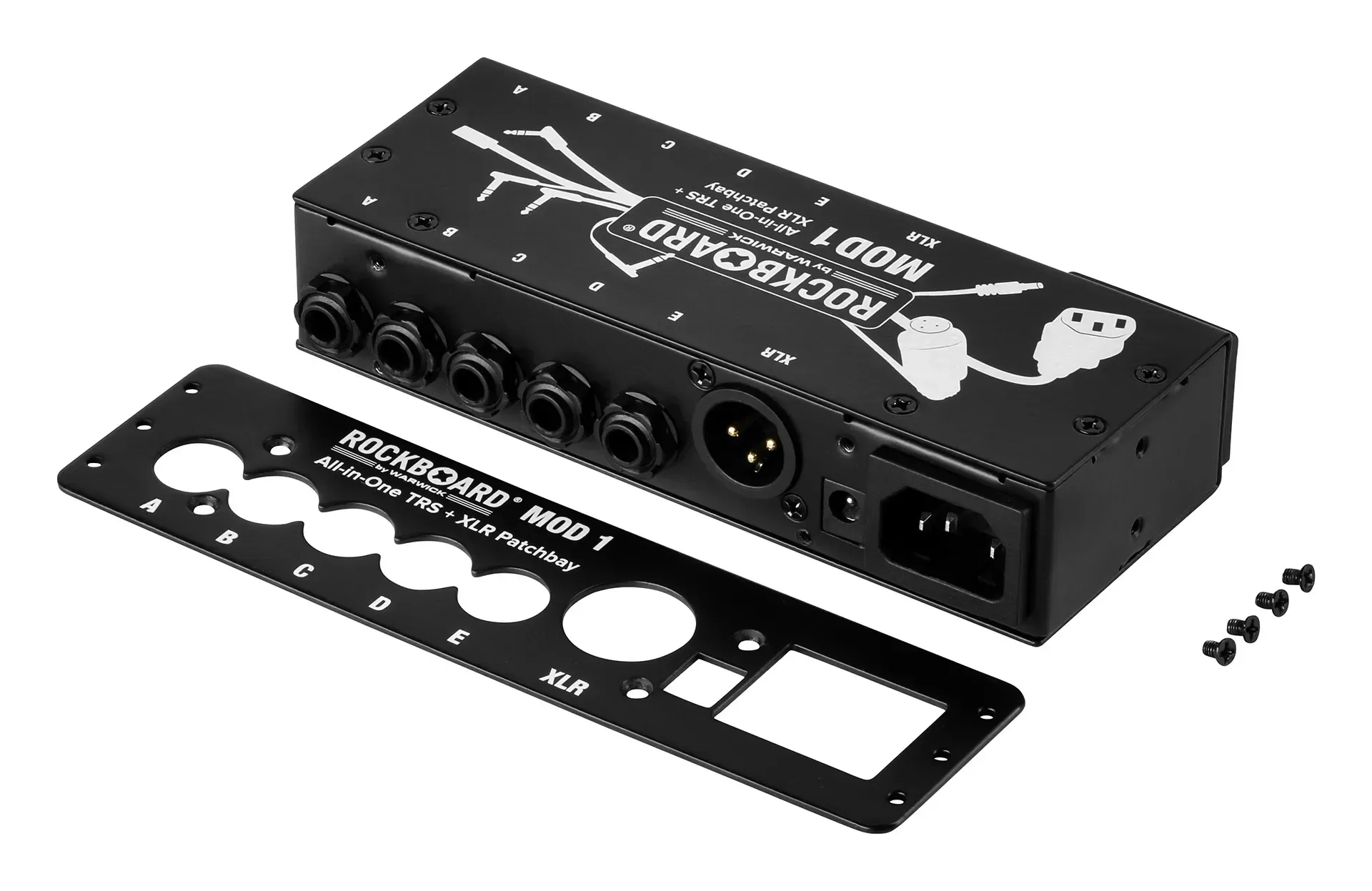

The detachable front plate allows mounting from the top or underside of the pedalboard, while the robust construction ensures reliable operation for both studio and live applications.

Features
All-In-One Patchbay For Pedalboards
Central Connection Point For Effects Setups
Multiple Audio And Power Pass-Through Connections
Detachable Front Plate For Flexible Mounting

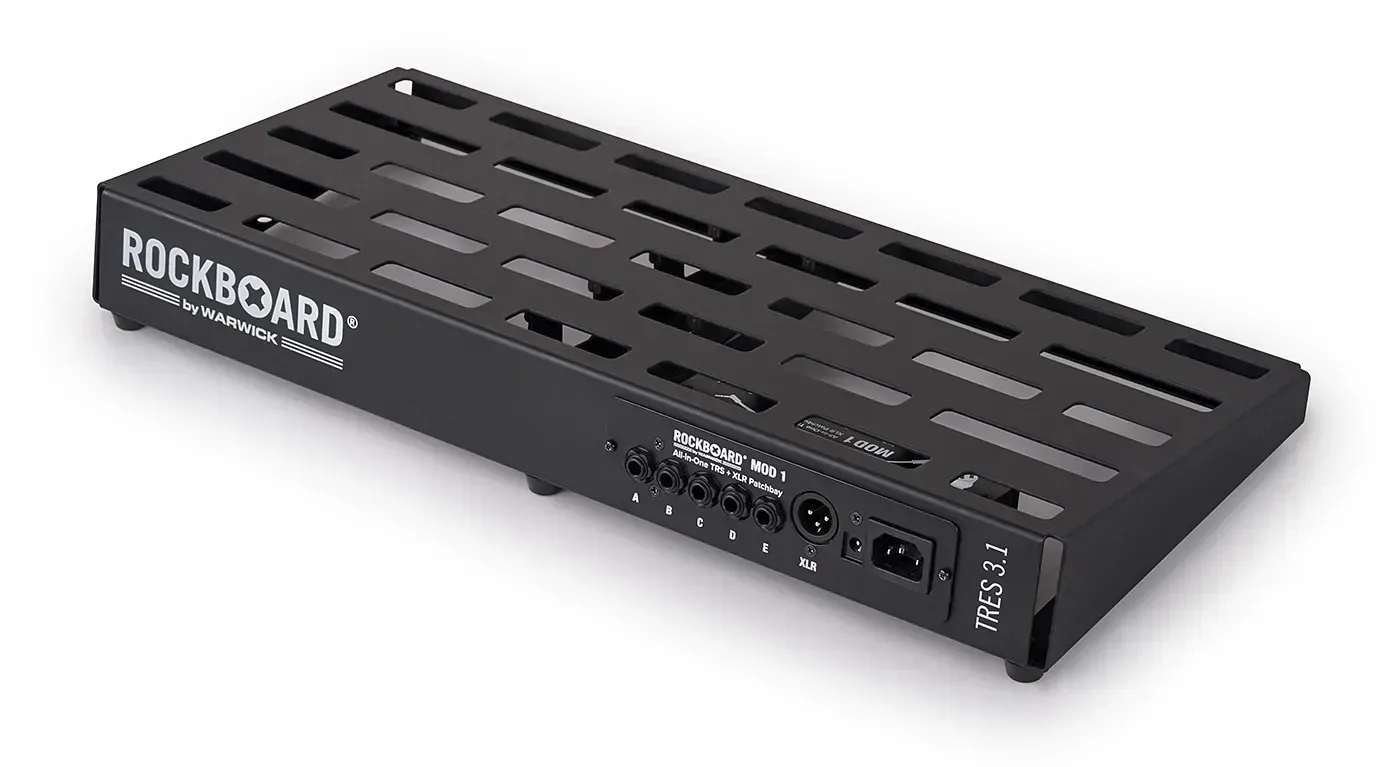

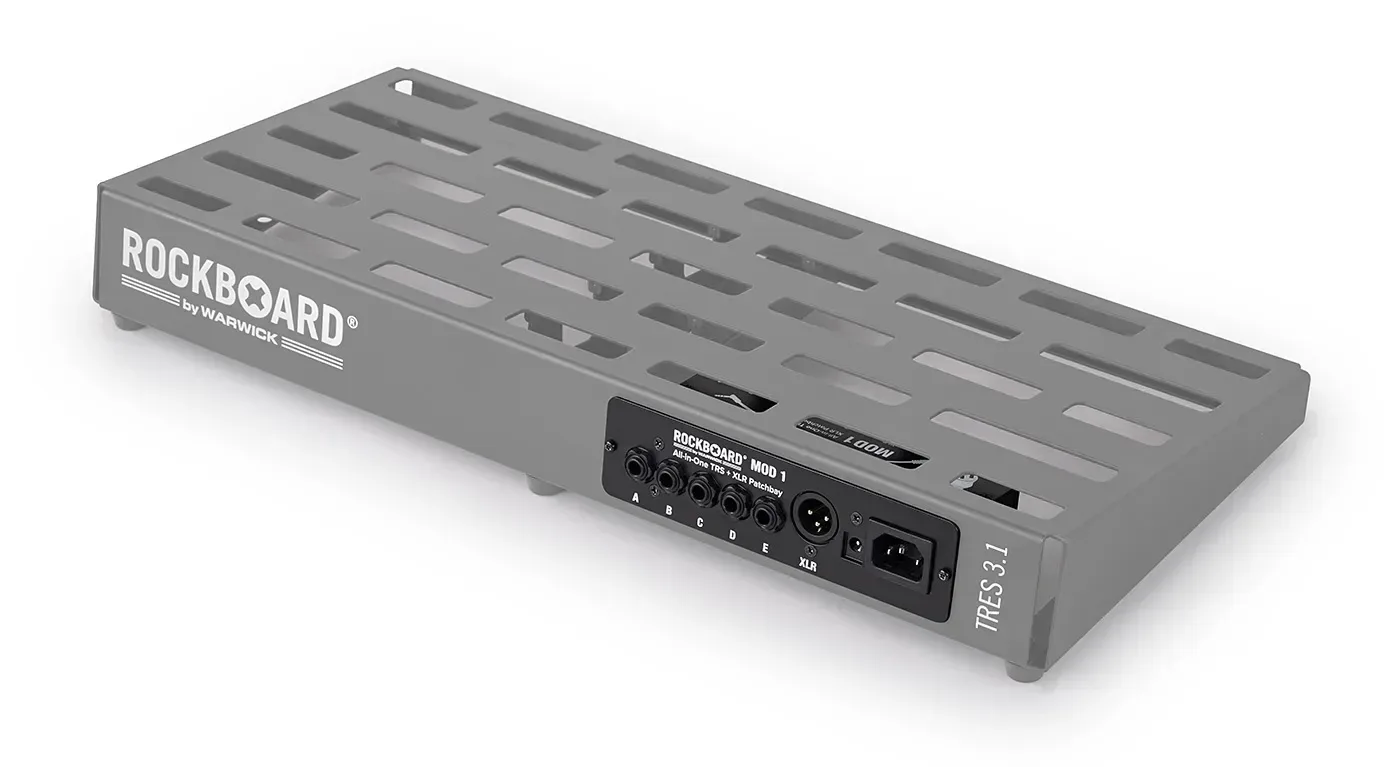

Compatible With Most RockBoard Pedalboards

In The Box
RockBoard MOD 1 V2

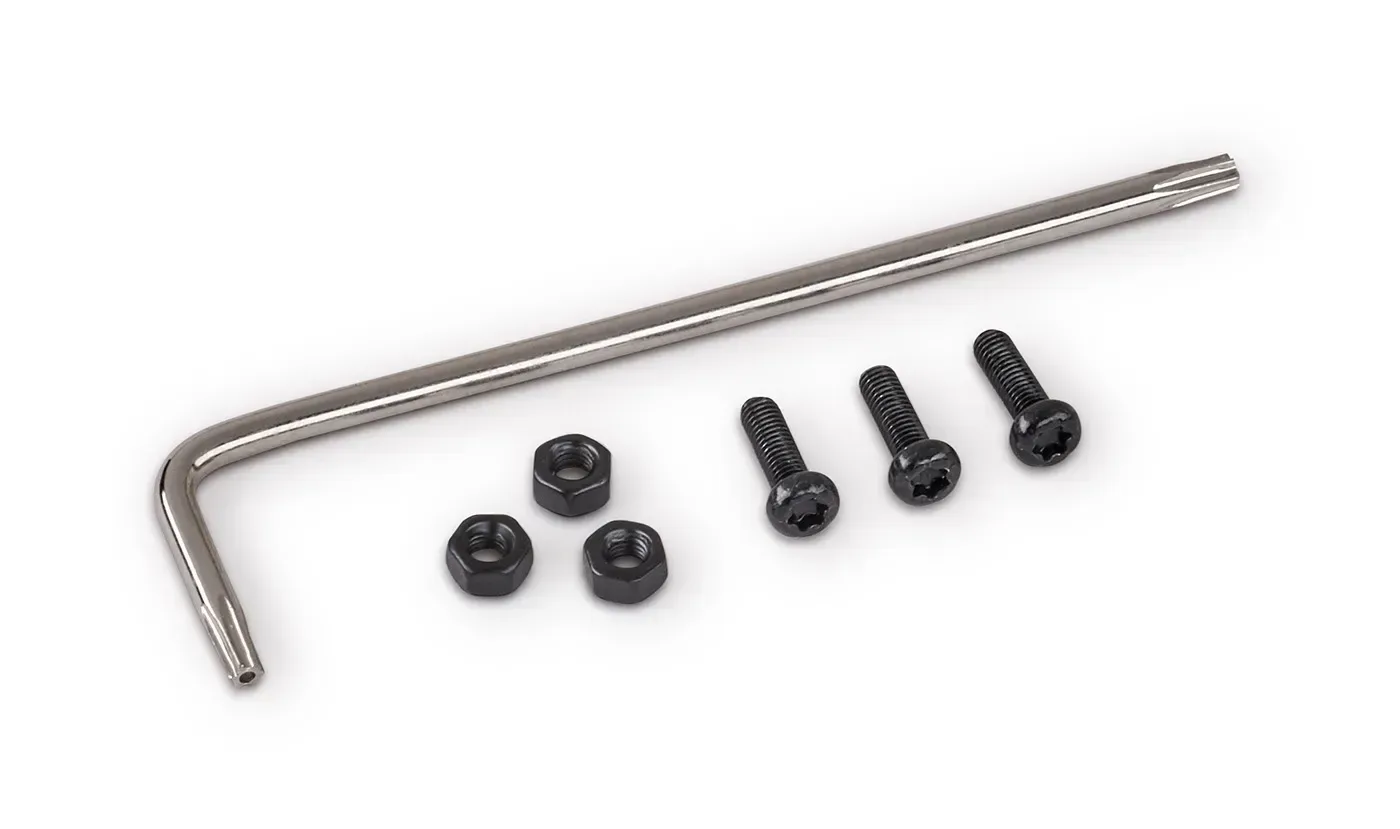

Mounting screws
Counter nuts
TX wrench

Specifications
TRS Connections: 5 x 6.3 mm Pass-Through
XLR Connection: 1 x XLR Pass-Through (Male Front / Female Rear)
DC Power Connection: 1 x 2.1 x 5.5 mm Barrel Pass-Through
Maximum DC Rating: 3 A At 30 V
AC Power Connection: 1 x IEC Pass-Through (Male Front / Female Rear)

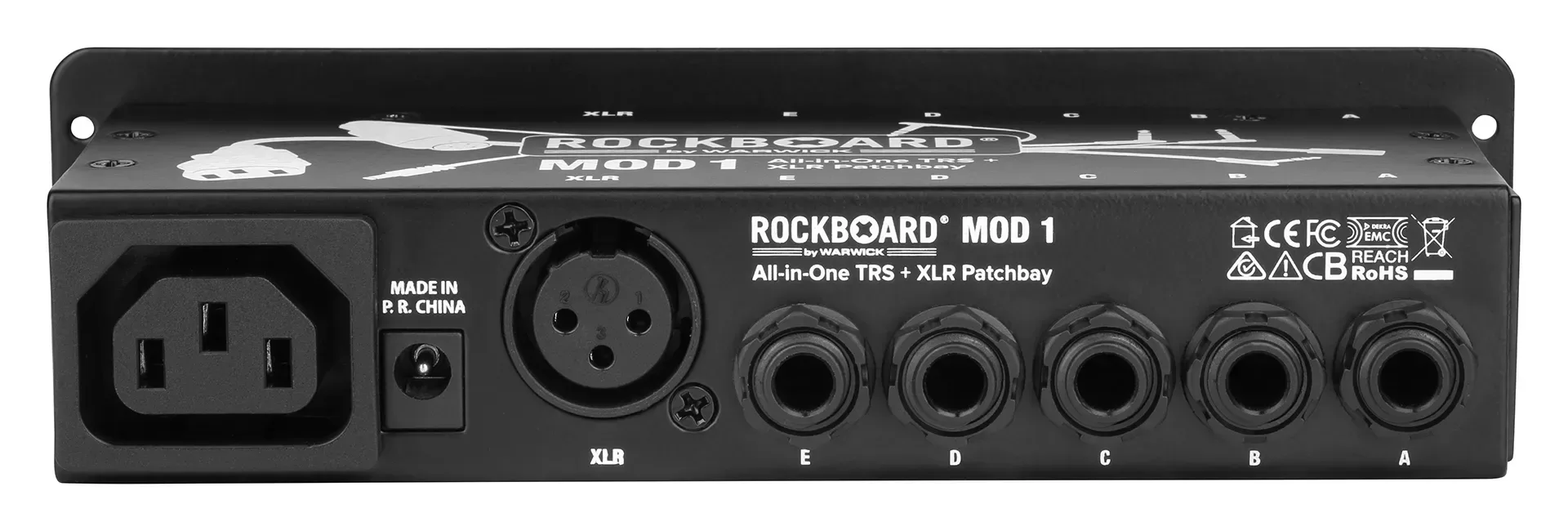

Rear Connections: Mirrored To Front Panel
Mounting: Top Or Bottom Mount Via Detachable Front Plate

Dimensions & Weight
Module Dimensions: 160 × 60 × 33 mm
Front Plate Dimensions: 175 × 48 mm
Weight: 450 g
