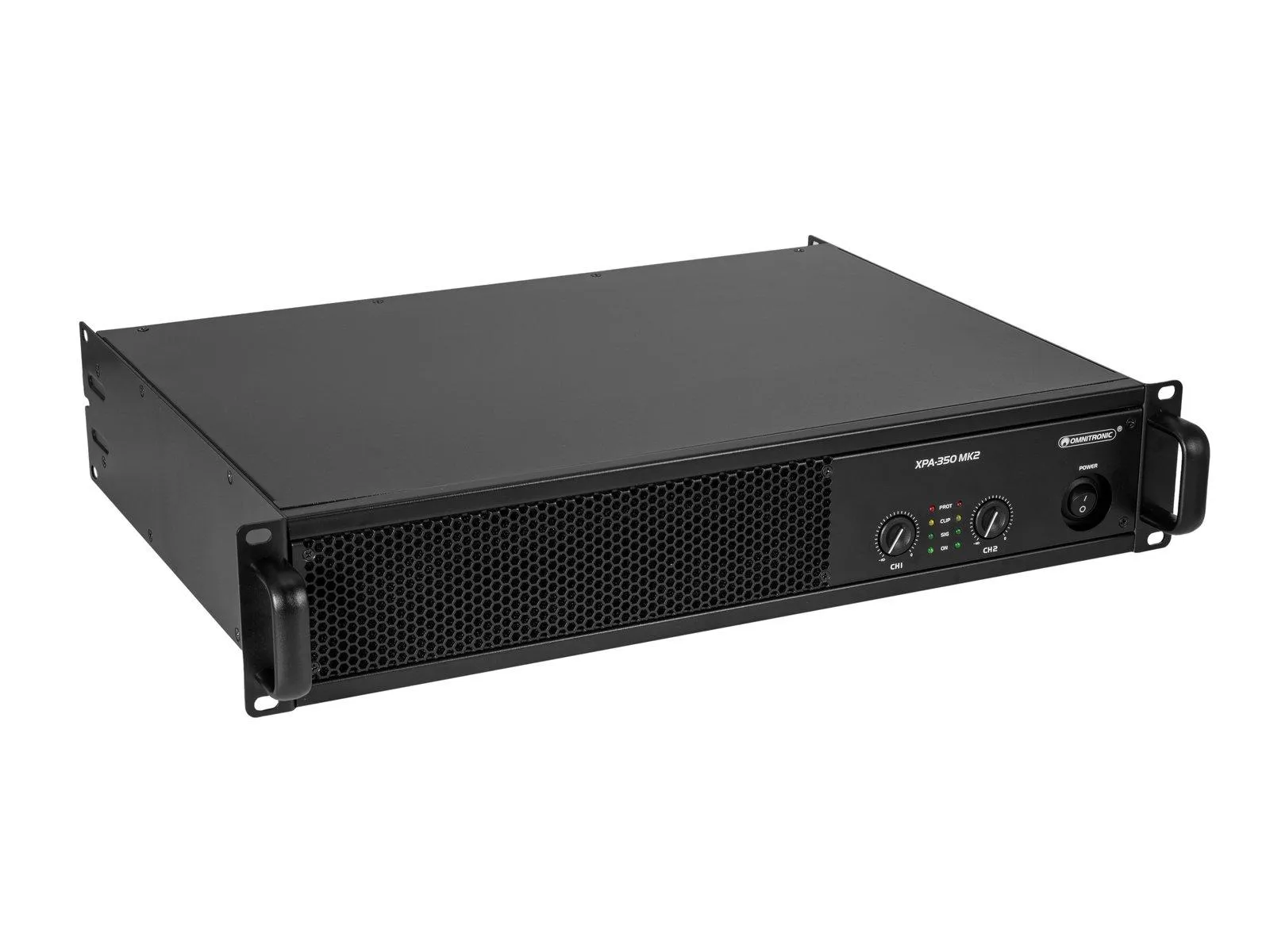

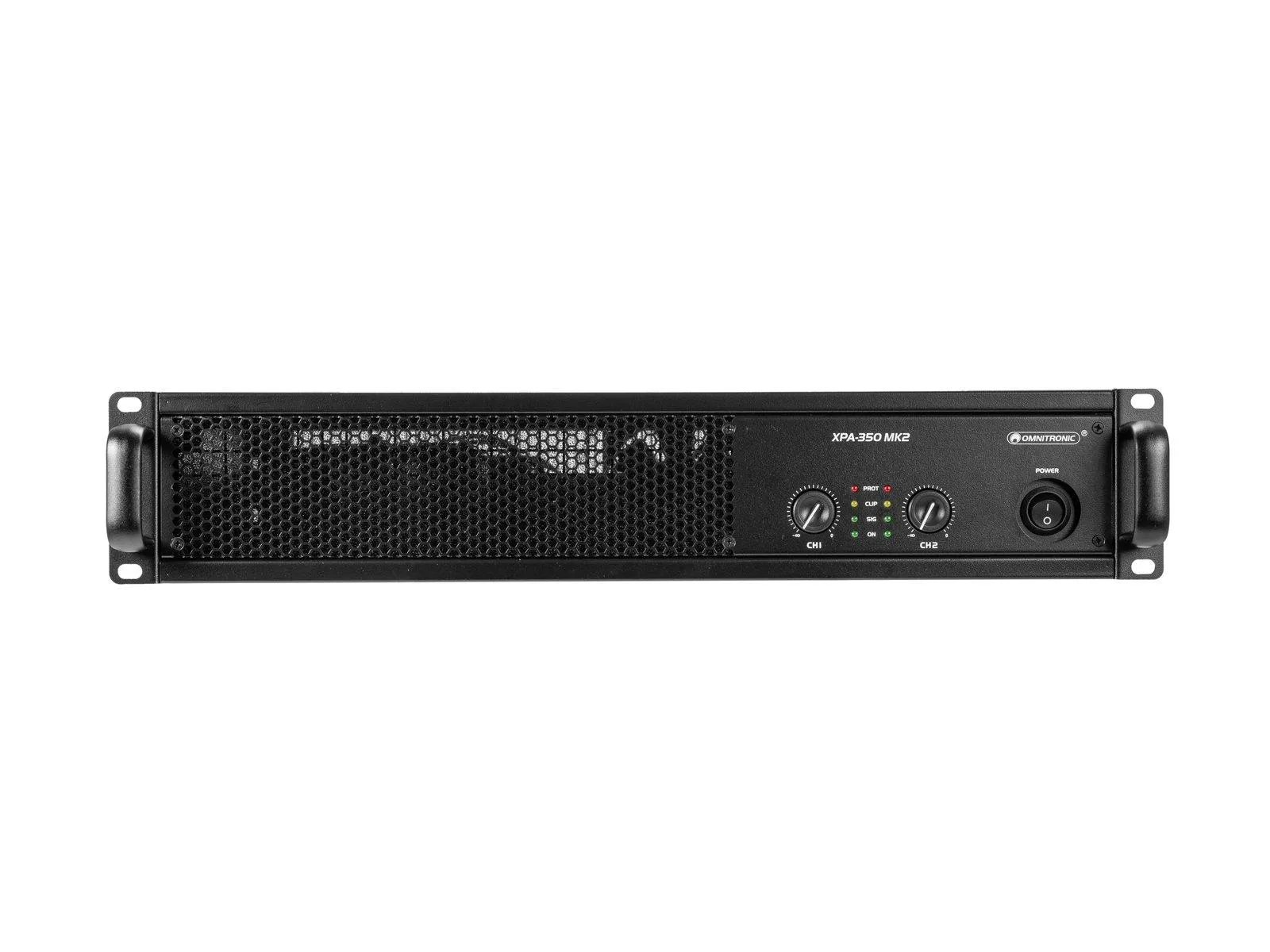

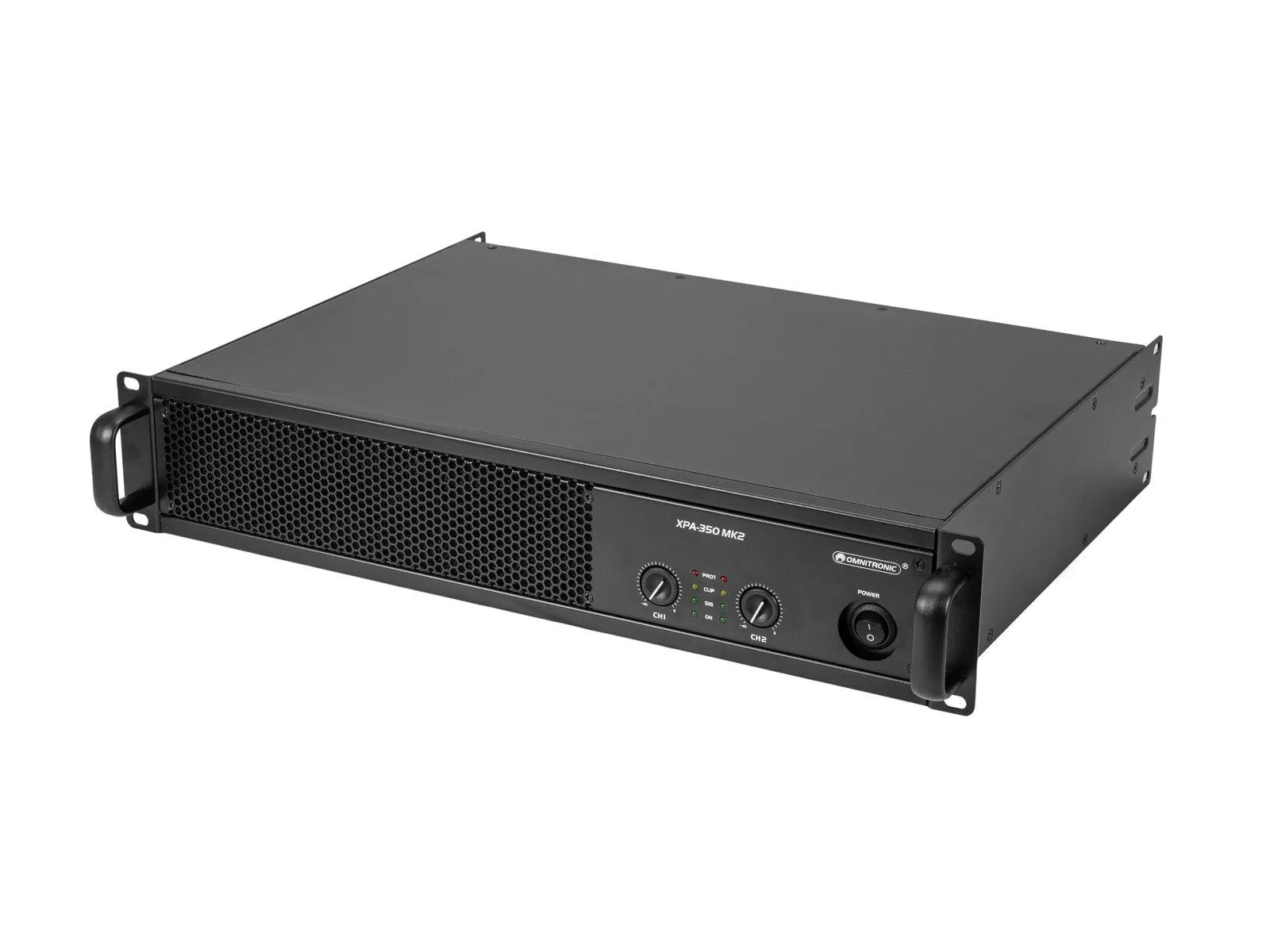

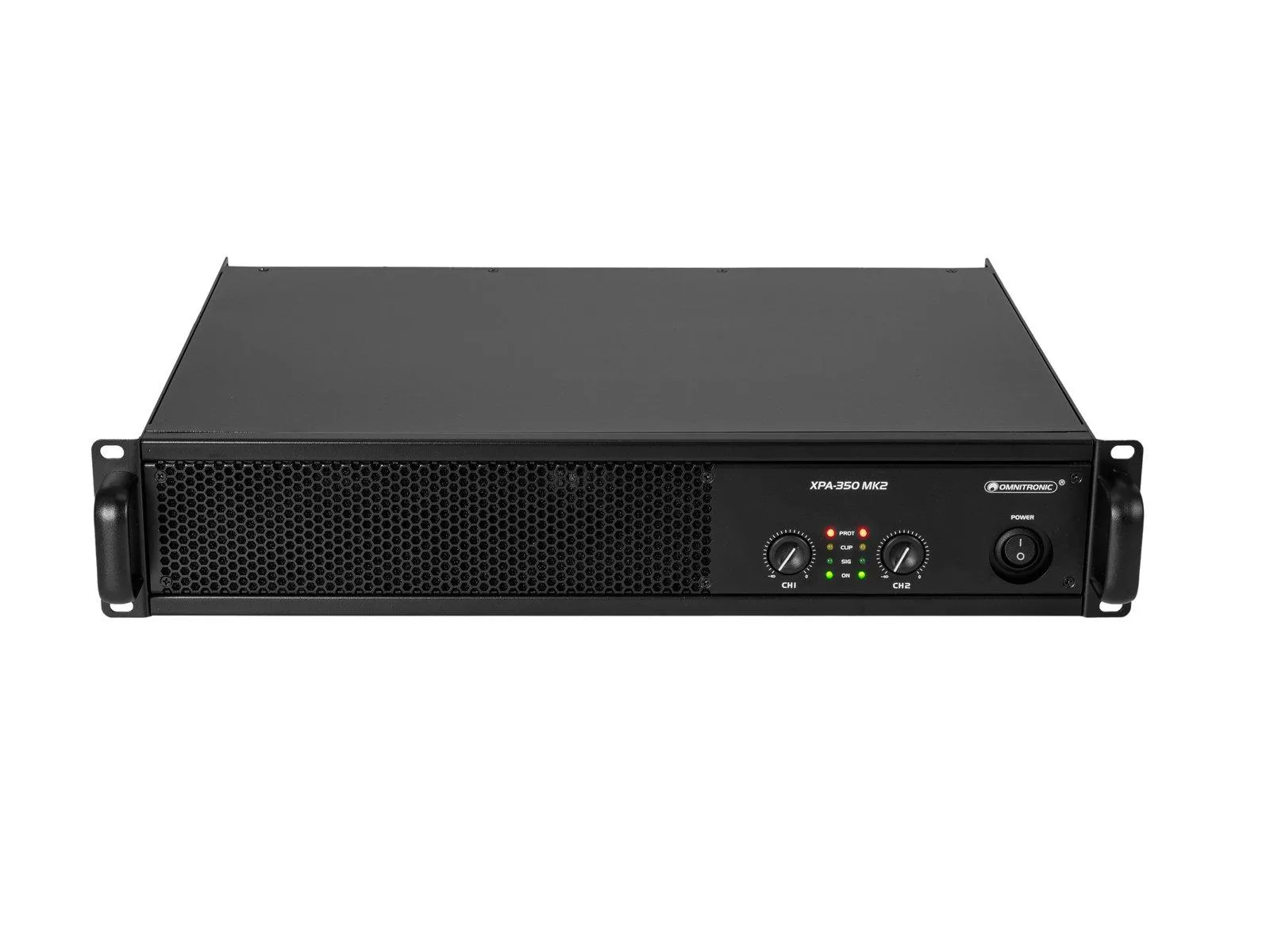

Omnitronic XPA-350 MK2 Amplifier

Class AB PA amplifier with limiter, 2 x 175 W RMS (4 ohms), 2 x 130 W RMS (8 ohms)

2 level controls
Signal inputs via XLR or RCA connectors
Speaker outputs via lockable speaker jacks and pairs of screw terminals
Class AB circuitry
Highly efficient Air flow from front to rear
The device is cooled by temperature-controlled fan
(19") 48.3 cm rack installation 2 U
For application areas such as: Clubs/dancing school; Installation; mobile use; mobile djs / entertainer; restaurants, bars and hotels; Rental; sports centres/gyms; Band/rehearsal room

TECHNICAL SPECIFICATIONS
Power supply: 230 V AC, 50 Hz
Power consumption: 245 W 1/8 power
Protection class: Protection class I
Output power: 2 x 175 W RMS (4 ohms)
2 x 130 W RMS (8 ohms)
350 W RMS bridged (8 ohms)
Power connection: Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Cable length: 1 m detachable
Fuse: 5 x 20 mm, F 8 A Fuse serviceable
Frequency range: 20 - 20000 Hz
S/N ratio: >95 dB
THD: <0,5 % at 1 kHz
Cooling: 1 x temperature-controlled fan , Air flow from front to rear
Impedance: Input: 20 kOhm , bal.
Input: 10 kOhm , unbal.
Gain: 30 dB/ 1 V
Housing color: Black
Circuitry: Class AB
Slew rate: >20 V/µs
Damping factor: >200
Control elements: Power switch, level control per channel, mode switch (stereo/parallel/bridged)
Controls: Short-circuit; overheat; DC voltage; softstart; power on/off transients; VHF; current limiting; limiter
Status LED: Power, signal, clip, protect

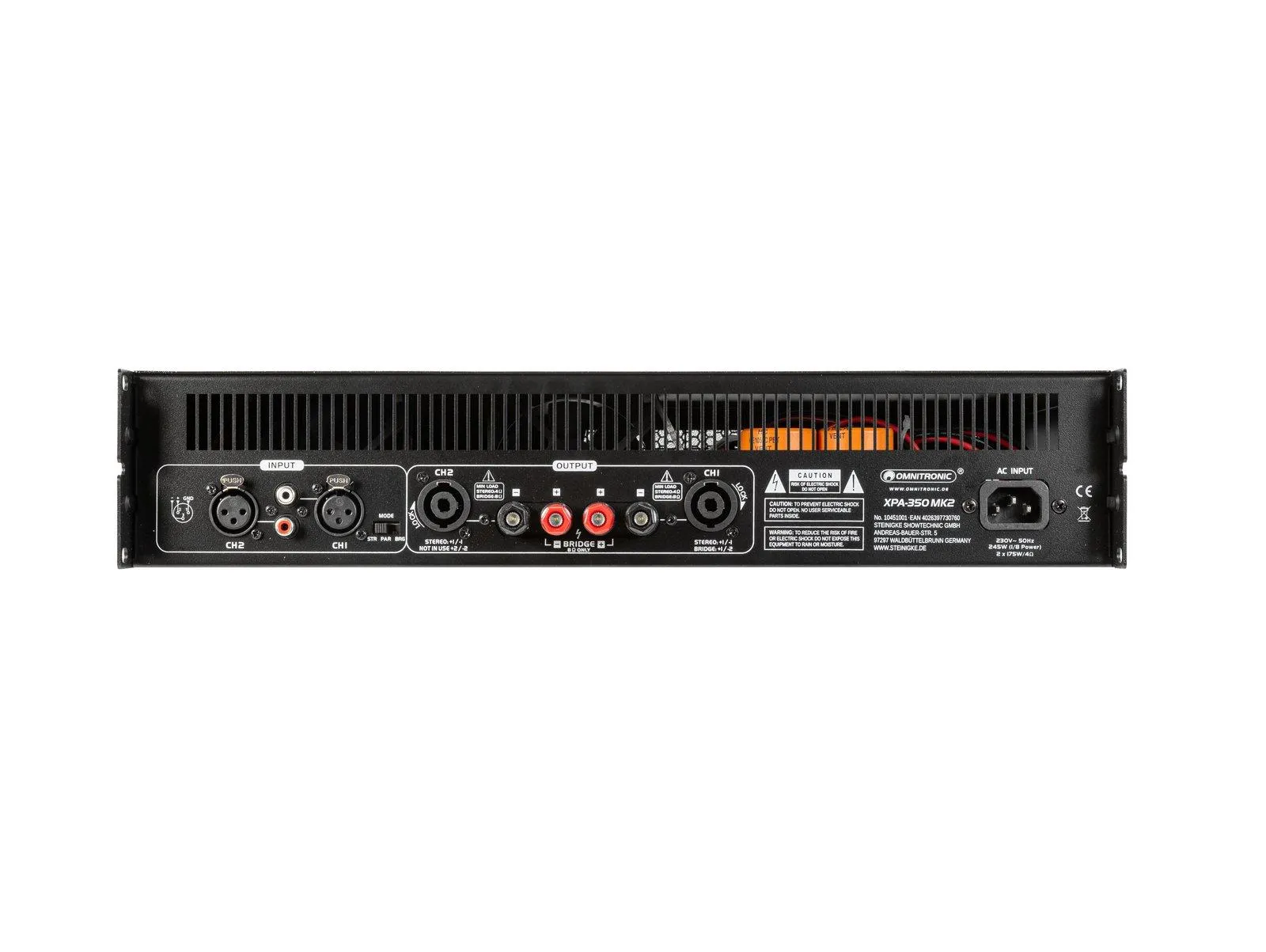

Connections: Input: line via 2 x 3-pin XLR
Input: line via 2 x stereo RCA
Output: speaker via 2 x speaker built-in socket (F)
Output: speaker via screw terminal
Output: Speaker (bridge) via 1 x speaker built-in socket (F)
Output: Speaker (bridge) via screw terminal
Input sensitivity: 1 V
Housing design: (19") 48.3 cm rack installation 2 U
Dimensions: Width: 48,3 cm
Depth: 36,8 cm
Height: 9,1 cm
Weight: 7,65 kg
