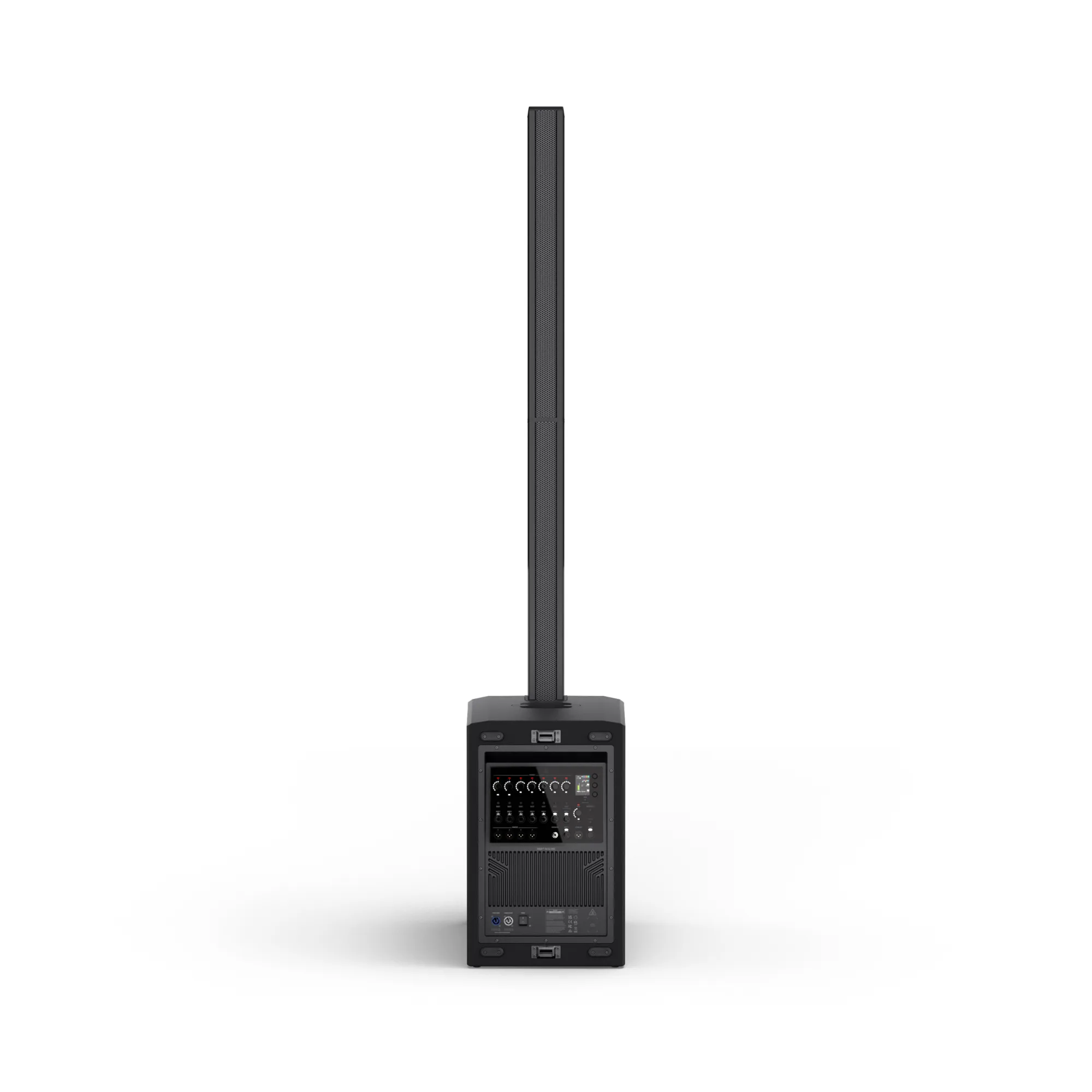

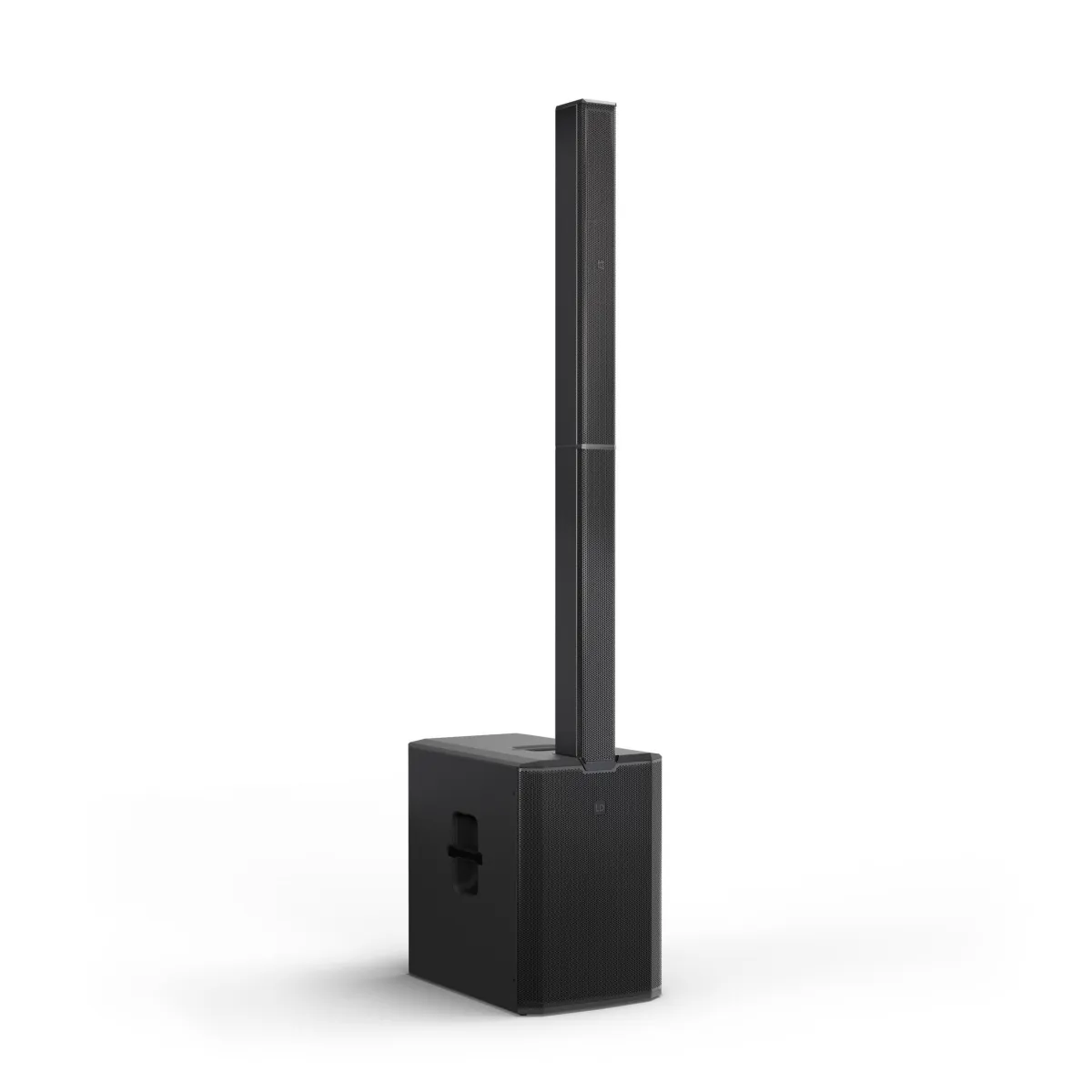

LD Systems Maui 44 G3 Mix Black

MAUI® 44 G3 MIX – Active 4-Way Column PA System with Digital Mixer

The MAUI® 44 G3 MIX is a powerful active 4-way column PA system featuring a cardioid column design, an integrated 8-channel digital mixer and advanced DSP technology. With 3,600 W peak power, a maximum SPL of 133 dB and frequency response down to 34 Hz, it delivers powerful bass, clear vocal reproduction and controlled sound dispersion. It is ideal for solo performers, duos, bands and event professionals seeking professional sound reinforcement with flexible mixing and monitoring.

Sound System and Performance

Active 4-way column PA system with 3,600 W peak power and 1,800 W RMS power
Class D amplifier
Maximum SPL: 133 dB
Frequency response: 37–20,000 Hz (-6 dB), 34–20,000 Hz (-10 dB)
Crossover frequencies: 200 Hz, 700 Hz and 1,800 Hz
Dispersion: 120° horizontal × 25° vertical
15-inch neodymium bass driver with bass reflex design for powerful, precise low frequencies
14 × 3.5-inch neodymium midrange drivers
4 × 1-inch neodymium compression drivers with waveguides for clear high frequencies
BEM-optimised waveguides and phase plugs for even, controlled sound dispersion
Horn-loaded midrange drivers for improved wavefront coherence and clear vocal reproduction
Airflow-optimised bass reflex ports that reduce turbulence and port noise

Cardioid Technology and Expansion

Cardioid column design with up to 18 dB rear attenuation between 100 Hz and 1 kHz
Reduces unwanted stage sound and directs sound energy towards the audience
Expandable with a second MAUI 44 G3 SUB for extended low-frequency response or a cardioid subwoofer configuration
A rear-facing additional subwoofer with the Cardioid preset increases forward bass output while reducing bass behind the system
A forward-facing additional subwoofer can provide up to 6 dB higher SPL in the low-frequency range

Integrated Digital Mixer and Connectivity

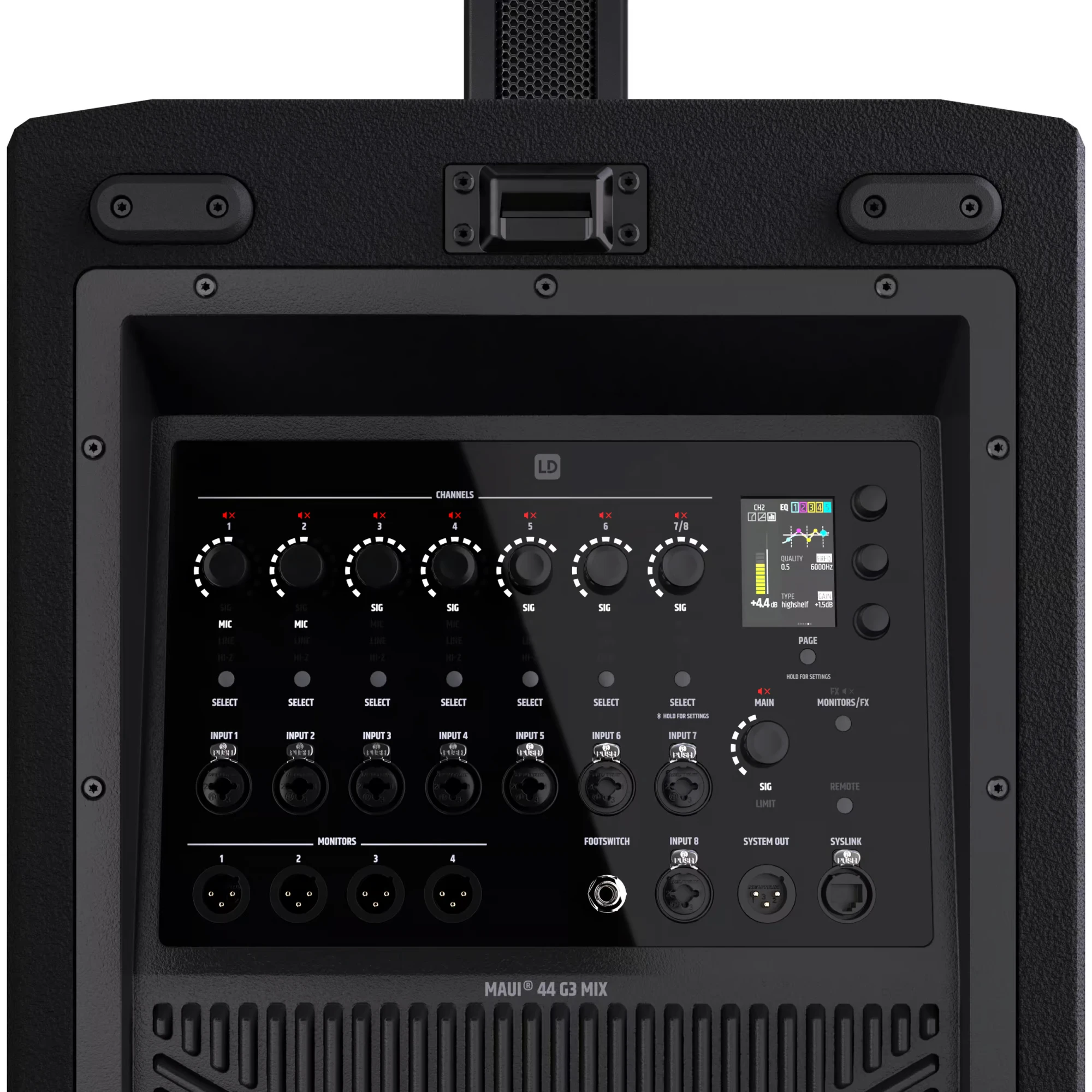

8-channel digital mixer with 8 × balanced XLR/TRS combo inputs
6 inputs with microphone preamps
48 V phantom power
Built-in digital effects, reverb, dynamics processing, delay line and fully parametric 5-band EQ
Integrated colour display for direct control of mixer and system settings
Footswitch input for hands-free control
Four monitor outputs and one dedicated system output
Bluetooth® 4.2 wireless audio streaming with SBC codec
SysLink® connection for stereo operation with two MAUI 44 G3 MIX systems and centralised control of all 16 channels
Remote control via the free MAUI MIX app for iOS and Android

DSP and Protection

DynX® DSP Gen. 2 for clean, distortion-free sound even at high output levels
Advanced peak, RMS and thermal limiters
Overheating protection
32-bit and 24-bit AD/DA conversion
Sampling rate: 48 kHz
Minimum signal-to-noise ratio: 104 dB

Construction and Portability

Rugged birch multiplex subwoofer enclosure with 18 mm material thickness and polyurea coating
Aluminium columns with powder-coated finish
Steel front grille on the subwoofer
Four ergonomic carrying handles on the subwoofer and recessed handles on the columns

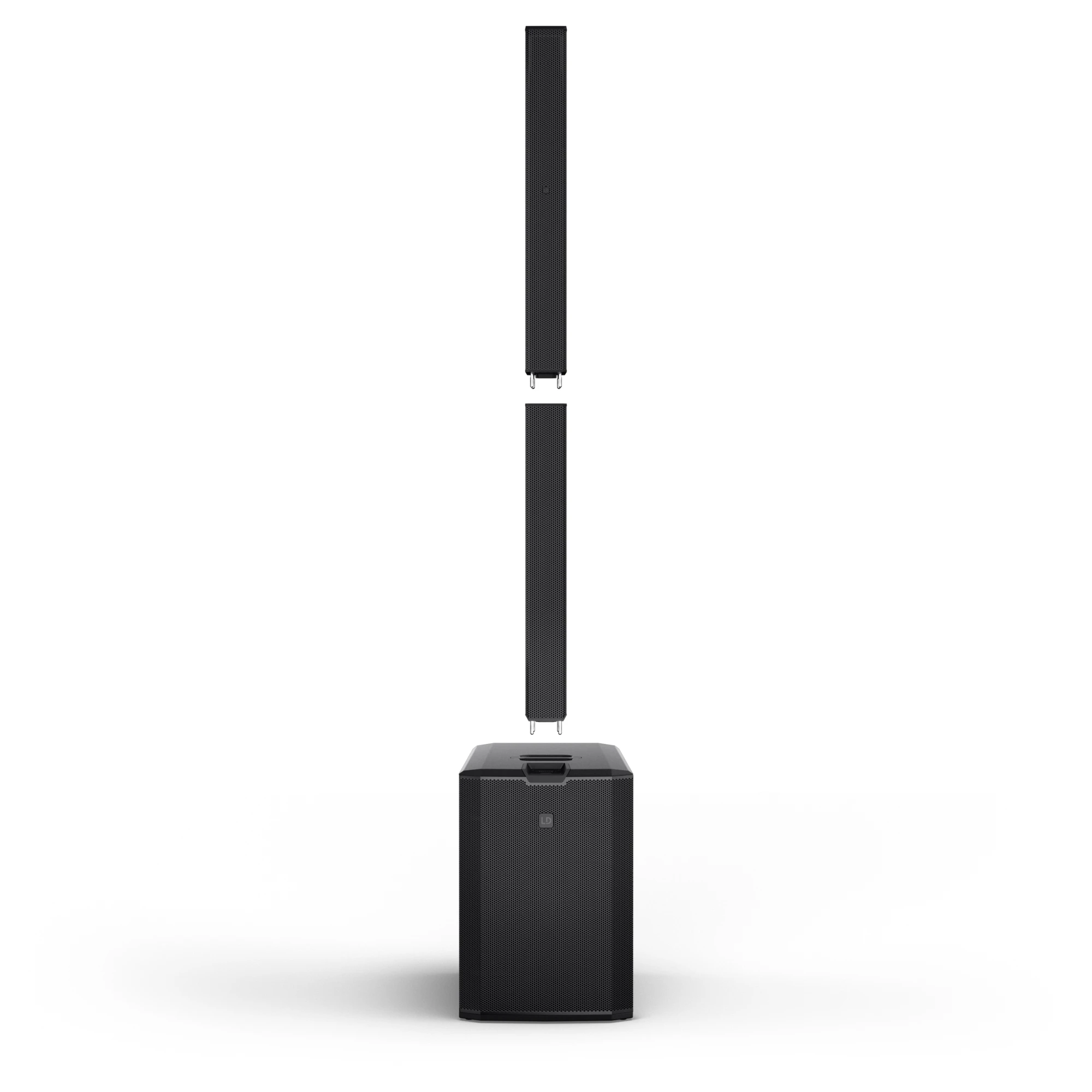

Cable-free connection between column sections with automatic column detection
Convection cooling

Technical Specifications

Type: Active speaker system
Amplifier class: D
Rated power: 900 W
Operating voltage: 100–240 V AC, 50–60 Hz
Power supply: Switched-mode power supply (SMPS)
Mains connector: powerCON®
Fuse: T10AL/250 V
Colour: Black
Ambient temperature: 0–40 °C
Maximum non-condensing humidity: 80%

Dimensions and Weight

Column (each): 103 × 1,626 × 136 mm (W × H × D)
Column weight: 12 kg
Subwoofer: 434 × 634 × 638 mm (W × H × D)
Subwoofer weight: 36.24 kg
Complete system: 434 × 2,259 × 638 mm (W × H × D)
Total weight: 48.3 kg

Included Accessories

Mains cable
Protective cover
