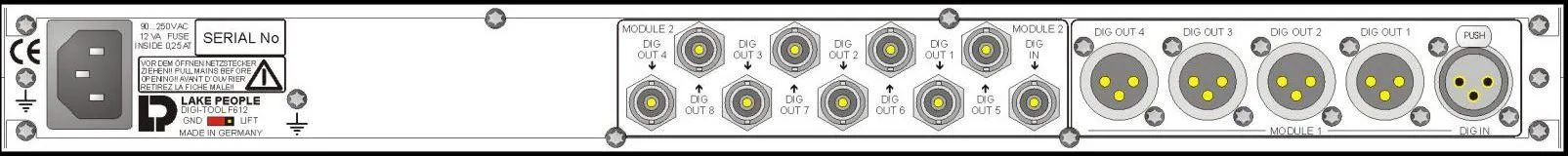

Lake People F612

The Lake People DIGI-TOOL F612 is a high-performance digital audio converter built to meet the demands of professional audio environments. It enables the precise conversion between AES/EBU and S/PDIF digital formats, ensuring that audio engineers can seamlessly connect different digital audio devices, such as mixing consoles, recorders, signal processors, and more.

MODULE 1 (AES/EBU Splitter)
- 1 input, 4 outputs via XLR sockets, transformer balanced, impedance 110 ohms, according to AES 3/11
- High sensitive inputs to regenerate unproper or weak input signals
- High output voltages (> 4 Veff) to drive long distances MODULE 2 (WCLK/AES-id Splitter)
- 1 input and 8 outputs via BNC sockets, unbalanced, impedance 75 ohms
- High sensitive inputs to regenerate unproper or weak input signals
- High output voltages to drive long distances
- Jumpers to switch the output impedance from 75 ohms to 50 ohms to drive improper WCLK inputs
- Jumpers to switch to AES-3id operation
- Jumpers to switch to “Superclock 256 Fs”

- Failsafe operation through switchable Auto-Mode Multimode power supply 90 … 260V AC
- 19”, 1 U stainless steel case, front dark grey

MULTI-SYNC UNIT OPTION:
The MULTI-SYNC UNIT option offers the following features:
- 3 external inputs, sample rate 28 ... 210 kHz, AES/EBU, AES-id, WCLK - 1 AES-EBU sync output
- Internal oscillators with 32, 44.1, 48, 88.2, 96, 176.4, 196 kHz
- Auto-Mode, Format, Key-Lock und Mute switchable
- Displays for: Sync-Source, Sample-Rate, Lock, Error, Mute, Pro/Con- Format, Auto-Mode, Key-Lock

FEATURES
Digital distribution amplifier for AES/EBU, AES-id, WCLK signals
2 inputs
4+8 outputs

TECHNICAL DATA
housing form 19" / 1 HE
dimensions 483 x 44 x 166 mm (BxHxT)
AES/EBU I/O 1 / 4 (XLR)
bit depth 24 Bit
output impedance 75 Ohm (RCA) / 110 Ohm (XLR)
Input Sensitivity < 200 mV
Input Impedance 75 Ohm (RCA) / 110 Ohm (XLR)
additional features optionale Multi-Sync Option verfügbar
sample rate max. 192 kHz
power supply Internal 230 V / 115 V AC
SPDIF I/O 1 / 8 (RCA)
