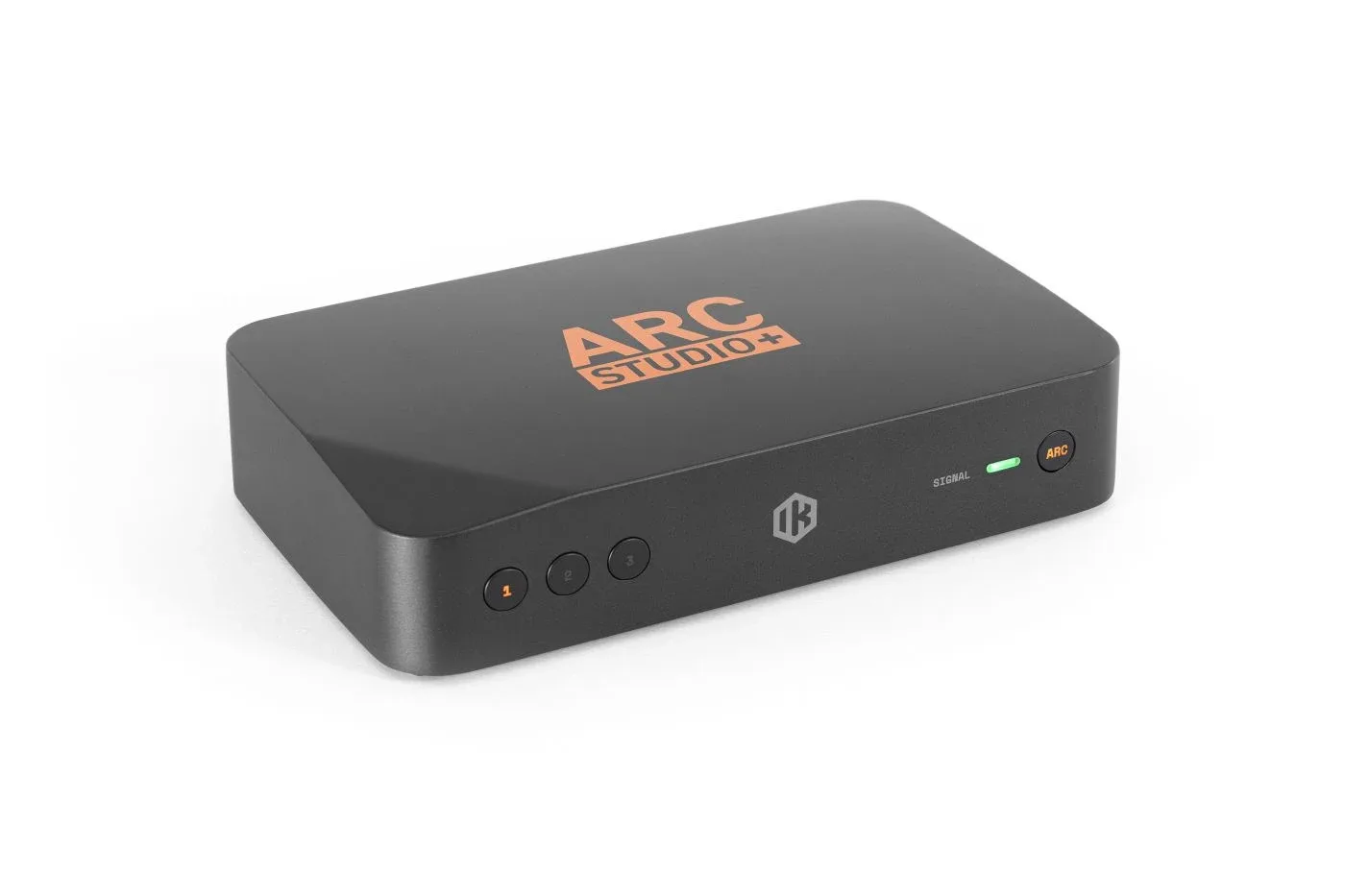

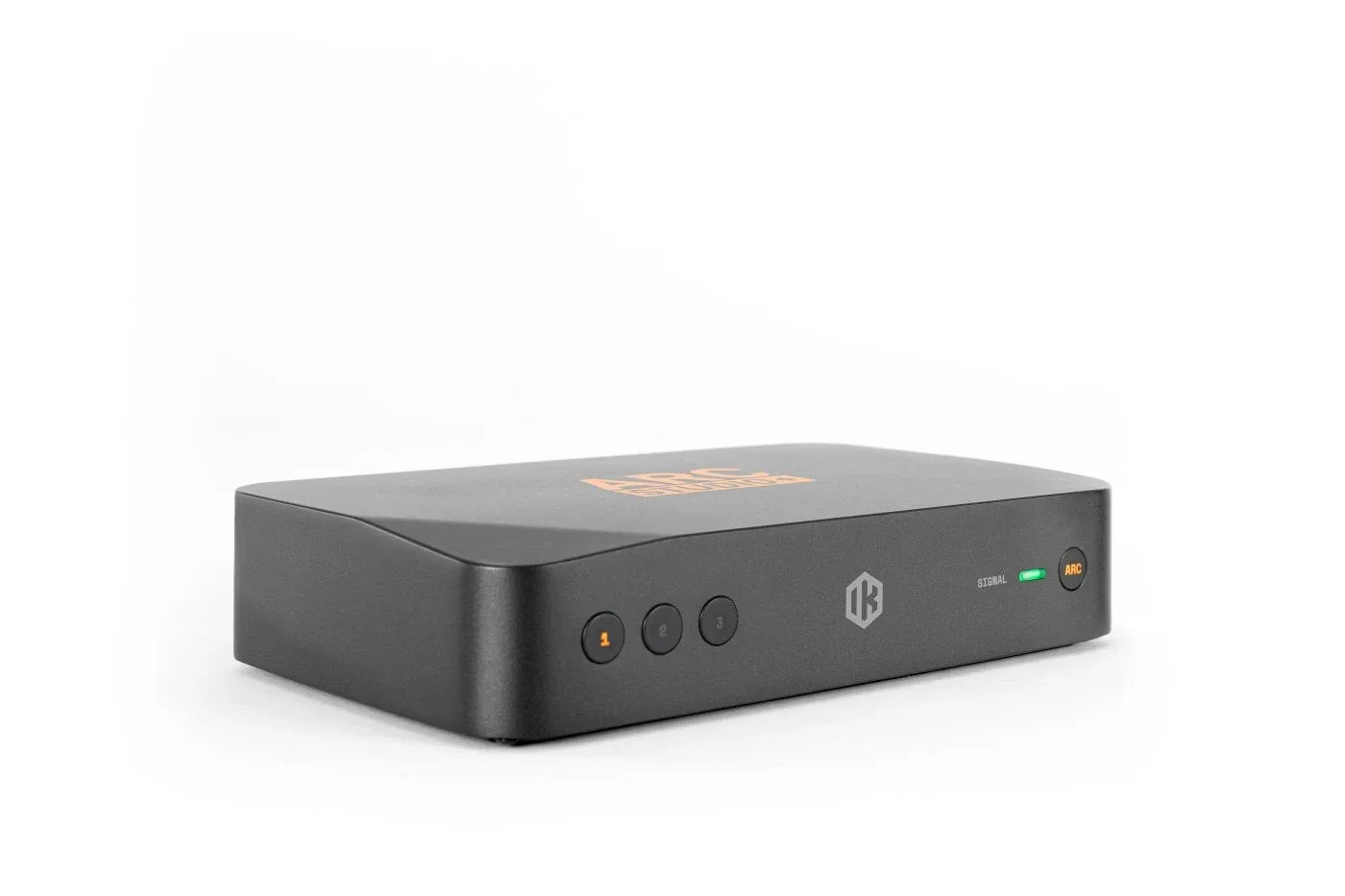

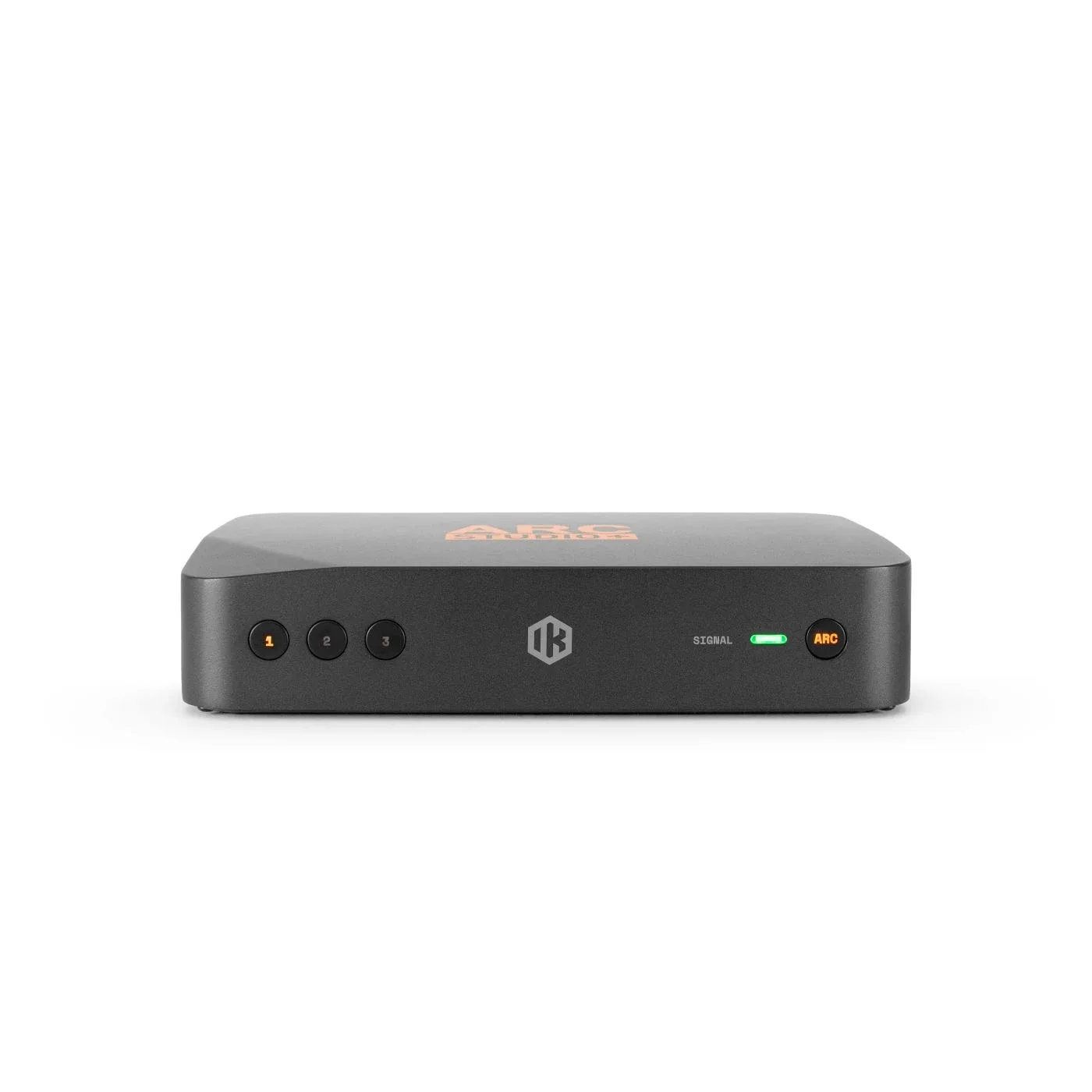

IK Multimedia ARC Studio Plus

The IK Multimedia ARC STUDIO+ is a hardware-based room correction processor designed to improve monitoring accuracy in professional studios. Powered by ARC X technology, it measures room acoustics and compensates for frequency deviations, resonances, and timing issues that can affect mixing decisions. Its hardware-based processing works independently of DAW plug-ins, making it suitable for traditional, hybrid, and computer-based studio setups.

ARC STUDIO+ offers two calibration methods. For quick setup or mobile work, the included ARC MEMS measurement microphone connects directly to the unit, allowing standalone calibration at the touch of a button without a computer. For more detailed correction in a fixed studio, ARC X software supports multi-point measurements at up to 21 positions to build a three-dimensional model of the listening environment.

Integrated subwoofer management helps optimize the interaction between studio monitors and a subwoofer by managing level, phase, and crossover frequency. Three user-selectable monitor profiles allow convenient switching between configurations, including stereo and 2.1 systems. Relay-controlled hard bypass provides a direct signal path when correction is not required.

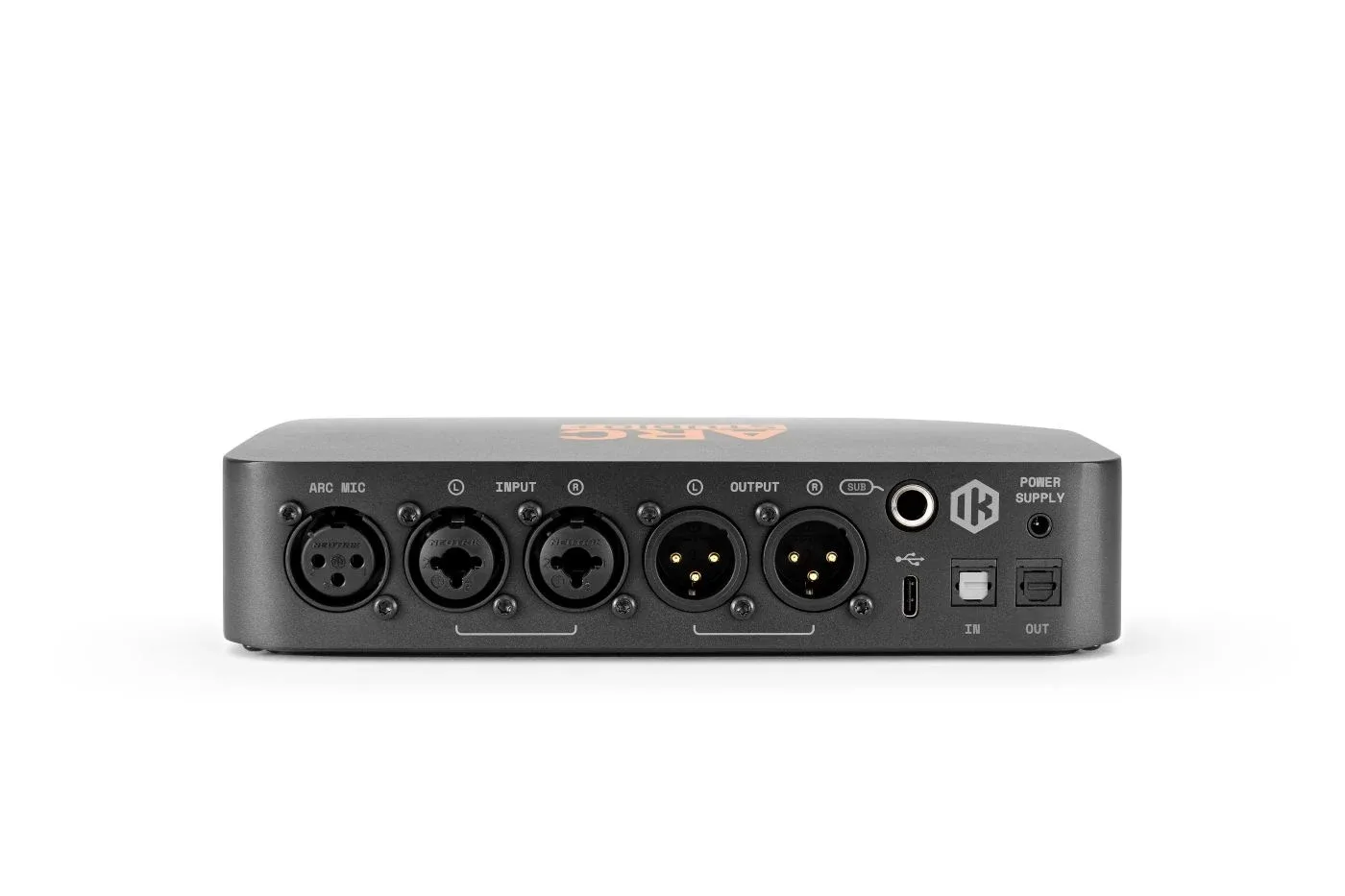

Balanced XLR/TRS inputs and balanced XLR outputs support professional analog connections, while USB-C and optical S/PDIF input/output allow integration into digital signal paths. With high-quality conversion, internal clocking, and near-zero latency, ARC STUDIO+ provides a practical monitoring correction solution for producers, mixers, and audio engineers.

Features
Hardware-Based Room Correction With ARC X Technology
Standalone Calibration Without A Computer
Multi-Point Calibration Via ARC X Software
Up To 21 Measurement Positions With ARC X
Integrated Subwoofer Management
Level, Phase And Crossover Management
Three User-Selectable Monitor Profiles
Balanced XLR/TRS Inputs And Balanced XLR Outputs
USB-C And Optical S/PDIF Digital Connectivity
Relay-Controlled Hard Bypass
Near-Zero Latency
High-Quality Conversion And Internal Clocking

Specifications
Room Correction Technology: ARC X
Calibration: Standalone Or Via ARC X Software
User Profiles: 3
Subwoofer Output: Yes
Analog Inputs: Balanced XLR/TRS
Analog Outputs: Balanced XLR
Digital Connections: USB-C, Optical S/PDIF Input/Output
Dynamic Range: Greater Than 120 dB(A)
Frequency Range: 0.5 Hz–40 kHz
Latency: Near Zero
Bypass: Relay-Controlled Hard Bypass

In The Box
IK Multimedia ARC STUDIO+
Power Adapter

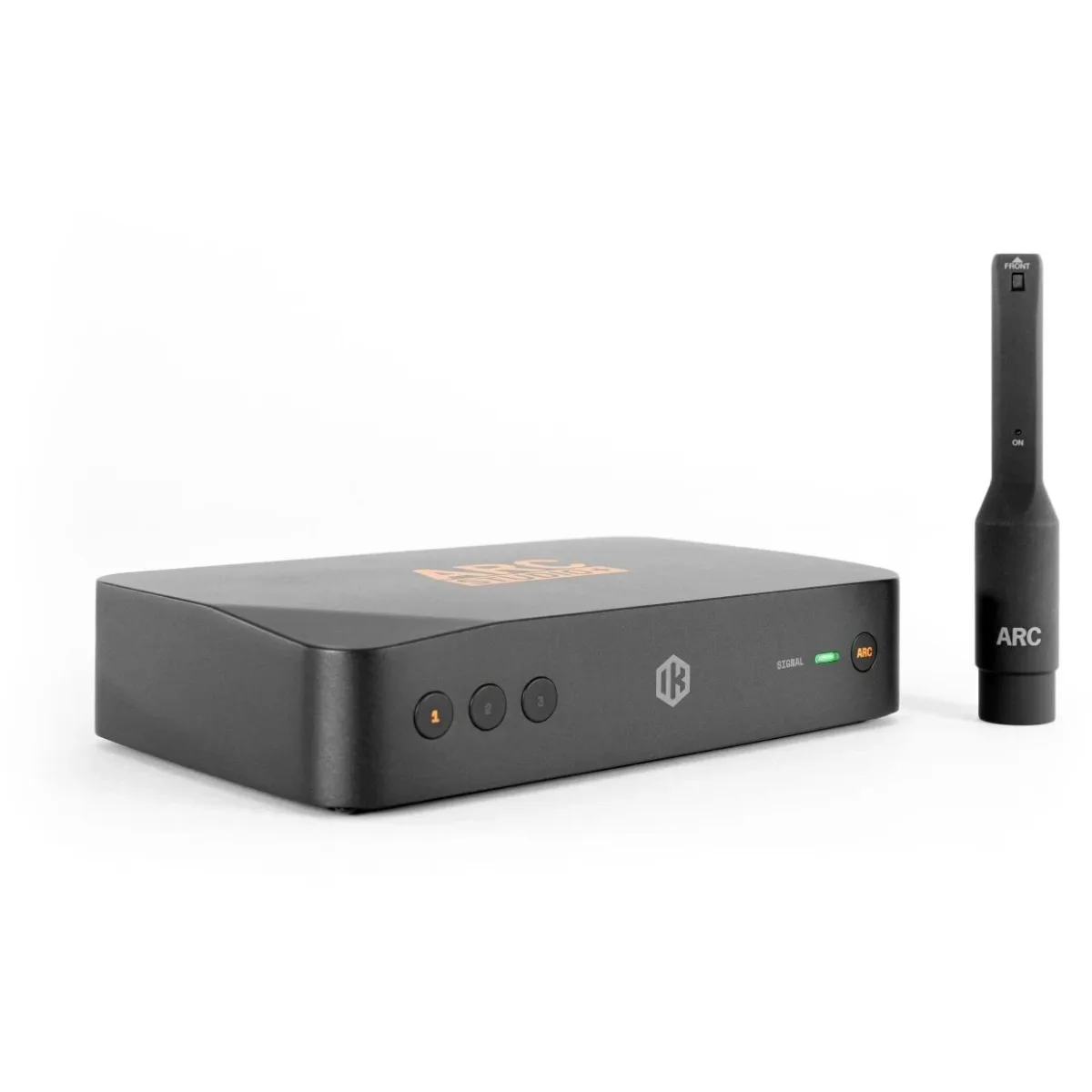

ARC MEMS Measurement Microphone
USB-C To USB-A Cable
