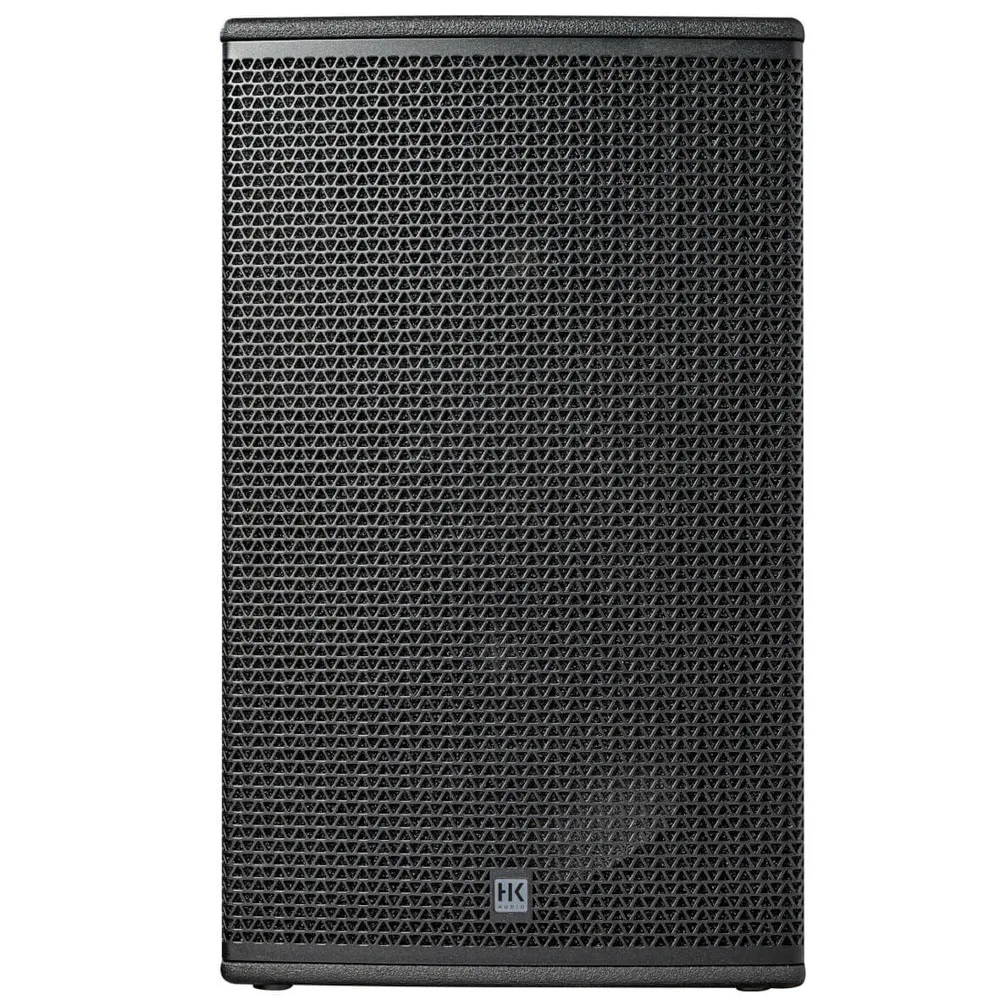

HK Audio CX15R

With the benefit of its dual-purpose housing, the CX 15 can serve as both an FOH and a monitor speaker. This unit‘s hallmarks include extremely high maximum SPL, excellent speech intelligibility and enhanced low-end frequency response. The CX 15‘s high-frequency horn was optimized using the BEM (Boundary Element Method). Its phase response is uniform; its dynamic range astonishingly wide. All this adds up to a high-definition audio image with very precise directivity. What‘s more, multiple units are easily clustered. A high-quality PU finish and a front grille with anticorrosive coating provide armor-like protection on the road. The Speakon Pin Assignment switch on the rear panel sets the input signal to 1 +/- or 2 +/-. The CX 15‘s low-profile housing makes it the stage monitor of choice for demanding performers. It comes in left and right versions for symmetrical monitoring arrays. And if you wish set up a powerful two-way active system, we recommend that you deploy this enclosure with HK AUDIO CS 118 or CS 218 subwoofers. It achieves the best audio results when paired with a Lab.Gruppen PLM+ power amp with a LAKE controller as well as with a Powersoft X-Series power amp. Applications: Fullrange sound reinforcement, near-field sound reinforcement with high SPL requirements, e.g. as an FOH top unit, front-fill, side-fill or drum-fill top unit and as a monitor on large stages

Effective maximum sound pressure level while ultra-precise coverage of frequency spectrum and minimal distortion.
Solid birch multiplex construction for the demands on the road and long-lasting touring
Including a vast, praxis-oriented equipment
Many rigging and mounting options
Highly-integrative system and part of the new HK Audio rental portfolio



Techn. Data
CX 15
Power-handling nominal (RMS) 700 W
Power-handling, program 1400 W
Frequency response +/-3 dB 69 Hz – 18 kHz
Frequency response -10 dB 55 Hz – 19 kHz
Sensitivity 1 W @ 1 m 99 dB (100 Hz – 10 kHz), full space
Max. SPL @ 10% THD (EN 60268-21:2019) 132 dB
Electrical impedance 8 ohms
Low/mid speaker 1x 15", 3.5" voice coil
HF Driver 1.4", 3" voice coil
Directivity 75° x 55°, rotatable CD Horn
Crossover frequency 1.2 kHz, 24 dB/oct.
Connections 4x Speakon NL4 (with sealing cap), pin assignment switch
Angles up 35°/55° (monitor / frontfill)
Pole mount DuoTilt 3°/7°
Rigging points 10x M10, 1x Aeroquip
Carrying handles 4x recessed grip
Housing Birch multiplex
Finish PU coating black
Front grille Steel front grill with anticorrosive coating, acoustic foam
Dimensions (WxHxD) 45,5 x 76 x 39,5 cm 17-29/32 x 29-59/64"
Weight 29.1 kg / 64.0 lbs
