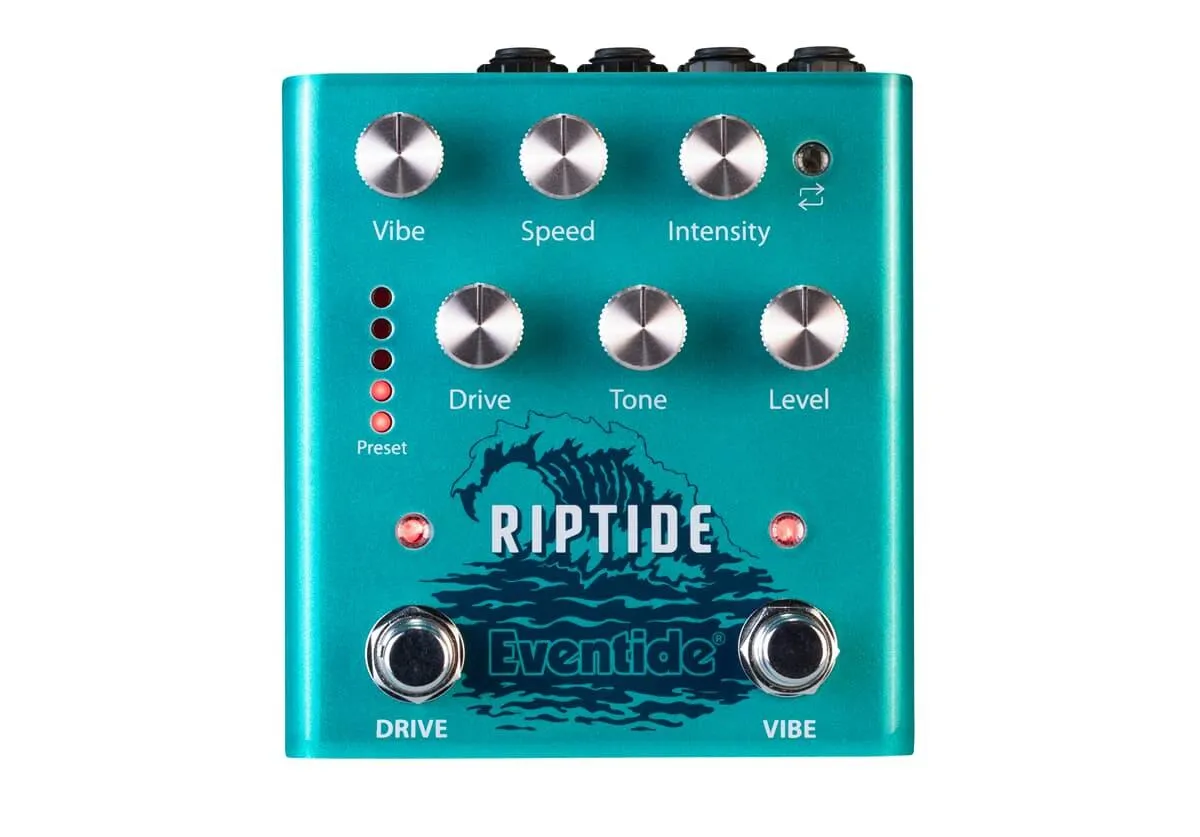

Eventide Riptide

Stereo Dual-voice Drive and Uni-Vibe in One!

Eventide's Riptide pedal is the result of extensive research into overdrives and Uni-vibes. With stereo overdrive and Vibe, each effect features dual voicings versatile enough for funky bright tones to explosive and warm lead tones. The Vibe knob delivers classic Hendrix-style Uni-Vibe to full-on vibrato perfect for modern soul and lo-fi tones. With the power to engage each effect individually, swap the order, and store presets, Riptide makes it easy to get caught up in the excitement. Drive features a balanced distortion with superb dynamics and touch sensitivity. Use the "Green" voicing for a classic transparent overdrive or activate the "Red" voicing for a tight modern overdrive. Vibe captures the harmonic richness and enveloping modulation of the classic Uni-Vibe by Shin-ei but in stereo! Start out with the "Green" vibe for traditional sounds or engage the "Red" vibe for a deeper, phasey undercurrent of sound waves.

Features:

Four Effects: 2 Overdrives, 2 Uni-Vibes
No Deep Dives: 3 Drive Knobs, 3 Vibe Knobs
Drive Vibe at the press of a button
Five presets loaded at your feet with dozens more available by software update in Eventide Device Manager
Dual-action Active Footswitch is latching or momentary
Rear panel Guitar/Line Level switch for matching impedances with guitar, synths, FX loop, or DAW interface
Map any combination of parameters to an Expression Pedal
Use a single Aux switch to Tap Tempo or a triple Aux switch for easy preset changing
MIDI over TRS (use with a MIDI to TRS cable Type A or converter box) or USB
Multiple Bypass options: Buffered, Relay, DSP+FX or Kill dry
Catch-up mode helps dial in your sound when toggling between presets/parameters
Eventide Device Manager PC or Mac application for software updates, system settings and creating/saving presets

Specifications:

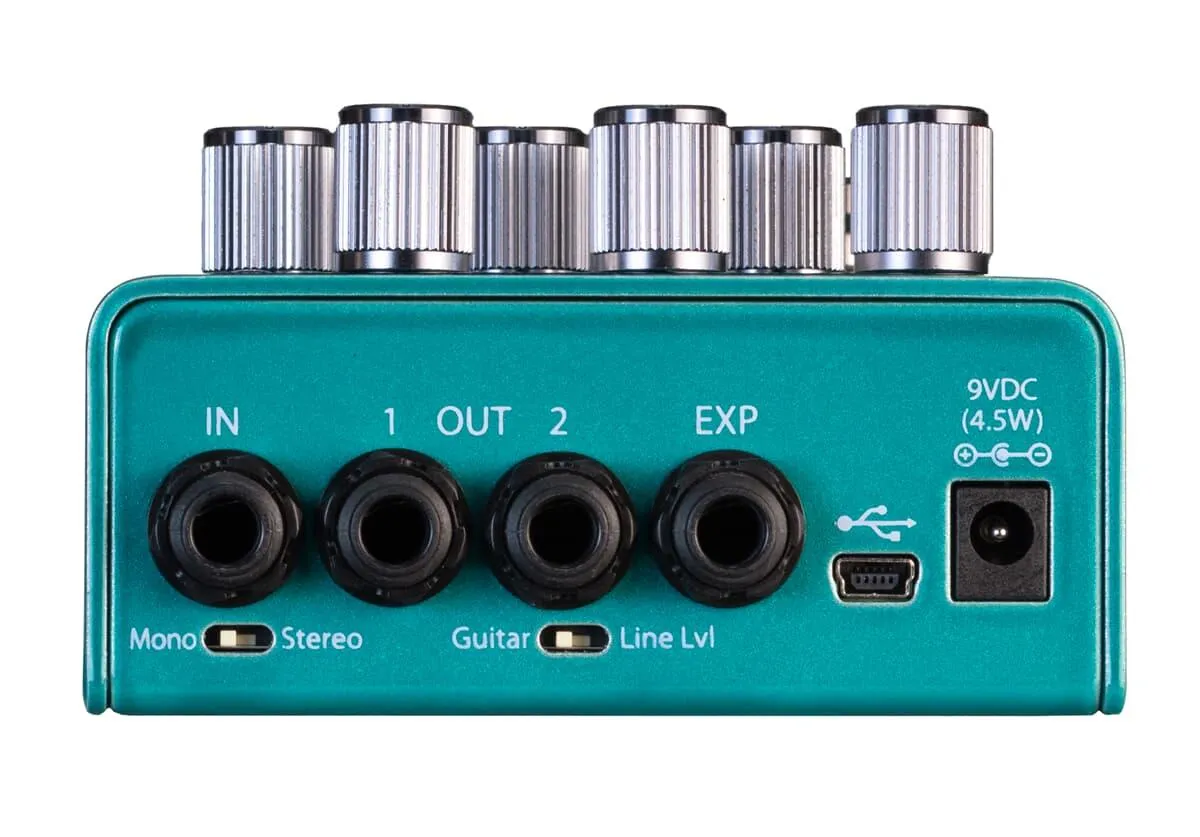

Input1/4″ TRS / Mono = Tip, Stereo = Tip & Ring
Out 11/4″ TS Mono / Mono Output
Out 21/4″ TS Mono / Stereo Output
EXP1/4″ TRS / Expression pedal, Aux Switch or MIDI I/O
Mono/Stereo SwitchSets Input to Mono (Tip) or Stereo (Tip + Ring)
Guitar/Line Level SwitchOptimizes internal gain structure
Mini USBSoftware updates, MIDI I/O
Input Impedance700k ohms Mono, 990k ohms Stereo
Max Input, Guitar+8dBu
Max Input, Line+14dBu
Output Impedance220 ohms
Recommended Load Impedance10k ohms
Power9V DC @ 300mA / Center Negative (-), 5.5mm/2.1mm jack (BOSS standard)
Dimensions (Product) 102 mm x 108 mm x 43 mm
Weight (Product) 0.48 kg

Specifikationer:

Ingång1/4″ TRS / Mono = spets, Stereo = spets & ring
Utgång 11/4″ TS Mono / Mono utgång
Utgång 21/4″ TS Mono / Stereoutgång
EXP1/4″ TRS / Expressionpedal, Aux-switch eller MIDI I/O
Mono/Stereo-omkopplareStäller in ingång till Mono (spets) eller Stereo (spets + ring)
Gitarr/Line Level SwitchOptimerar den interna förstärkningsstrukturen
Mini USBMjukvaruuppdateringar, MIDI I/O
Ingångsimpedans700 k ohm Mono, 990 k ohm Stereo
Max ingång, gitarr+8dBu
Max. ingång, linje+14dBu
Impedans för utgång220 ohm
Rekommenderad belastningsimpedans10k ohm
Strömförsörjning9V DC @ 300mA / Center Negative (-), 5,5mm/2,1mm jack (BOSS standard)
Mått (produkt) 102 mm x 108 mm x 43 mm
Vikt (produkt) 0,48 kg
