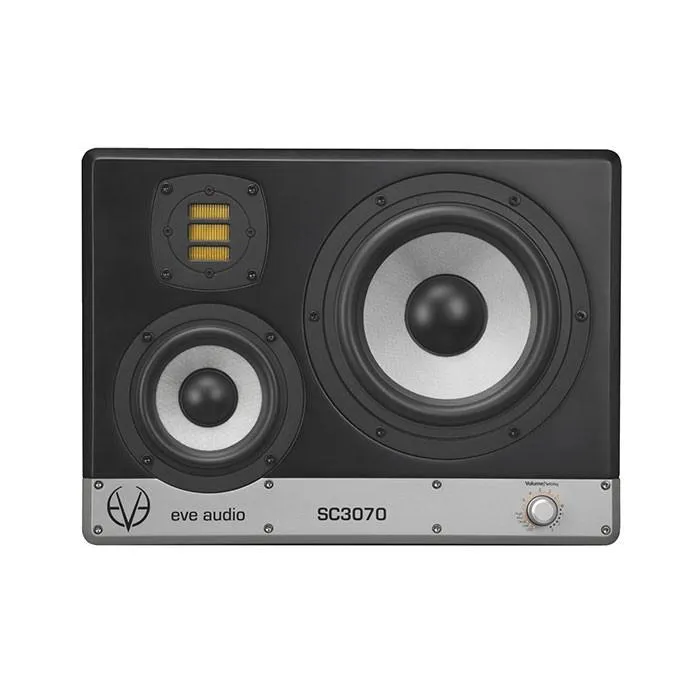

EVE Audio SC3070 - Left

The EVE audio SC3070 Left is an active 3-way monitor for mid and close range. Even smaller studios will get an attractive combination in a small housing which is designed for absolute linearity and lowest distortion values, especially in the mid range.

The speaker is equipped with a powerful DSP, using high-quality BurrAudio converters with 24bit/192kHz conversion rate. The DSP constantly monitors the frequency response of the speakers, effectively preventing distortion and non-linear behavior. In addition, an integrated equalizer allows the frequency response to be adapted to the room conditions. An additional Desk Filter intervenes at the bass frequencies 80 and 160 Hz and thus reduces vibrations at the working area.

At the rear of the EVE audio SC3070 Left, dip switches can be used to control the brightness of the LED ring on the encoder, to switch the reference level between +7 and +22dB and to lock the filter settings to prevent accidental adjustment.

EVE audio SC3070 Left has also built in its unique speakers with fibreglass coated honeycomb-structured membranes and the RS3 tweeter with Air Motion Transformer. A bass reflex port at the rear supports the sound reproduction in the bass range.

EVE audio SC3070 Left overview:

3-way near/midfield monitor

Left monitor
AMT RS3 tweeter with Air Motion Transformer
4" midrange driver and 7" woofer in Silvercone design
Fiberglass-coated membranes
Extremely low THD values
DSP with BurrBrown's powerful AD converter with 24bit/192kHz
3-band EQ for room matching (> 3kHz/1kHz/<300Hz)
Desk Filter boost (0/+3dB @ 80Hz) and cut (-5/0dB @ 160Hz)
Encoder with LED ring
3 Class D amplifier
Rear bass reflex port
Connections: XLR, RCA
Reference level switchable (+7/+22dBu)
Frequency range: 35Hz - 21kHz
Output: 185/100/50
Dimensions (WxHxD): 34 x 25 x 31cm
Limiting sound pressure level @ 1m: 110dB
Weight: 9,4kg
