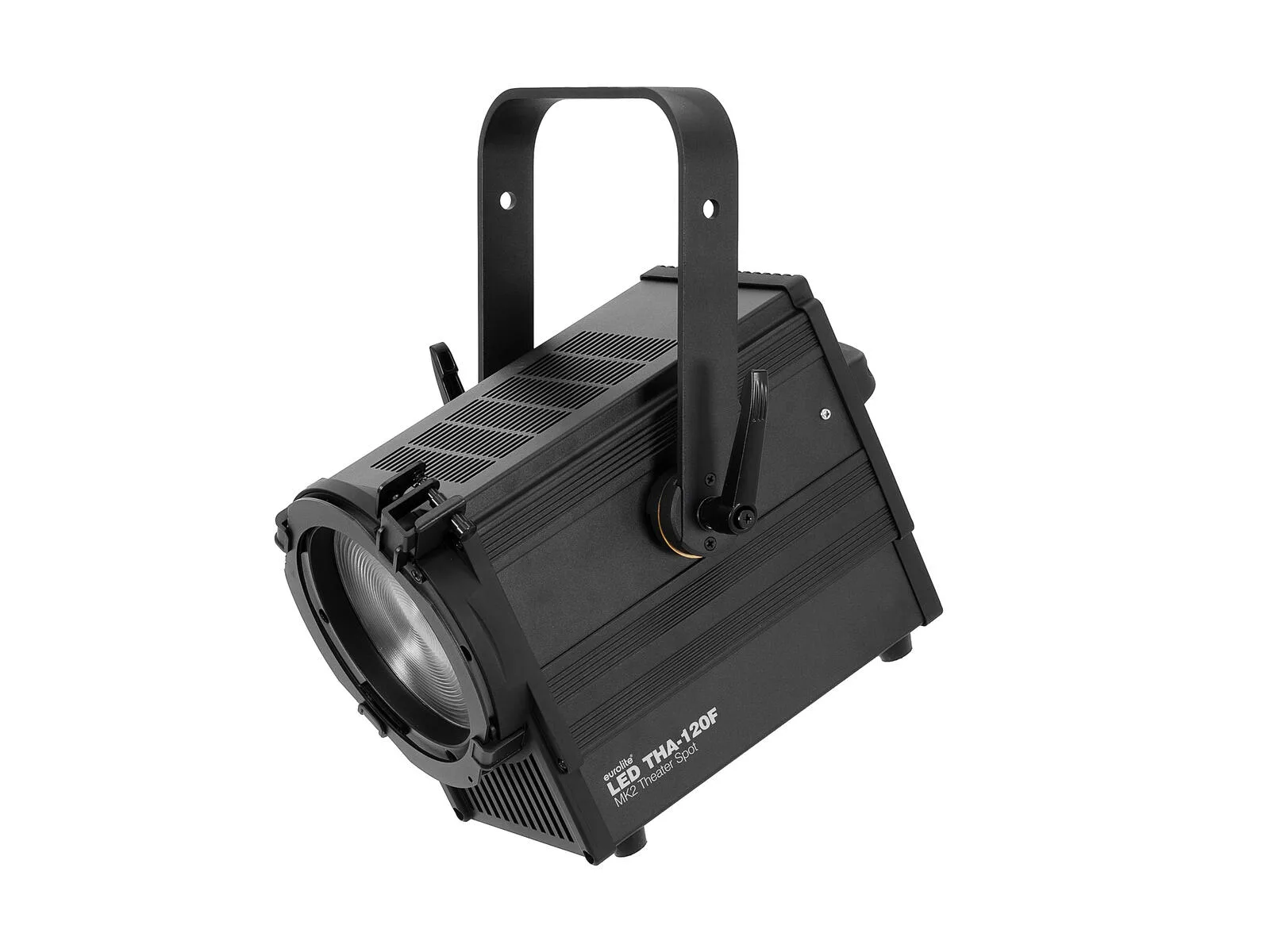

Eurolite LED THA-120F MK2 Theater Spot

EUROLITE LED THA-120F MK2 Theater Spot

While the original THA-120F was limited to colored light and pastel tones, the new version now delivers excellent white light performance as well.

This is made possible by a color mixing system based on red, green, blue, and lime. The broad-spectrum lime enables particularly clean yellow and orange tones, as well as high-quality cool white and warm white light; something that was not previously achievable with traditional RGBW fixtures.

Behind the Fresnel lens is a manual zoom with a range from 3° to 48°, allowing flexible adjustment of the beam angle.

A specially designed low-noise fan mode makes the fixture suitable for noise-sensitive environments. In addition, the PWM frequency can be adjusted from 1200 Hz to 25 kHz in 12 steps.

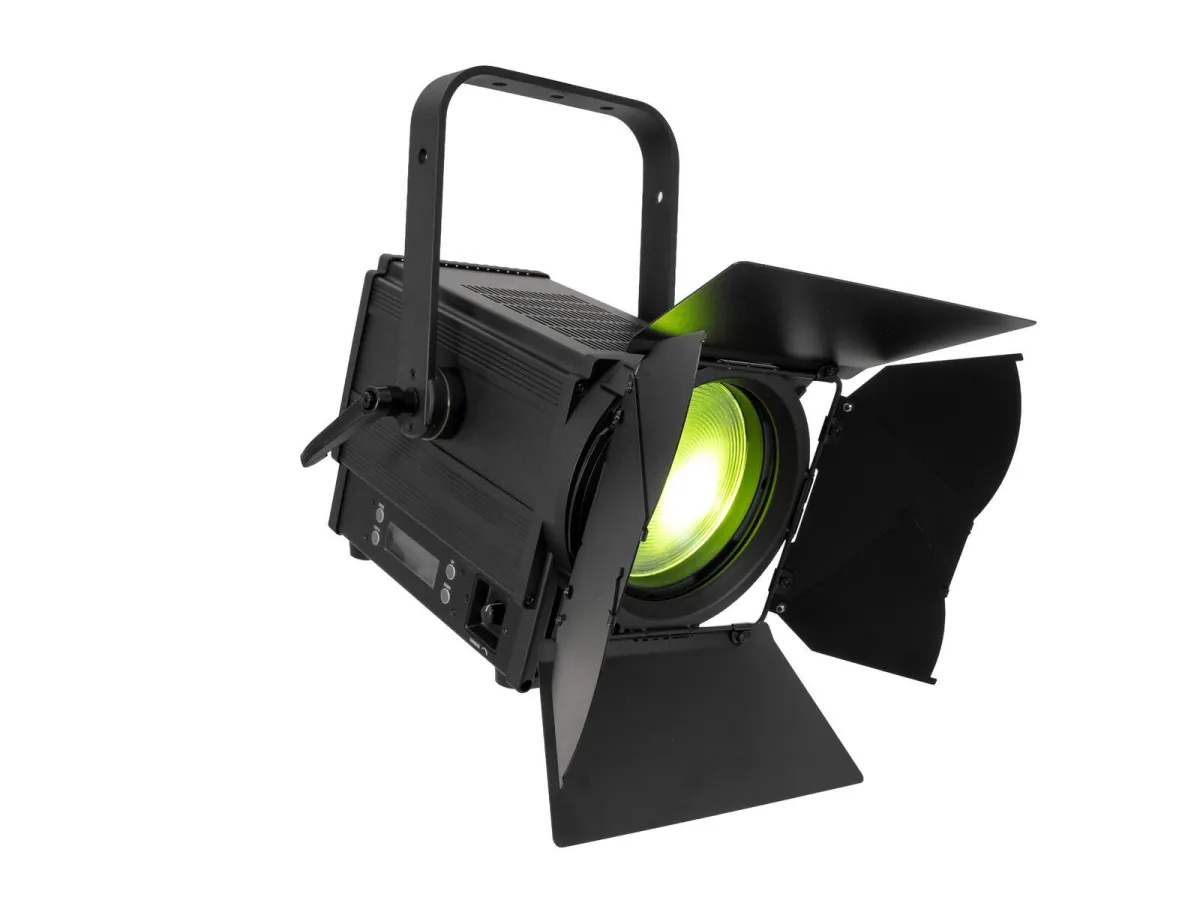

The fixture also comes with a rotatable barndoor with four leaves. Two of the leaves can be extended, allowing for precise and optimal beam shaping at all times.
Fresnel spotlight (fresnel lens), 120-W-COB (chip-on-board)-LED 4in1 RGBL, extremely quiet, DMX
Variable color temperature 2400 K - 8500 K
With a beam angle of 3° - 48°
Zoom manual
Exact 16 bit resolution at Dimmer, color
Very quiet working noise
Flicker-free
Dimmer electronic; dimmer curves; Dimmer speed (step response); pulse-width modulation adjustable; color blend stepless
Wash effect
1 LED 120 W COB (chip-on-board) 4in1 RGBL (homogenous color mix)
Direct color selection for 117 preset colors
With mounting bracket
Mains input and output for power linking up to 8 units
Built with SEETRONIC connector
For application areas such as: Stage; wedding/gala/events; Trade fair and shop fitting; theater; rental; video and photography
Application possibility: On stand; suspended
Control via DMX; RDM; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); rotary dial for brightness; stand-alone

Technical specifications
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 130 W
Protection class: Protection class I

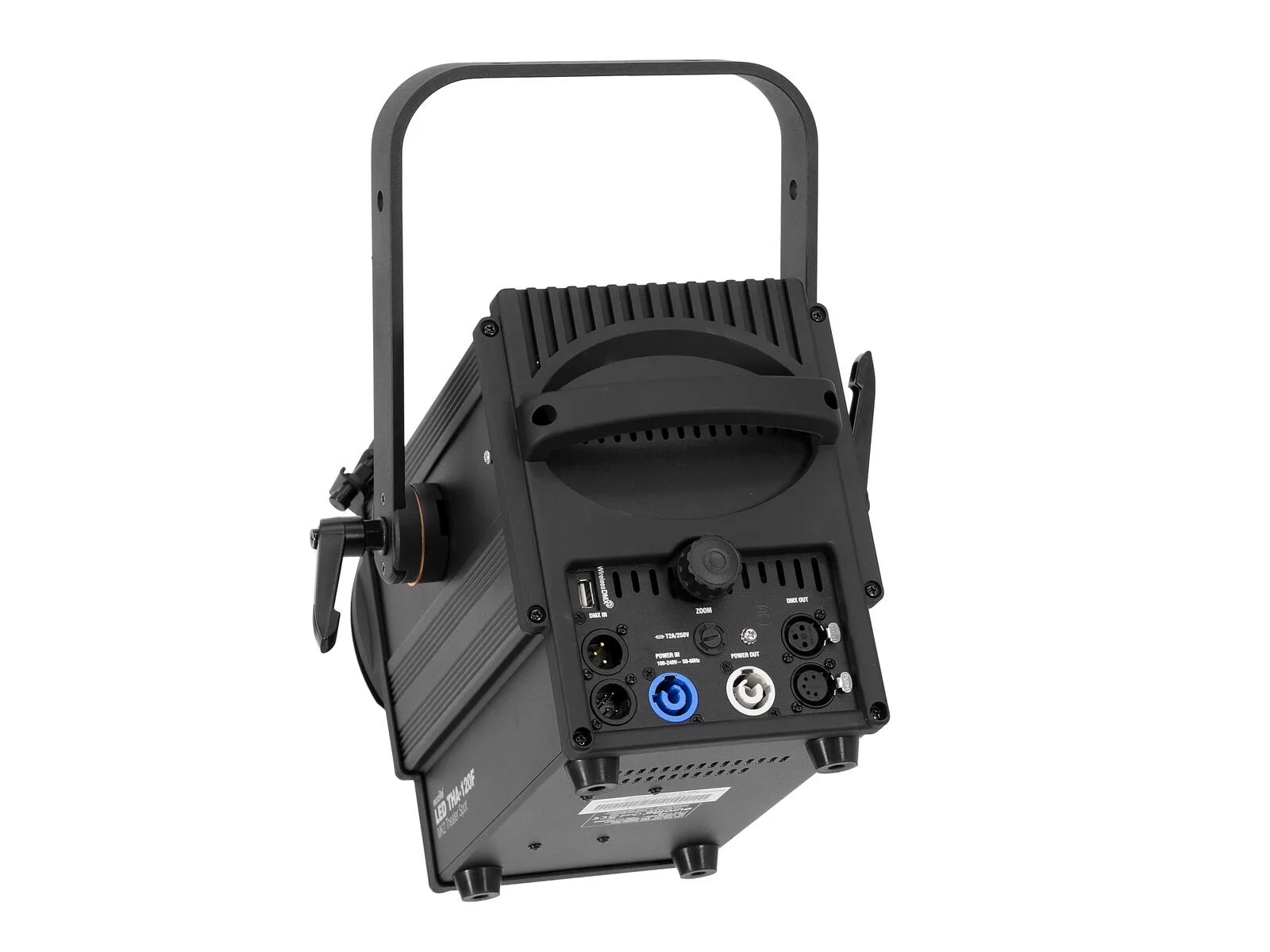

Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug
Cable construction: 3 x 1.5 mm² H05VV-F
Power output: P-Con (gray), mounting version
Fuse: 5 x 20 mm, T 2 A fuse replaceable
Lamp type: LED lamp
LED type: 1 x 120 W COB (chip-on-board) 4in1 RGBL (homogenous color mix)
Flash rate: 1 - 20 Hz
Equipment: Zoom manual
DMX channels: 1; 2; 4; 6; 16

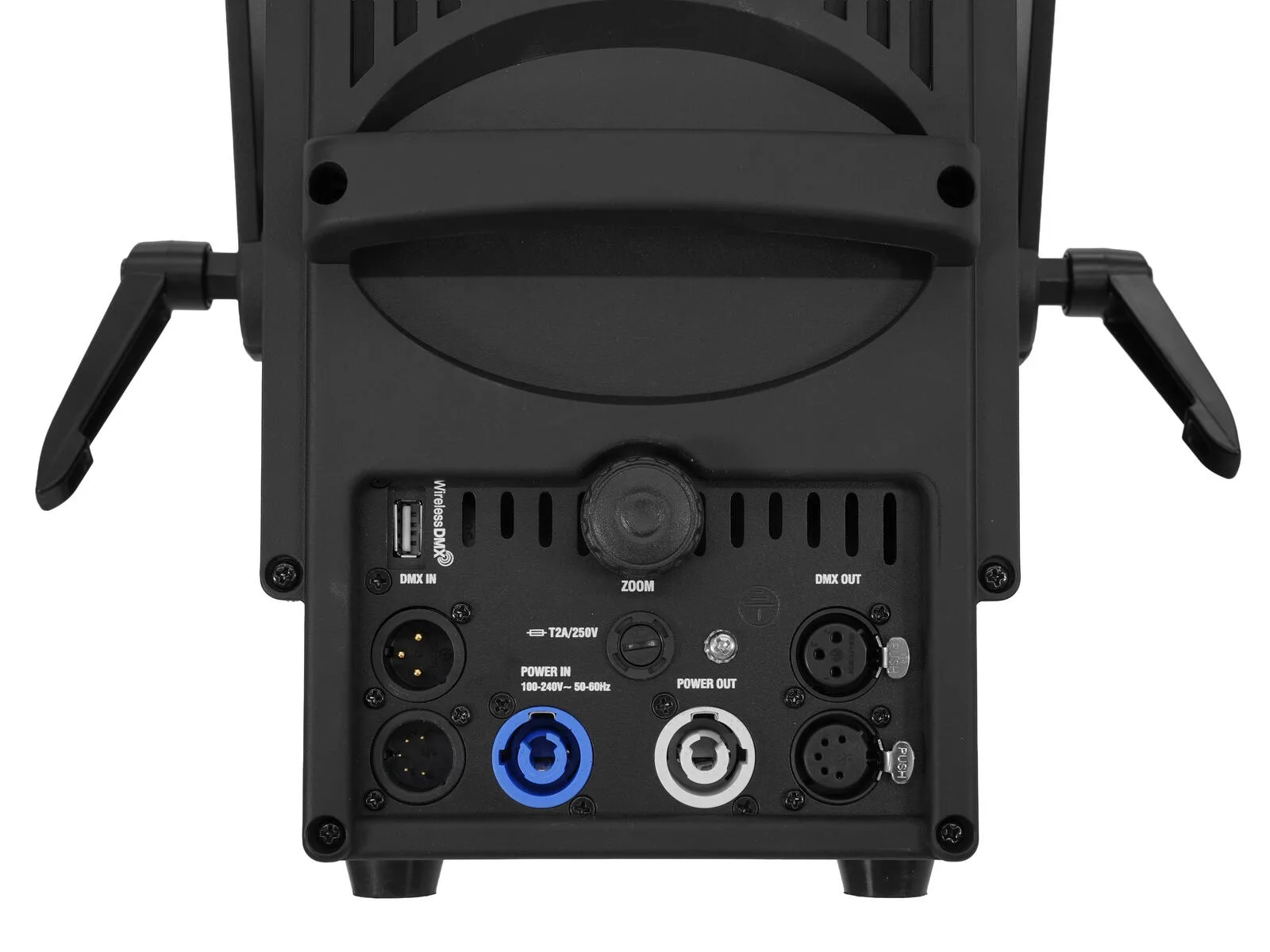

DMX input: 5-pin XLR (M) mounting version
3-pin XLR (M) mounting version
DMX output: 5-pin XLR (F) mounting version
3-pin XLR (F) mounting version
Cooling: 1 x temperature-controlled fan
Control: DMX; RDM; QuickDMX via USB (optional); CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); rotary dial for brightness; stand-alone
Fixtures available for: GDTF (GrandMA3); Light Captain; Light´J
Projection: Flicker-free
DMX features: RDM For bidirectional communication over the DMX line
DMX fail mode: Hold; blackout; manual
Beam angle: 3° - 48°
Beam angle (1/2 peak): 3 - 26°
Beam angle (1/10 peak): 14 - 48°
Color temperature: 2400K - 8500K adjustable
Lamp life: 30000 h
Housing color: Black
Attachment system: Mounting bracket
Display type: Monochrome LCD display
USB port: Type A
Diameter mounting holes: 3 x Ø10mm
Use of brands: Built with SEETRONIC connector
Material: Aluminum
Dimensions: Length: 35.0 cm
Width: 31.5 cm
Height: 39.5 cm
Weight: 7.10 kg
