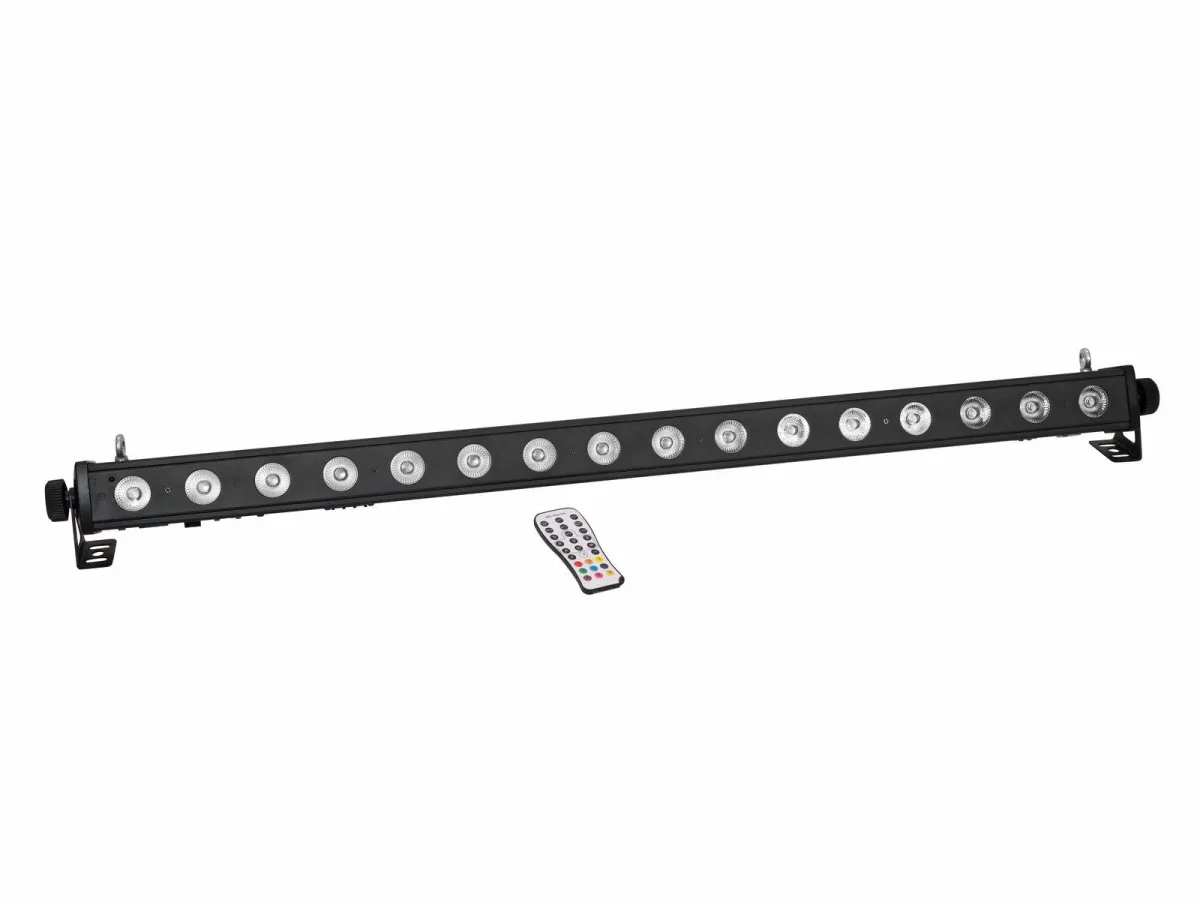

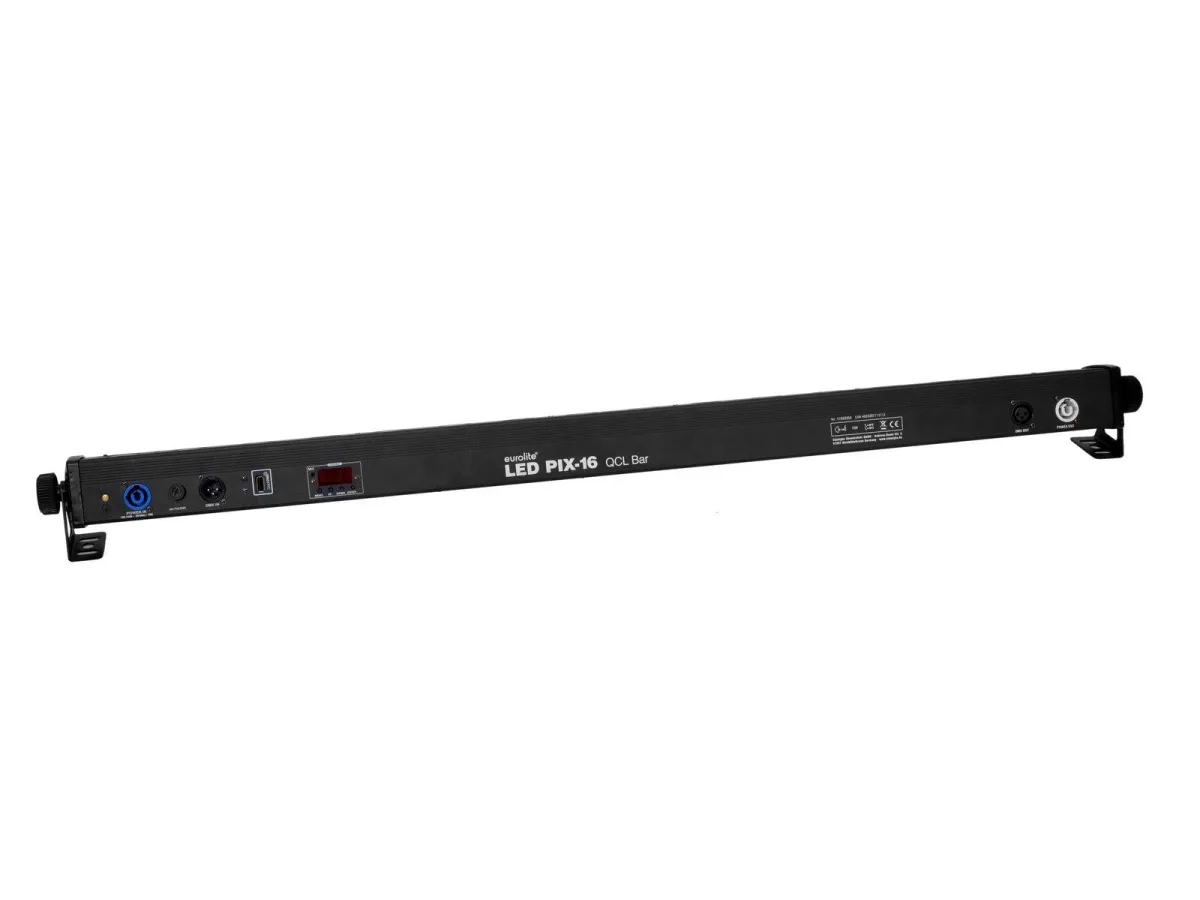

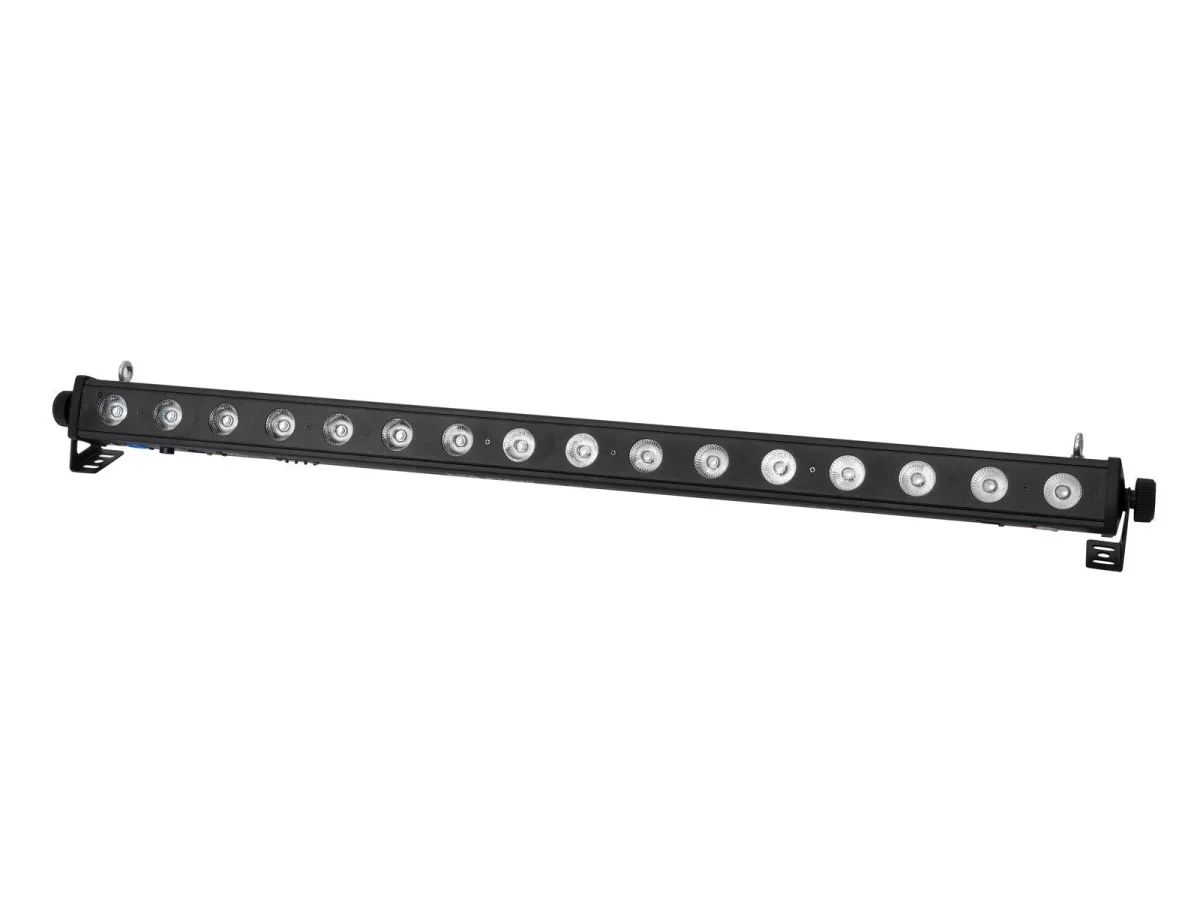

Eurolite LED PIX-16 QCL Bar

16 powerful LEDs 4 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
Strobe effect
21 integrated show programs
Direct color selection for 15 preset colors
The device is cooled by passive convection cooling
Control via stand-alone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Sound to light via Microphone; IR remote control
Preprogrammed in Light´J; Light Captain
Flicker-free
With a beam angle of 15°
With Mounting bracket
4 digit 7-segment LED display
Mains input and output for power linking up to 8 units

TECHNICAL SPECIFICATIONS
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 70 W
IP classification: IP20
Protection class: Protection class I

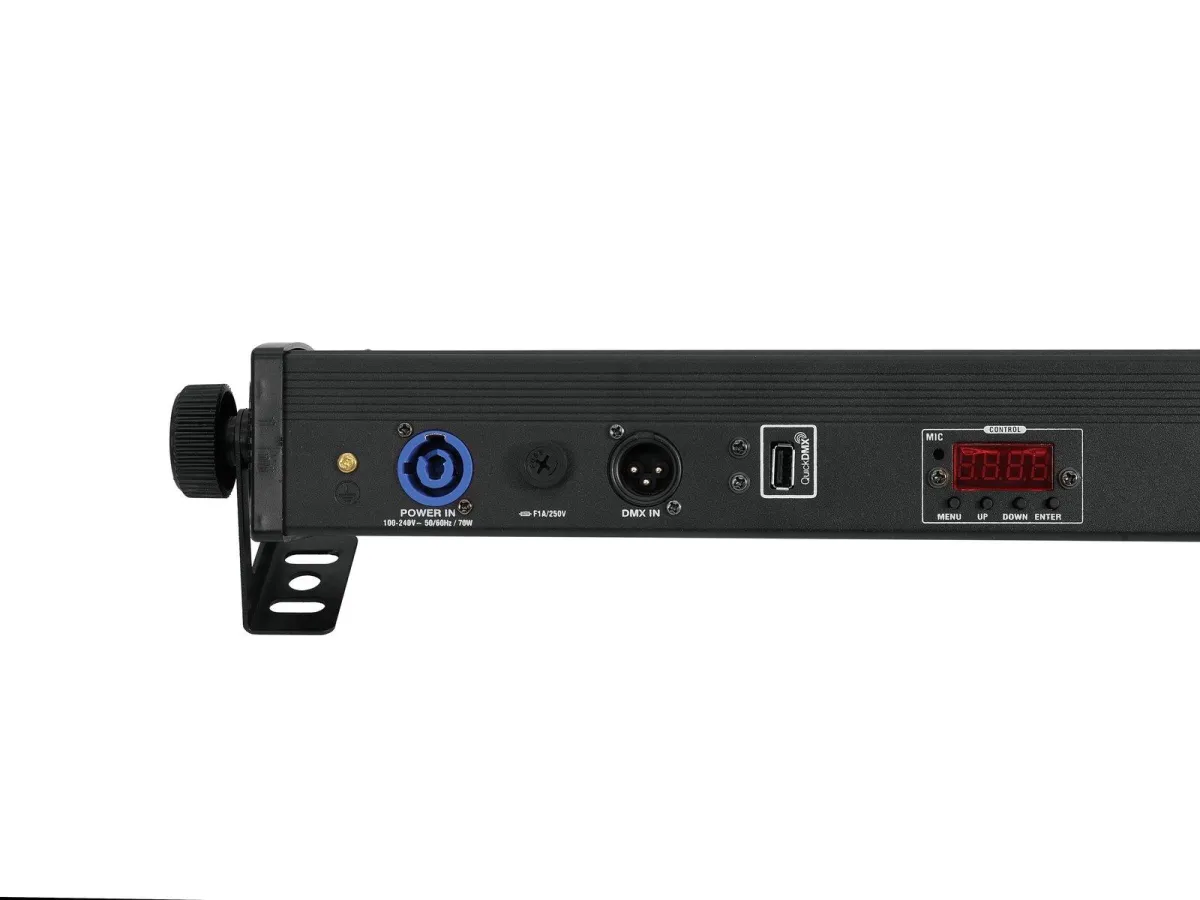

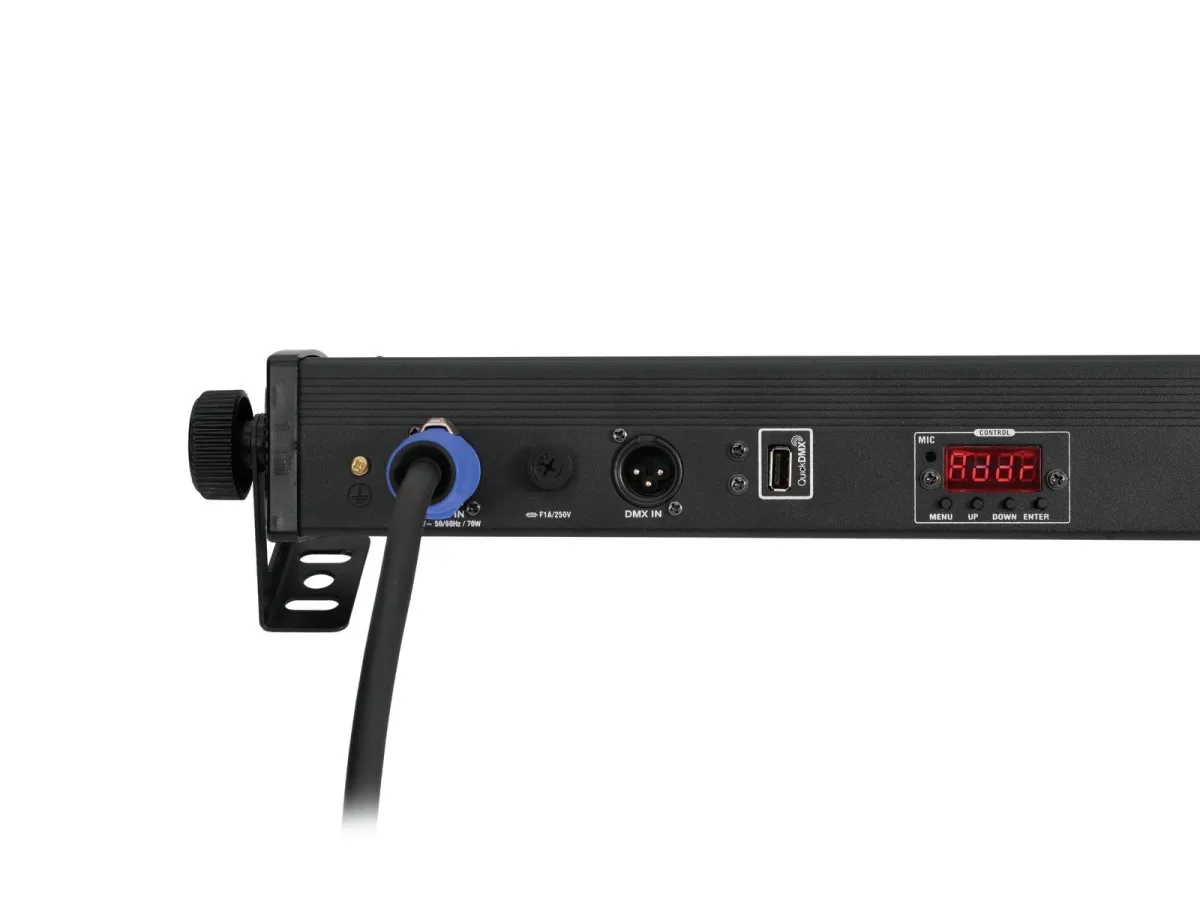

Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug

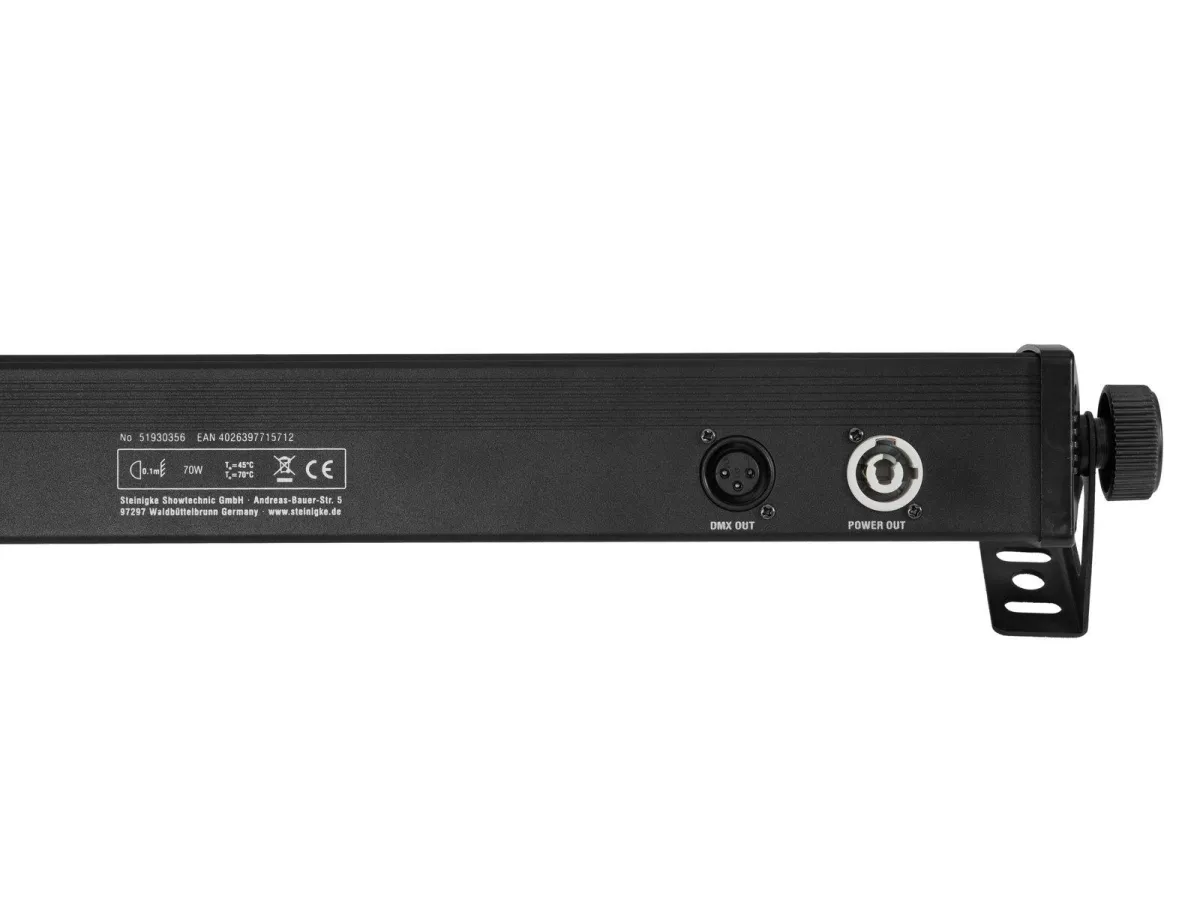

Power output: P-Con (gray), mounting version
Fuse: F 1 A Fuse replaceable
Lamp type: LED lamp
LED: 16 x 4 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
DMX channels: 3; 4; 11; 21-1; 21-2; 64
DMX input: 3-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version
Cooling: Passive convection cooling
Control: Stand-alone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Sound to light via Microphone; IR remote control
Preprogrammed in: Light´J; Light Captain
Beam angle: 15°
Beam angle (1/2 peak): 15°
Beam angle (1/10 peak): 30°
Housing color: Black
Attachment system: 2x Mounting bracket
Display type: 4 digit 7-segment LED display
Dimensions: Length: 1,08 m
Width: 6,5 cm
Height: 8,5 cm
Weight: 2,39 kg
Remote control
Battery: 1 x Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product: Not designed for household room illumination
Intended use: Show effect lightingTECHNICAL SPECIFICATIONS
Power supply: 100-240 V AC, 50/60 Hz
Power consumption: 70 W
IP classification: IP20
Protection class: Protection class I
Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug
Power output: P-Con (gray), mounting version
Fuse: F 1 A Fuse replaceable
Lamp type: LED lamp
LED: 16 x 4 W COB (chip-on-board) 4in1 QCL RGBW (homogenous color mix)
DMX channels: 3; 4; 11; 21-1; 21-2; 64
DMX input: 3-pin XLR (M) mounting version
DMX output: 3-pin XLR (F) mounting version
Cooling: Passive convection cooling
Control: Stand-alone; Master/slave function; DMX; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Sound to light via Microphone; IR remote control
Preprogrammed in: Light´J; Light Captain
Beam angle: 15°
Beam angle (1/2 peak): 15°
Beam angle (1/10 peak): 30°
Housing color: Black
Attachment system: 2x Mounting bracket
Display type: 4 digit 7-segment LED display
Dimensions: Length: 1,08 m
Width: 6,5 cm
Height: 8,5 cm
Weight: 2,39 kg
Remote control
Battery: 1 x Button cell 3.0 V CR2025 lithium manganese built-in
Legal specifications
Special product: Not designed for household room illumination
Intended use: Show effect lighting

Package contents
1 x bar, 1 x user manual, 1 x power cord, 1 x remote control, 1 x battery, 2 x mounting bracket, 2 x screw, 2 x washer
