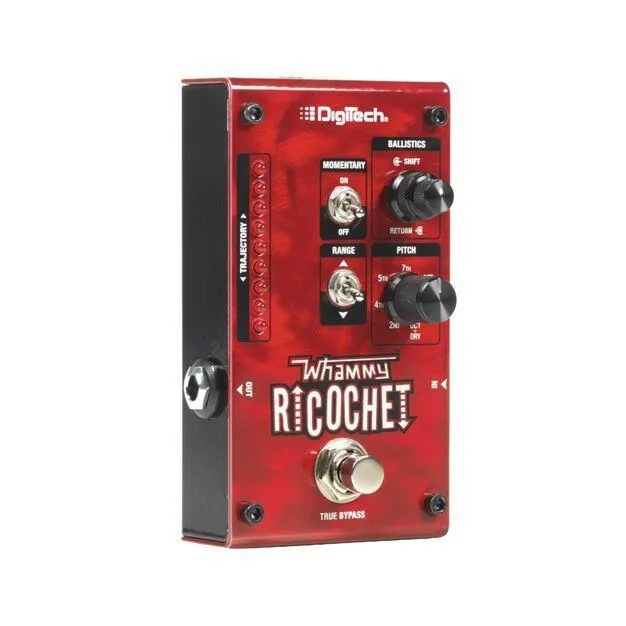

DigiTech Whammy Ricochet

The Whammy Ricochet lets you bounce your playing up or down in pitch in controlled or crazy shifts. A momentary switch and customizable independent rise and fall time ballistics, allow you to get the Whammy action you know and love without the use of a treadle. Just hold your foot on the footswitch and let the Ricochet do the rest. Seven pitch selections - 2nd, 4th, 5th, 7th, Octave, Double Octave, and Octave+Dry, as well as a toggle to select up or down for the selected pitch. The Whammy Ricochet also has latching footswitch mode so you can rise or fall to pitch and stay there, and an LED ladder that shows your shift trajectory at all times. All these controls combine to create classic Whammy pitch-shifting as well as new sounds never heard before.



General Specifications
ControlsBallistics Control, Pitch Control, Range Switch, Momentary Switch, Effect On/Off
Sample Rate44.1 kHz in classic mode, 22 kHz in chords mode
Frequency Response20 Hz–16 kHz (classic mode), 20 Hz–11 kHz (chords mode)
Signal to Noise Ratio> -106dB (A weighted); ref = max level, 22 kHz bandwidth
A/D/A Converter24-bit
THD0.004% @ 1 kHz; ref = 1 dBu w/ unity gain
Power Consumption2.1 Watts (235 mA typical @ 9 VDC)
Power Requirements9 VDC External Adapter (sold separately)
Power SupplyPS0913DC-01 (US, JA, EU); PS0913DC-02 (AU, UK)
Power Adapter Output9 VDC 1.3 A
Dimensions
Length4.75"
Width2.875"
Height1.75"
Weight0.8 lbs.
Audio Output
Output1/4" Unbalanced (Tip-Sleeve)
Max Output Level+10 dBu
Output Impedance1 kΩ (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off)
Audio Input
Input1/4" Unbalanced (Tip-Sleeve)
Max Input Level+5 dBu
Input Impedance1 MΩ (Effect enabled or effect bypassed w/ Momentary switch on) True Bypass (Effect bypassed w/ Momentary switch off)
