dB Technologies ES802

dB Technologies ES802 – Powerful and Portable Column System
The dB Technologies ES802 is a portable, high-performance column system built on the company’s experience with vertical arrays, such as the DVA T Series and MINI. With advanced Logarithmic Curved Column Array technology and a unique “double-ringed phase plug,” the ES802 delivers wide horizontal coverage, extended vertical dispersion, and crystal-clear sound reproduction—whether the audience is seated or standing.

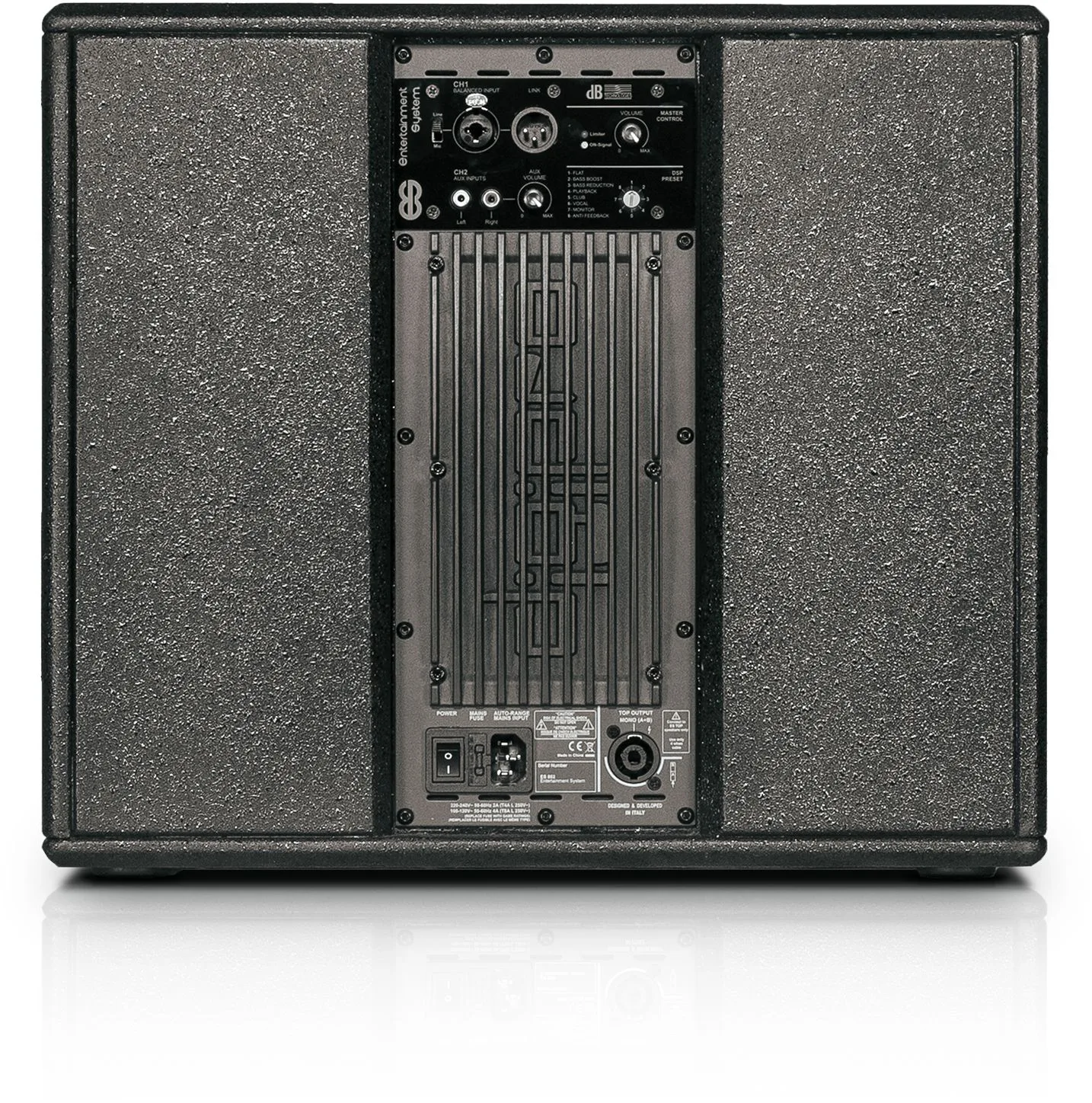

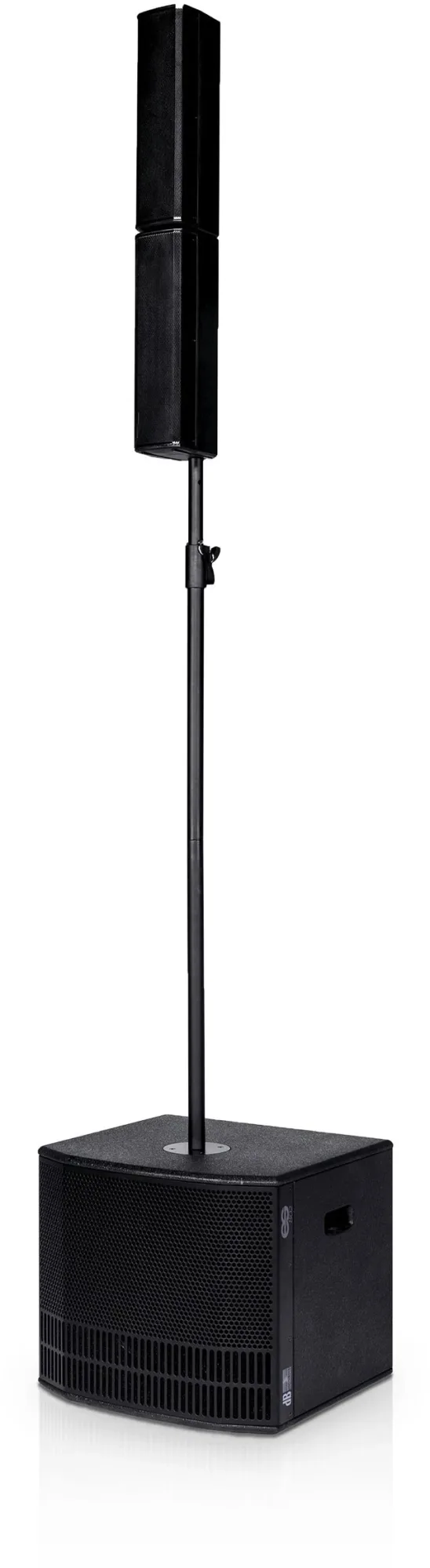

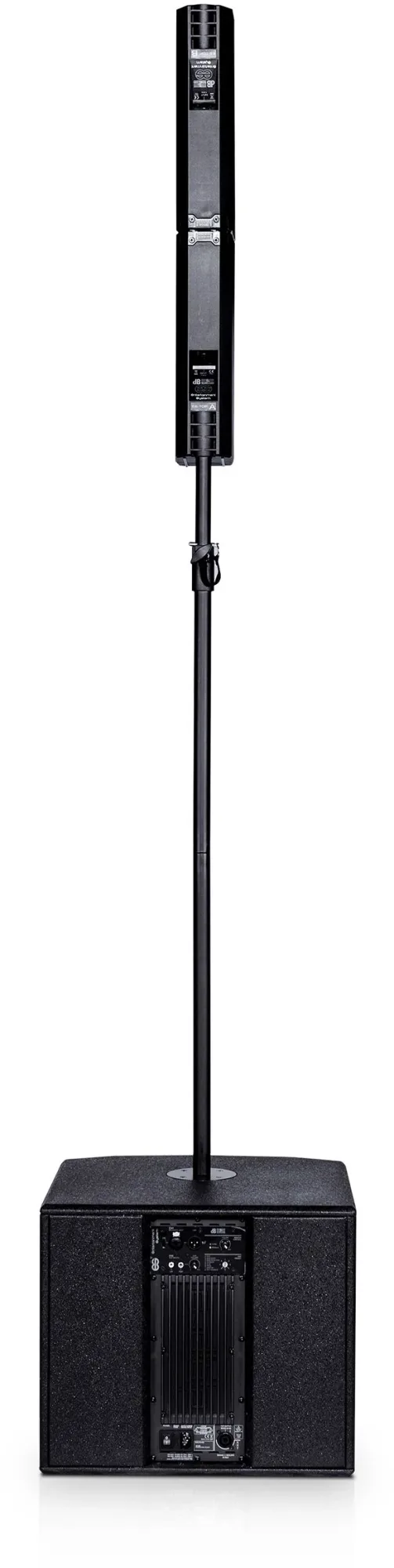

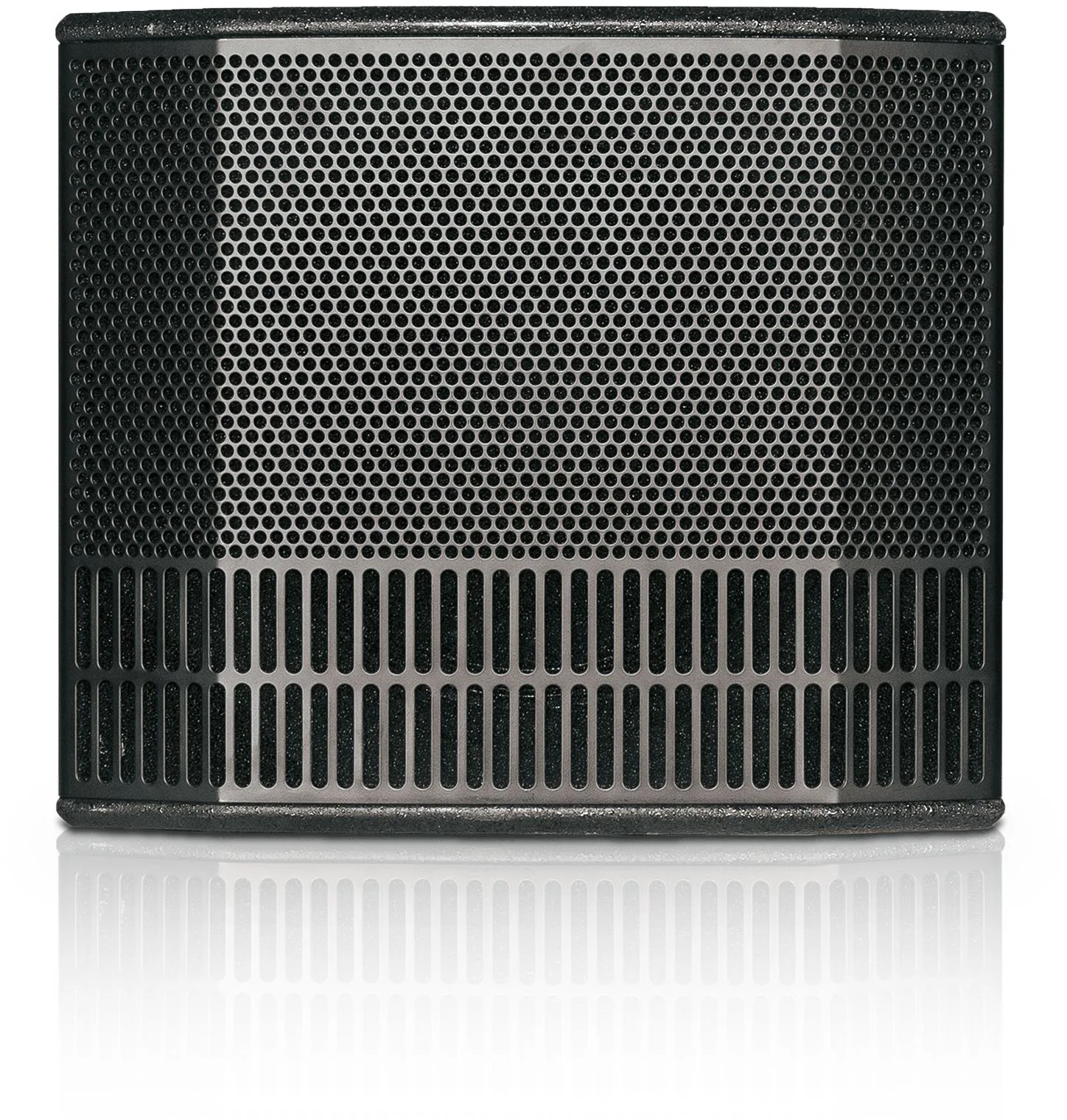

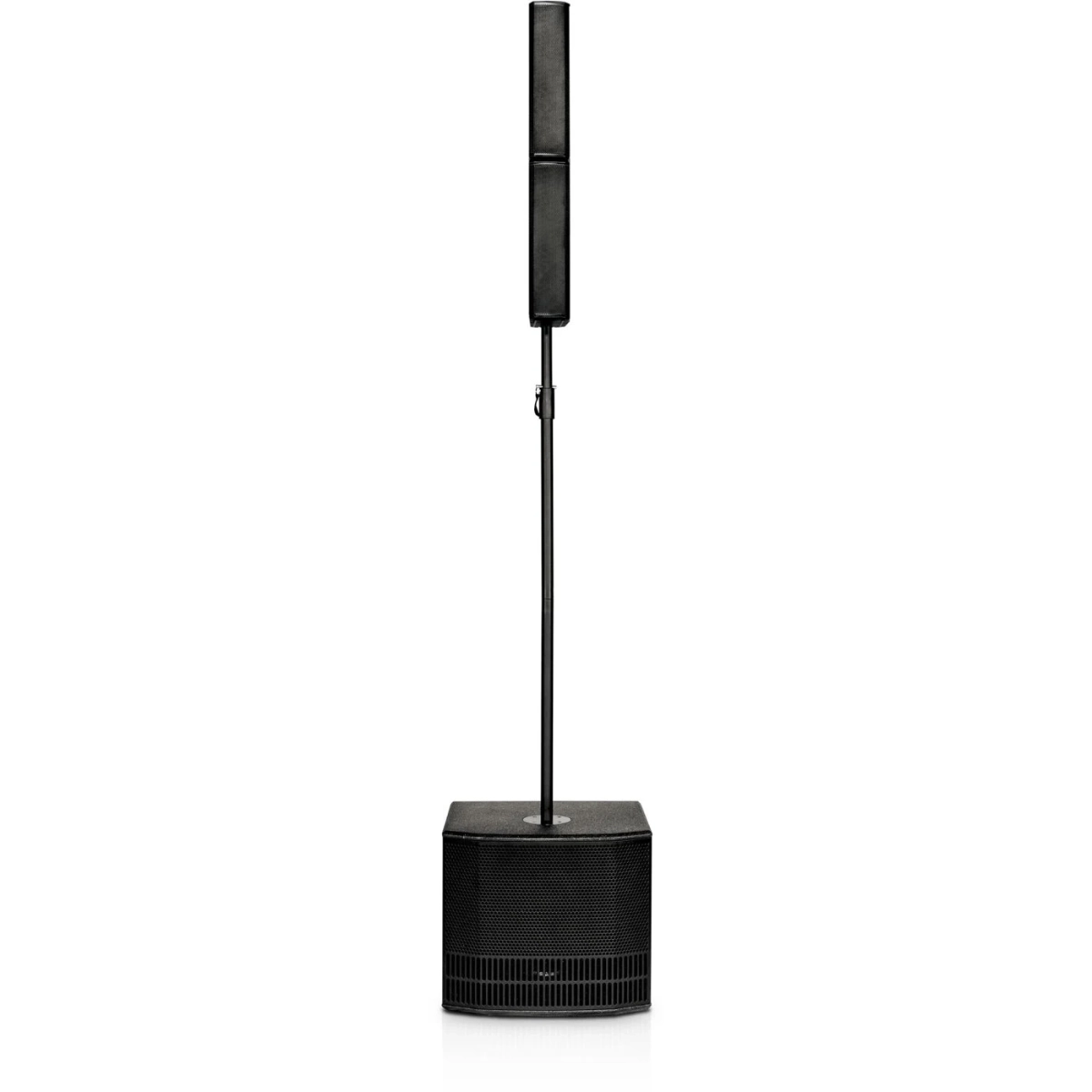

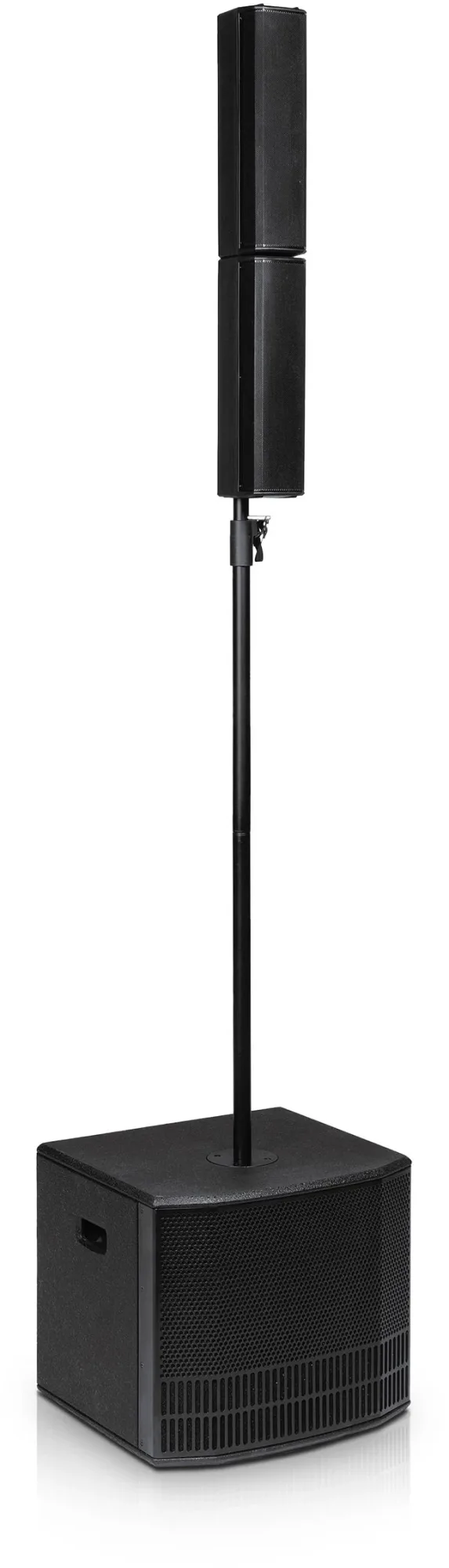

The system consists of two top modules that are connected and mounted on the active 12” bass-reflex subwoofer via an included 25 mm spacer. The ES802 operates in mono mode, meaning all input signals are sent to both outputs for a consistent sound image. The subwoofer is constructed from durable birch plywood with a scratch-resistant finish, and the integrated handles make the system easy to transport.

The digital power amplifier (DIGIPRO® G3) delivers 1200 W peak power in a lightweight and compact format. An integrated DSP handles crossover, limiter, phase adjustment, and tone processing. With 8 different EQ presets, the system can be tailored for everything from speech and live performances to club environments and monitor use.

Features
Logarithmic Curved Column Array technology for wide coverage and high clarity
Unique double-ringed phase plug for wide horizontal dispersion
Active 12” subwoofer with DIGIPRO® G3 Class-D amplifier
1200 W peak power with lightweight and efficient design
8 DSP presets for various scenarios (Flat, Bass Boost, Playback, Vocal, etc.)
Robust subwoofer cabinet made of birch plywood and polypropylene top panels
Compact and portable design with two tops and a subwoofer
Max SPL: 124 dB

Specifications
Frequency response (-10 dB): 37–15,000 Hz
Max SPL: 124 dB
MF/HF: 8 × 3” (neodymium)
LF: 12” subwoofer
Coverage: 95 × 65°
Amplifier: DIGIPRO® G3 Class-D, 1200 W Peak
DSP: 24-bit/48 kHz
Crossover: 206 Hz
Inputs: 1 × Mic/Instrument (XLR/Jack), 1 × RCA stereo
Output: 1 × XLR (balanced)
Subwoofer cabinet: 15 mm birch plywood
Top cabinet: Polypropylene
Top dimensions: 95 × 360 × 137 mm
Sub dimensions: 465 × 400 × 430 mm
Top weight: 1.9 kg
Sub weight: 16.4 kg
