DAP Audio CDI-160BT

1U CD, Internet, DAB+, FM radio, USB, Bluetooth 4.2

1U 19” rack CD and media player
CD, DAB+, FM and internet radio, USB, Bluetooth 4.2
Suitable for stores, cafes, restaurants, sports canteens etc.
2.4” TFT display
Digital and RCA outputs

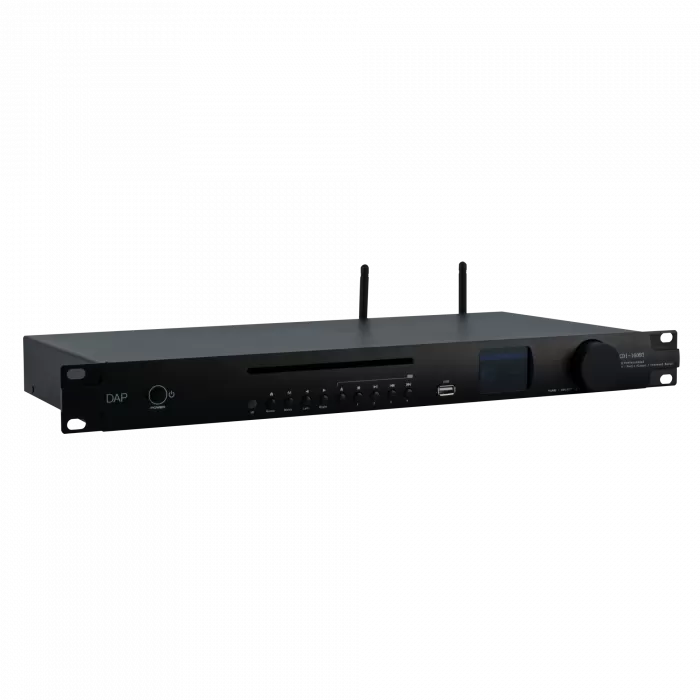

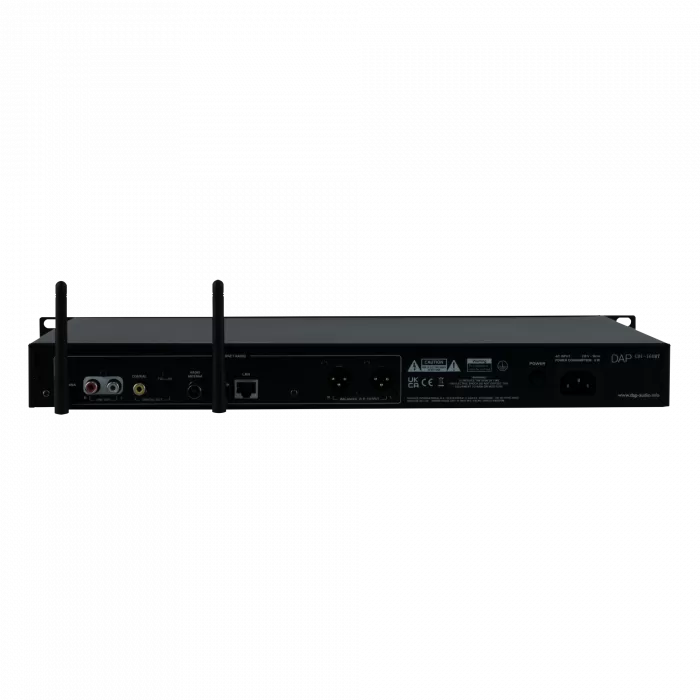

This CD & Media player is designed to fit into a 19-inch rack unit. In addition to a CD player, its media capabilities include DAB+, FM and internet radio as well as a USB port and Bluetooth 4.2. There are both balanced and unbalanced outputs on the back of the unit and on the front, a 2.4-inch display provides a clear overview of all the settings. The player can be operated using the controls on the front or with the included remote control.

Specifications
Outputs
Main Outputs
3
Main Output Connector
3-pin XLR, RCA
Playback
Supported Audio Files
AAC/AAC+ , FLAC, MP3, WAV
Supported Format
FAT32
Maximum Storage Size
512 GB
Media Input/Output
USB-A
USB Type
2.0
Playback Functions
Up (Skip), Down (Skip), Play, Pauze, Stop, Folder
Audio Specifications
Frequency Response Minimum
20 Hz
Frequency Response Maximum
20000 Hz
Wireless Specifications
Bluetooth Version
5.3
FM Frequency Start
87 MHz
FM Frequency End
108 MHz
FM Antenna Impedance
75
DAB+ Frequency Start
174.928 Mhz
DAB+ Frequency End
239.2 Mhz
Control and Programming
Display
TFT
Display Size
2.4 "
Electrical Specifications and Connections
Power Supply
100-240 V AC 50/60 Hz
Power Consumption
9 W
Power Connector In
IEC
Data Connector In
RJ45
Mechanical Specifications
Height (mm)
475 mm
Width (mm)
210 mm
Length (mm)
485 mm
Flightcase Size
19"
Rack Units
1 U
Housing
Aluminium, Metal
Colour
Black
Weight
2.8 kg
IP Rating
IP20 (indoor use only)
Thermal Specifications
Maximum Ambient Temperature
40 °C
Included Items
Included Cables
IEC cable
Included Remotes
IR Remote
