Cameo Root Bar SMD

Compact SMD LED bar

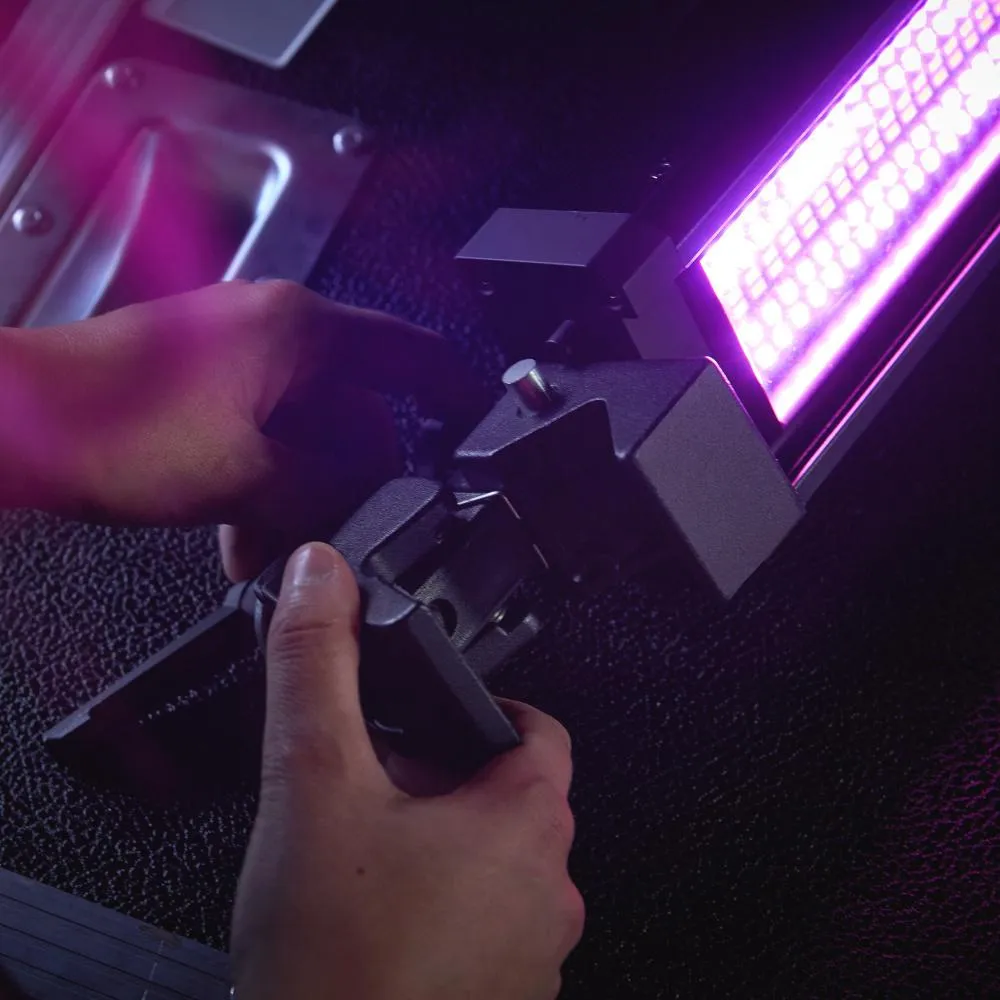

Flexible positioning at various angles, with or without feet
Magnetic Quick Alignment System for precise alignment of multiple units
Includes neon tube filter and glare shield for versatile lighting effects
Control via DMX or W-DMX (with optional Cameo iDMX Stick)
Patented EZchase® DMX delay function for chase effects
16-bit resolution for smooth dimming and high-performance RGBW LEDs
Power input via Neutrik powerCON and DMX connectors for daisy-chaining multiple units
Silent, fanless cooling design ideal for noise-sensitive environments

Illuminant type LED RGBW
LED data 480 x 0.2 W LED RGB (24 x 20) | 240 x 0.5 W LED white
Luminous flux 5,200 lm
Beam/Field angle 102° / 127°
LED PWM frequency 12 kHz
Dimmer resolution 16 Bit
Dimmer curves Linear, Exponential, Logarithmic, S curve
Colour mix functions RGB
LED colours Red, Green, Blue, White
Colour rendering index (CRI) > 70
Controller protocols DMX512
Additional DMX features DMX delay, LED segment dimmer, System settings
Stand alone operating modes Sound controlled, Autorun, Master/slave, Static, Endless loop
Data in connector XLR 3-pole male
Data out connector XLR 3-pole female
Width 1,024 mm
Height 116 mm
Depth 106 mm
Weight 5 kg
