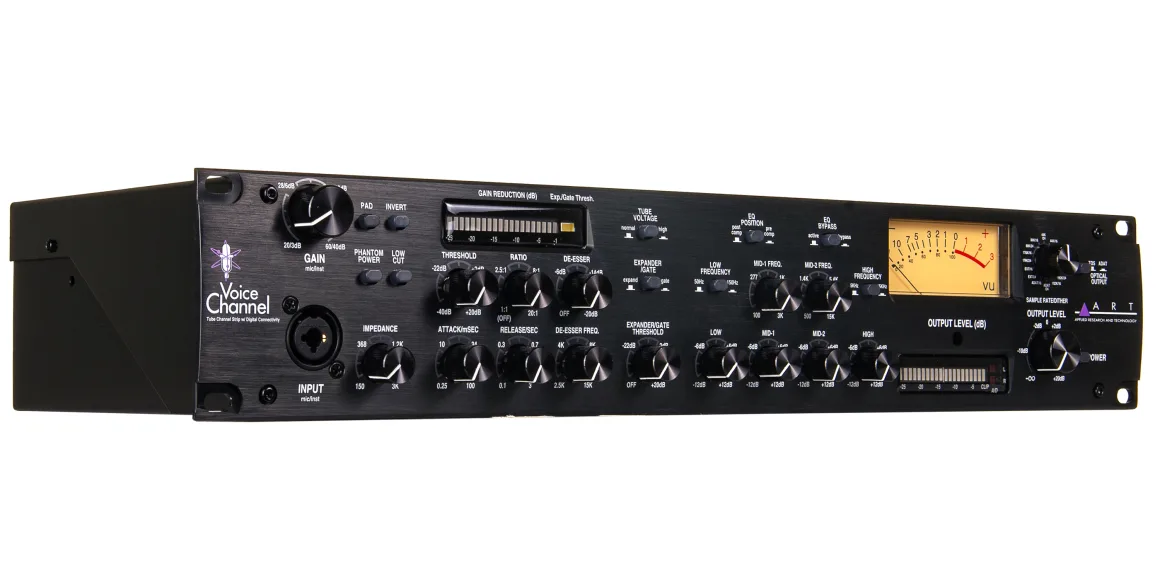

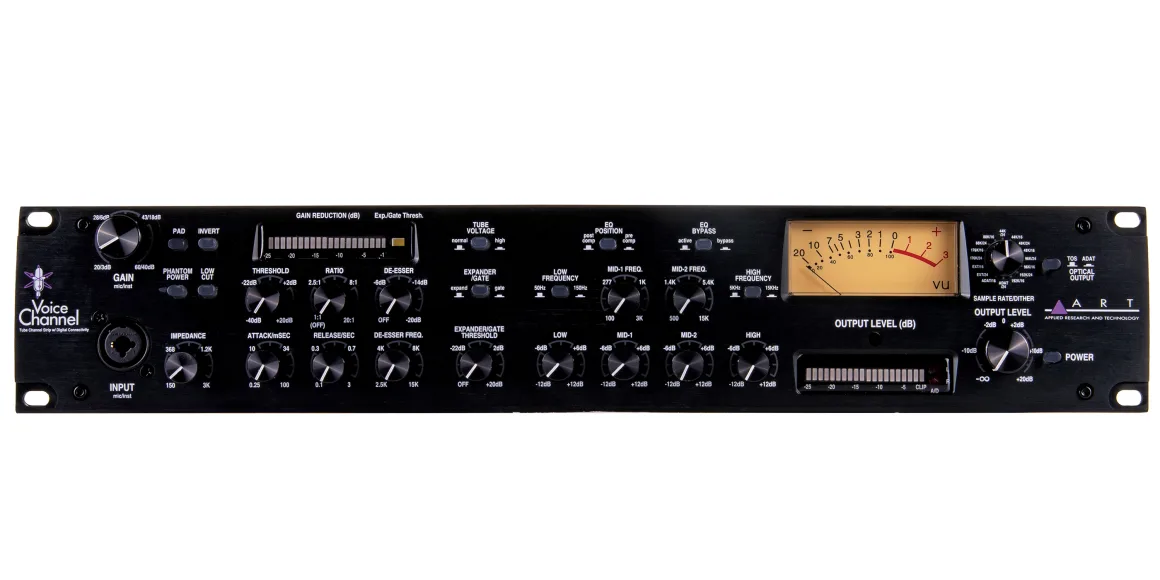

ART VoiceChannel

The ART Voice Channel tube channel strip gives you the tools you need to put quality sound into your analog or digital recording device at optimium quality, all in one package. The Voice Channel provides Class A tube preamp quality and clean gain with an integrated dynamics processor and semi-parametric EQ, as well as a range of digital outputs for a versatile, powerful recording front-end. In addition, the EQ can be patched before or after the dynamics for added flexibility, and a separate insert jack lets you take advantage of even more routing options with the Voice Channel.

Ideal input solution for any recording application.
Tube Microphone Preamplifier with Selectable plate Voltage and Variable Input Impedance
Exceptional warmth and definition from proven ART Tube Preamp design
Smooth musical sounding dynamics control including Compressor / Expander / De-Esser / Gate
Powerful Parametric EQ selectable Pre or Post Compressor in signal path

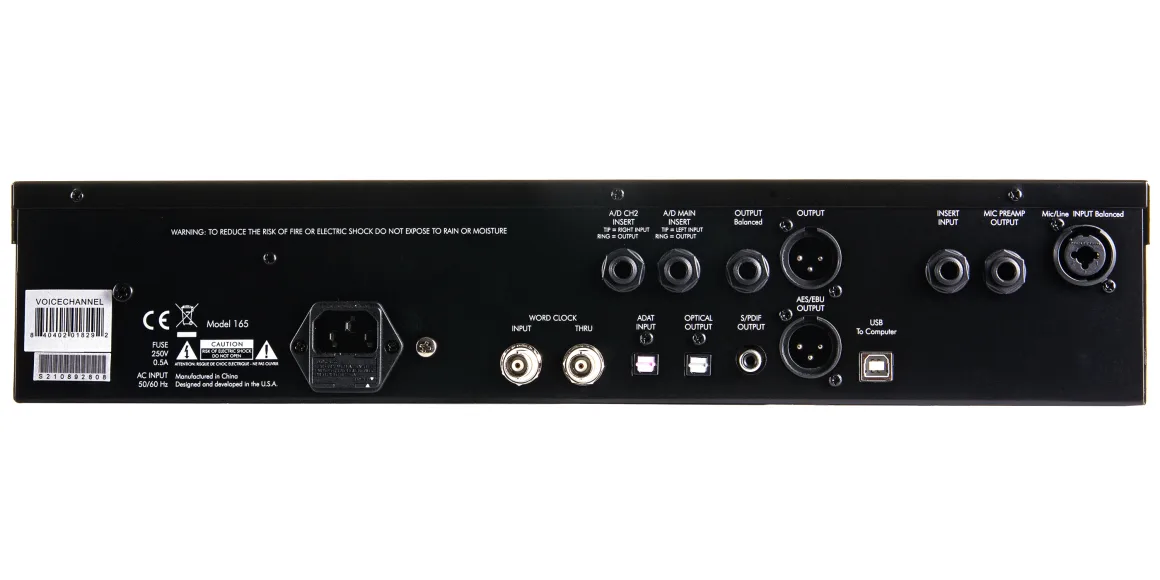

Flexible digital connectivity including ADAT Lite-pipe / AES/EBU / S/PDIF / TOSLink Digital Output supports 44.1 to 192 KHz Sample Rates
USB direct-connect to computer or laptop
Attack Time: 250 uSec. To 100 mSec
Boost and Cut/Frequency Band: +12 dB on each band
Compression Ratio: 1:1 to 20:1
Dimensions: 23,29 x 48,26 x 8,89 cm
EQ Frequency Bands: Low Frequency: 50/150 Hz Selectable
MID 1 Frequency: 100 Hz to 3kHz continuously variable
MID 2 Frequency: 500 Hz to 15kHz continuously variable
High Frequency: 5K/15kHz Selectable
Equivalent Input Noise: -130 dBu, Input shorted, Max gain, A weighted
Frequency Response: 16Hz - 42kHz -1dB@96kHz
Total Harmonic Distortion: 1kHz - less than .015% typical
Weight: 4.8kg
