ART MyMonitorII

The MYMonitorII allows blending of any microphone source with any stereo source in a convenient personal monitoring solution. The microphone thru provides direct connection to any mixer and will pass phantom power from the board for powering condenser microphones.

Built for maximum flexibility, the ARTcessories MyMonitorII can be powered with the supplied 12vDC power supply, or from an internal 9v battery.

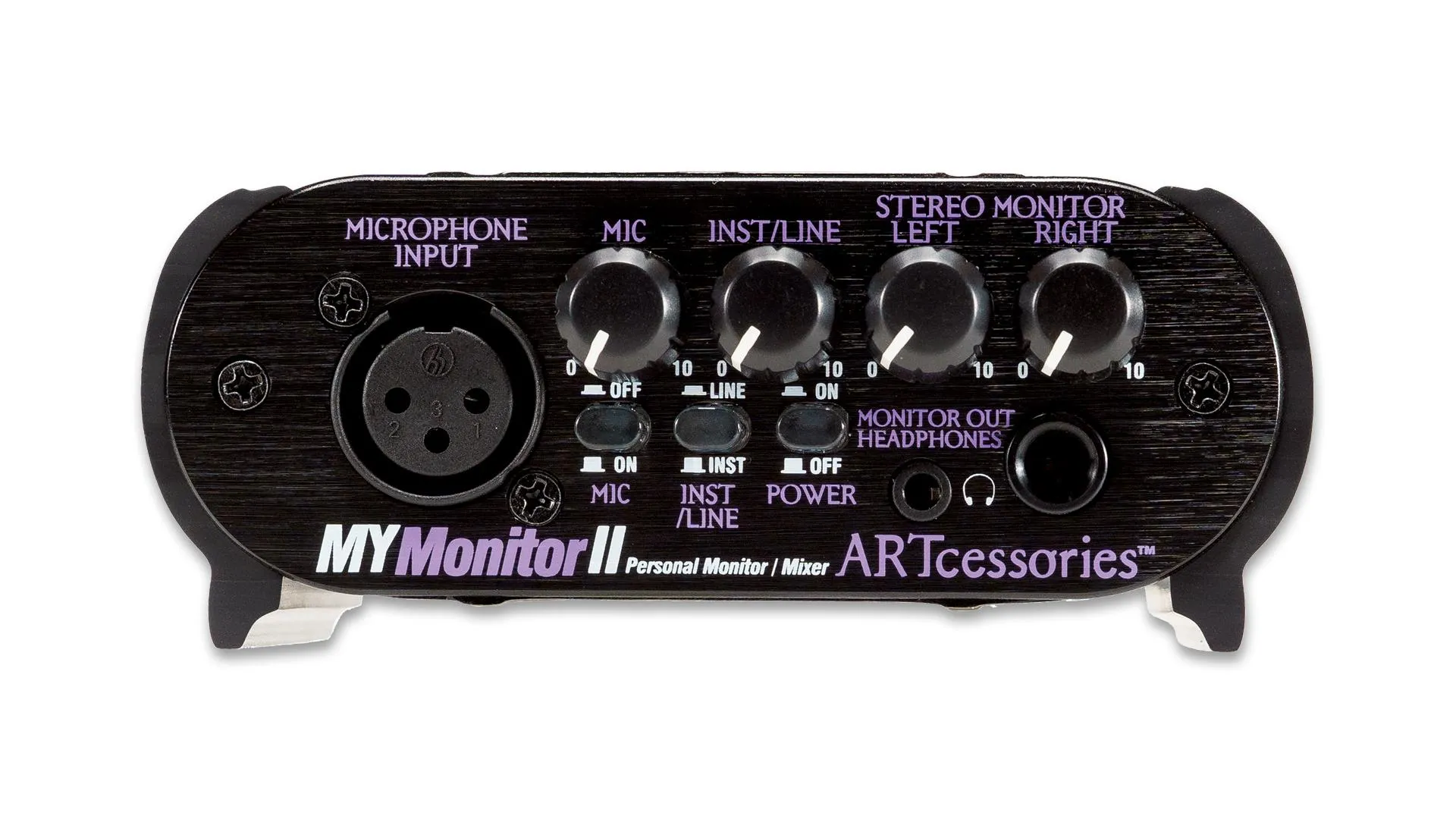

The pop-less microphone on/off switch lets you locally mute the microphone. The headphone section has independent 1/8-inch and ¼-inch TRS outputs with plenty of drive for both.

Key Features
Blends any Microphone, Instrument and Stereo Source for Personal Monitoring
Microphone Input and Thru with Pop-less On/Off Mute Switch
Passes Phantom Power for Operation with Condenser Microphones
Instrument/Line Input and Thru Jacks
Stereo Monitor Input with Blend Control
Headphone output section has 1/8-inch and 1/4-inch Jacks
High Performance, Low Noise Circuitry
9v battery and 12vDC Power Operation

Specifications
Maximum Input Level +6 dBu (mic), +12 dBu (instrument), +32 dBu (line), >+32 dBu (stereo monitor)
Input Impedance 4.5k Ω (mic), 1m Ω (instrument), 100k Ω (stereo monitor, line)
Maximum Output Level
+12dBu (headphones)
Maximum Gain 47dB (mic), 41dB(instrument), 21dB(stereo monitor, line)
Output Impedance 47 Ω (each headphone output)

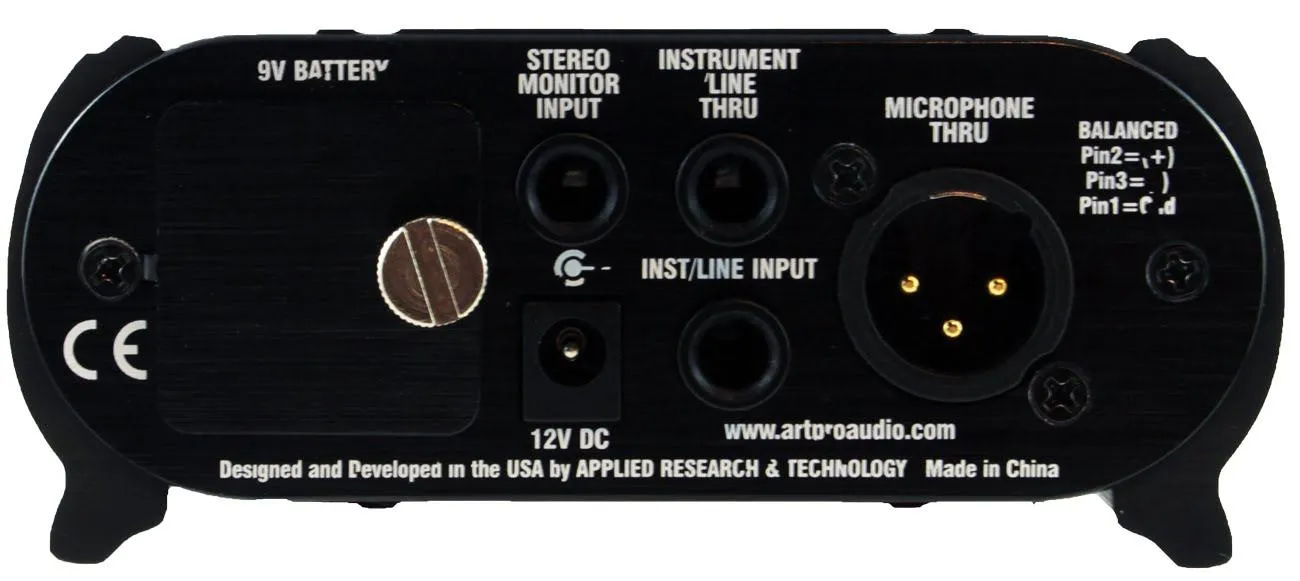

Input Connections XLR balanced microphone, 1/4-inch stereo monitor, 1/4-inch mono instrument/line input
Output Connections XLR balanced microphone, 1/4-inch and 1/8-inch headphones, 1/4-inch mono instrument/line thru
Signal To Noise Ratio > 96dB
Power 12VDC @ 150mA (Adaptor Included) or 9VDC Battery
Dimensions 47mm x 117mm x 104mm
Weight 0.50kg
