American DJ Hydro Beam X1

The ADJ Hydro Beam X1 is an IP65 rated professional moving head fixture with a 100W Osram Sirius HRI, 6,000 hour, discharge lamp that produces a razor sharp 3-degree beam. Its compact sizes offers quick movement.

With robust construction and IP65-ratings, the Hydro Beam FX1 is designed for both indoor or outdoor use. Its durable casing protects it from dust, sand, moisture and liquids, making it ideal for use in all situations from dusty deserts in California to rainy fields in England. Perfect for festivals and outdoor events, as well as installation in open-air clubs and other outside entertainment spaces, this groundbreaking fixture offer an extended operational life and reduced maintenance requirement due to their sealed casing design.

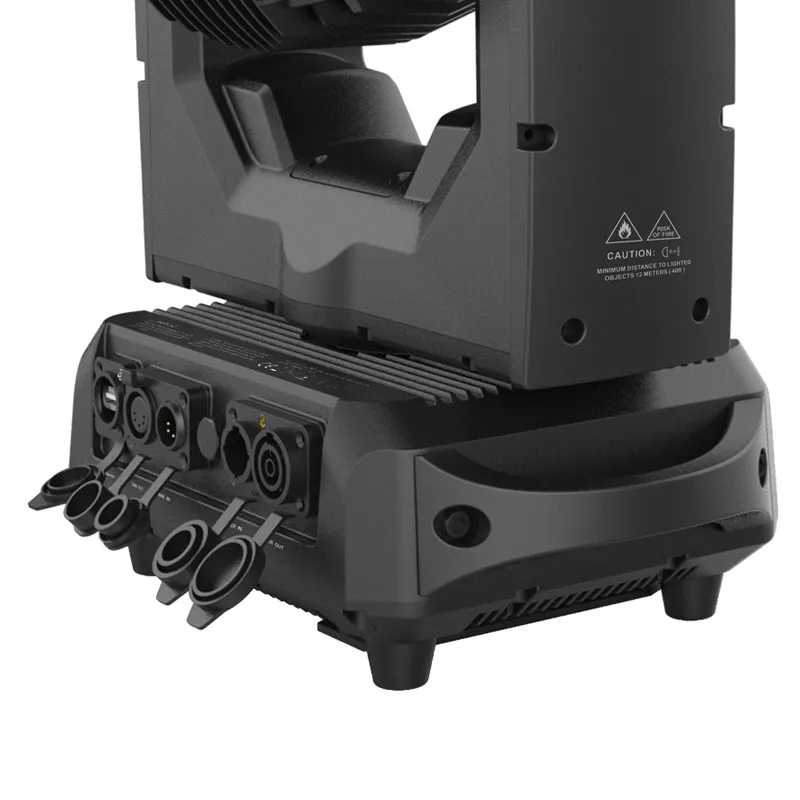

The Hydro Beam FX1 has several high performance features such 16-facet circular prism with overlay and an independent frost filter for wash effects. Its fitted with 3-pin DMX In/Out and powerCON In/Out connections. It offers a USB port for software updates. All connections are IP65 rated with rubber protective covers.

Specifications
Light Source:

• Lamp: Osram Sirius HRI 100W Long Life (6,000 hrs.) Discharge

• Color Temperature : 9000K

• CRI: 60

• Beam Angle: 3-degrees



Features:

• IP65 rated – protects from dust, sand, moister, liquid

• Independent frost filter (wash effect)

• 0-100% smooth dimming

• Various strobe speeds

• Includes omega brackets



Color Wheel:

• 12 colors + CTB & UV + open



GOBO Wheel:

• 1 metal GOBO Wheel with 11 GOBOs, 4 GOBO reducers + open



Prism Wheel:

• 16-facet circular prism (rotates in either direction)



Construction:

• Display: OLED display

• Data In/Out: 3-pin DMX IP65 (with rubber protective covers over connections)

• Power In/Out: powerCON IP65 (with rubber protective covers over connections)

• Protection Rating: IP65

• All metal case design



Control:

• 2 DMX Channel Modes: 13/14 Channels

• Control Mode: DMX512, RDM

• Firmware Upgrade: Update via DMX Link

• With Wired Digital Communication Network



Pan/Tilt:

• Pan/Tilt: 540/270



Electrical:

• Power voltage: AC100-240V, 50/60Hz (Multi-voltage)

• Power consumption: 199W @ 120V; 192W @ 220V



Dimensions & Weight:

• Dimension: 16”x 13” x 25” / 308x210x488mm

• Weight: 34.5 lbs. / 15.5kg.
