Allen & Heath GX4816

GX4816 is a 96kHz audio expander that provides high-input-count remote expansion for SQ, Avantis and dLive mixing systems, and for AHM audio matrix processors.

48 Mic Preamps
+60dB of gain, Phantom Power indicators and -20dB pad for line level sources.

16 Line Outs
Balanced, relay protected line outputs on XLR.

DX Ports
A pair of DX ports enable connection of additional DX expanders or the ME Personal Monitoring System (not on dLive or AHM)

Plug-and-Play
No configuration required, just connect to your mixer and you’re ready to go. Firmware updates are handled automatically by the mixer.

Massively Expand Your System I/O!

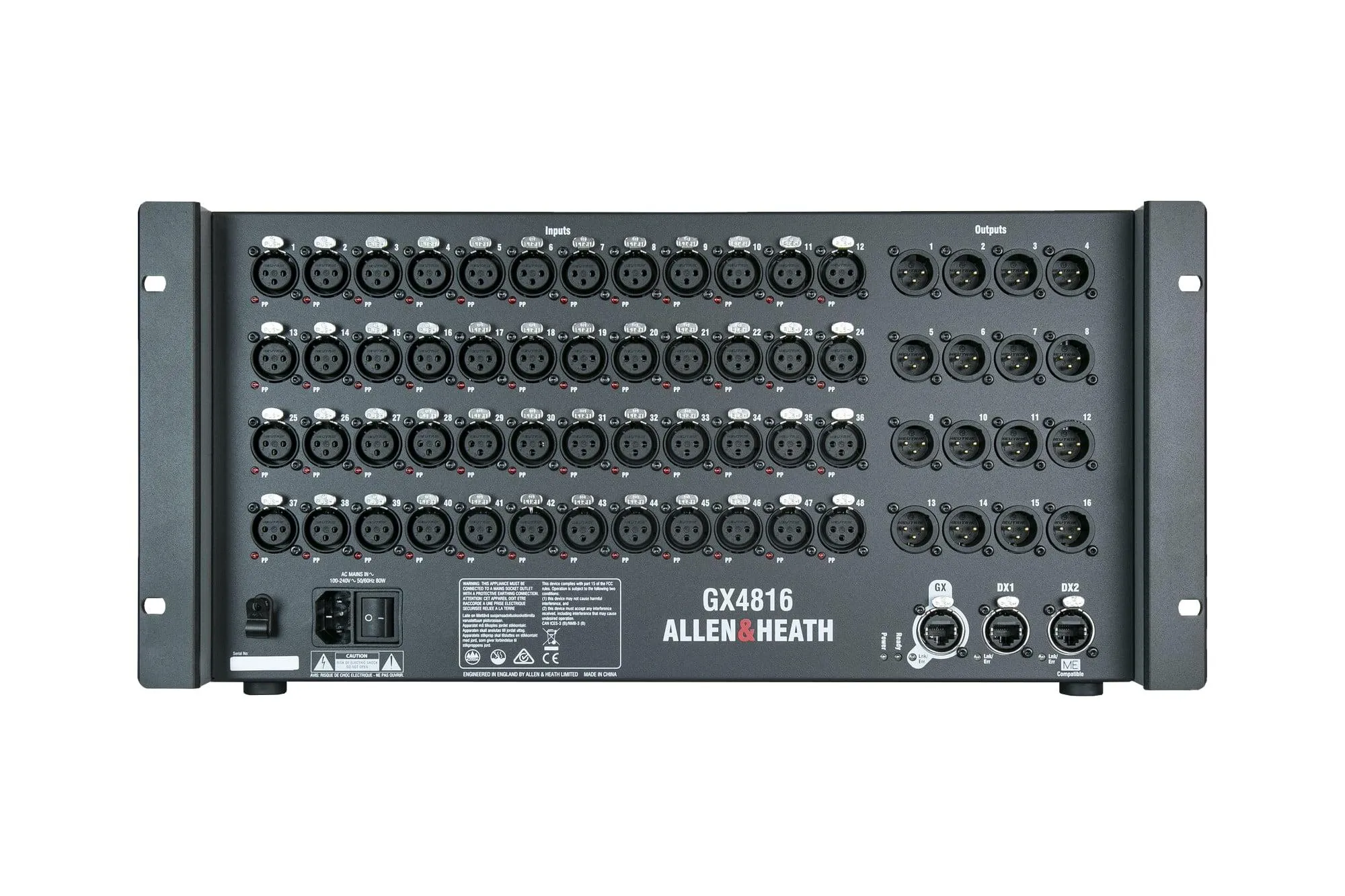

Each GX4816 is loaded with 48 dLive mic preamps with independent Phantom Power LED indicators, plus 16 XLR line outputs. Additionally, 2 DX ports are provided for connection to up to 4 DX Expanders for further I/O expansion.

Put It Where You Need It
The GX4816 can be placed up to 100m away from the mixer for maximum flexibility of positioning and features integrated rack-ears for mounting in a 5U 19″ space.

Features
48 microphone preamps on XLR with Phantom Power status LEDs
16 XLR Line Outs
96kHz
DX1 port - compatible with a single DX32, or up to 2 DX168/DX164-W
expanders
DX2/ME port - compatible with a DX32, up to 2 DX168/DX164-W expanders, or an ME Personal monitor (not compatible with AHM or dLive).

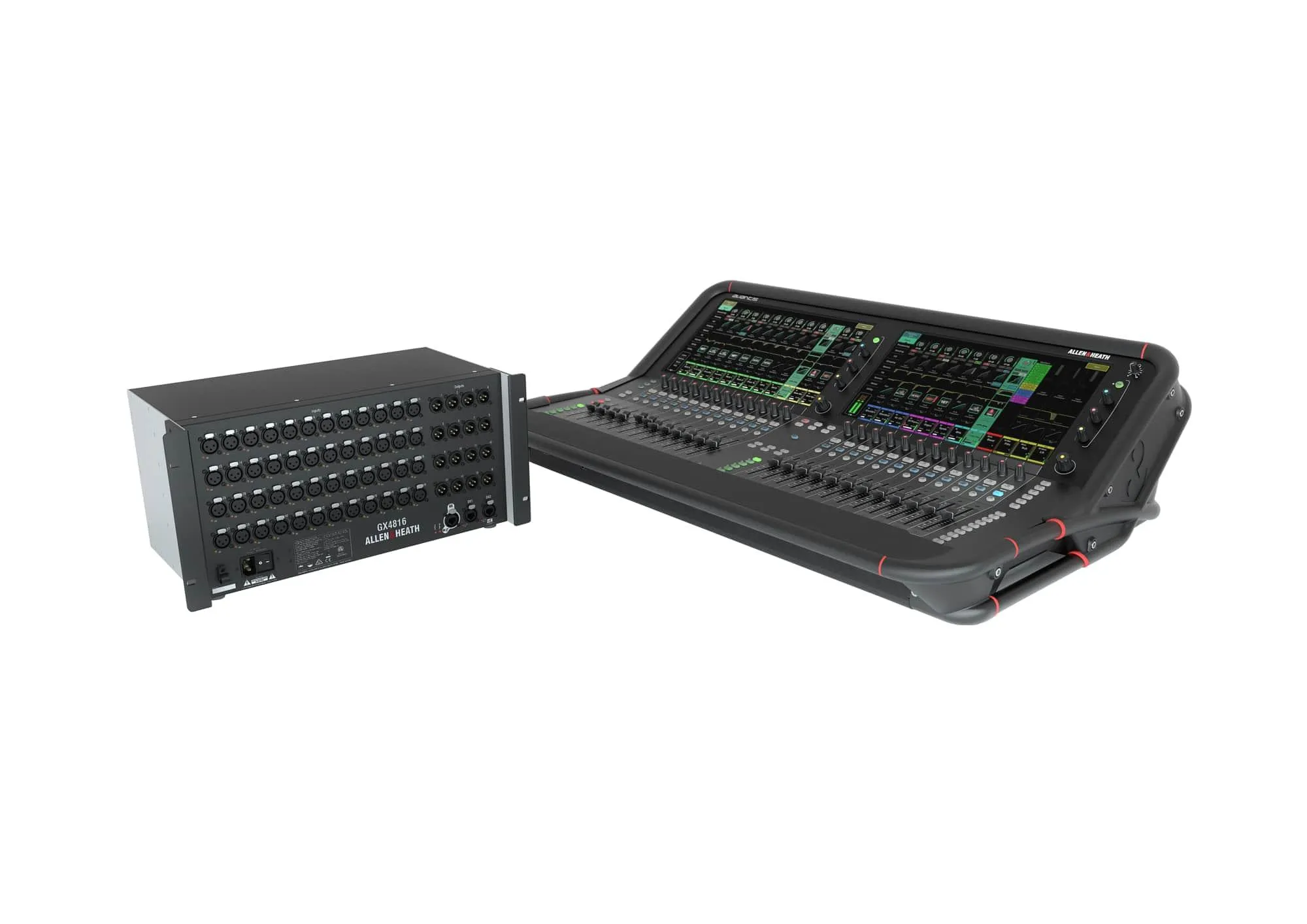

Compatible with SQ, Avantis, AHM and dLive (dLive requires firmware V1.86 or later)
Multiple GX4816s can be added to a system
- Up to 2 GX4816 units can be added to an SQ system
- Up to 3 GX4816 units can be added to an Avantis system
- Up to 5 GX4816 units can be added to a dLive S Class system
- Up to 3 GX4816 units can be added to a dLive C Class system
Can be rack (5u) or shelf/floor/table mounted
Plug and Play
Compatible with CAT5e (or higher) cables up to 100m
Interlocking EtherCon ports
