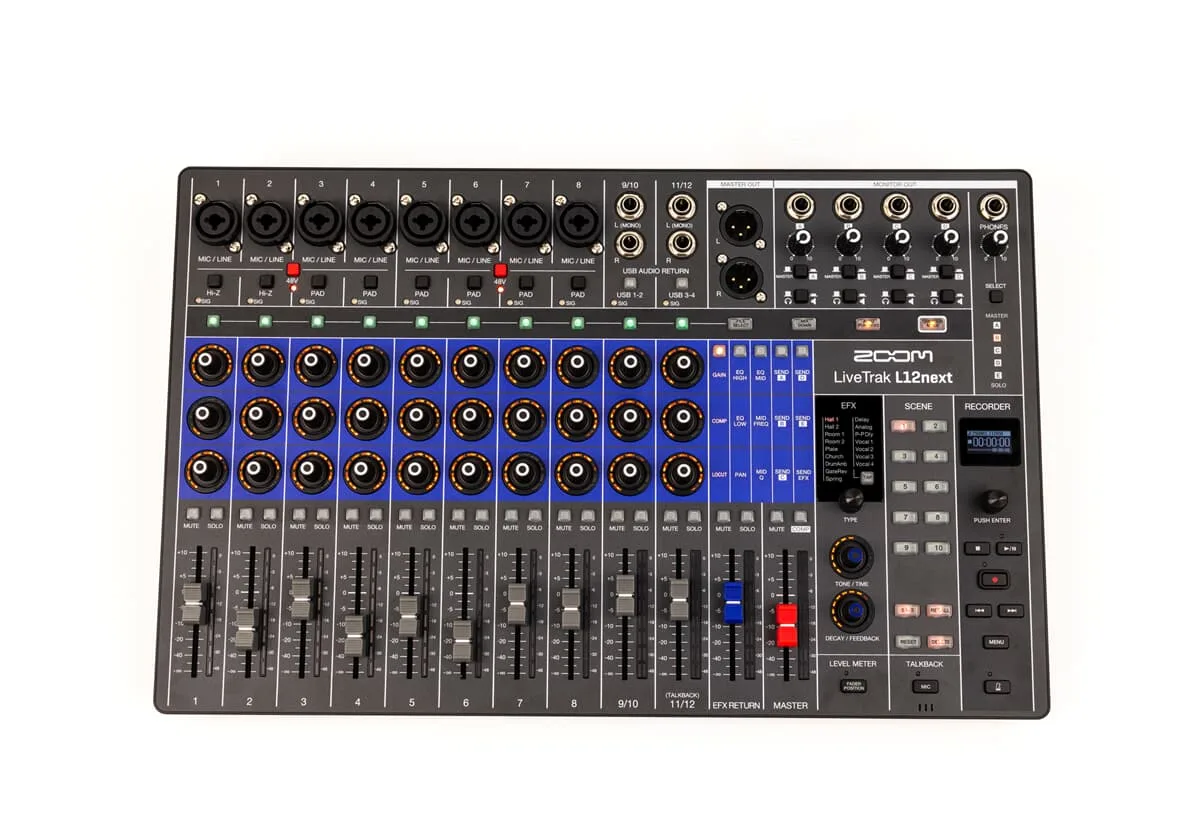

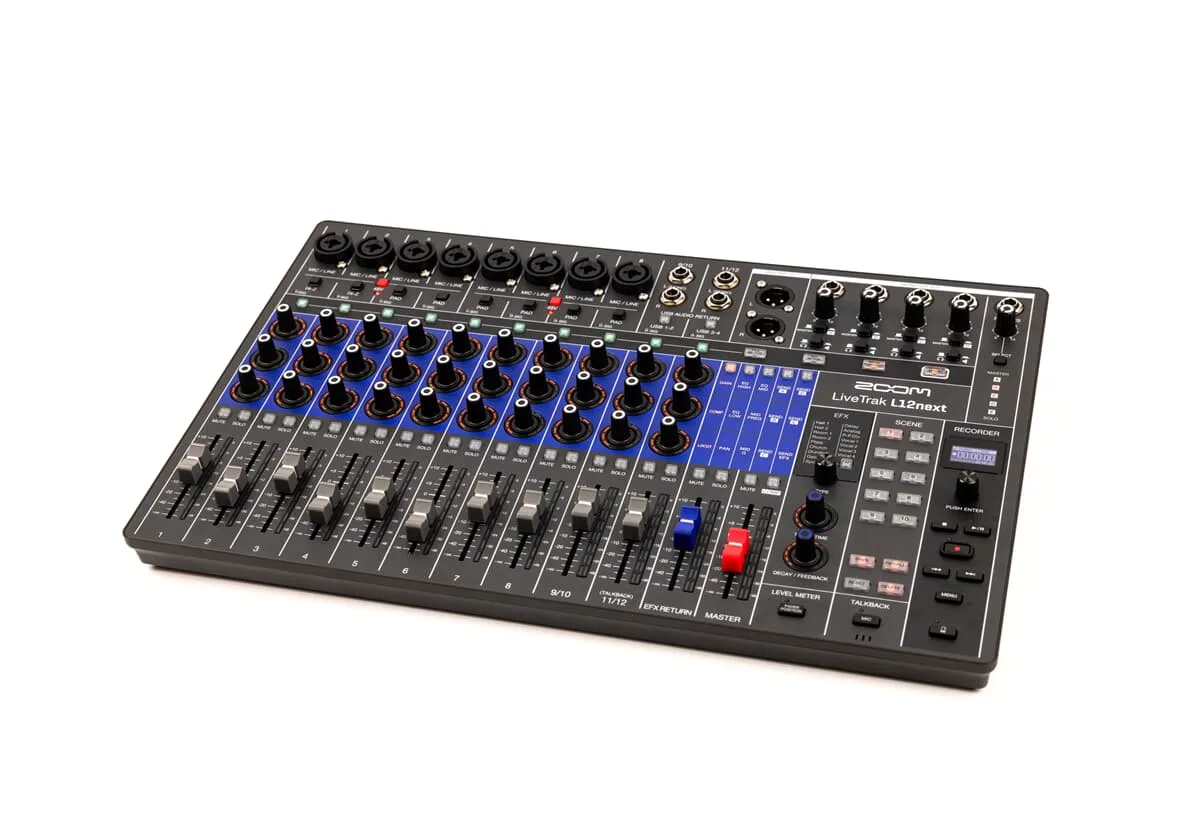

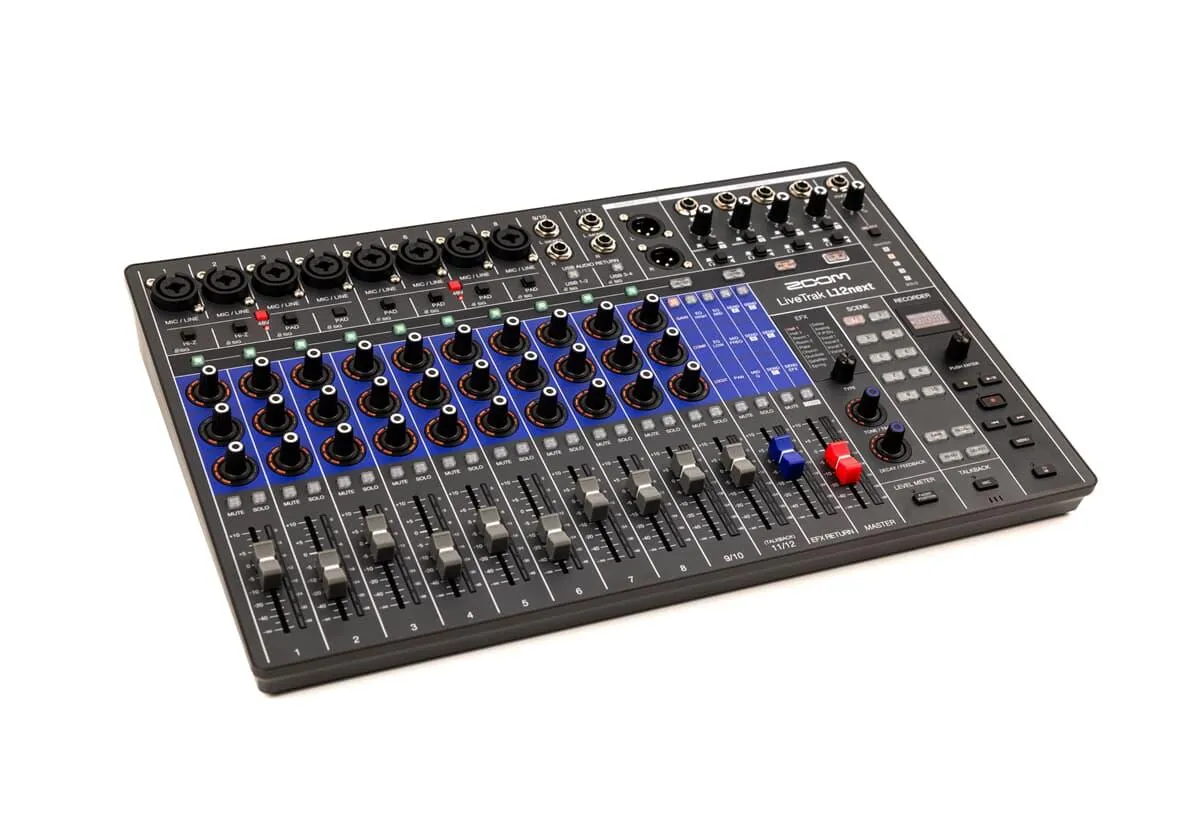

Zoom LiveTrak L12next

Digital Mixer and Recorder – LiveTrak L12next

Digital control with an analog feel
The LiveTrak L12next combines the power of a digital mixer with an intuitive, analog workflow. With three knobs per channel, you get direct access to EQ (High/Mid/Low), and a simple switch lets you control gain, panning, and sends—without having to navigate through menus.

Optimized for live performances
Designed for fast and reliable mixing on stage or in the rehearsal room, with full real-time control.

Full control per channel
60 mm faders
3 multifunction knobs per channel
Adjustment of gain, EQ, compression, panning, and sends
No menu navigation required

Upgraded preamps
Clean gain up to +70 dB
Low noise floor (–128 dBu EIN)
Hi-Z, PAD, and +48 V phantom power
Flexible input options

Advanced recording
Recording of up to 14 tracks + stereo mix
24-bit/96 kHz quality
OLED display for easy control
Support for SDHC/SDXC (up to 1 TB)

Precision in every take
Overdub Mode
Auto Punch In/Out
File Select for loading additional tracks

Professional final mix
32-bit float recording on the master channel
Built-in master compressor for a warm and natural sound

Individual monitor mixes
5 independent monitor outputs
Stereo for headphones/in-ear monitors
Mono for stage monitors

Efficient communication and control
Dedicated engineer output
Built-in talkback function

Scene Recall
Save up to 10 scenes
Saves faders, EQ, pan, effects, and more
Quick recall for live and studio

Clear visual feedback
LED meters per channel
Display of levels and encoder position
Fader Position button for saved settings

Built-in effects
16 effects (delay, reverb, etc.)
2 parameters for easy adjustment

Wireless control
Control via iPad app
Adjust faders, EQ, effects, and scenes
Requires BTA-1 Bluetooth adapter (range up to 10 m)

Audio interface and control unit
14 in / 4 out via USB
24-bit/96 kHz support
Simultaneous recording to computer and SD card
DAW control

Streaming ready
Integrates with streaming software
Perfect for podcasts, live performances, and broadcasts

Hands-free control
Footswitch support (Zoom FS01)
Control effects, punch in/out, and playback

Rack mounting
Compatible with RKL-12 rack adapter

Technical specifications

Inputs
8 mono (MIC/LINE), XLR/TRS combo
Gain: +16 to +60 dB (PAD off), −10 to +34 dB (PAD on), 0 to +44 dB (Hi-Z)
Impedance: ≥ 4.6 kΩ (XLR), 4.6 kΩ / 1 MΩ (Hi-Z)
Max level: −2 dBu / +24 dBu
Phantom power: +48 V
2 stereo (LINE), TS (unbalanced), max +14 dBu

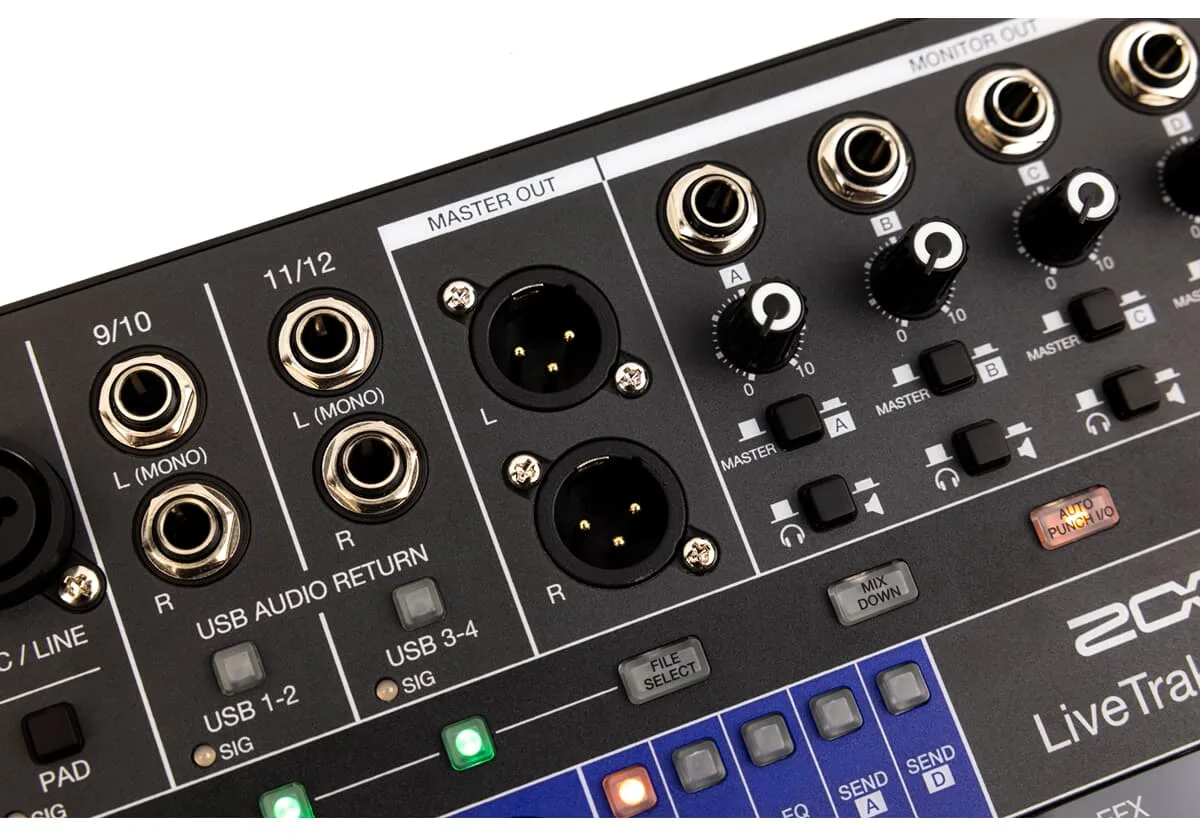

Outputs
MASTER OUT: XLR, balanced, +14.5 dBu, 200 Ω
MONITOR OUT: stereo, 42 mW + 42 mW at 60 Ω

Mixer and channels
1 Master, 5 Monitor, 1 Send EFX
EQ: High 10 kHz ±15 dB, Mid 100 Hz–8 kHz ±15 dB, Low 100 Hz ±15 dB
Low cut: 40–600 Hz
Compressor, phase reversal
8-segment level meter

Effects
16 send effects

Recording
14-track recording / 12-track playback
WAV format (44.1/48/96 kHz, 16/24-bit, mono/stereo)
Master in 16/24-bit or 32-bit float

Audio Interface
USB 2.0
14 recording channels / 4 playback channels
Frequency response: 44.1 kHz: −1.0 dB (20 Hz–20 kHz)
96 kHz: −3.0 dB (20 Hz–40 kHz)

Display
128 × 64 OLED

Power Supply
AC adapter (DC 12V/2A)

Dimensions and Weight
445 × 285 × 73 mm
Weight: 2.40 kg
