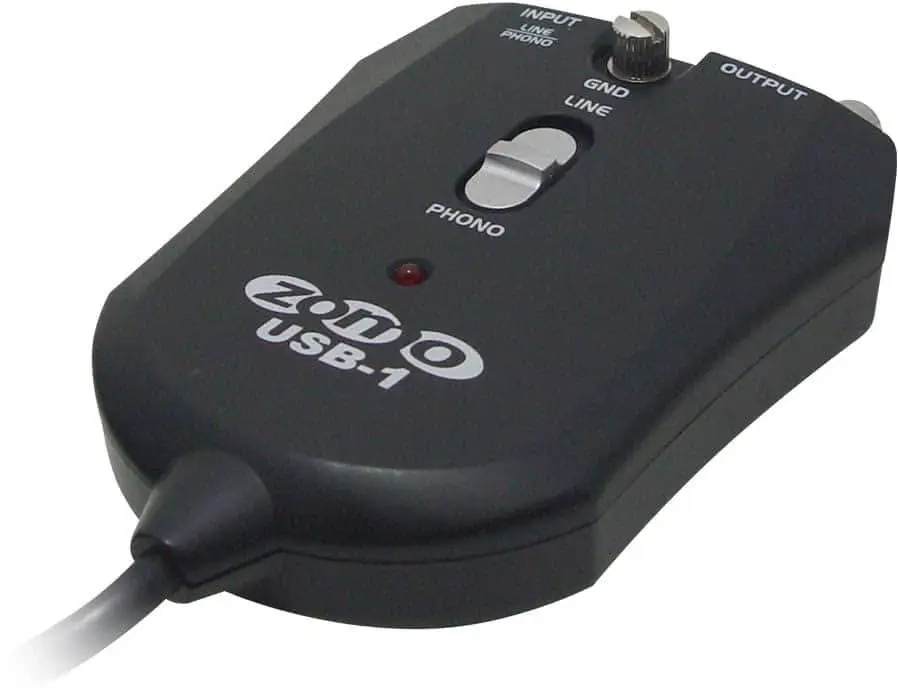

Zomo USB-1 Audio Capture device

The Zomo USB-1 capture allows you to connect your audio device (f.e. your Zomo DP-5000 turntable) with your computer (PC / laptop or Mac). The Zomo USB-1 converts the analog audio signal of any player into a digital file. Perfect for archiving your vinyl collection as MP3 files on your computer. The Audacity audio software is added to the Zomo USB-1capture.However you could also use any other audio recording software. The Zomo USB-1 capture works with every audio recording software which supports audio USB devices.

Technical Data
• Power: 5Vdc (through USB connector)
• Frequency Response: 20Hz – 20.000Hz
• THD+N (phono): • THD+N (line): • S/N Ratio (phono): >70 dB
• S/N Ratio (line): >75 dB
• Maximum Input (phono): 19mV @ 1KHz
• Maximum Input (line): 2V @ 1KHz
• Channel Separation (phono): >70 dB
• Channel Separation (line): >70 dB
• Input Impedance: 47kO
• USB Cable length: 140cm
• Computer interface: USB 1.1 compliant (Windows® XP or Mac® OS X)
• Dimensions (wxdxh): 75 x 107 x 30,5mm
• Weight: 140g
