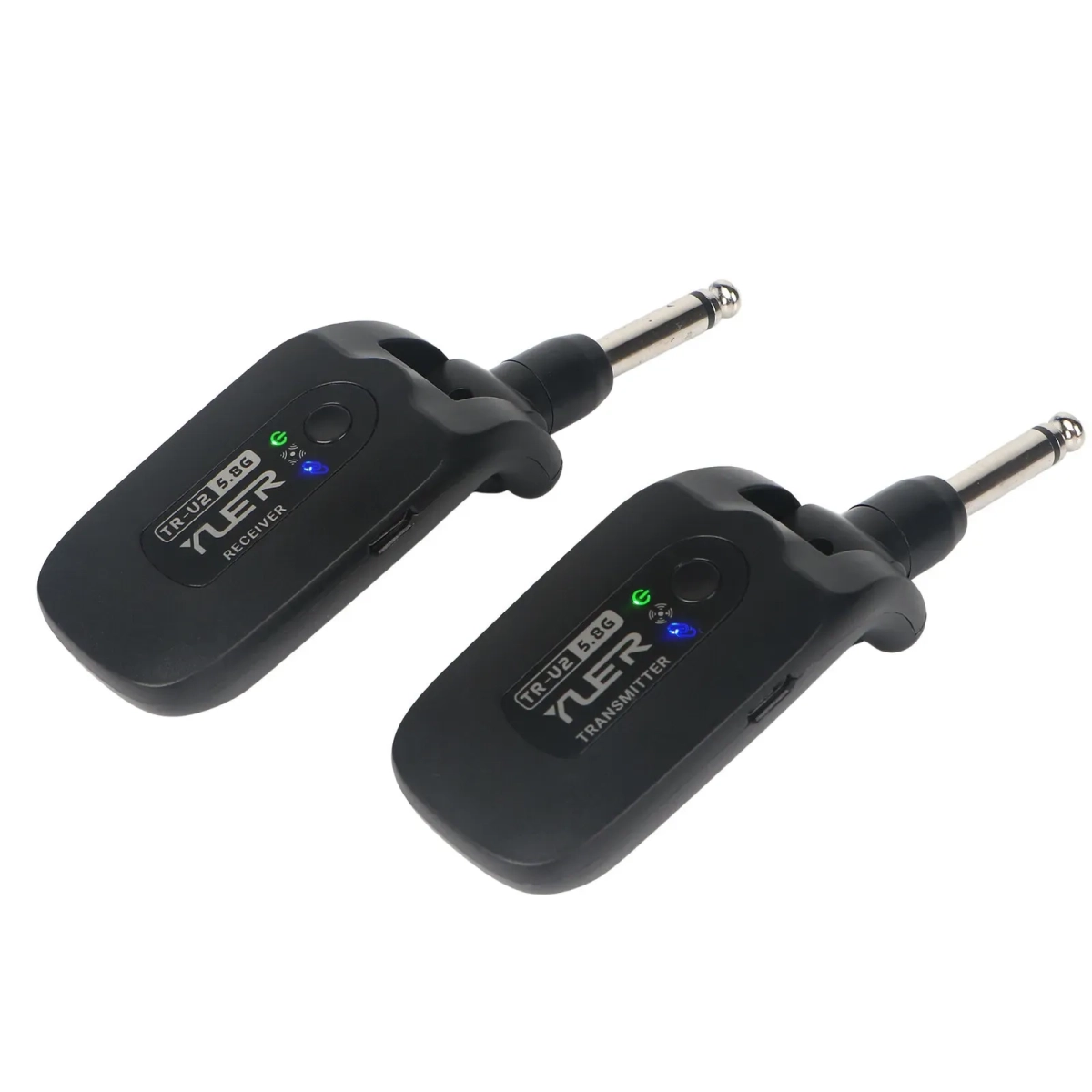

Yuer TR-U2 Wireless System

Yuer TR-U2 – 5.8 GHz Wireless System for Guitars, Basses and Other Instruments

Yuer TR-U2 is a digital wireless system for guitars, basses and other instruments. It operates in the 5.8 GHz ISM band and features six switchable channels, allowing up to six systems to be used in parallel. With 5 ms latency, 24-bit/48 kHz A/D conversion and a range of up to 30 meters without obstacles, it provides wireless instrument transmission.

Features
Digital wireless system for guitars, basses and other instruments
5.8 GHz ISM band for worldwide use
6 switchable channels for parallel use of 6 systems
Range up to 30 m / 98 ft. without obstacles
5 ms latency
Frequency range: 10–22,000 Hz
24-bit / 48 kHz A/D converter
105 dB dynamic range
270° rotating TS jack plug
Over 8 hours of operation per battery charge
Built-in rechargeable 3.7 V / 650 mAh lithium battery
On/Off switch
Channel select switch
Status LEDs show selected channel and battery life
Quick charging via included USB cable
3.5 hours for a full charge
Durable ABS composite housing
Micro USB socket

Specifications
Battery: 3.7 V / 650 mAh lithium battery
Charging time: 3.5 hours
Operating time: over 8 hours per charge
Frequency band: 5.8 GHz ISM
Frequency range: 10–22,000 Hz
Latency: 5 ms
A/D conversion: 24-bit / 48 kHz
Dynamic range: 105 dB
Range: up to 30 m / 98 ft. without obstacles
Connection: 270° rotating TS jack
Dimensions (W x D x H): 121.5 x 36.5 x 29.5 mm
Weight: 40 g / 0.09 lbs
Housing: ABS composite
USB connection: Micro USB

Included
USB charging cable

Important Information
The system is not compatible with active electronics or active pickups.
The batteries built into the devices have a 6-month warranty. This warranty covers defects due to faulty materials or workmanship occurring during normal use.
