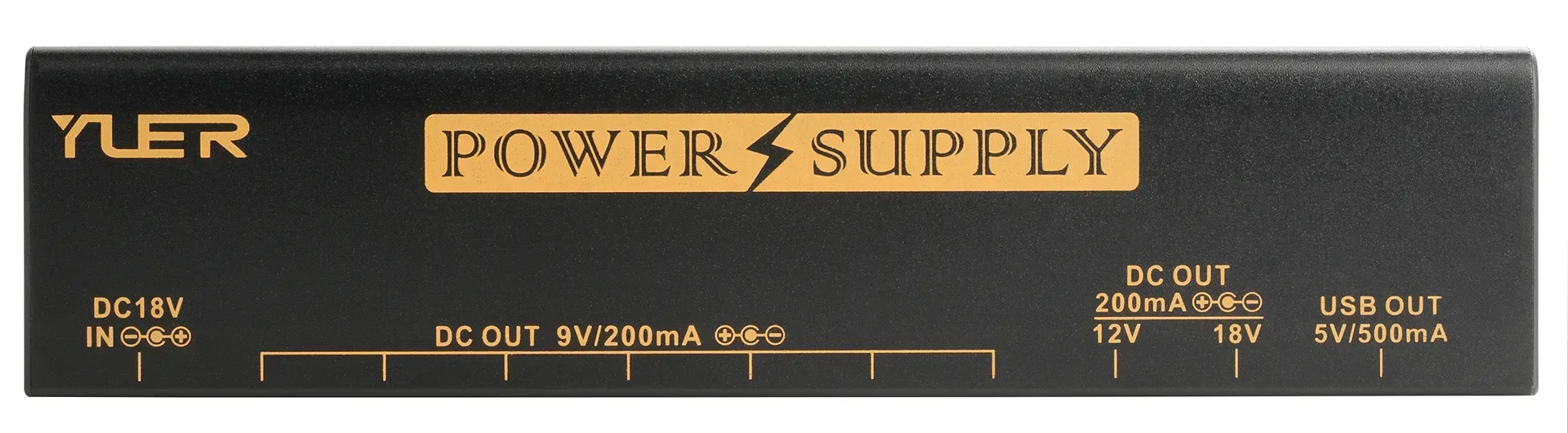

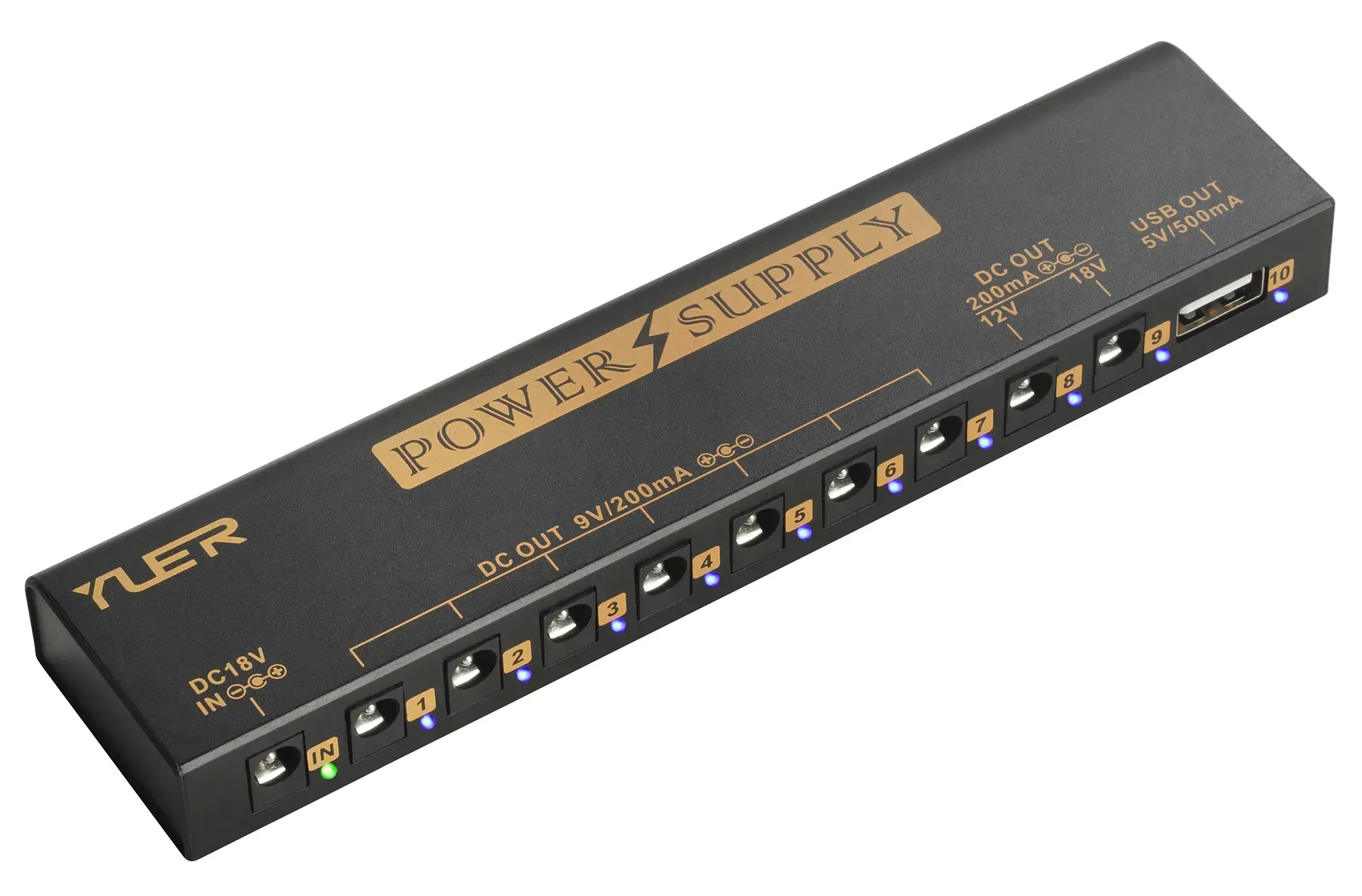

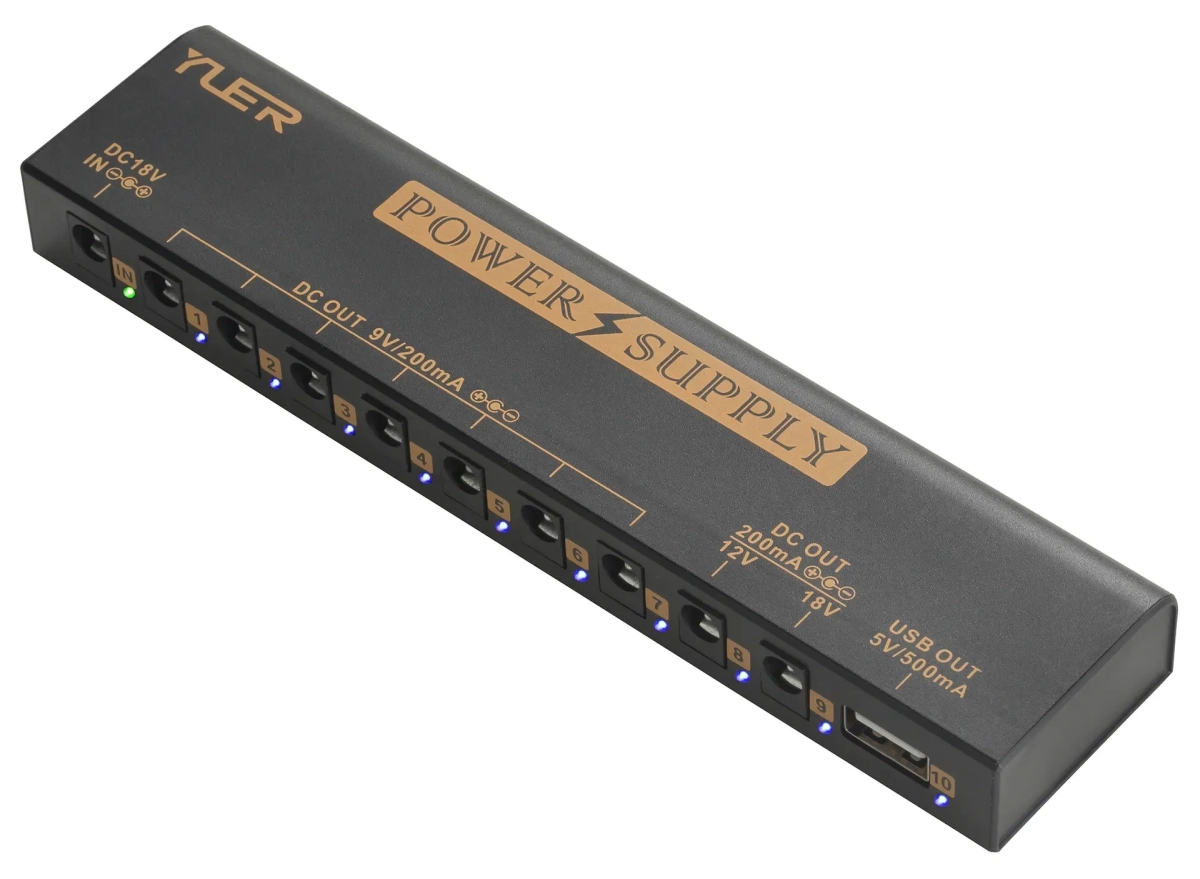

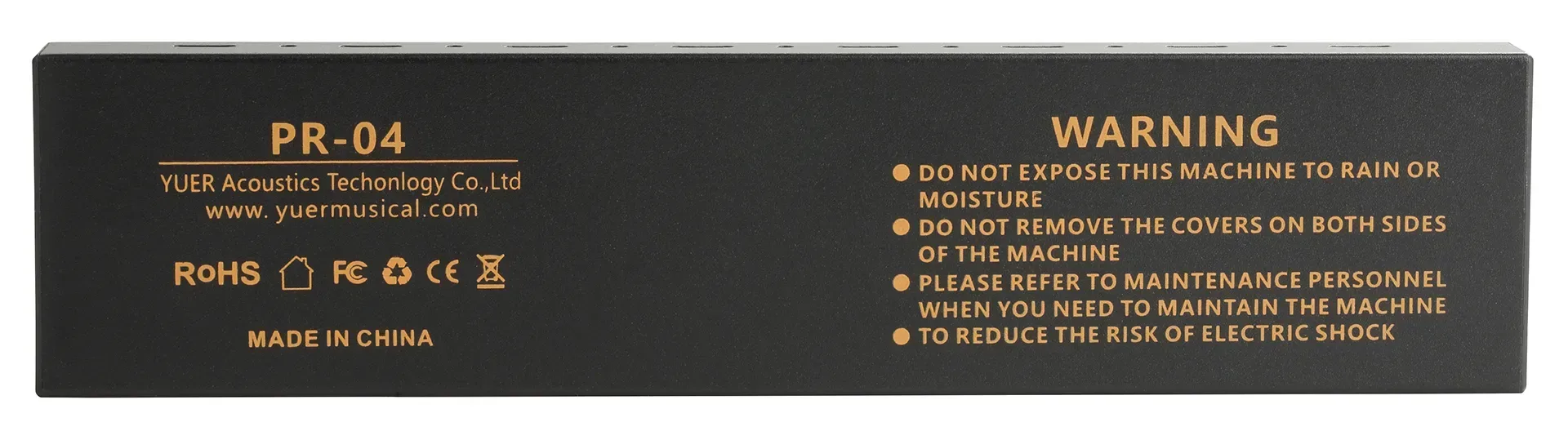

Yuer PR-04 Multi-Power Supply

Yuer PR-04 – Multi-Power Supply for Effects Pedals

Yuer PR-04 is a multi-power supply for effects pedals with a total of 10 outputs. It features seven 9 V DC outputs, one 12 V DC output, one 18 V DC output and one 5 V USB-A output. All power slots have individual status LEDs.

Features
7 x 9 V DC outputs, 200 mA each
1 x 12 V DC output, 200 mA
1 x 18 V DC output, 200 mA
1 x 5 V DC USB-A output, 500 mA
2.1 x 5.5 mm barrel plugs on DC outputs
Polarity: center negative
Individual status LEDs for all power slots
Input voltage: 18 V DC
Input polarity: center positive
8 x DC power cables for connecting effects pedals
18 V DC power adapter included

Specifications
9 V DC outputs: 7 x 200 mA
12 V DC output: 1 x 200 mA
18 V DC output: 1 x 200 mA
5 V DC USB-A output: 1 x 500 mA
DC connector: 2.1 x 5.5 mm barrel
Output polarity: center negative
Input voltage: 18 V DC
Input polarity: center positive
Dimensions (L x W x H): 37.5 x 161.5 x 18 mm
Weight: 90 g
