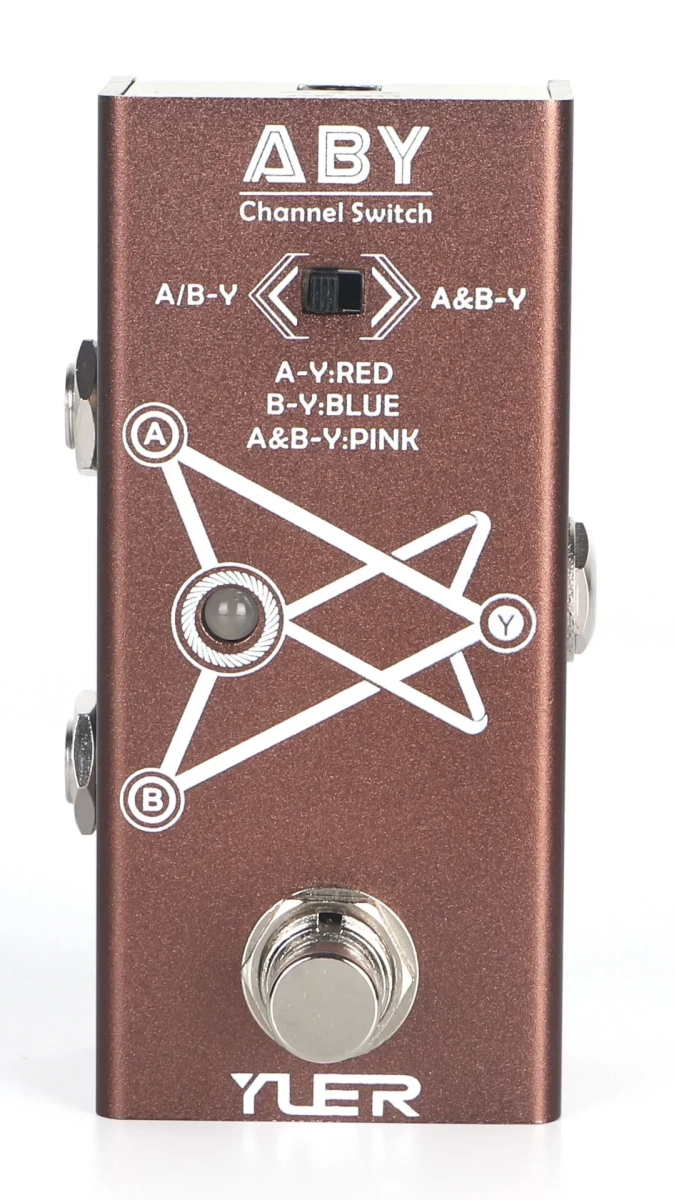

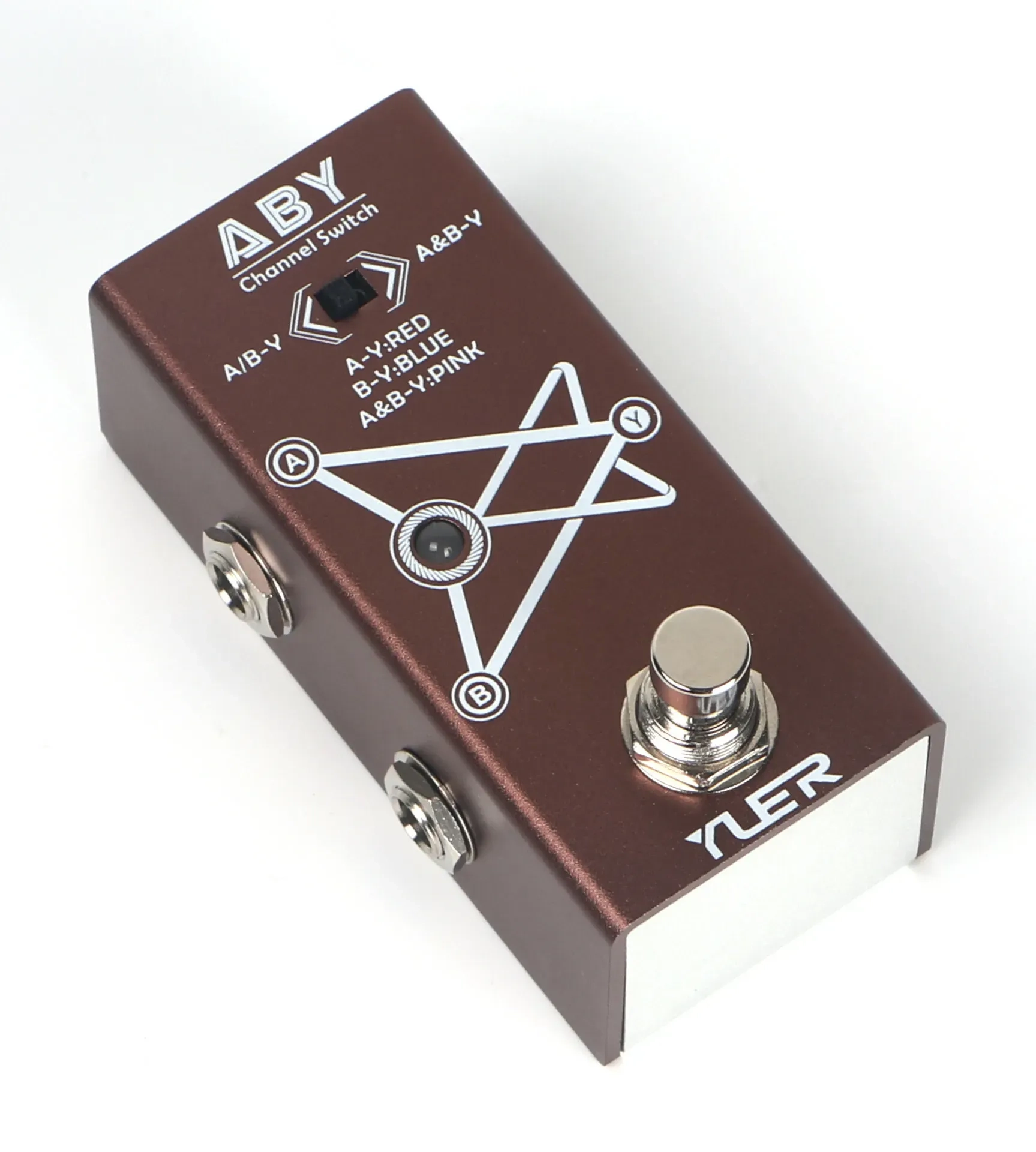

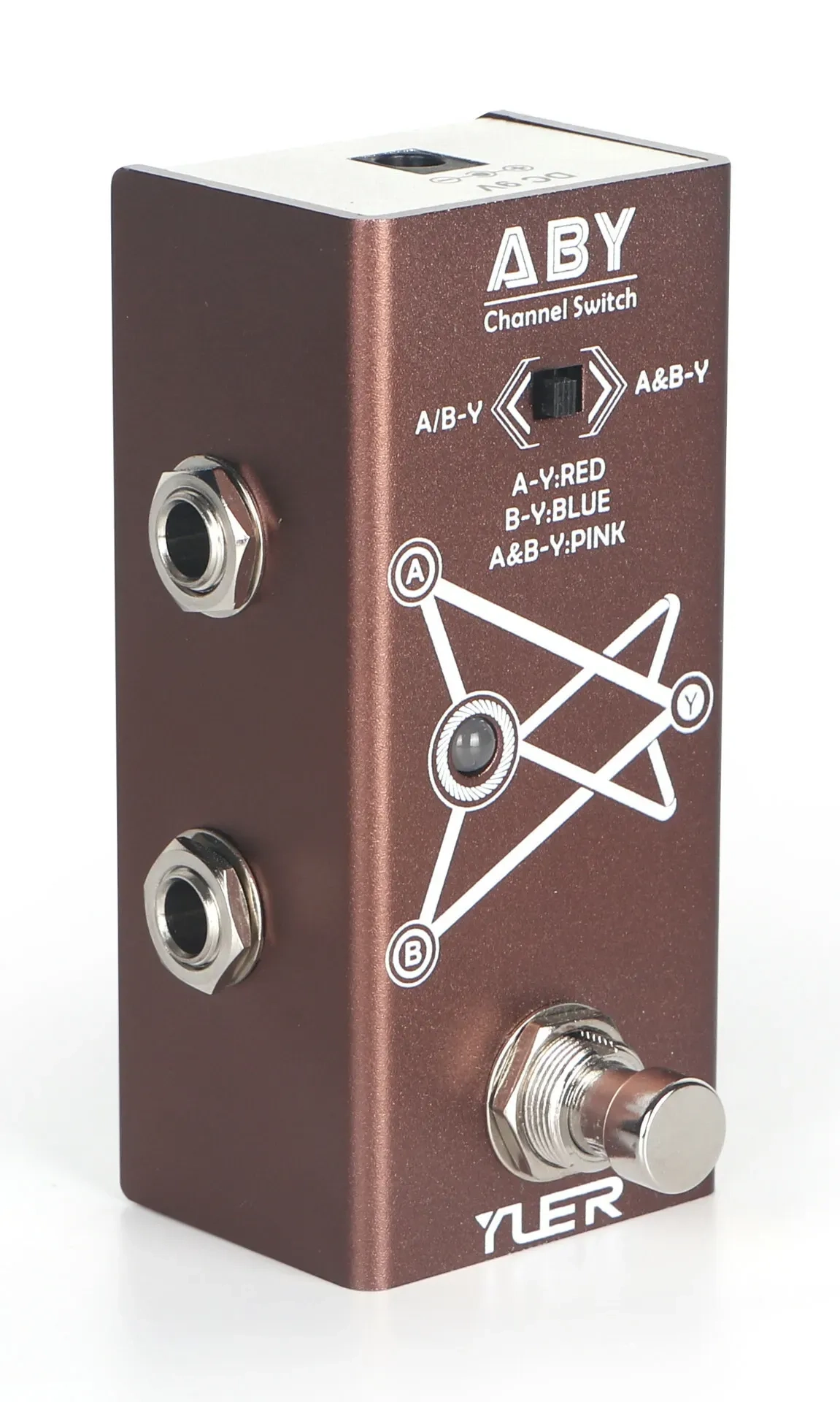

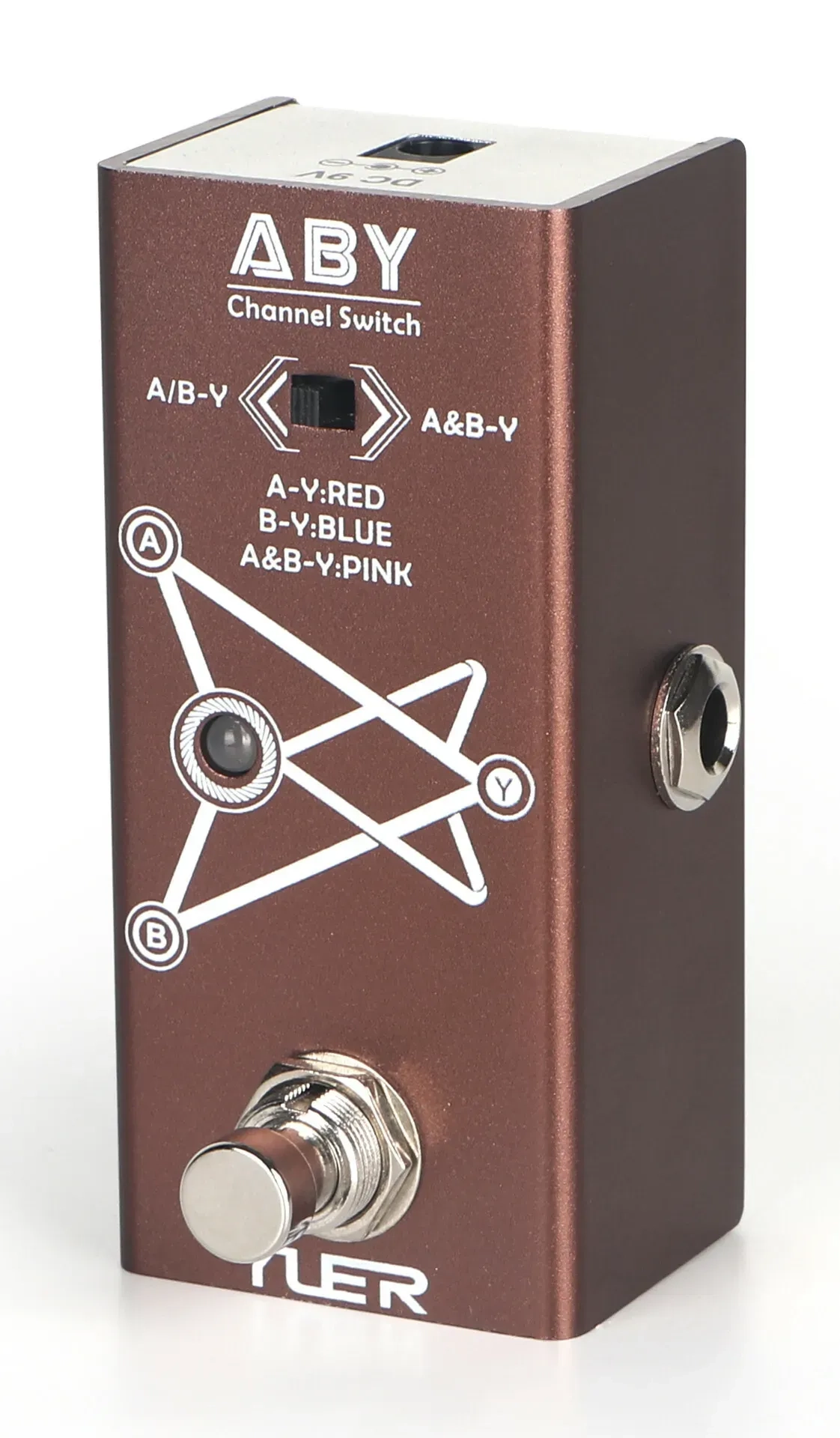

Yuer ABY Switcher / Splitter

Yuer ABY - Switcher / Splitter

Specifications
A/B/Y Switcher / Splitter
ideal for routing instruments, amps, effects, speaker cabinets etc.
two different modes available: A/B - Y and A&B - Y
inputs and outputs can be used in both directions
allows switching one input signal to two outputs or two input signals to one output
allows splitting the signal to two outputs
allows merging two signals to one output
True Bypass
mode selector switch
channel footswitch
status LED (red, blue, pink)
aluminum housing
6.3 mm mono jack input / output

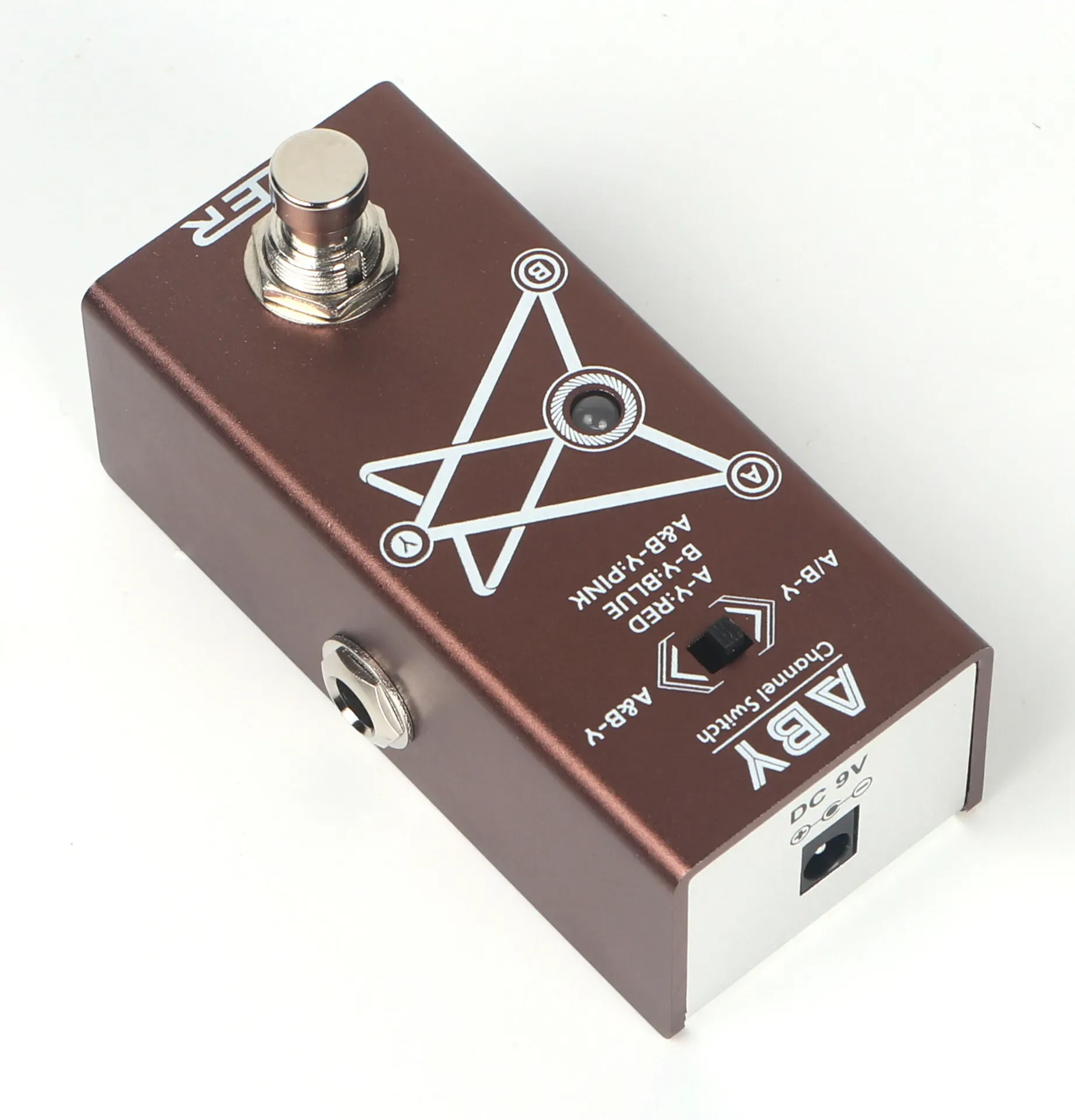

power supply via optional 9V DC adapter, 2.1 x 5.5 mm barrel plug, polarity (-) center
battery operation not supported
current draw 8 mA
operation without power source possible (LED then without function)
dimensions (L x W x H) 92 x 42 x 52 mm
weight 145 g
