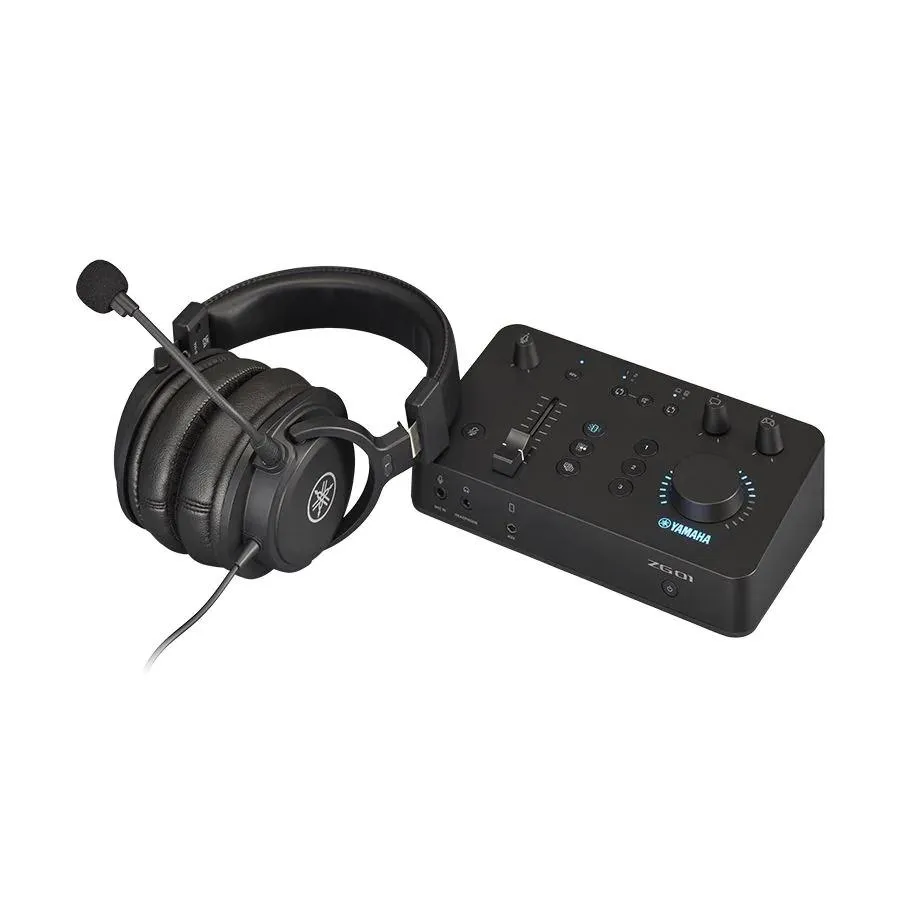

Yamaha ZG01 Pack

ZG01

Outline

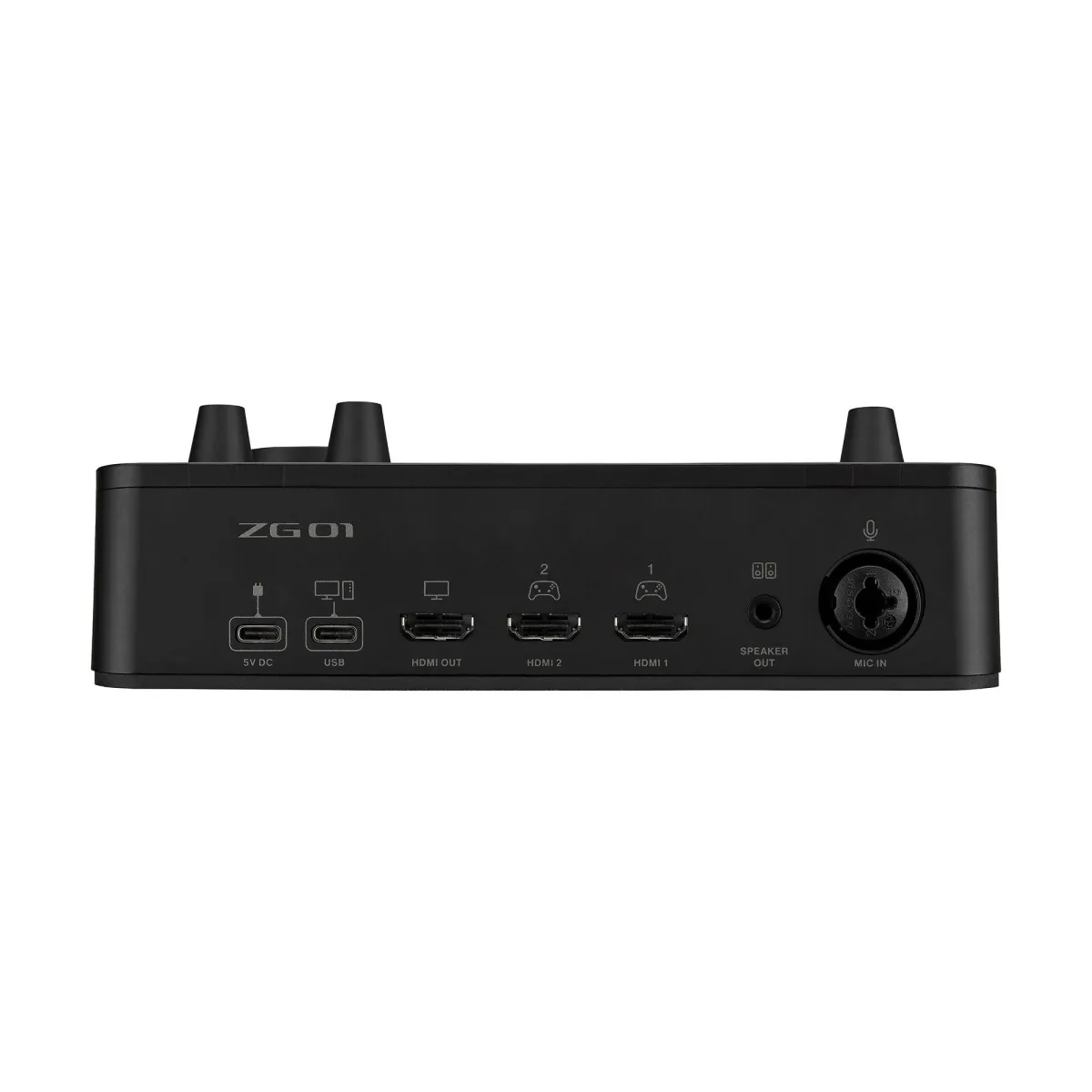

Input Channels Microphone 1 - Combo (Mic, +48 V phantom power), 3.5 mm (1/8") mini (Headset mic, Plug-in power) *Mic and Headset mic cannot be used simultaneously
Smartphone 1 - 4-pole mini input/output (TRRS)
HDMI 1 - Switchable input HDMI 1 or HDMI 2 by button; Audio input: 2ch 24-bit/192kHz (Max.), Video signal *1: No video capture function
USB 2 - Virtual devices (Voice, Streaming)
Output Channels PHONES 1 - 3.5 mm (1/8") stereo mini (Headphones or Headset phones)
Smartphone 1 - 4-pole mini input/output (TRRS)
MONITOR OUT 1 - Stereo mini (Speaker out)
HDMI 1 - Audio out: 2ch 24-bit/48kHz fixed, Video signal *1: Pass-through
USB 2 - Virtual devices (Voice, Speaker)

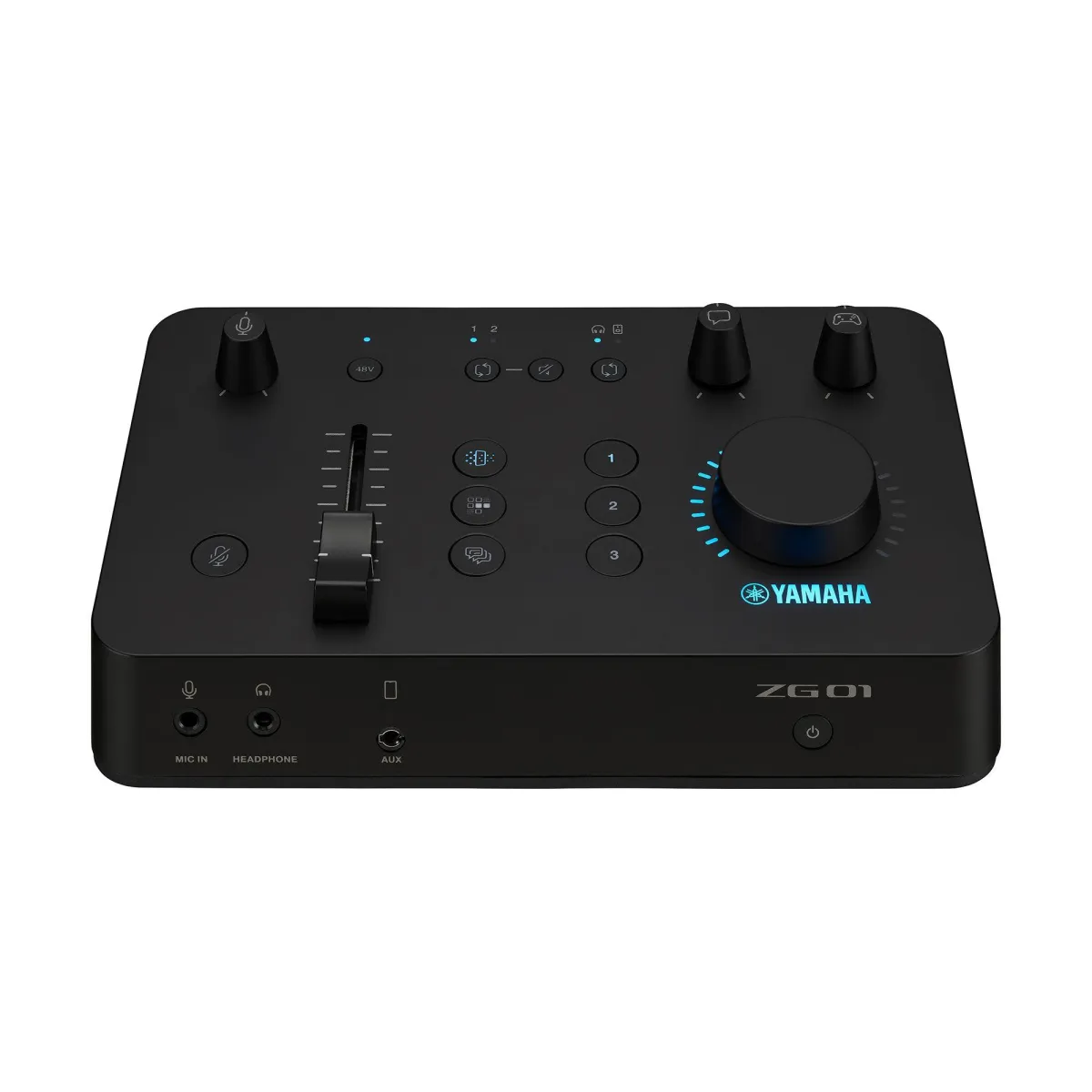

Functions MUTE button x 1, HDMI input select button x 1, Monitor output select button x 1, Effect preset button x 6 (Voice x 3, Game x3)
On-board processors DSP ZG SURROUND, FOCUS MODE/EQ, 3D VOICE CHAT, Voice change/Game sound effects *Detail is operated on ZG Controller
USB USB Audio Sampling Frequency: Max. 48 kHz, Bit Depth: 24-bit, Type-C
USB DC Power input 1 - Type-C, 5 V DC, 1.5 A
General specifications
Power requirements 5 V DC, 1.5 A
Power consumption Max. 7.5 W
Dimensions W 195 mm (7.7")
H 47.5 mm (1.9")
D 110 mm (4.3")
Net weight 0.8 kg (1.8 lbs)
Included Accessories USB 2.0 cable (USB-C to USB-C) 1.5 m x 1, USB 2.0 cable (USB-A to USB-C) 1.5 m x 1, Start Guide, Safety Guide
Others Operating Temperature: 0 to + 40 ℃
*1 - Video format: VGA, 480i (60 Hz), 576i (50 Hz), 480p (60 Hz), 576p (50 Hz), 720p (60 Hz, 50 Hz), 1080i (60 Hz, 50Hz), 1080p (60 Hz, 50 Hz, 30Hz, 25 Hz, 24 Hz), 4K (60 Hz, 50 Hz, 30 Hz, 25 Hz, 24 Hz)
General specificationsFrequency ResponseImpedanceSensitivity (SPL)MicrophoneConnectorCableWeight

Included Accessories

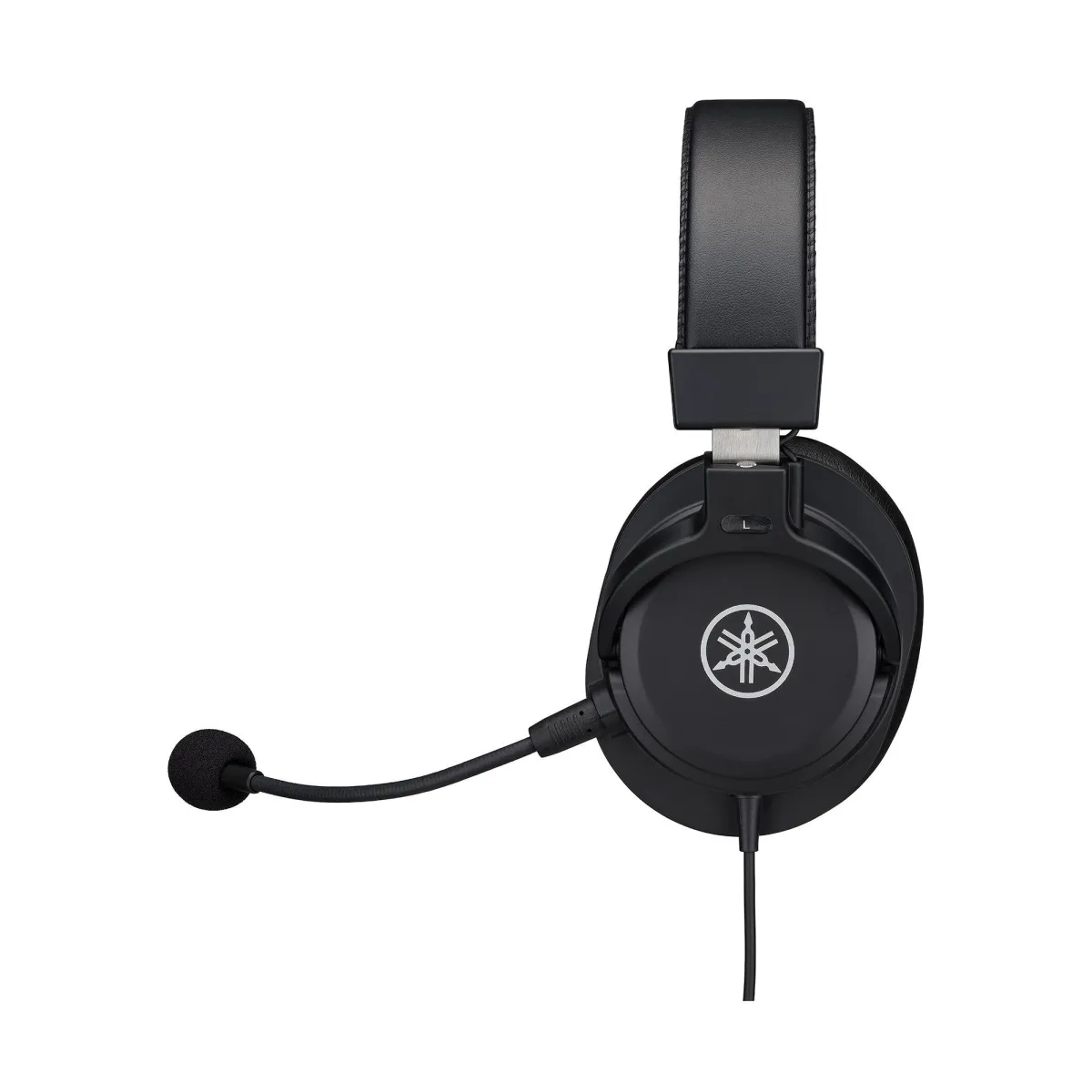

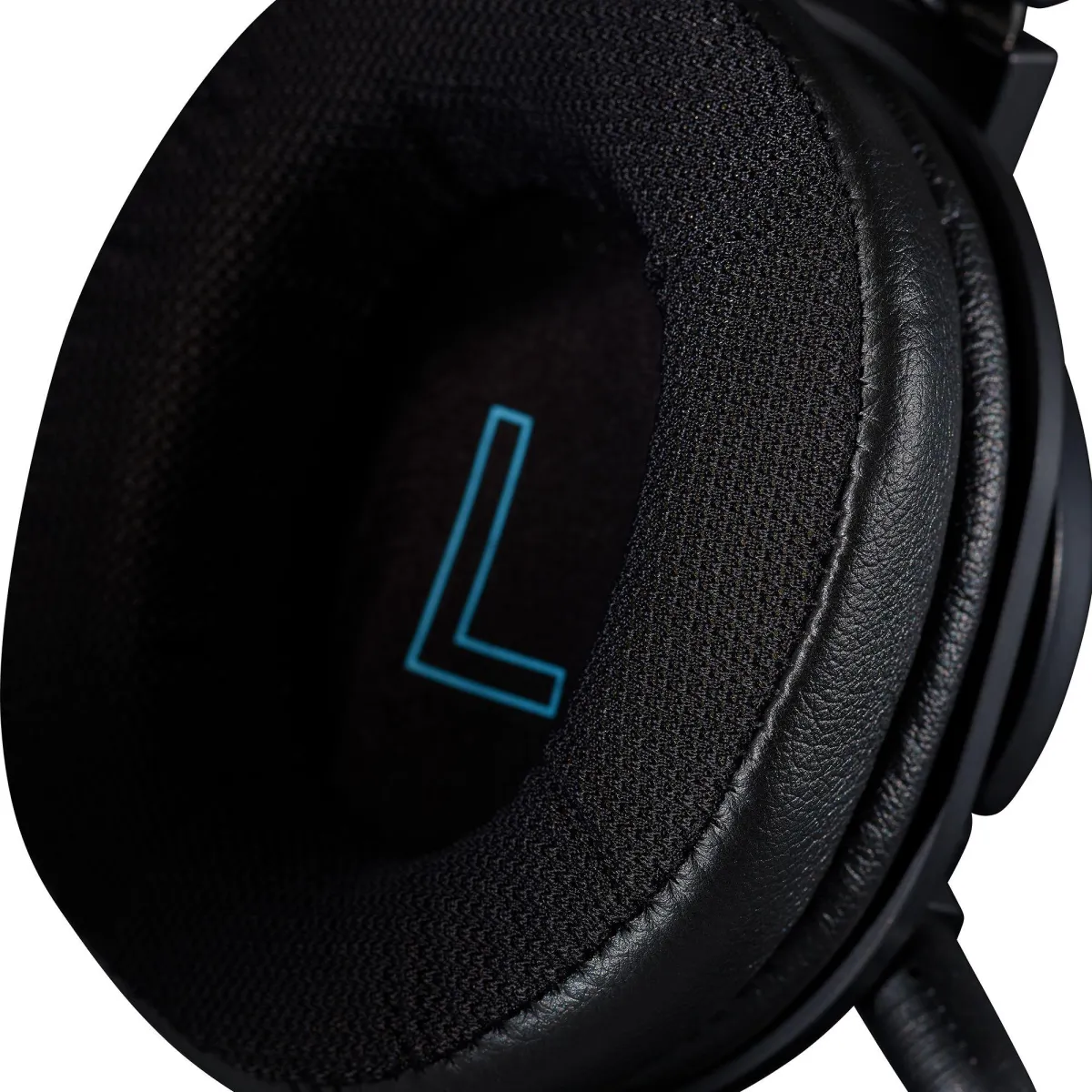

YH-G01
General specifications
Frequency Response 20 Hz - 20 kHz
Impedance 35 Ω
Sensitivity (SPL) 94.4 dB/mW
Microphone Electret condenser microphone
Connector 3.5 mm (1/8"), 4-pole stereo mini (TRRS)
Cable 2 m
Weight Approx. 240 g (0.5 lbs) (without cable&plug)
Included Accessories Microphone x 1, Headset audio splitter cable x 1, Owner’s manual
