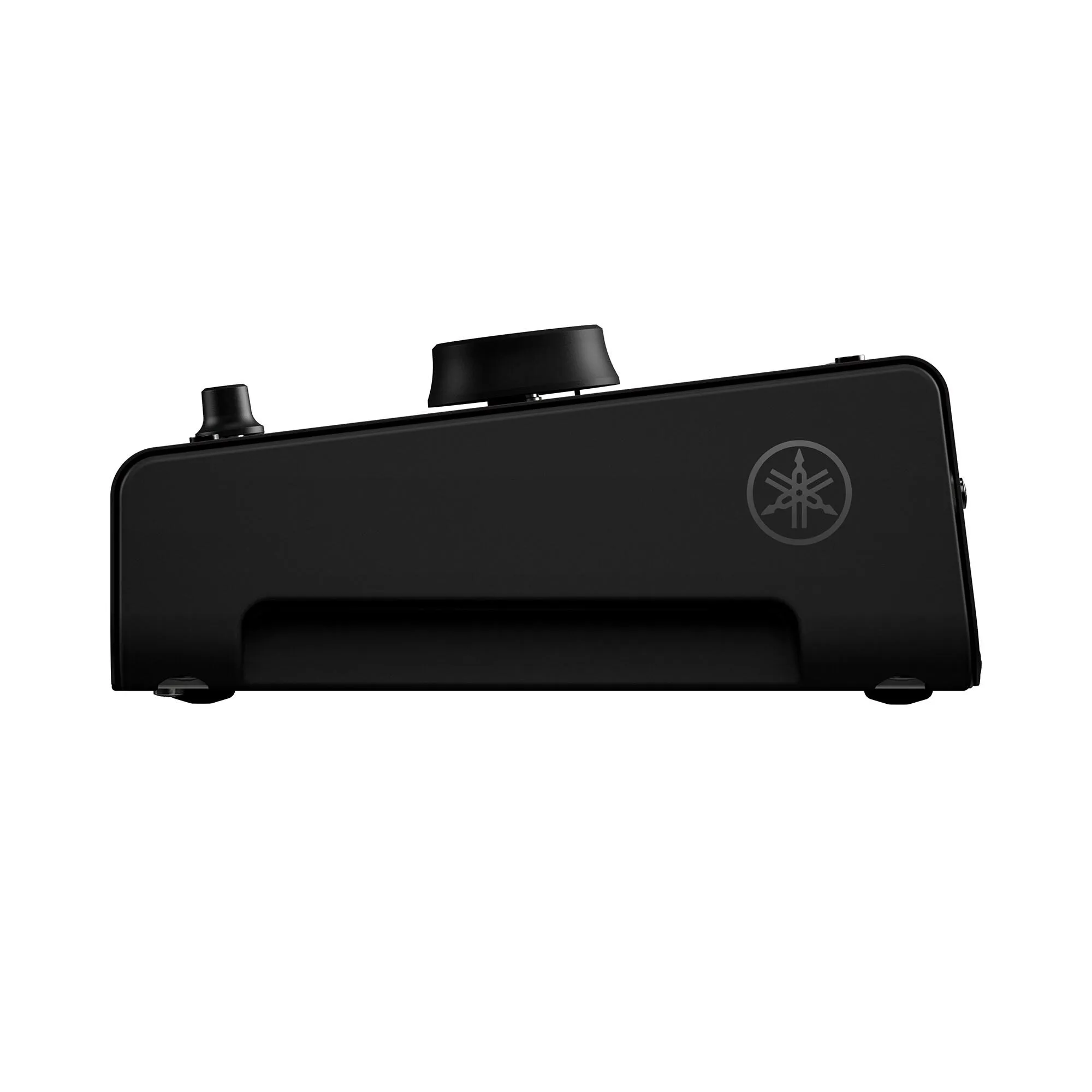

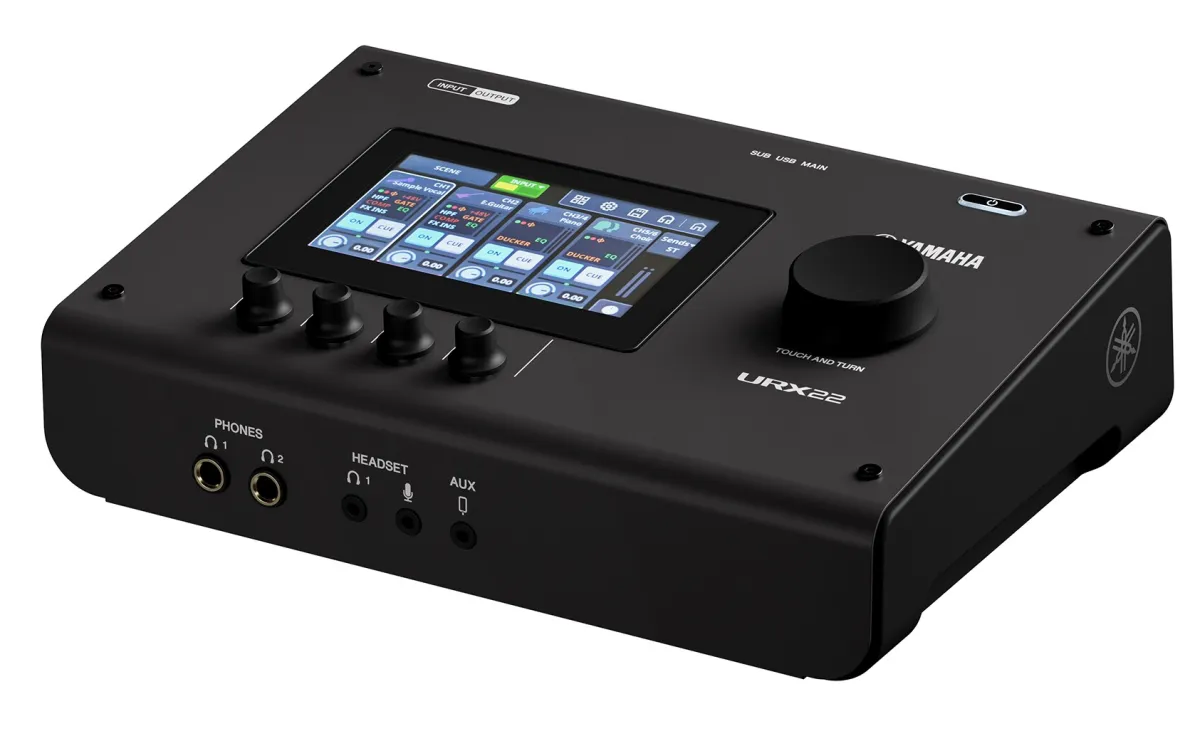

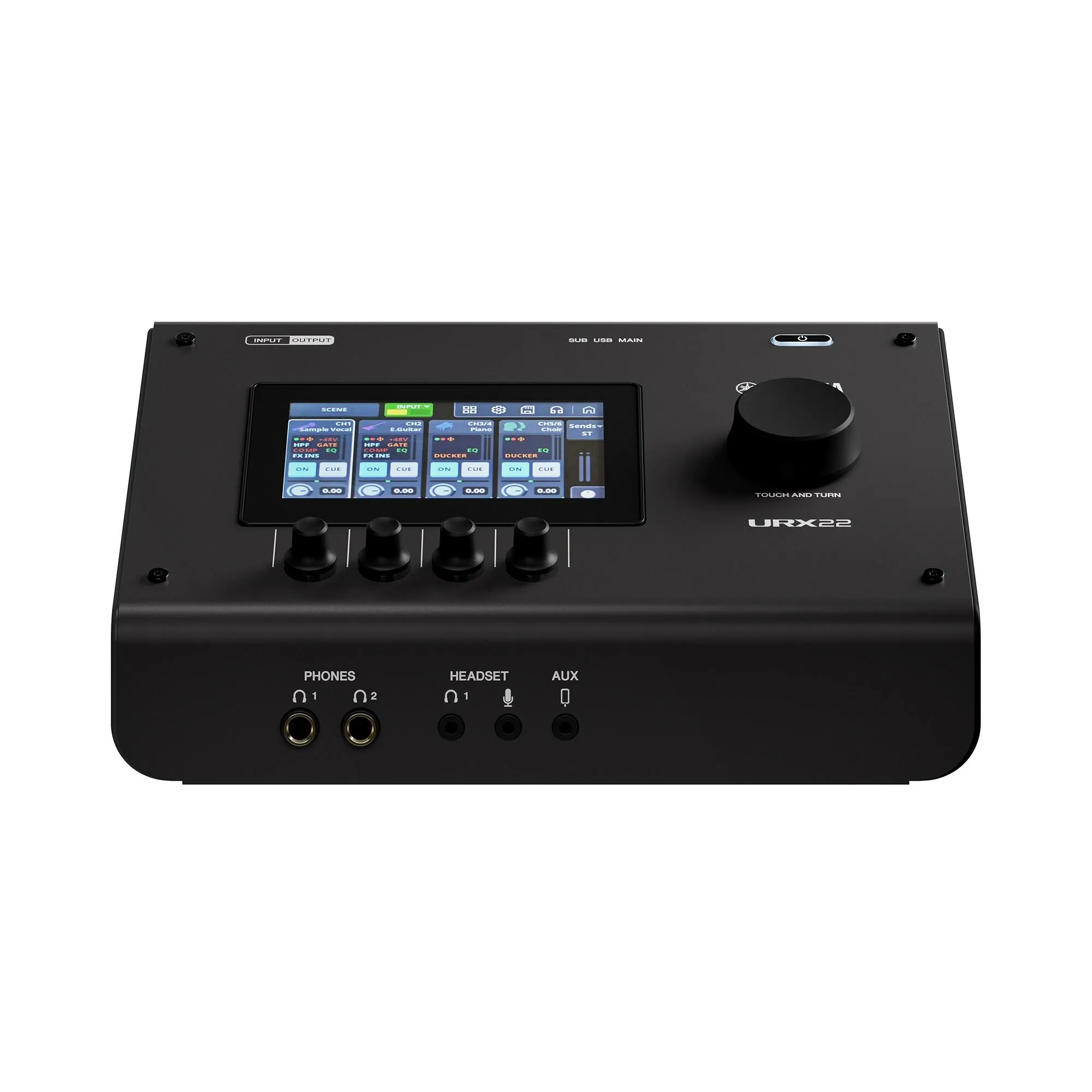

Yamaha URX22 Black

4-in/2-out USB-C audio interface in black with support for 32-bit/192kHz, touchscreen interface with physical controls, DSP-driven mixing/effects for a seamless workflow.

USB Type-C audio interface with support for 32-bit/192 kHz, Multi-Stream Audio Driver, dual USB (MAIN/SUB)
125 dB dynamic range (MAIN output - balanced)
2 URX microphone preamps with 78 dB gain range and +48 V phantom power
2 Mic/Line (1 Combo/3.5 mm headset mic, 1 Combo with Hi-Z), 1 AUX input (3.5 mm tele)
2 TRS line outputs, 2 headphones (1 stereo tele/3.5 mm headset, 1 stereo tele)
Input channels: 2 mono + 4 stereo + 2 FX
Buses: 2 MIX (stereo) + 1 STEREO
One 4.3-inch touchscreen with five control knobs
Help functions: Auto Gain, Clip Safe, Simple/Standard mode, Scene Recall
Built-in DSP processor for professional sound and latency-free monitoring
Included accessories: Quick Start Guide, Safety Guide, Steinberg software license cards x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, USB-C to USB-C cable (USB 2.0, 1.5 m)

The Yamaha URX22 Black is a compact USB-C audio interface designed for recording, streaming, podcasting and content creation. With two high-quality microphone preamps, integrated DSP processing and an intuitive touchscreen interface, it delivers professional sound quality without a complicated setup.

Equipped with two microphone preamps offering up to 78 dB of gain, the URX22 works equally well with dynamic and condenser microphones. Support for 32-bit / 192 kHz audio conversion provides excellent headroom, low noise and detailed recordings for vocals, instruments and spoken content.

The integrated 4.3-inch touchscreen allows direct control of levels, routing, monitoring and effects without relying on software menus. Combined with dedicated rotary controls, the interface offers a fast and efficient workflow for both studio and live applications.

Built-in DSP processing provides latency-free monitoring with effects such as compressor, EQ, gate, reverb, amp simulation, delay, Pitch Fix and ducker. Auto Gain and Clip Safe functions help maintain optimal recording levels even during demanding live sessions and streams.

Connectivity includes two combo inputs for microphones, instruments or line sources, a dedicated Hi-Z input, AUX input, headset input, balanced line outputs and two independent headphone outputs. Separate USB Main and USB Sub connections allow flexible routing for DAWs, streaming software and gaming setups.

Features
Compact USB-C Audio Interface
Black Metal Housing
Two High-Quality Microphone Preamps
Up To 78 dB Gain
32-Bit / 192 kHz Audio Conversion
4.3-Inch Touchscreen Interface
Integrated DSP Processing
Latency-Free Monitoring With Effects
Auto Gain And Clip Safe Functions
Two Combo Inputs For Mic, Line Or Instrument
Dedicated Hi-Z Instrument Input
AUX And Headset Inputs
Two Independent Headphone Outputs
USB Main And USB Sub Connectivity
Bus-Powered Via USB

Specifications
Audio Interface Type: USB-C Audio Interface, 4 Inputs / 2 Outputs
Resolution: Up To 32-Bit / 192 kHz
Microphone Preamps: 2
Maximum Gain: 78 dB
Phantom Power: 48 V
Dynamic Range: Up To 125 dB
Equivalent Input Noise: Up To -128 dBu
Inputs: 2 x Combo XLR/6.35 mm, 1 x Hi-Z, 1 x AUX 3.5 mm, 1 x Headset 3.5 mm
Outputs: 2 x Balanced Line Outputs, 2 x Headphone Outputs
Display: 4.3-Inch Touchscreen
