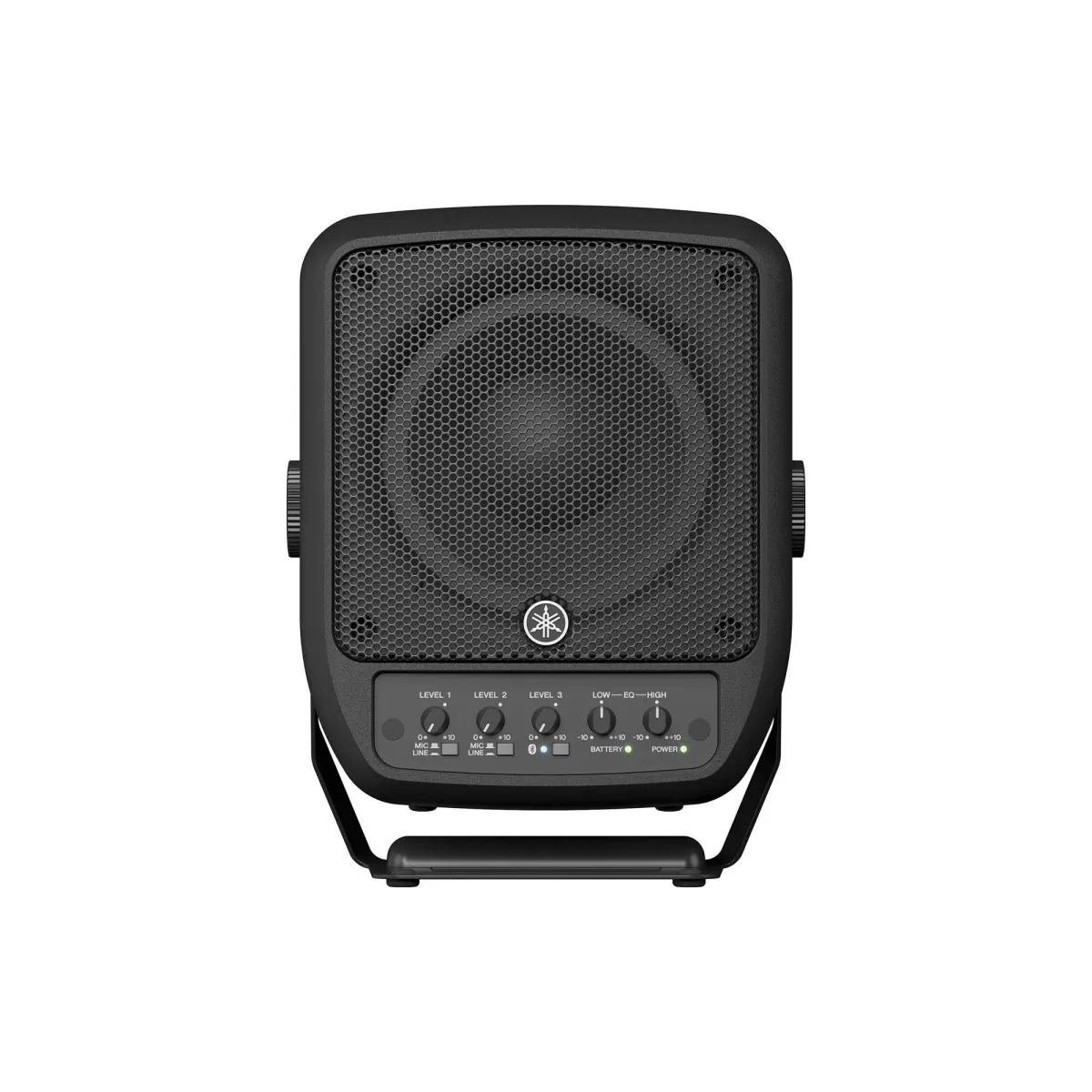

Yamaha Stagepas 100 BTR

Yamaha STAGEPAS 100 – Portable PA System with Powerful Sound

The STAGEPAS 100 is a compact and portable PA system that combines high sound quality with maximum mobility. Perfect for live performances, speeches, and music—no matter the venue.

Compact design with impressive sound
Despite its small size, the STAGEPAS 100 delivers powerful and clear sound thanks to advanced technology and high-quality components.

Quick and easy to use
Get started in seconds—connect a microphone and instruments, adjust the volume, and start playing right away.

Portable and flexible
Weighing just 5 kg and featuring a smart carrying handle that doubles as an adjustable stand, you can easily take the system with you and place it wherever you want.

Up to 6 hours of battery life
The built-in lithium-ion battery provides up to 6 hours of continuous use—perfect for locations without a power source.

Wireless connection via Bluetooth
Stream music wirelessly from your smartphone or tablet with multipoint Bluetooth support.

Features and specifications

100 W RMS Class-D amplifier
6.5” LF + 1.4” HF coaxial compression driver
FIR filter for optimal sound reproduction
Max SPL: 120 dB
3-channel mixer (2 x mic/line + 1 x line)
Hi-Z compatible input (channel 2)
2-band master EQ
Bluetooth audio with multipoint support
Mix-out (XLR)
Inputs: 2 x XLR/jack combo + 1 x mini jack
Output: 1 x XLR mix
Coverage angle: 90° x 90°
3/8” tripod thread for mounting on a microphone stand
Carrying handle that also functions as an adjustable stand
Dimensions (W x H x D): 239 x 310 x 215 mm
Weight: 5 kg
Color: Black
Built-in lithium-ion battery (up to 6 hours)
