Yamaha PSR-SX620

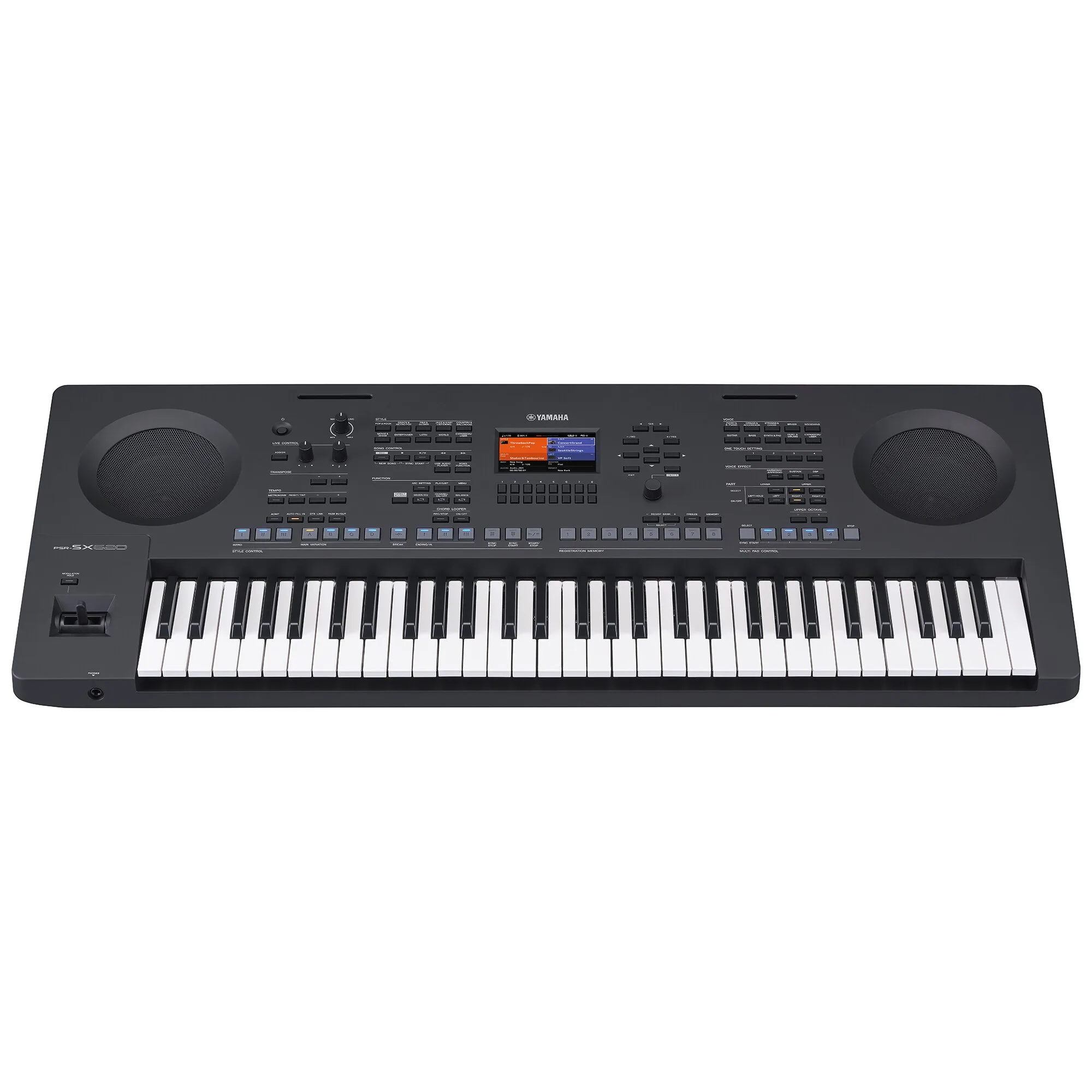

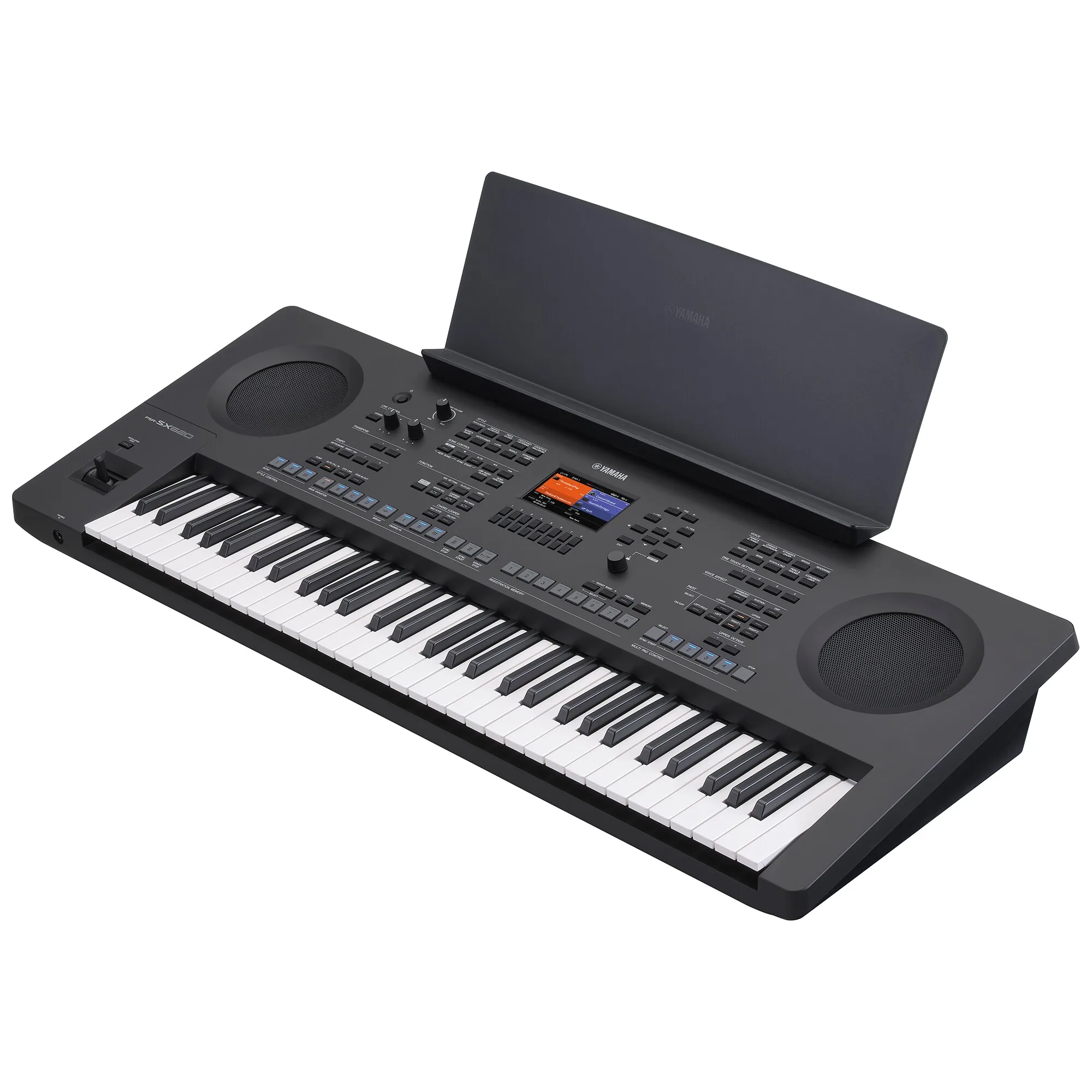

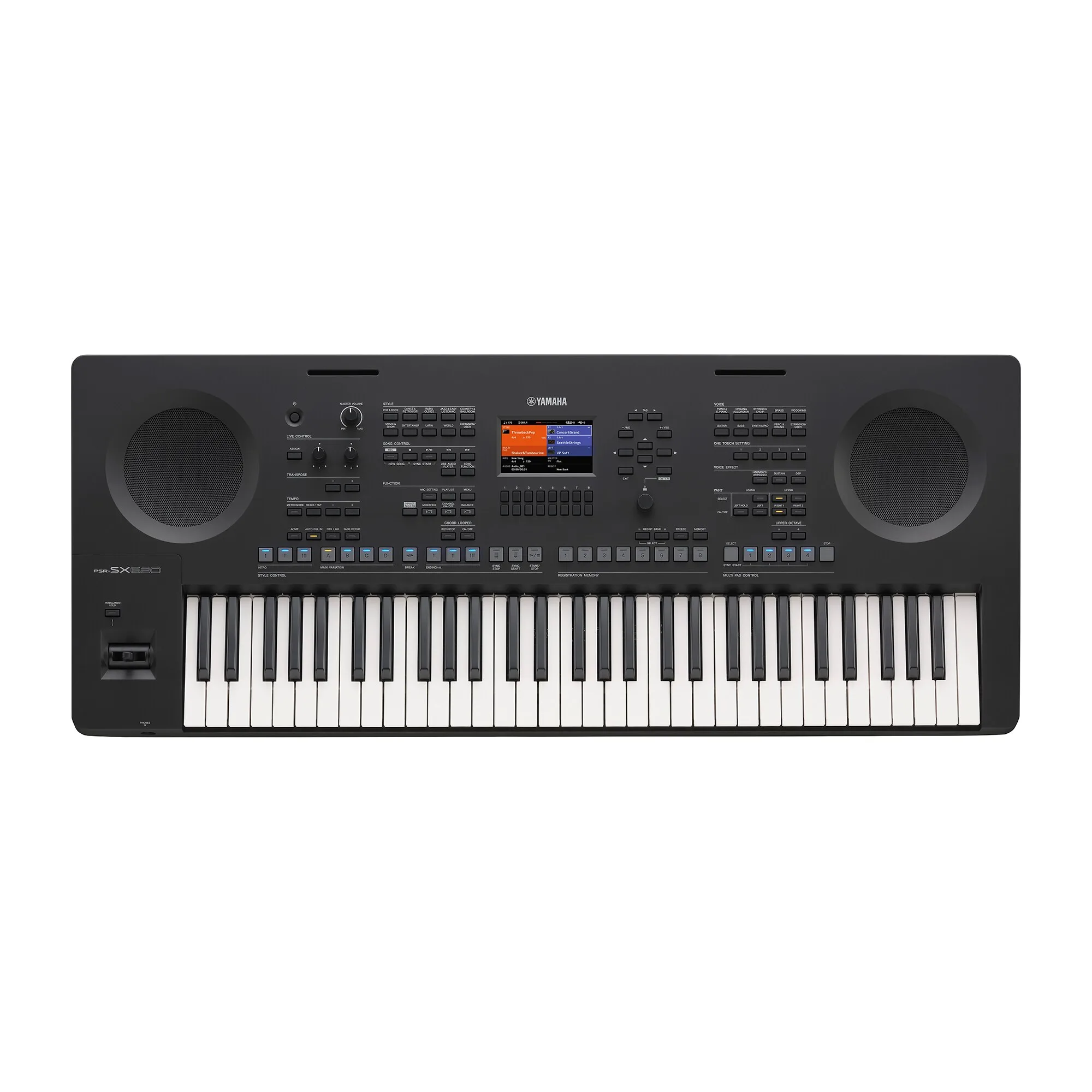

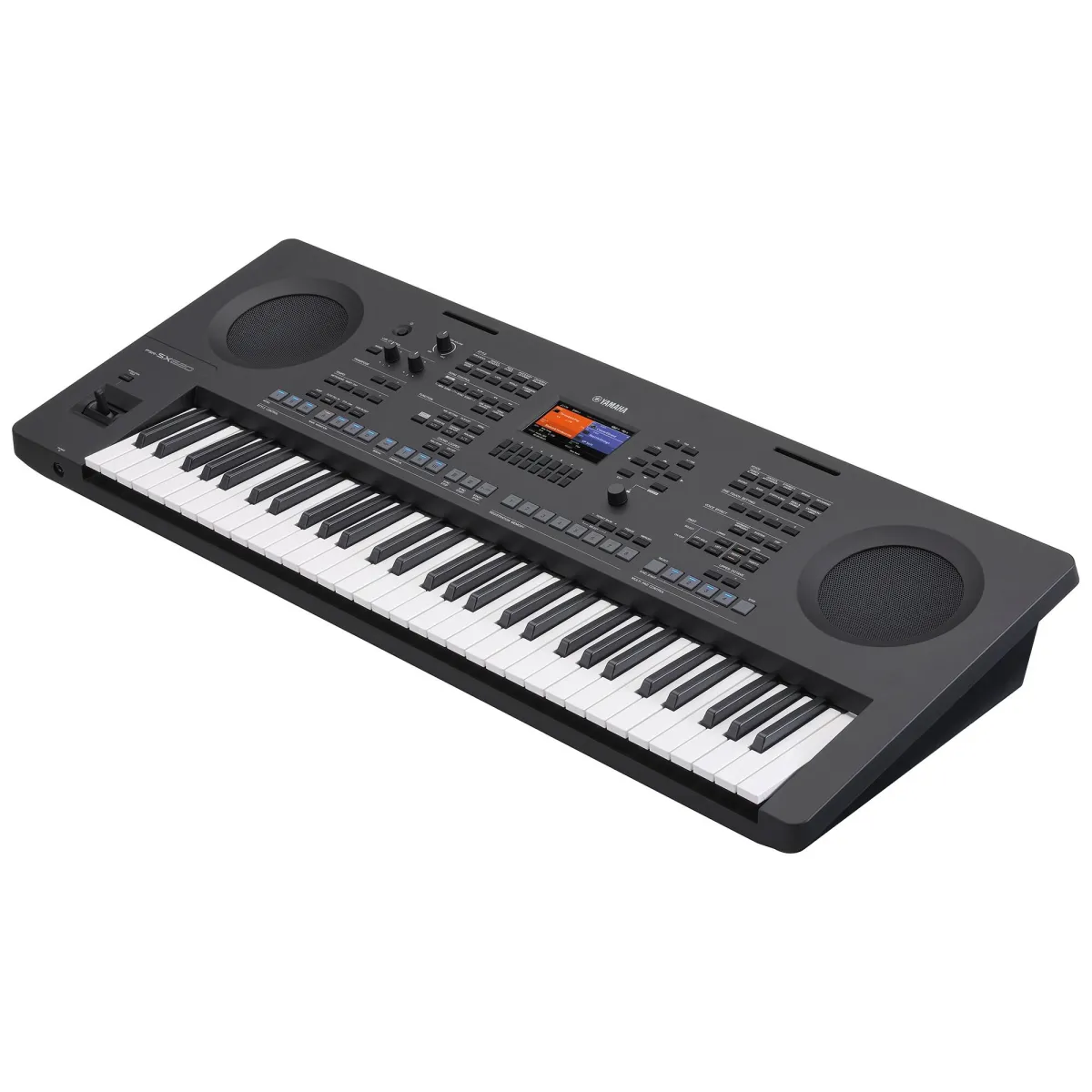

Yamaha PSR-SX620 – 61-Key Arranger Workstation

The Yamaha PSR-SX620 is a 61-key arranger workstation featuring over 1,000 Voices and 450 Styles. Its redesigned panel provides intuitive control through a joystick andtwo assignable Live Control knobs, while Chord Looper, Smart Chord and SuperArticulation Voices provide extensive tools for creative and expressive performances.

Sounds and Voices
1,002 Voices + 51 Drum/SFX Kits + 480 XG Voices
137 Super Articulation Voices and 34 MegaVoice
128-note polyphony
AWM Stereo Sampling
Reverb, Chorus and DSP effects
Master Compressor and Master EQ
27 Parts for Part EQ
Microphone effects with Noise Gate, Compressor and 3-band EQ

Styles and Accompaniment
450 Styles
416 Pro Styles, 33 Session Styles and 1 Free Play Style
Smart Chord
Chord Looper with storage for up to 8 chord sequences per bank
INTRO × 3, MAIN VARIATION × 4, FILL × 4, BREAK and ENDING × 3
One Touch Setting (OTS)
Style Creator
Style File Format (SFF) and Style File Format GE (SFF GE)

Control and User Interface
61 keys with Initial Touch
Touch Response: Normal, Soft1, Soft2, Hard1 and Hard2
Joystick Controller
2 assignable Live Control knobs
4.3-inch TFT color display with 480 × 272 dots
Languages: English, Chinese, German, French, Spanish and Italian

Expansion and Apps
380 MB internal Expansion Memory
Expansion Packs with Expansion Styles and Expansion Voices
Compatible with the EXPANSION EXPLORER App for iOS, Android, Windows and Mac
MIDI Song to Style App for converting MIDI files into Styles

Bluetooth and Audio
Bluetooth Audio for wireless playback from compatible devices
Built-in Audio Recorder/Player
Audio recording/playback in WAV, 44.1 kHz, 16-bit, stereo
USB Audio Interface
Enhanced Line Out for connection to external speakers or PA systems
New speaker system with Internal Bass Port
2 × 15 W amplification
2 × 12 cm speakers

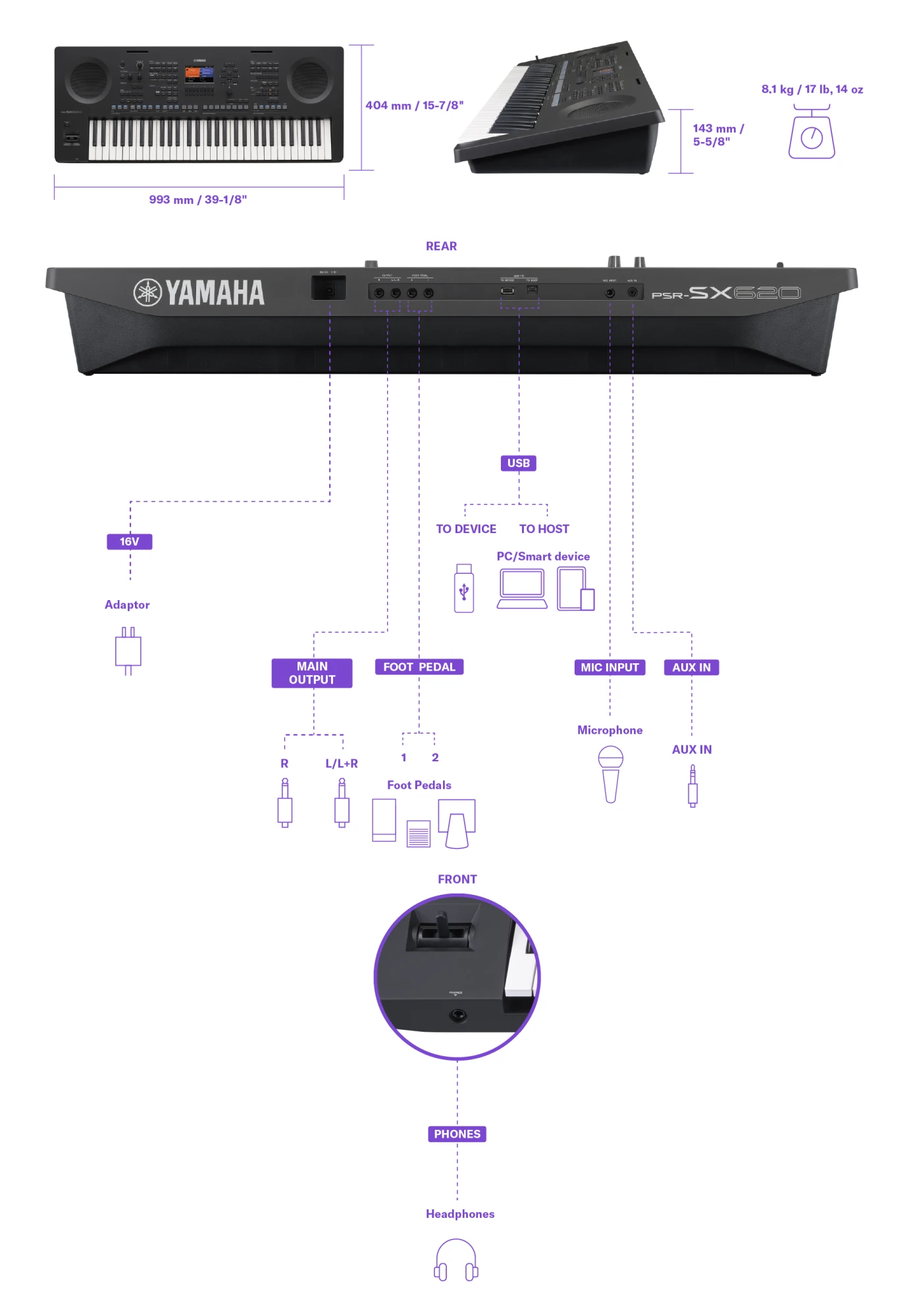

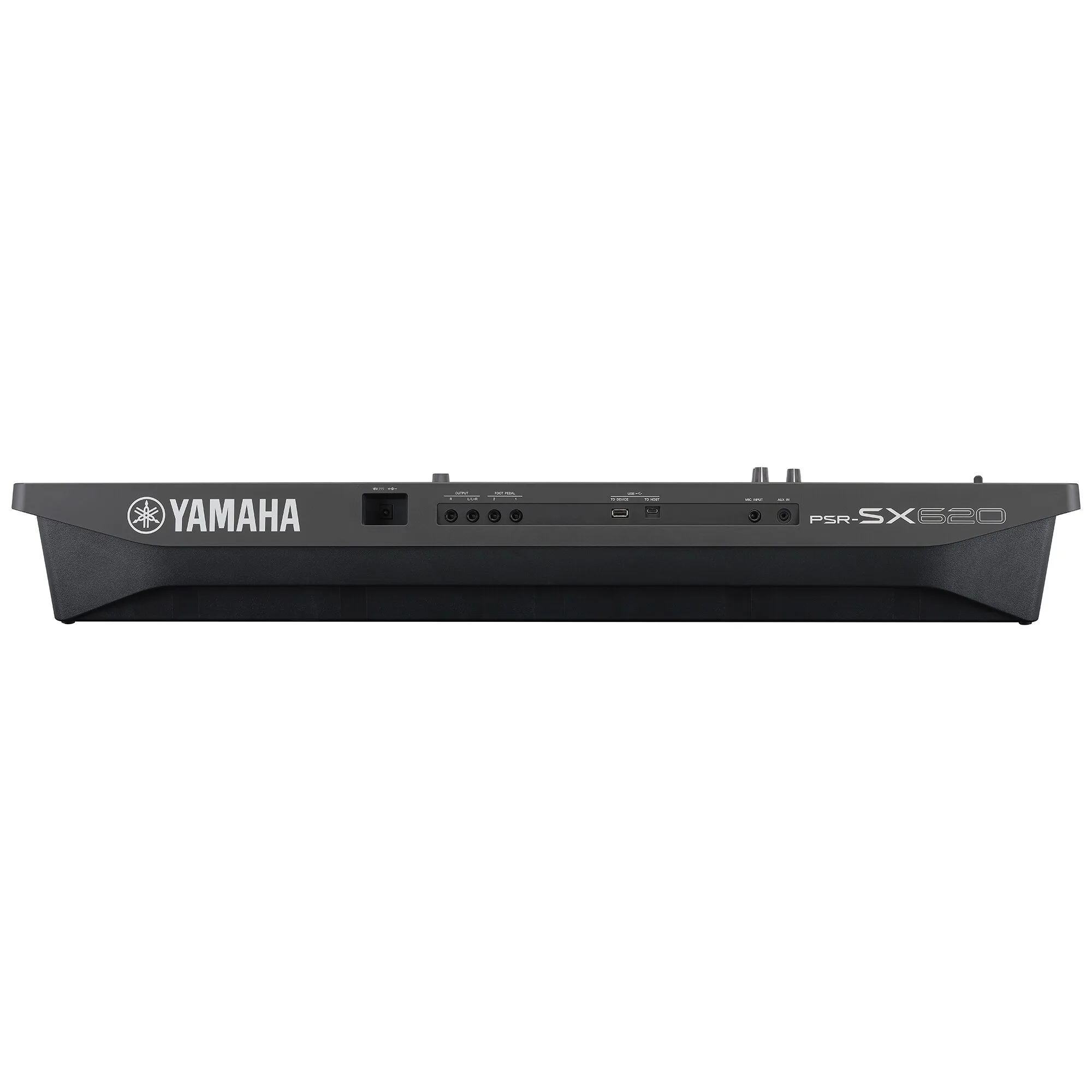

Connectivity
MIDI IN/OUT
AUX IN via stereo mini jack
LINE OUT L/L+R, R
Microphone input
Headphones output
USB TO DEVICE, Type A
USB TO HOST, USB Type-C™
2 foot pedal inputs
DC IN 16 V

Additional Features
Registration Memory with Registration Sequence and Freeze
Playlist with up to 500 records per Playlist file
226 Multi Pad Banks × 4 Pads
Arpeggio
Harmony/Echo
Panel Sustain
Mono/Poly
Score Display and Lyrics Display
Song Creator and Multi Pad Creator
Metronome and Tap Tempo
Tempo: 5–500
Transpose: -12–0–+12
Tuning: 414.8–440–466.8 Hz
Scale Type: 9 types
USB flash drive support, up to approximately 20 GB

Dimensions and Weight
Dimensions (W × D × H): 993 × 404 × 143 mm
Weight: 8.1 kg
