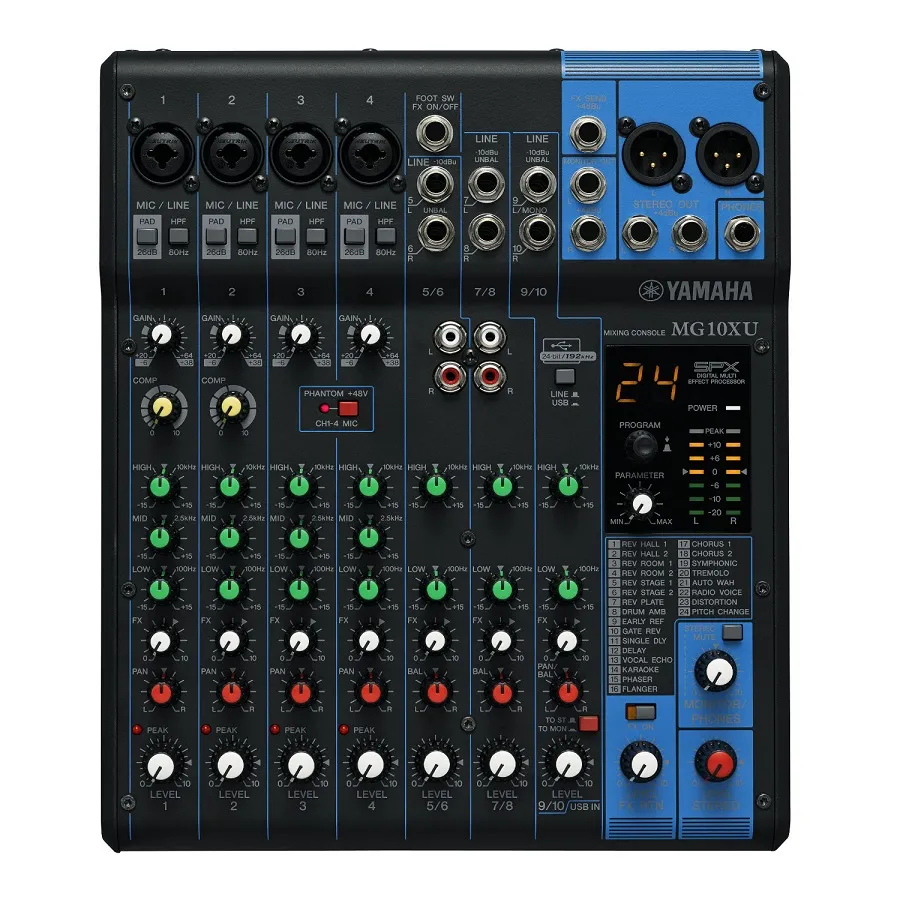

Yamaha MG10XU

The Yamaha MG10XU is a compact mixer with 10 channels, including four microphone inputs and a stereo bus. Its sleek design makes it easy to transport wherever you go. The mixer is equipped with Yamaha's ‘D-pre’ microphone preamplifier, which operates with an inverted Darlington circuit consisting of two cascaded transistors. This design delivers rich, natural and clear bass with minimal distortion. Offering high-resolution sound, the MG10XU has four mono inputs with a three-band equaliser where bass and treble frequencies have fixed bands. In addition, there is a subsonic filter and a PAD switch. You can also connect an iPad (version 2 or later) via a Lightning to USB camera adapter.

10 channels
4 microphone inputs (XLR/6.3mm) with +48 V phantom power: Channel 1-2 with built-in compressor
3-band EQ
High-pass filter and 26 dB padswitch
SPX effects processor with 24 programmes
3 stereo 6.3mm inputs with 2-band EQ
XLR output
1 AUX send on all channels
USB with 2 inputs/outputs (compatible with iPad 2 or later versions - a camera connection kit is required)
Downloadable version of Cubase AI DAW software included
Dimensions: 244 x 71 x 294 mm
Weight: 2.1kg
