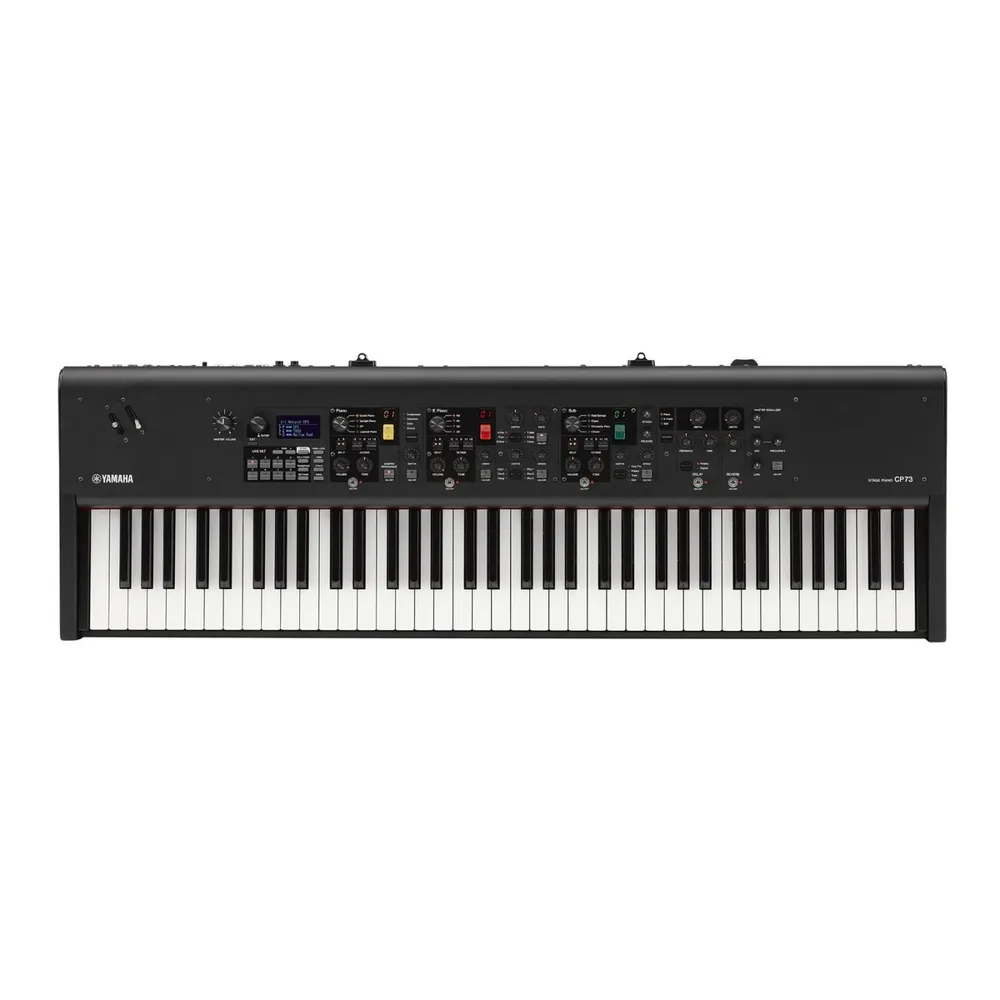

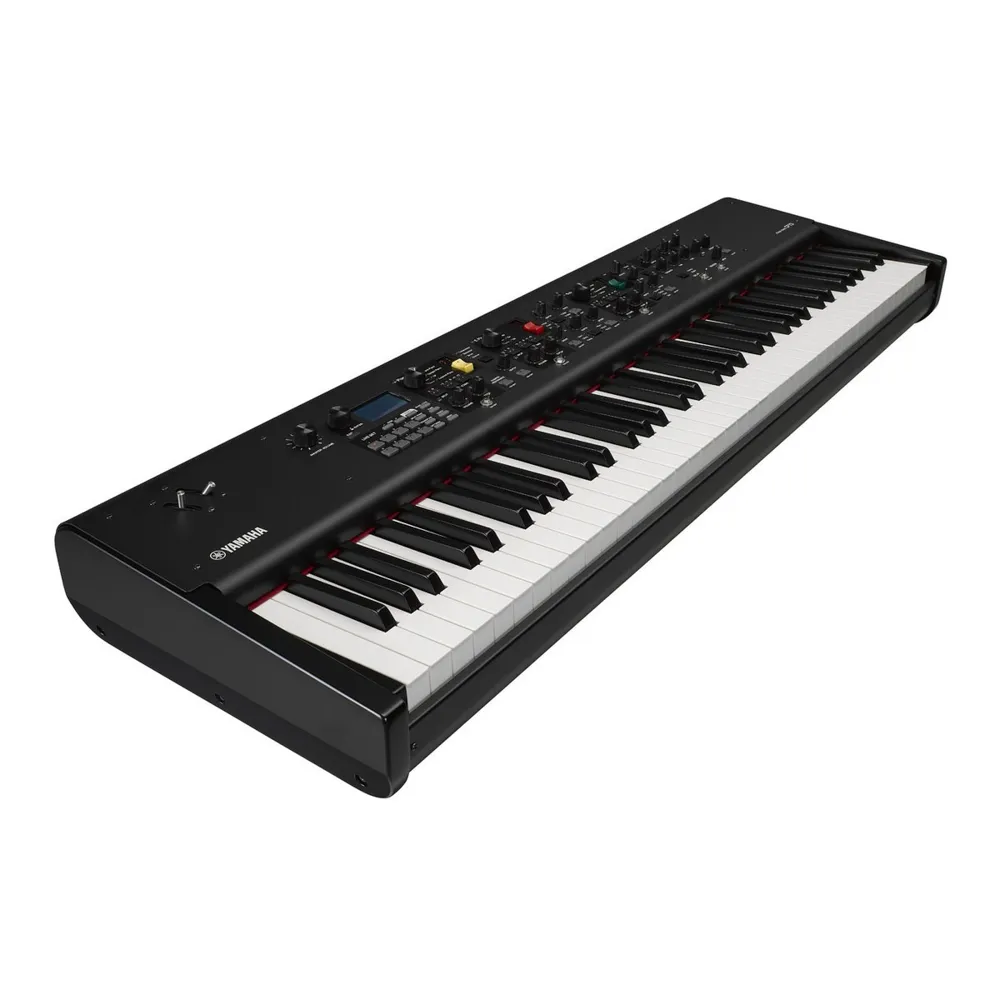

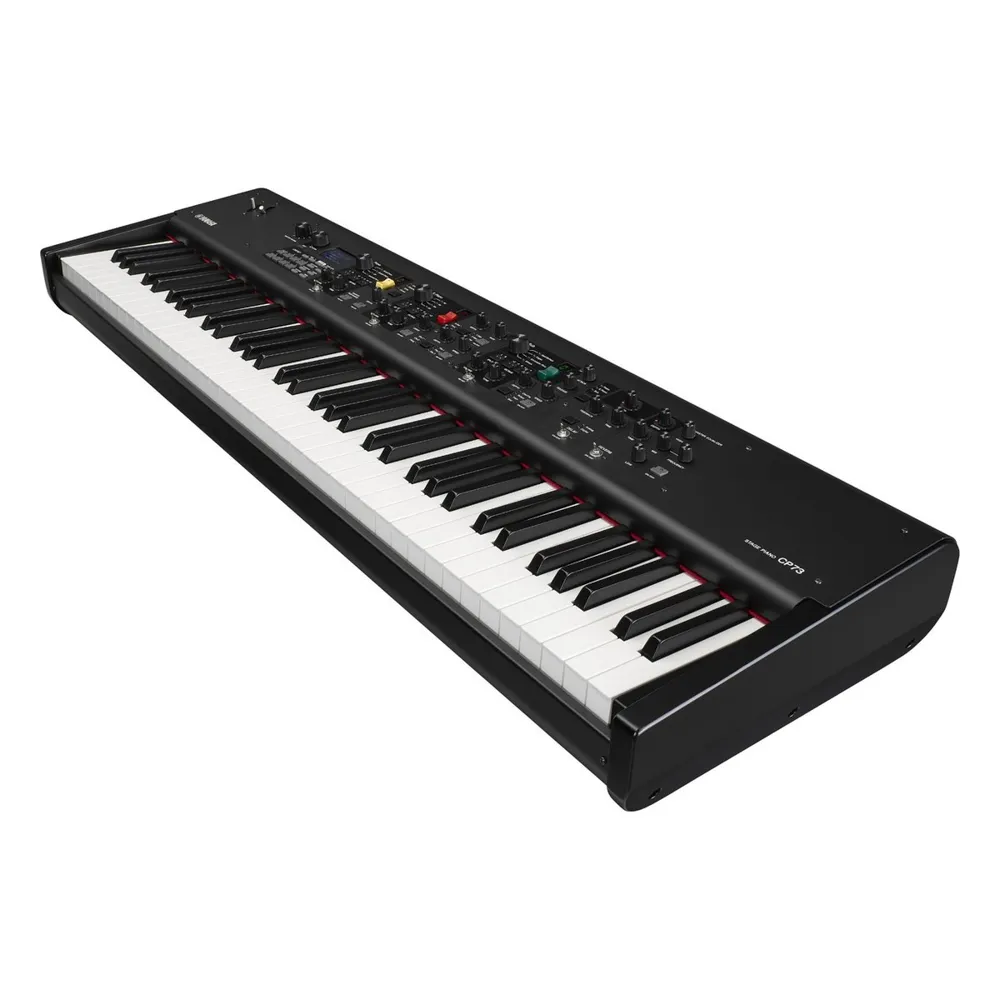

Yamaha CP73

The CP Digital Piano Series
Boasting in a legacy of outstanding, quality instruments. Powered by decades of research and development. Yamaha has maintained a reputation for outstanding craftsmanship. Launching its all-new, revolutionary stage pianos that feature some incredible digital features, while maintaining the touch and feel of the acoustic grand piano. Featuring world-class sounds of the renowned Yamaha CFX, Yamaha S700 and the Bosendorfer Imperial 290. And carefully designed with Natural Wood Graded Hammer keyboard action. The CP 73 is an ideal choice for the piano purists. As it allows you to play with the fullest expression.



Optimised For The Stage
Fully equipped with a perfect set of connectors, the CP 73 is tailor-made for stage applications. Apart from the standard 6.3 mm (1/4 inch) jack outputs, the all-new CP 73 also features balanced XLR outputs for directly connecting the instruments to mixing desks or stage boxes. What’s more. A stereo input via two 6.3 mm jacks enables the connection to additional sound sources like smartphones or another keyboard.

Natural Wood Grand Hammer Action
Perform with the fullest expression with the Yamaha CP 73. Featuring a finely tuned keyboard suitable for every performance, on any platform. The individual keys are carefully made with a springless design for the most consistent feel. While the lower register keys have more resistance that gradually becomes lighter. Serving you the natural touch and likeness of an acoustic piano. All thanks to the sensor sound receptors, the piano has the capacity to register the subtle nuances of your performance and relay them accurately to show your individual style. Perform with the fullest expression, with the CP 73.

Virtual Circuitry Modelling (VCM)
With the all-new Virtual Circuitry Modelling (VCM) your digital piano now has the capacity to re-create the sound and behaviour of vintage effects. And high-end studio signal processors. Simply, by modelling the circuits down to the original analogue component level. Explore a range of incredibly authentic sounds, all thanks to Yamaha’s innovative emulation technology.



Specifications
Dimensions
Width: 1,086 mm
Height: 144 mm
Depth: 355 mm
Weight: 13.1 kg
Keys
Number of Keys: 73
Action: Balanced Hammer Standard (BHS)
Feel: Weighted
Wheel Controls: Pitch Bend, Modulation
Part Sliders: 2
Master EQ Sliders: 3
Sounds & Effects
Tone Generating Technology: Spectral Component Modeling, AWM2
User Performances: 128 (64 x 2)
Polyphony: 128
Voices 57 Voices (10 Piano, 14 E-Piano, 33 Sub)
EffectsReverb: 11 Types
Master EQ: 3 Bands
Sounds: 160 Live-Set-Sounds (80 Presets)
Other Effects: 23 Insert Effects, 2 Delay Effects, Reverb
Connectivity
Connectors: Output [L/MONO]/[R] 6,3 mm jack, Output [L/MONO]/[R] XLR
Headphones: [PHONES] jack (stereo-phone)
Foot Switch: [SUSTAIN] and [ASSIGNABLE] FOOT SWITCH jacks
Foot Controller: 1 jack
MIDI: [IN] and [OUT] MIDI terminals
USB: [TO HOST] and [TO DEVICE] USB terminals
General
Display: 40 Characters × 2 Lines
Screen: LCD with Back-Light
Power Consumption: 8W
Includes: PA-150 AC adaptor, FC3 Foot Pedal, Owner's Manual, Online Manual CD
