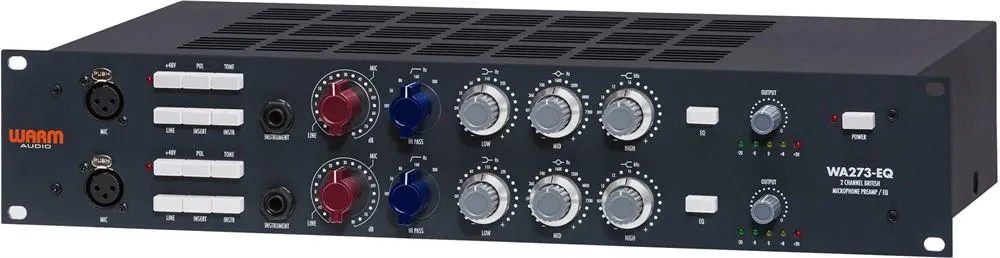

Warm Audio WA273-EQ

Warm Audio WA73-EQ – Classic '73-style British mic preamp with EQ

Experience the authentic tone of a classic '73-style British mic preamp with EQ. This hand-built and hand-wired unit is carefully designed to emulate the most sought-after characteristics of vintage preamp transformers and component selection.

Features and specifications:

Dual channel, class A, '73-style British microphone preamp with integrated EQ
Equipped with UK-made Carnhill transformers for a fluid and musical sound character
UK-made Blore Edwards dual-concentric switch potentiometers in the EQ section for high reliability and sound quality

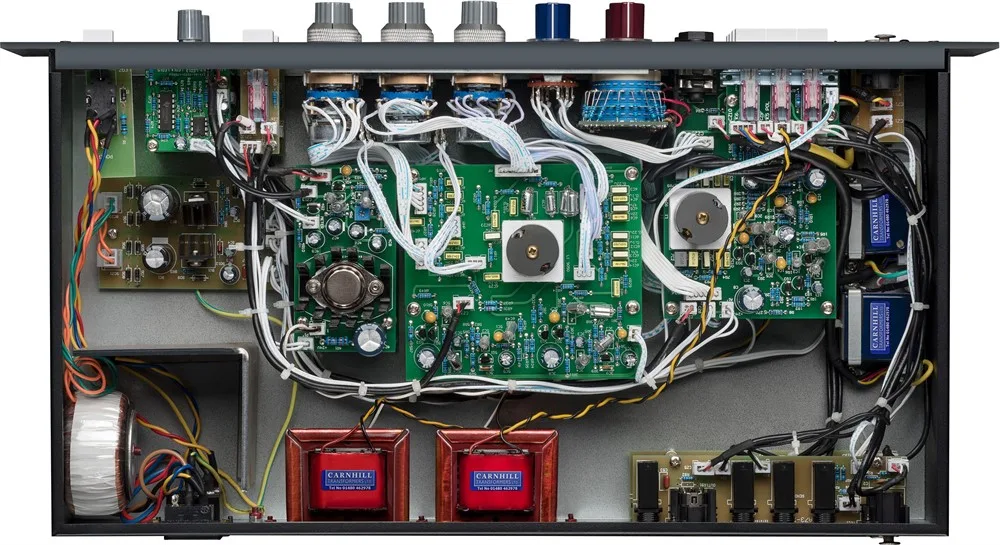

Handwired and hand-assembled construction contributes to the authentic, classic tone
80 dB gain with resistor-stepped gain switch
Fully discrete design for optimal sound quality
Tone knob adjusts input transformer impedance for varied tone color
Polarity switch for flexibility in audio recording
Inductance-based 3-band EQ with: Bass boost/cut: 35, 60, 110, 220 Hz
Mids boost/cut: 360, 700, 1600, 3200, 4800, 7200 Hz
Treble boost/cut: 10, 12, 16 kHz
Extra high-frequency EQ points compared to vintage 1073
4-position inductance-based high-pass filter: 50, 80, 160, 300 Hz

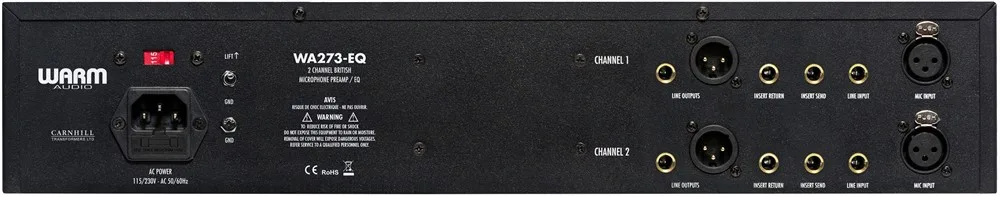

XLR microphone inputs (front and rear)
Line level TRS input
TS send/receive insert jacks for flexible signal routing
Adjustable output level with LED indicator
Frequency response: 20 Hz – 20 kHz ±0.5 dB
Hand-built for the highest quality and reliability

Experience the warm, smooth, and authentic British tone with the Warm Audio WA73-EQ—a reliable choice for professional audio producers and enthusiasts who want the best of vintage sound in a modern form.
