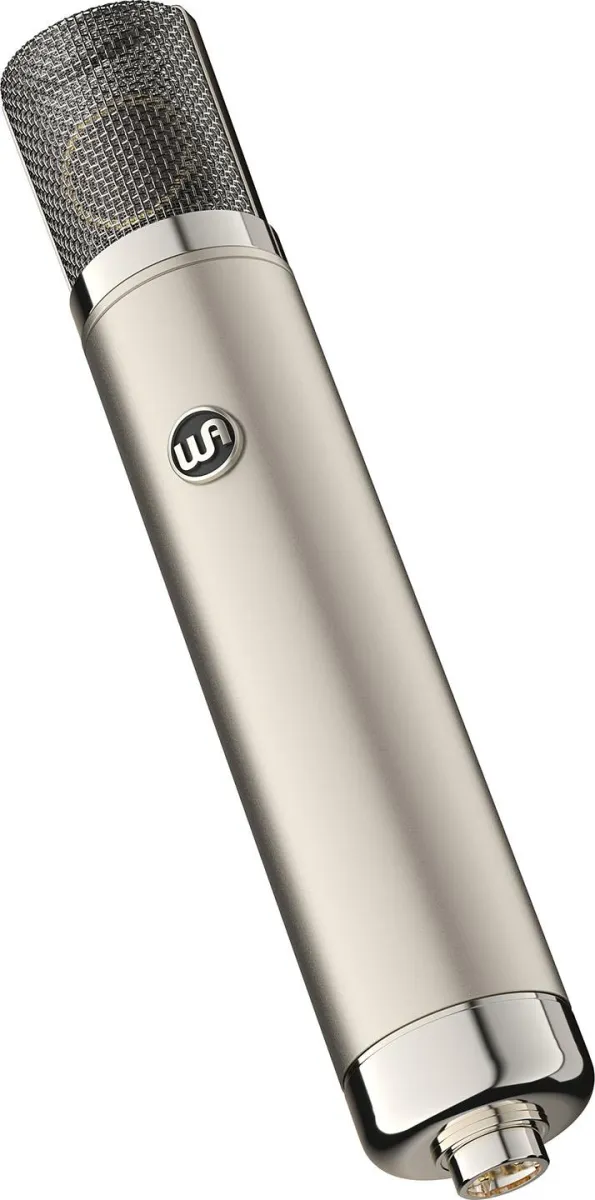

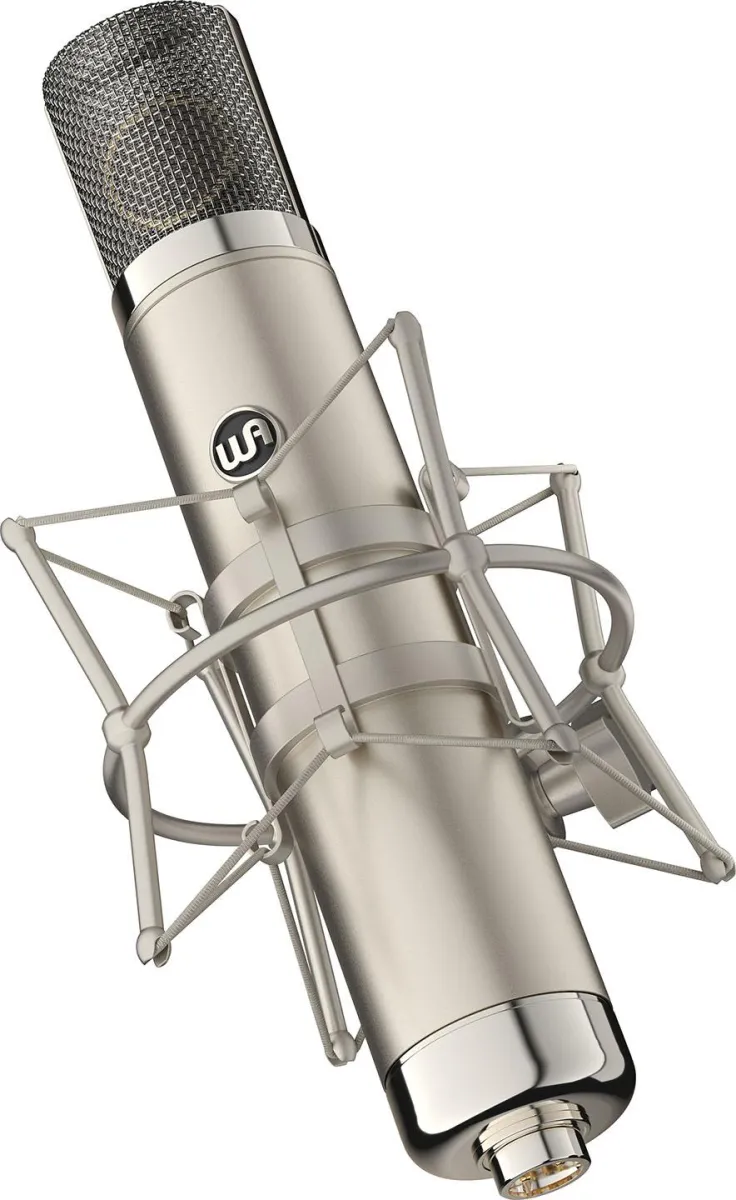

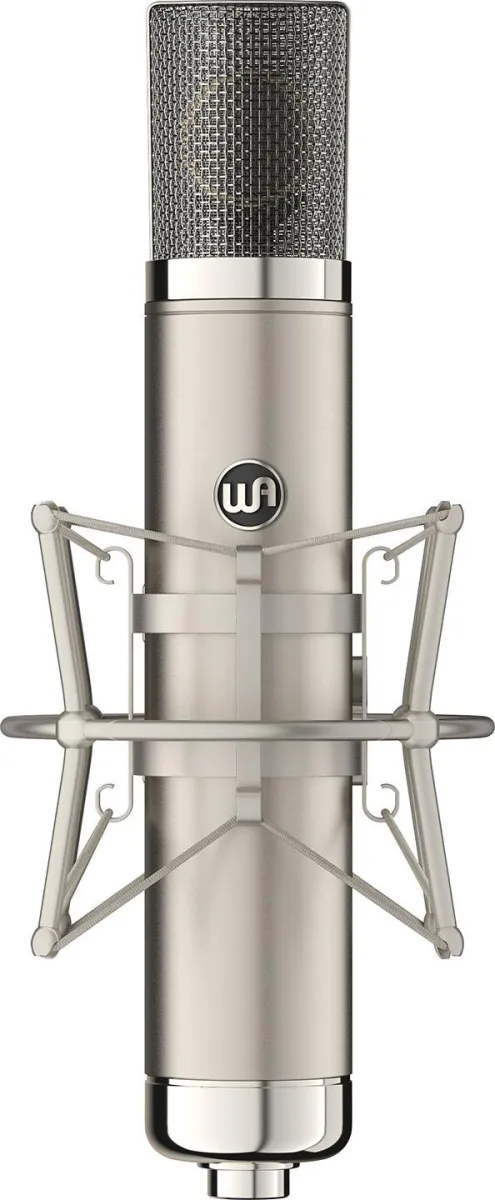

Warm Audio WA-CX12

A faithful recreation of one of the most natural and balanced tube condenser microphones of all time, the WA-CX12 captures the true sound of sources and rooms with extreme accuracy. Used over and over again by some of the world’s most recognized engineers and artists, the original microphone stands out as open, airy, and natural. Pairing the CK12-style capsule with the large-core TAB-Funkenwerk USA output transformer helps the CX12 capture musical bass, organic mids, and polished high end. With no-compromise components and elite build quality, the WA-CX12 delivers that iconic sound that no personal or professional mic locker is complete without.

Tech Specs

- Custom edge terminated, dual-backplate, all-brass vintage CK12-style capsule

- Custom TAB-Funkenwerk (AMI) USA Output Transformer

- Premium 12AY7 vacuum tube

- Premium Capacitors

- Polar Patterns: 9 Patterns - Cardioid, Omnidirectional, Figure-8, + 6 additional mixed patterns

- Signal-to-Noise Ratio: 73dB

- Power Source: External IEC grounded PSU

- Cable: Gotham 5 meter GAC-7, premium 7-pin tube microphone cable

- Total Weight: 17 lbs, Mic only: 2lbs 7oz

- Mic Dimensions: 11 ” x 2”  (29.5cm x 5cm)

Information
Condenser tube
9 Patterns
30hz - 20khz
200 ohm
Max SPL 149dB
32dBA
