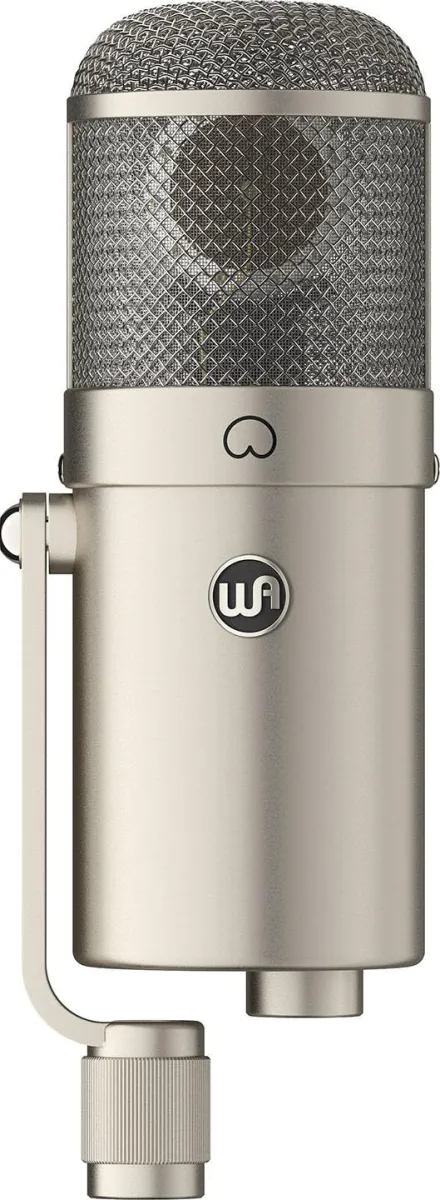

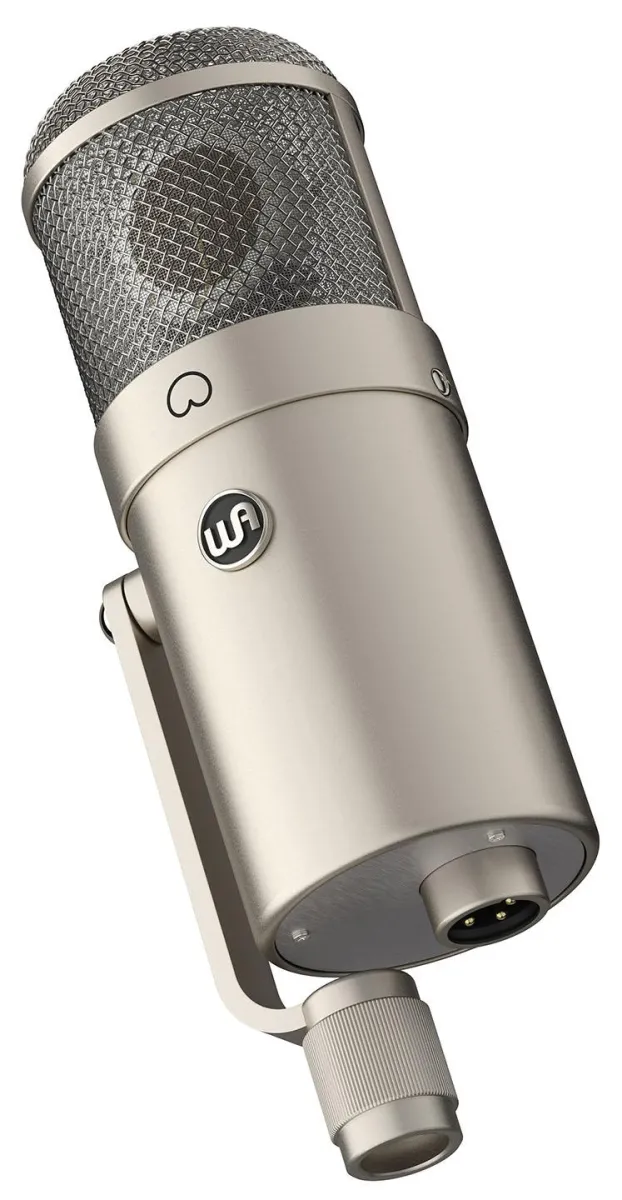

Warm Audio WA-47F

The WA-47F is a faithful recreation of an exceedingly rare, wildly popular large diaphragm FET microphone known for its ability to handle high sound pressure levels with great accuracy. With the original considered a premier choice for kick drum sounds and vocals across world class studios, the sound profile of the WA-47F faithfully recreates the expansive dynamic range, immediate transient response, and ability to render sound with meticulous detail of the original '47 FET style microphone. Premium components and elite build quality come together to make the WA-47F an ideal choice for several applications in the studio.

Tech Specs

- Gold Sputtered, Large Diaphragm, Single Backplate, K47 Style Capsule

- Custom TAB-Funkenwerk (AMI) USA Output Transformer

- Premium Fairchild Transistors

- Wima and Polystyrene Capacitors

- Rated Load Impedance: >1kOhms

- Signal-to-Noise Ratio (+ weighted): 69 dB, 76 dB-A

- EIN / Self-noise (+ weighted): 25dB, 18 dB-A

- Total Weight: 3.5lbs, Mic only: 2lbs

- Mic Dimensions: 8” x 2.75” (20.3cm x 7cm)

Information
FET
Cardioid
40hz - 16khz
150 ohm
Max SPL 147dB with 10dB pad
18dBA
-10db Pad
140Hz low-cut
