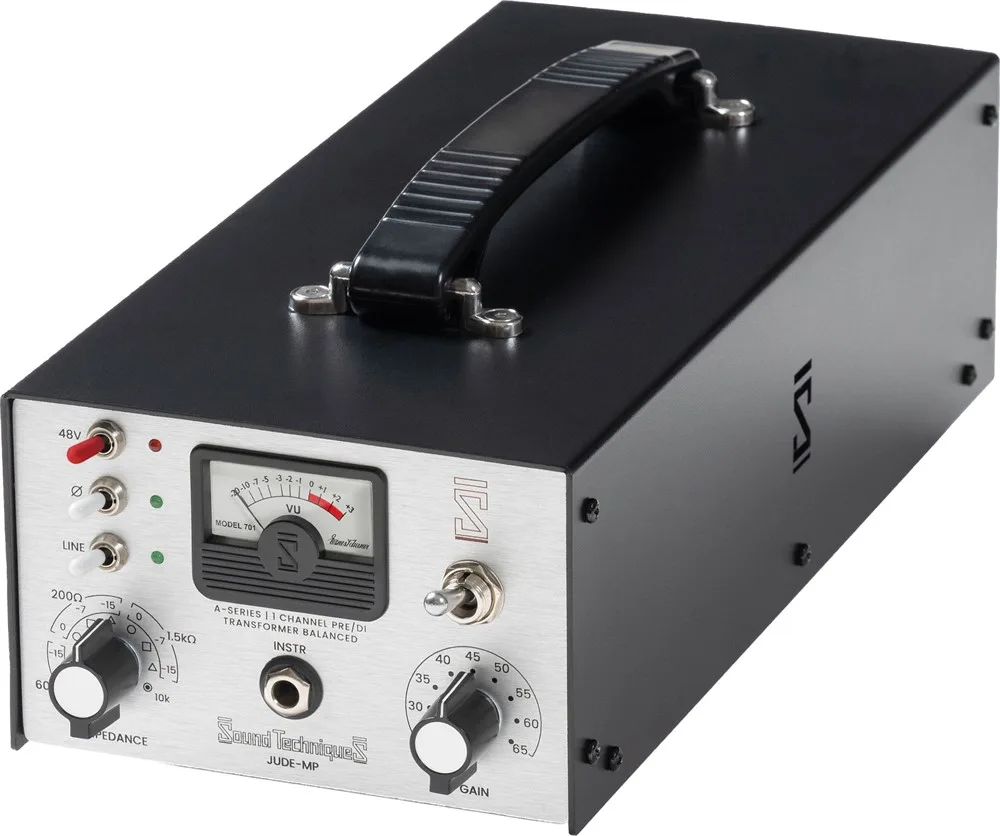

Warm Audio JUDE-MP

The Warm Audio Jude-MP is a single-channel console microphone preamp created in official collaboration with Sound Techniques. It recreates the original A-Range preamp circuit used in the legendary Trident Studios consoles, bringing its distinctive British console character to modern recording setups.

Developed from original schematics by Sound Techniques engineer Geoff Frost, the Jude-MP preserves the discrete signal path of the original design, including a dual-discrete 3035 Class-A amplifier and custom-wound CineMag USA transformers. Audio-grade Wima and Nichicon capacitors, carbon resistors and a carefully hand-wired layout complete the console-inspired design.

The 9-position Z-Match impedance control is derived directly from the original Sound Techniques circuit and allows the input impedance to be optimized for different microphones. By changing the interaction between microphone and preamp, it provides a wide range of gain, response and tonal character.

Variable microphone input impedance settings of 60 Ω, 200 Ω and 1.5 kΩ combine with up to 76 dB of preamp gain for flexible recording applications. Additional controls include 48V phantom power, polarity switching and a line-level input mode, while the VU meter provides clear level indication.

Features
Single-Channel Console Microphone Preamp
Official Sound Techniques Collaboration
Original Trident Studios A-Range Circuit
Dual-Discrete 3035 Class-A Amplifier
Custom-Wound CineMag USA Transformers
9-Position Z-Match Impedance Control
Variable Microphone Input Impedance
Up To 76 dB Preamp Gain
48V Phantom Power
Polarity Switch
Line-Level Input Switch
VU Meter Level Indication
Audio-Grade Wima And Nichicon Capacitors
5-Year Warranty

Specifications
Preamp Gain: 65–76 dB (40 Ω Source Impedance)
Input Impedance: 60 Ω / 200 Ω / 1.5 kΩ
Input Transformer: Custom-Wound 3-Impedance CineMag
Output Transformer: Custom-Wound High-Purity Nickel CineMag
EIN: -128 dBu (A-Weighted)
Self-Noise: -99 dBu (A-Weighted)
THD: 0.008%
Frequency Response: 10 Hz–25 kHz (±2 dB)

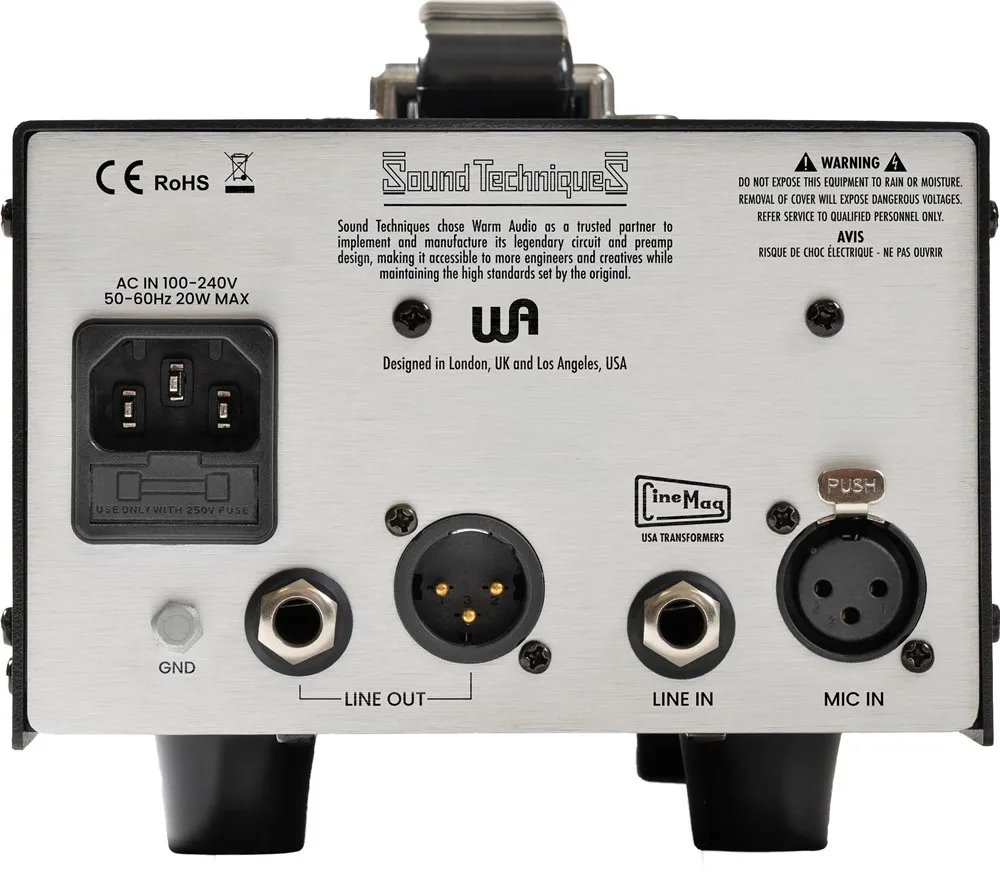

Inputs: XLR Microphone, 6.3 mm TS/TRS
Outputs: XLR, 6.3 mm TRS Line Level
Controls: Z-Match, Gain, VU Metering
Power: 48V Phantom Power

Construction
Faceplate: Aluminum
Chassis: Steel
Circuit Design: Dual-Discrete, Class A
