Warm Audio C1-MOD

The Warm Audio WA-C1 Chorus Vibrato Mod is a compact, fully analog stereo chorus and vibrato pedal based on a celebrated vintage all-analog modulation circuit. It combines authentic analog tone with modern controls and a pedalboard-friendly enclosure.

The WA-C1 Mod features a 100% analog preamp with selectable Vintage and Modern modes. The preamp can be bypassed in Modern mode, making the pedal suitable for setups where precise gain staging is required. A rear-panel impedance switch provides either the vintage 50 kOhm input impedance or a 1.1 MOhm Hi-Z setting for passive string instruments.

The chorus section uses a modern recreation of the MN3007 Bucket Brigade Device chip and provides separate Depth and Rate controls. This expands the range beyond vintage designs while retaining the characteristic lush, detailed modulation of an analog BBD chorus.

The vibrato section provides separate Depth and Rate controls for rich, three-dimensional modulation. A flashing LED indicates the selected effect and modulation rate, while stereo wet/dry outputs provide flexible integration into pedalboards and other setups.

The circuit uses premium components and an internal dual DC-DC voltage converter for robust internal voltage operation from an external 9 V power supply. Top-mounted jacks and a compact enclosure make the WA-C1 Mod easy to integrate into pedalboards.

Features
100% Analog Stereo Chorus And Vibrato
Compact Pedalboard-Friendly Design
Bypassable Analog Preamp
Vintage And Modern Preamp Modes
Separate Chorus Depth And Rate Controls
Separate Vibrato Depth And Rate Controls
MN3007 BBD Chip Recreation
Selectable 50 kOhm And 1.1 MOhm Hi-Z Input Impedance
Wet/Dry Stereo Outputs
High/Low Input Sensitivity
Flashing Effect Monitoring LED

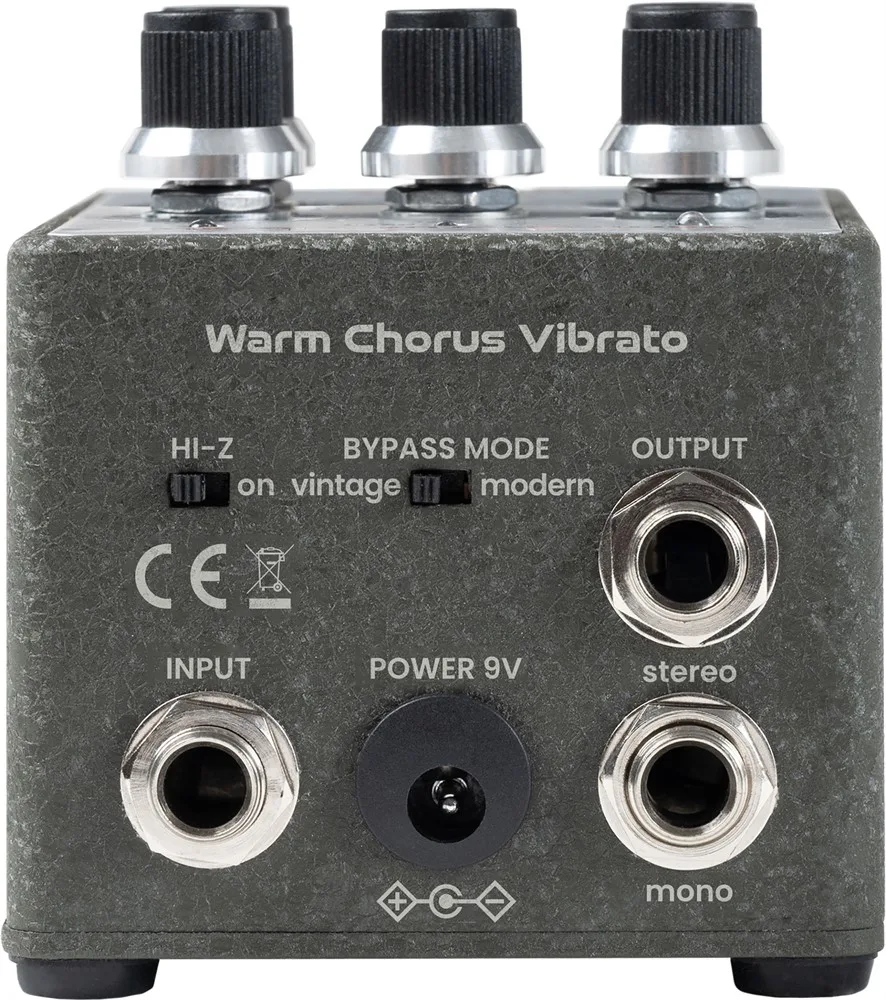

Top-Mounted Jacks
Dual DC-DC Voltage Converter
Premium Analog Components

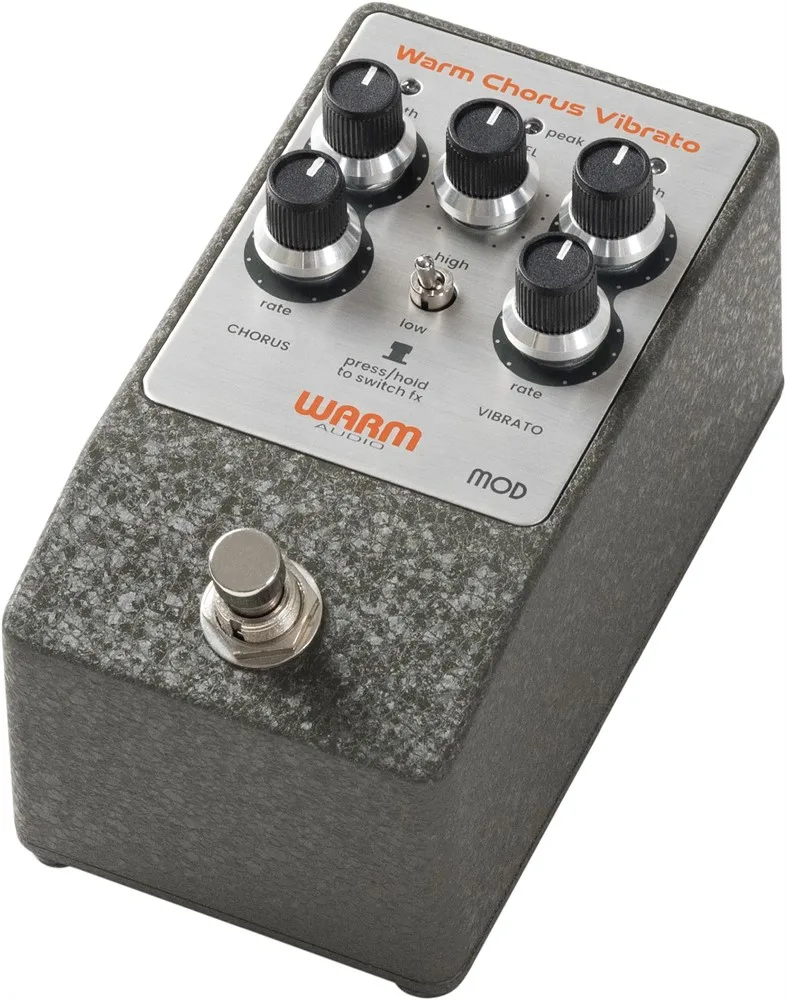

Controls
High/Low Input Sensitivity
Preamp Level
Chorus Depth
Chorus Rate
Vibrato Depth
Vibrato Rate
Effect On/Off
Chorus/Vibrato Switch
Vintage/Modern Preamp Switch
Hi-Z On/Off

Specifications
Type: Analog Stereo Chorus And Vibrato Pedal
Circuit: 100% Analog
Input Impedance: 50 kOhm / 1.1 MOhm Hi-Z
Power Consumption: 800 mW
Current Consumption: 200 mA At 9 V
Input Sensitivity: 80 mV / 10 mV
Output Level: 315 mV
Inputs: 1
Outputs: 2
ICs: 5, Including 3 Texas Instruments Premium Audio Op Amps
Discrete Transistors: 11
FETs: 3
Diodes: 19
MOSFETs: 2
BBD: MN3007 Chip Recreation

Dimensions & Weight
Dimensions: 7.1 × 11.4 × 6.1 cm
Weight: 0.45 kg
